Sanitary water treatment milk beverage liquid filtration single multiple stainless steel bag filter housing
- Category: Other Industrial Filtration Equipment >>>
- Supplier: Wenzhou Leno Machinery Co. Ltd.
Share on (62011771785):
Product Overview
Description
Bag filter housings provide an effective and efficient method for liquid filtration. They are designed to withstand high pressure and flow rates and are constructed from materials that are compatible with a range of fluids and gases. Bag filter housings come in various sizes and types, such as single bag and multi-bag housings, which can be chosen based on the specific application requirements. Bag filters are also available in different micron ratings, which determine the size of the particles that can be filtered out.
Products Description
material | SS304 or SS316L | ||||
Capacity | 0-300T/H (Customized) | ||||
Working Pressure | 0-5bar | ||||
Design pressure | 10bar | ||||
Connection type | FLANGE | CLAMP | UNION | ||
bag cartridges material | PP | PE | nylon | ||
O-ring | SILICON | EPDM | PTFE | ||
bag cartridges micron | 0.22micron-1000micron | ||||
bag types | 1#,2#,3#,4#,5# | ||||

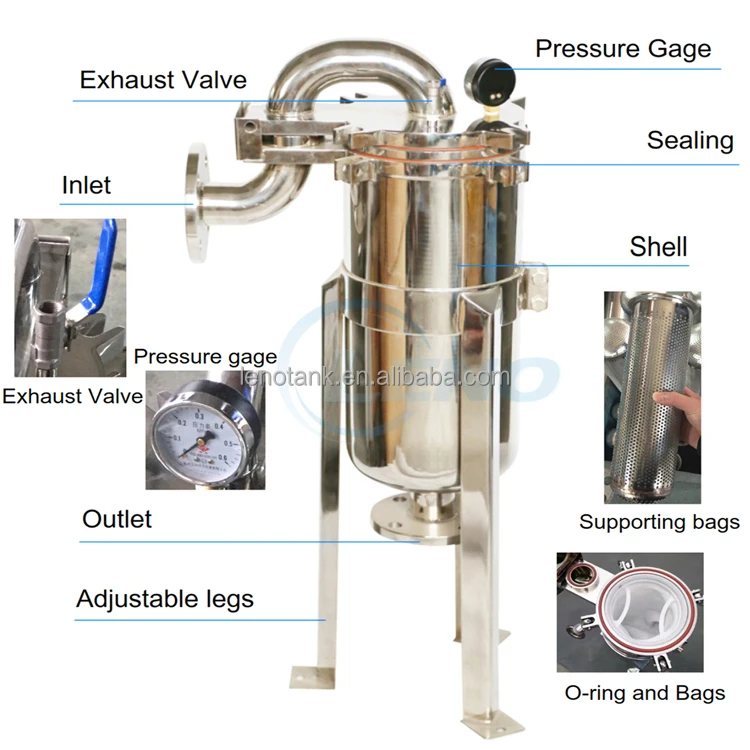

PARTS DETAILS | 1.Inlet outlet Clamp type | ||||
2.drain valve | |||||
3.exhaust valve | |||||
4.pressure gage | |||||
5.Adjustable Legs | |||||
Some common applications of bag filter housings include:
1. Water treatment: Bag filter housings are used in water treatment plants to hold and support bag filters used for removing sediment, particles, and other impurities from drinking water.
2. Chemical and petrochemical industry: Bag filter housings are used for holding and supporting bag filters used for removing impurities and contaminants from chemicals and petrochemicals.
3. Food and beverage industry: Bag filter housings are used for holding and supporting bag filters used for filtering liquids
used in the production of food and beverages, such as wine, beer, and dairy products.
4. Pharmaceutical industry: Bag filter housings are used for holding and supporting bag filters used for removing impurities from pharmaceutical products, such as vaccines, medicines, and biopharmaceuticals.
5. Electronics industry: Bag filter housings are used for holding and supporting bag filters used for filtering liquids used in
the electronics industry, such as chemicals used in the production of semiconductors.
6. Automotive industry: Bag filter housings are used for holding and supporting bag filters used for filtering oil and other
fluids in automotive engines and hydraulic systems.
1. Water treatment: Bag filter housings are used in water treatment plants to hold and support bag filters used for removing sediment, particles, and other impurities from drinking water.
2. Chemical and petrochemical industry: Bag filter housings are used for holding and supporting bag filters used for removing impurities and contaminants from chemicals and petrochemicals.
3. Food and beverage industry: Bag filter housings are used for holding and supporting bag filters used for filtering liquids
used in the production of food and beverages, such as wine, beer, and dairy products.
4. Pharmaceutical industry: Bag filter housings are used for holding and supporting bag filters used for removing impurities from pharmaceutical products, such as vaccines, medicines, and biopharmaceuticals.
5. Electronics industry: Bag filter housings are used for holding and supporting bag filters used for filtering liquids used in
the electronics industry, such as chemicals used in the production of semiconductors.
6. Automotive industry: Bag filter housings are used for holding and supporting bag filters used for filtering oil and other
fluids in automotive engines and hydraulic systems.
Product Parameters
Technical Parameters | ||||||||||
Model | Diameter | Thickness(mm) | Inlet outlet(mm) | capacity(T/H) | filter areas(m²) | |||||
LNF-1P-1S | 219 | 2 | 51mm | 20 | 0.25 | |||||
LNT-1P-2S | 219 | 2 | 51mm | 40 | 0.5 | |||||
LNT-1P-3S | 133 | 2 | 32mm | 5 | 0.1 | |||||
LNT-1P-4S | 133 | 2 | 25mm | 12 | 0.15 | |||||
LNT-2P-1S | 400 | 3 | 51mm | 40 | 0.5 | |||||
LNT-2P-2S | 400 | 3 | 51mm | 80 | 1 | |||||
LNT-3P-1S | 450 | 3 | 80mm | 60 | 0.75 | |||||
LNT-3P-2S | 450 | 3 | 80mm | 120 | 1.5 | |||||
LNT-4P-1S | 550 | 4 | 100mm | 80 | 1 | |||||
LNT-4P-2S | 550 | 4 | 100mm | 160 | 2 | |||||
LNT-5P-2S | 600 | 4 | 125mm | 200 | 2.5 | |||||
LNT-6P-2S | 700 | 4 | 125mm | 240 | 3 | |||||
LNT-8P-2S | 800 | 4 | 150mm | 320 | 4 | |||||
We can customize the equipment according to customers' requirment. | ||||||||||

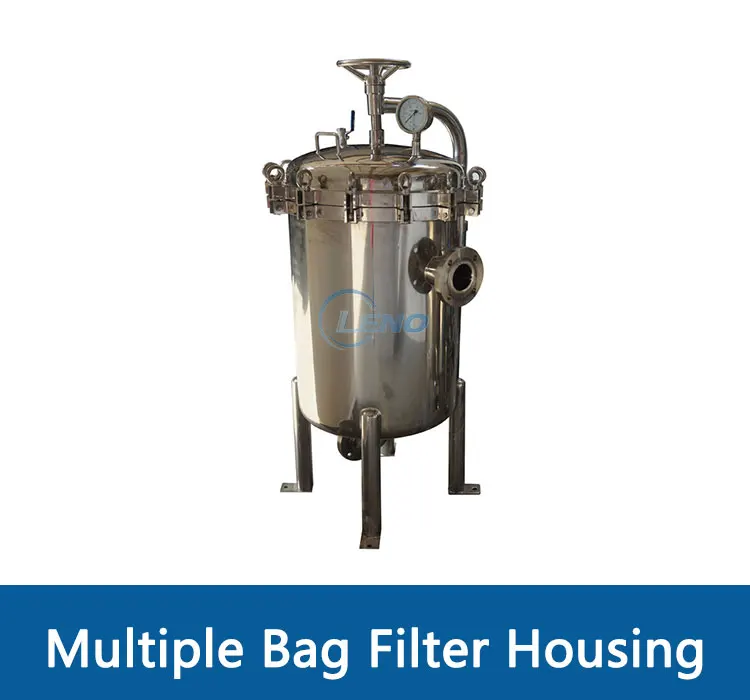

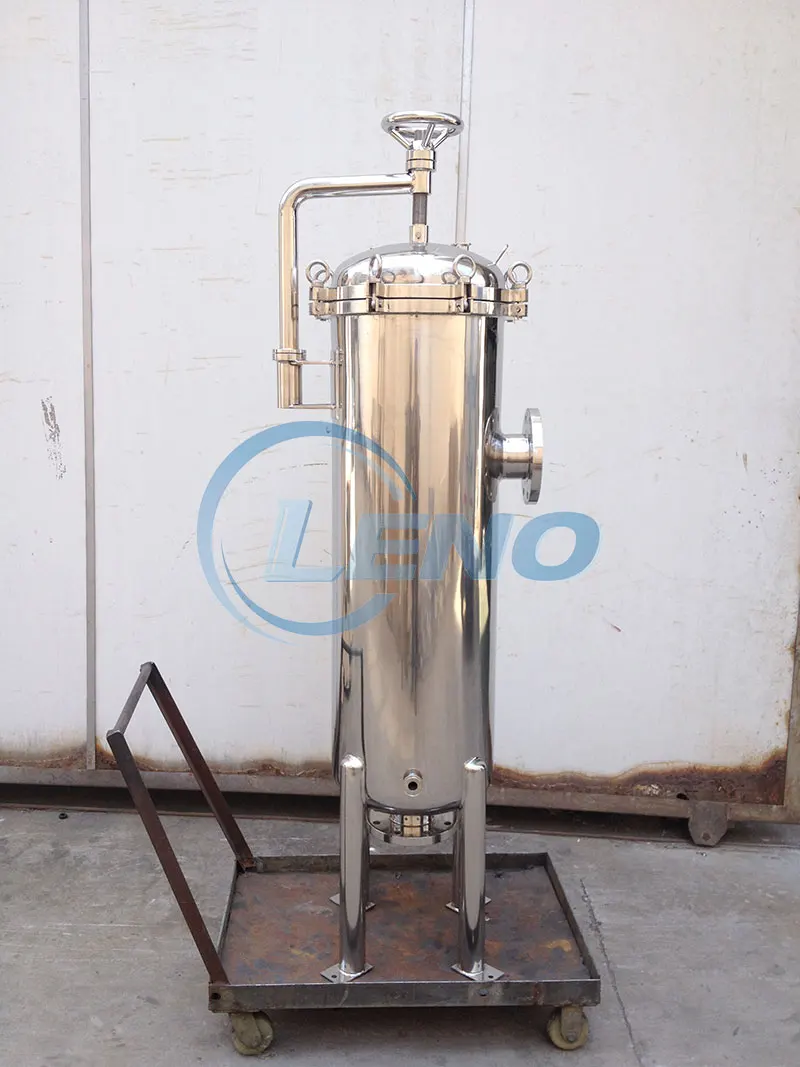

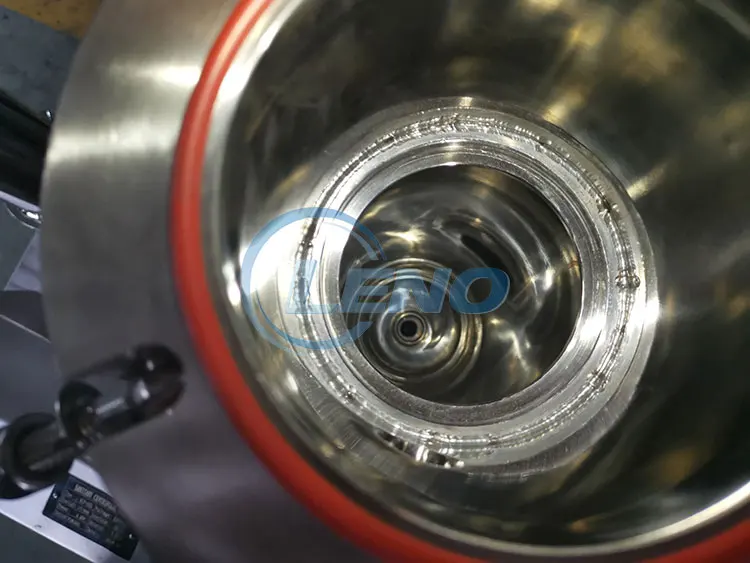

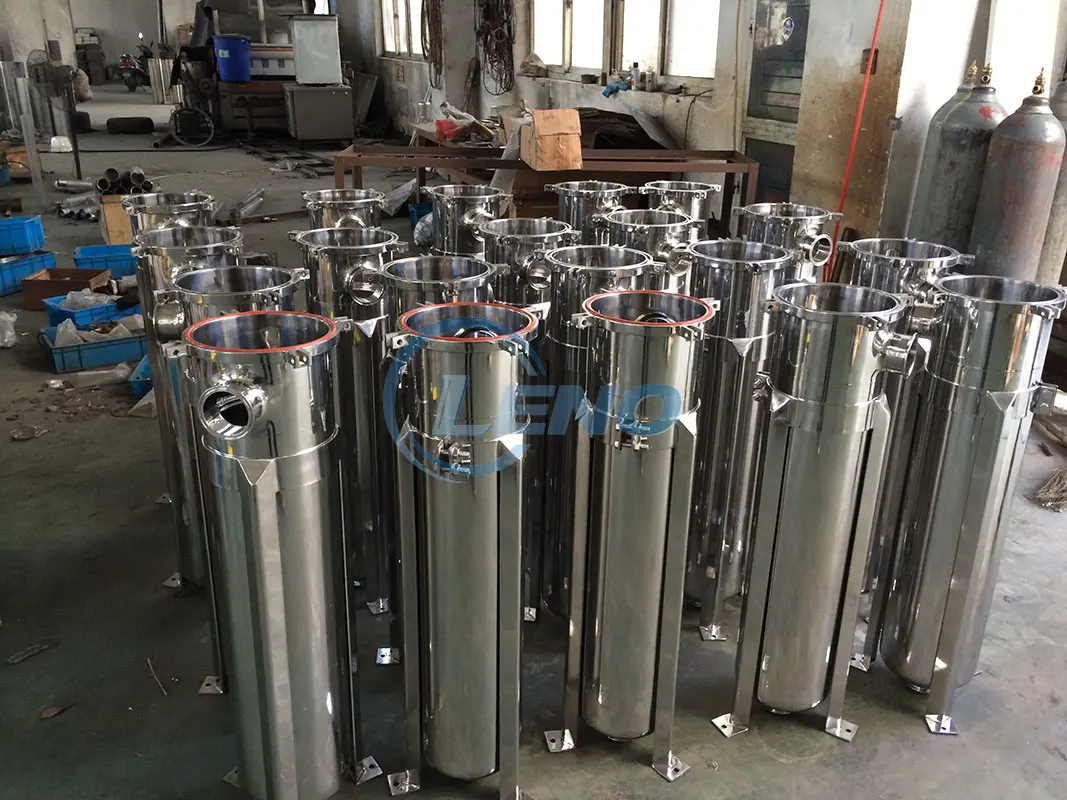

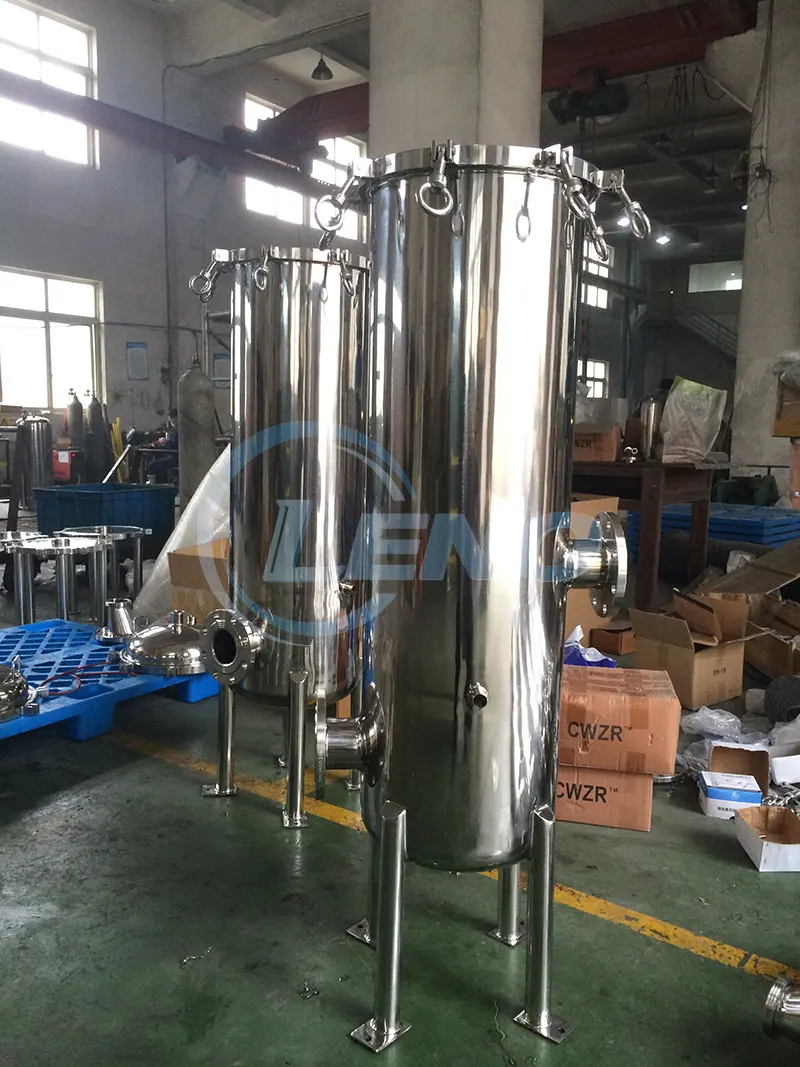

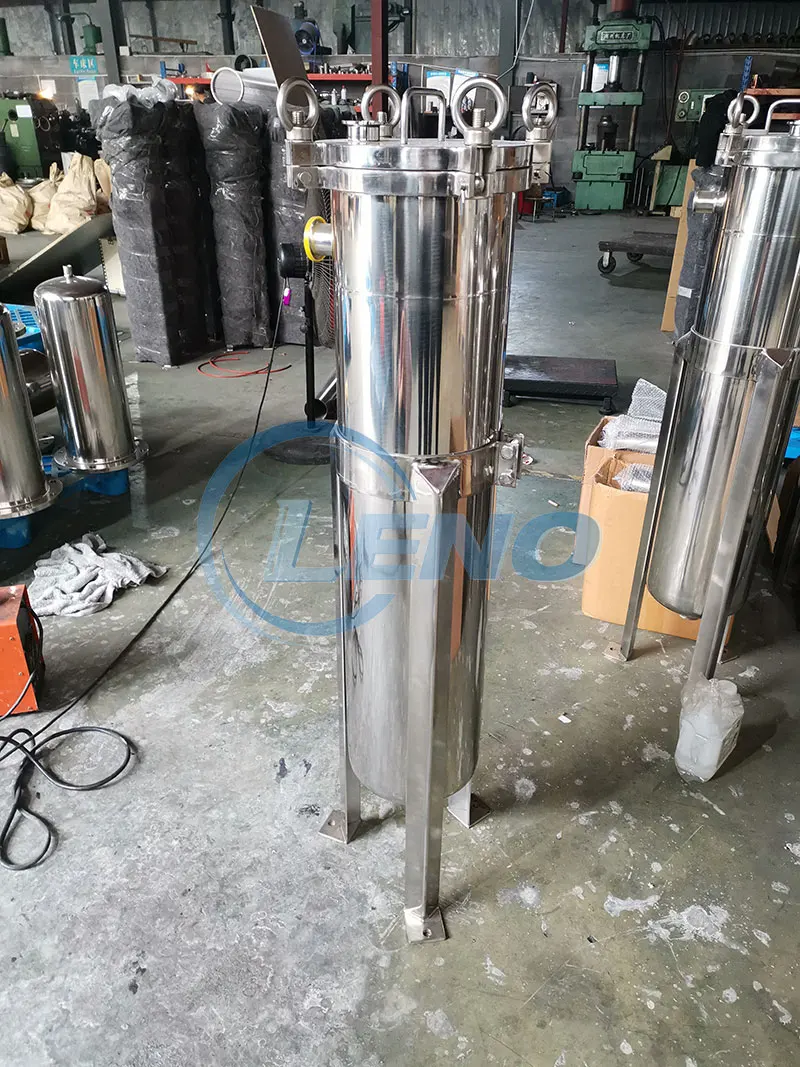

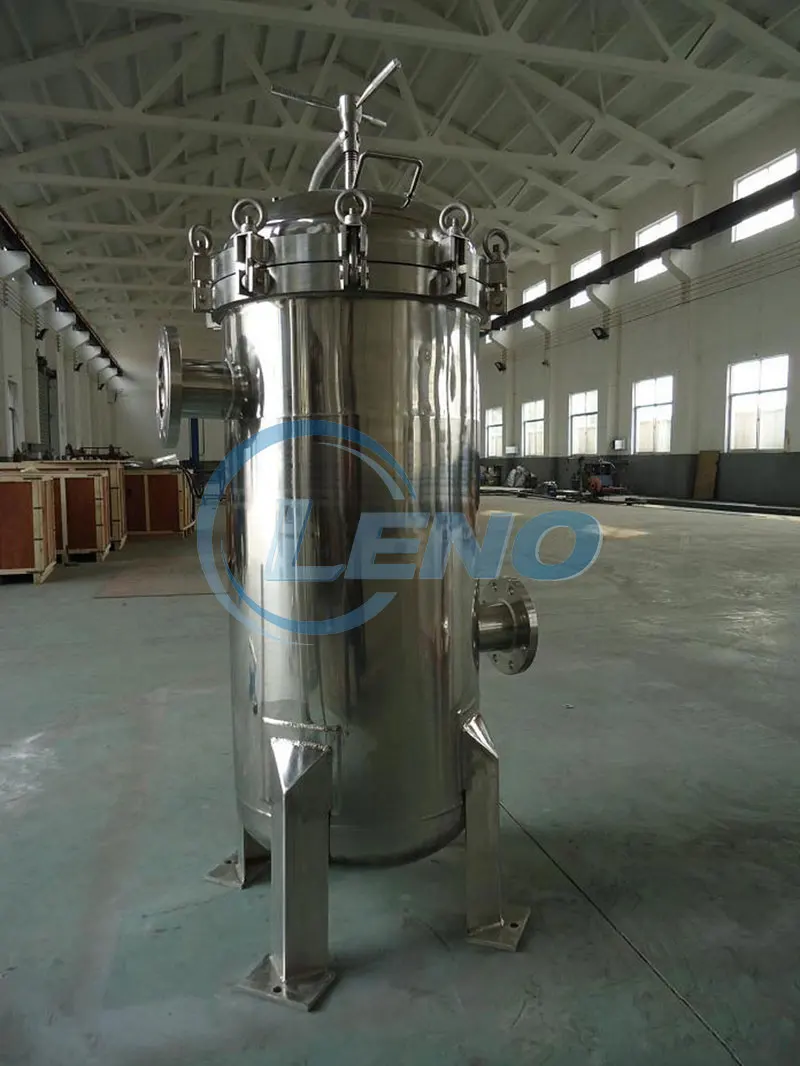

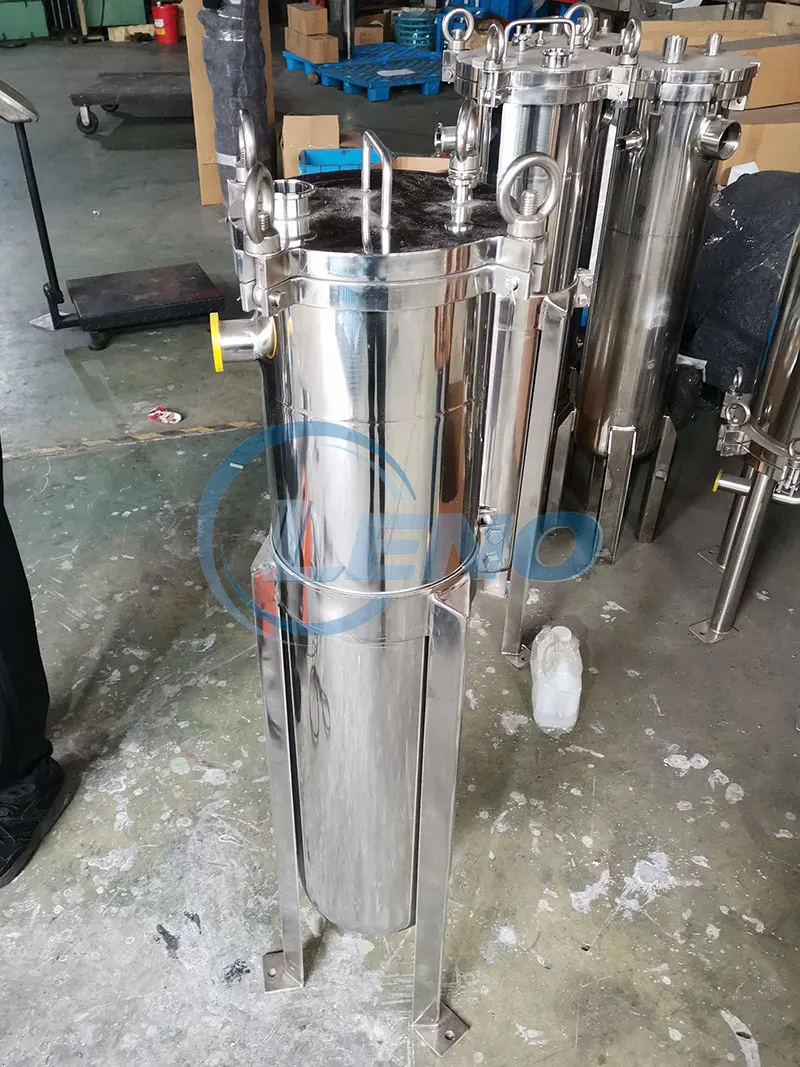

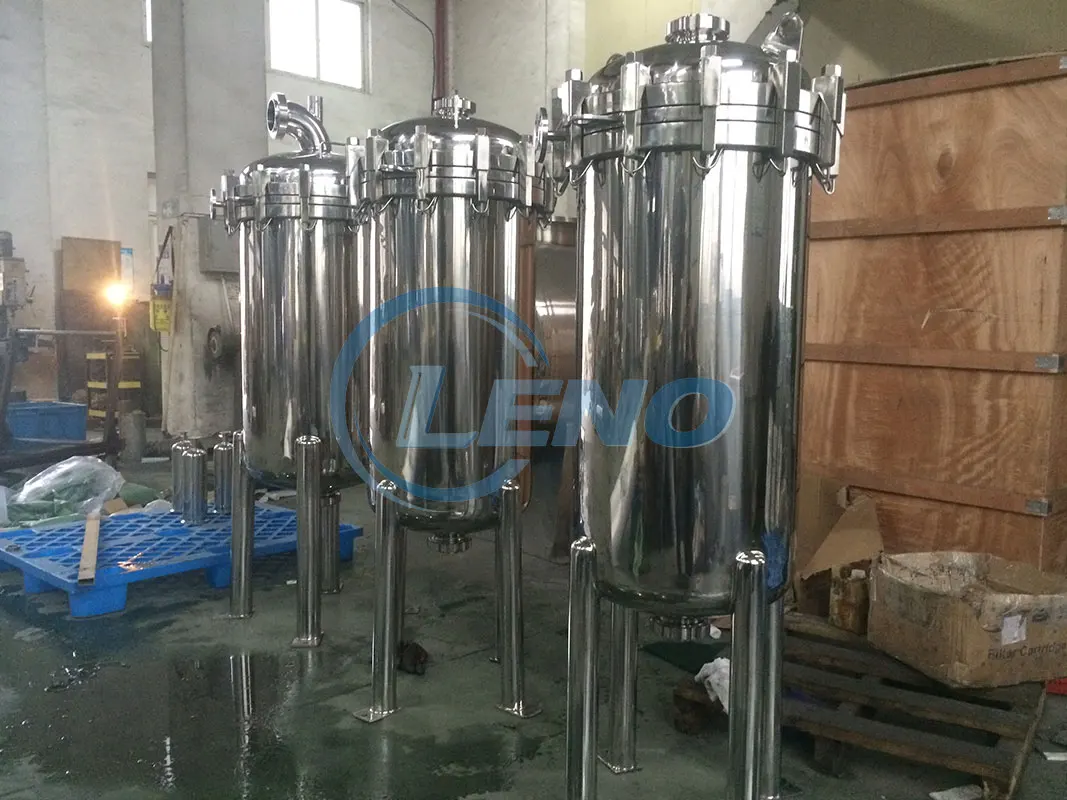

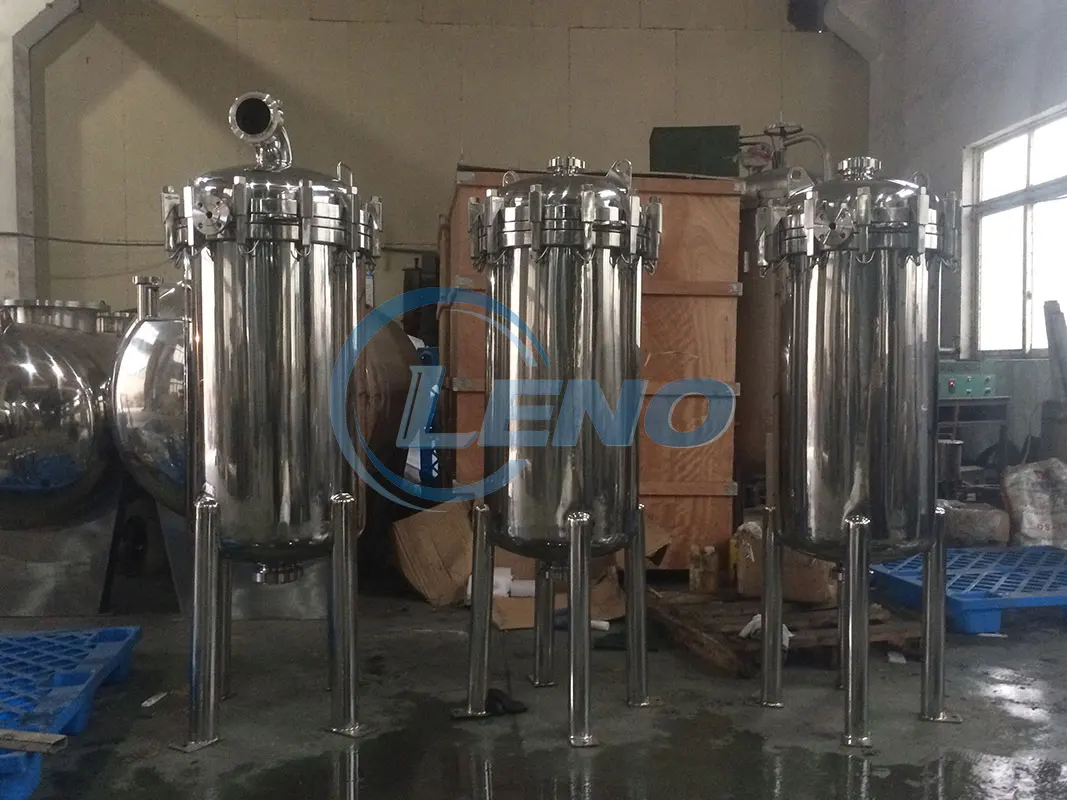

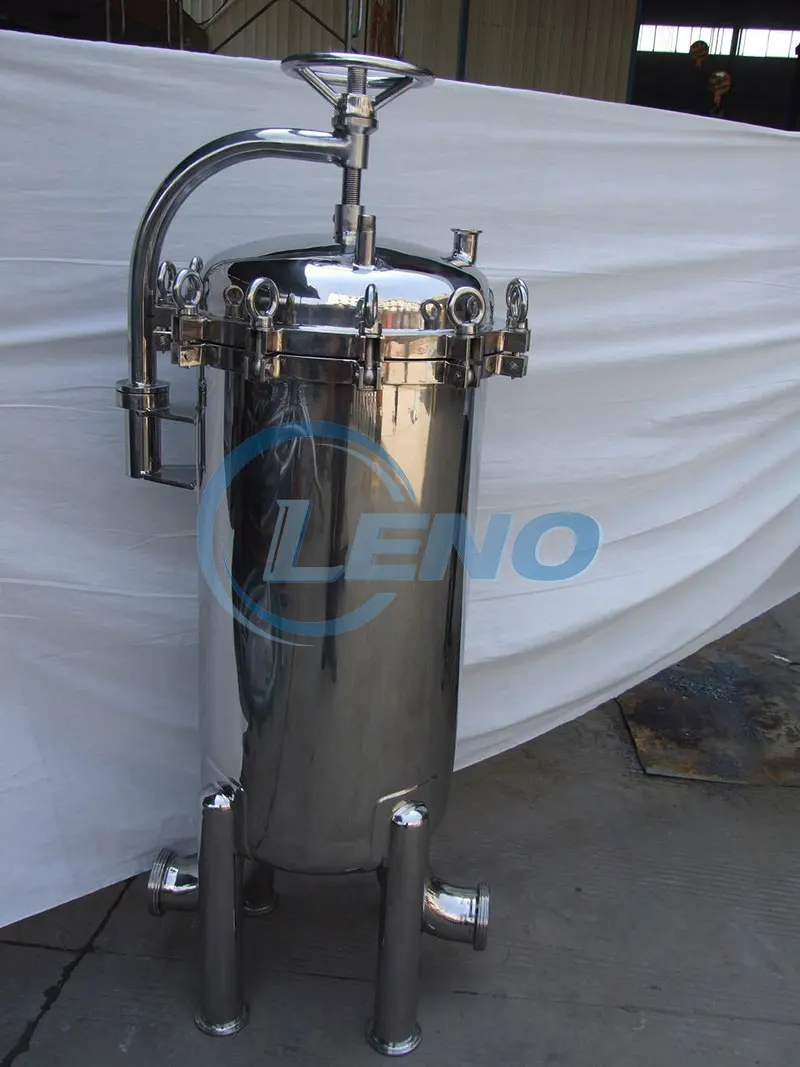

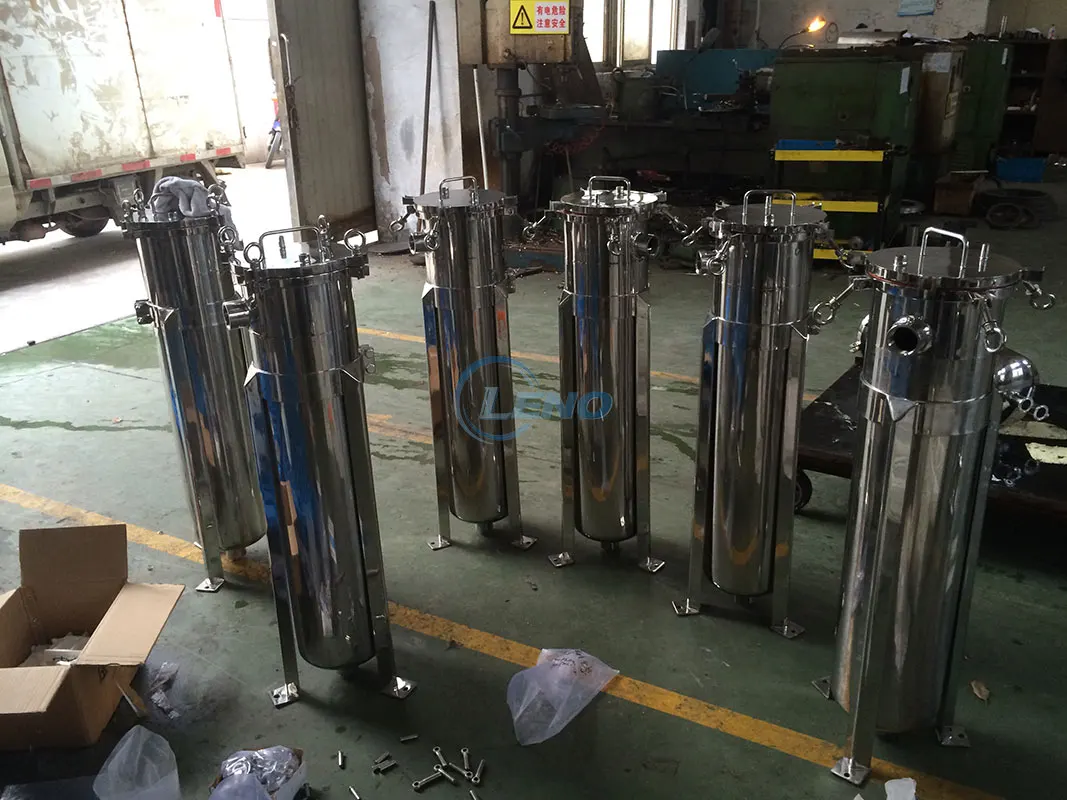

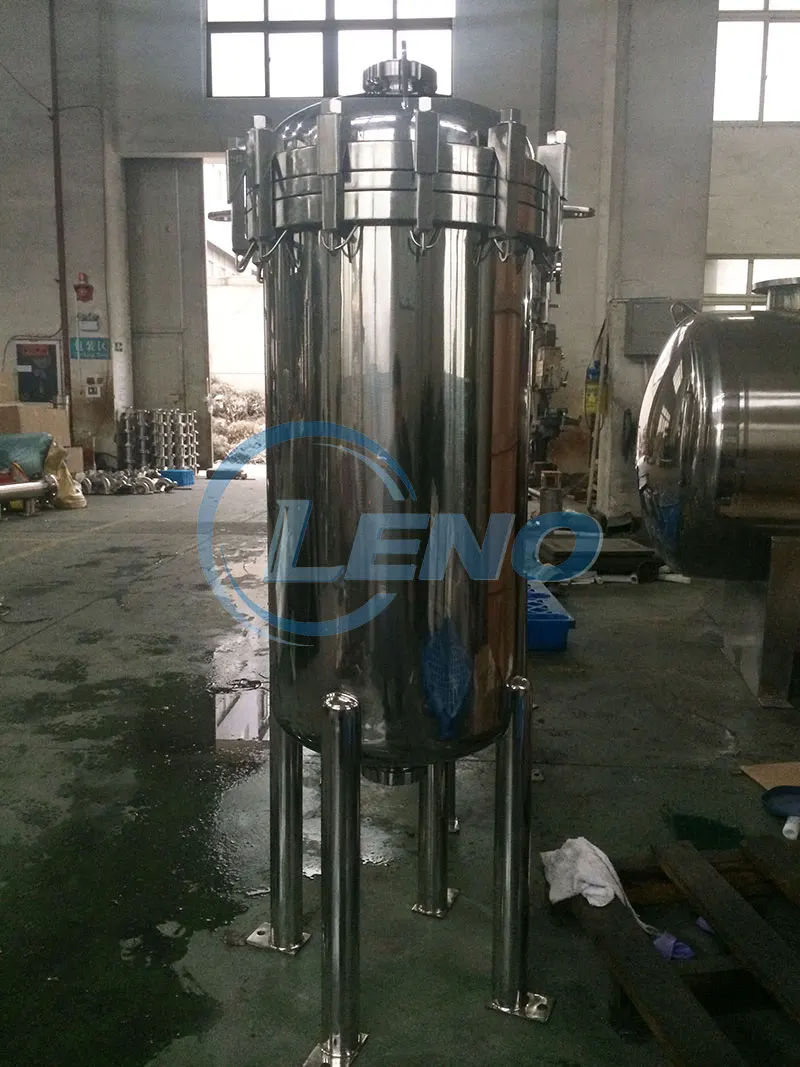

Product Image

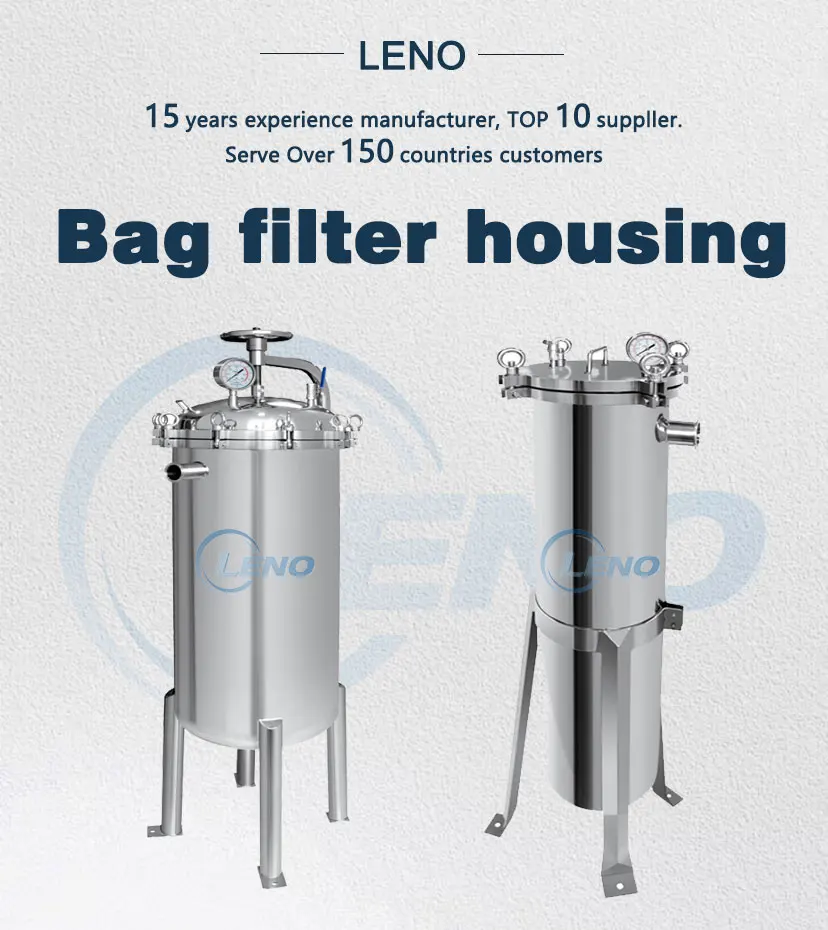

WHY CHOOSE LENO BAG FILTER HOUSING

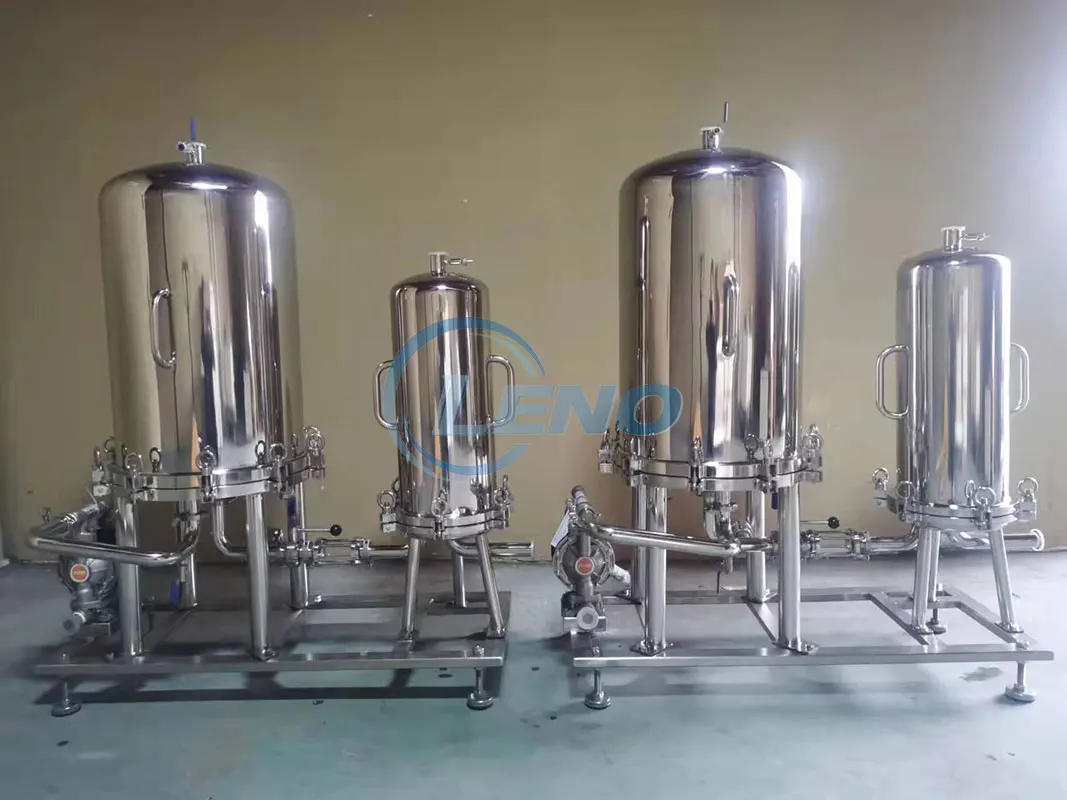

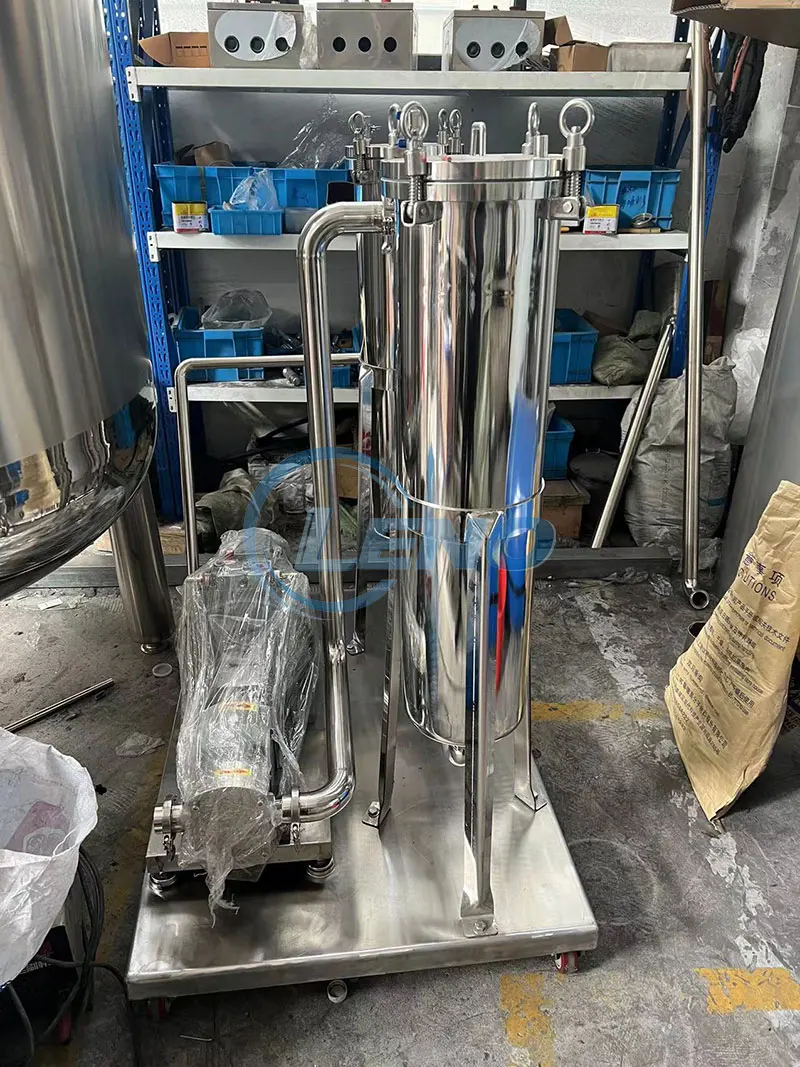

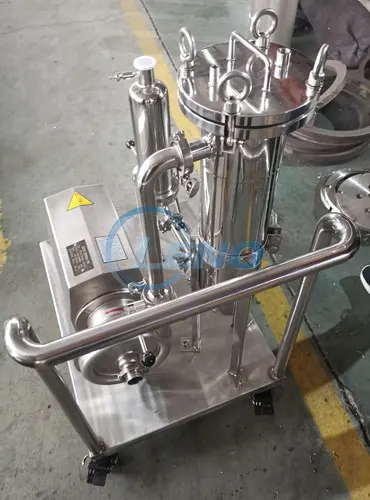

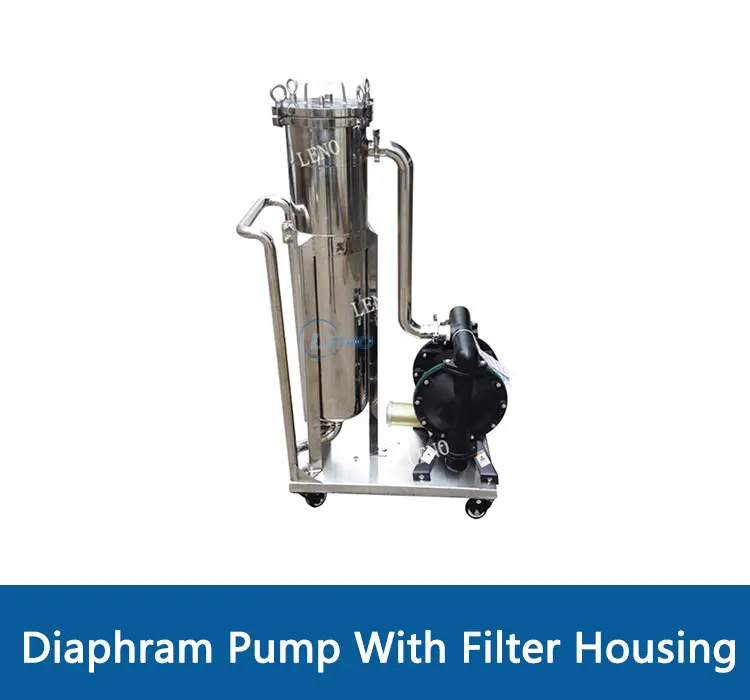

1:LENO Bag filter housing can be equipped with pump, and other filter housing Combo.

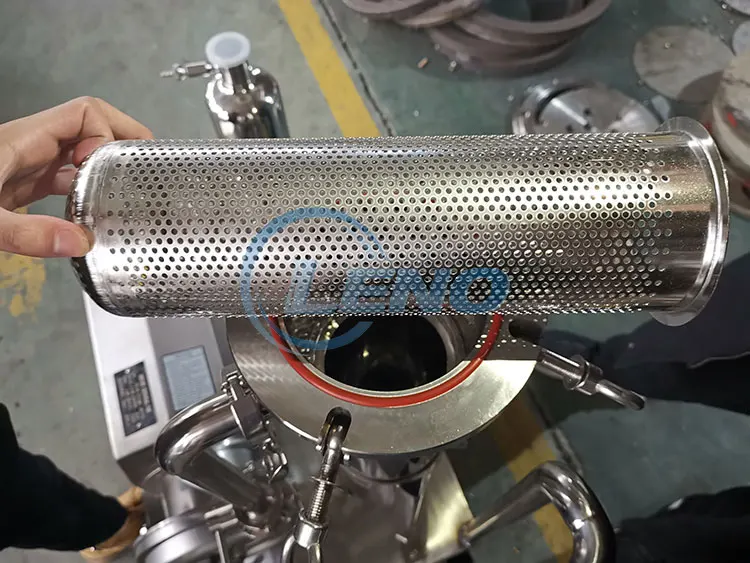

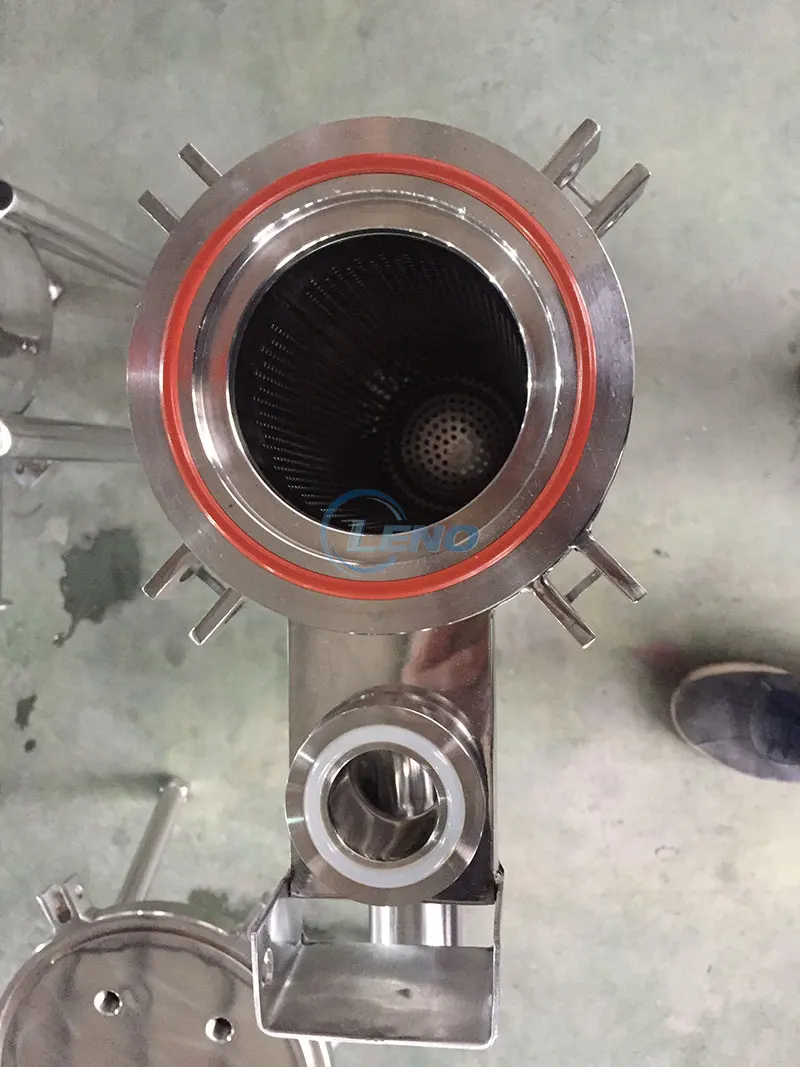

2:LENO Bag filter housing often include a support basket or perforated plate inside the housing to provide structural support for the filter bags.
3:LENO Bag filter housing have a removable lid or cover that provides access to the filter bags for maintenance, replacement, or cleaning. The lid is typically secured with clamps or bolts to ensure a tight seal and prevent leakage.
4:LENO Bag filter housing include drain and vent connections to facilitate draining of liquids or purging of gases during maintenance or filter bag changeouts.
5:LENO Bag filter housing can work with different connection ,such as tri-Clamp, Flange, threaded type.
6:LENO Bag filter housing can provide different sealings,Silicon, EPDM, PTFE.
7:LENO Bag filter housing consist of the Drain valve, Pressure Valve.
8:LENO Bag filter housing Bag filter housings can hold multiple filter bags simultaneously, allowing for higher filtration capacities and extended service
life. The number of bags the housing can accommodate depends on the housing size and design.
life. The number of bags the housing can accommodate depends on the housing size and design.

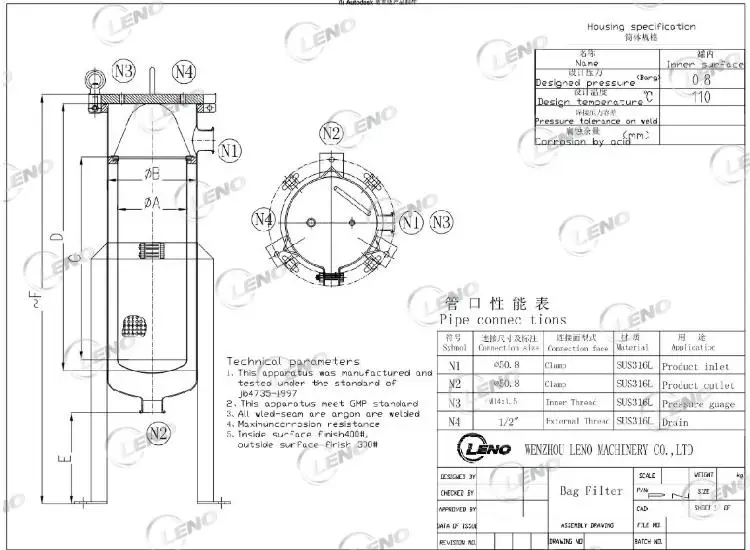

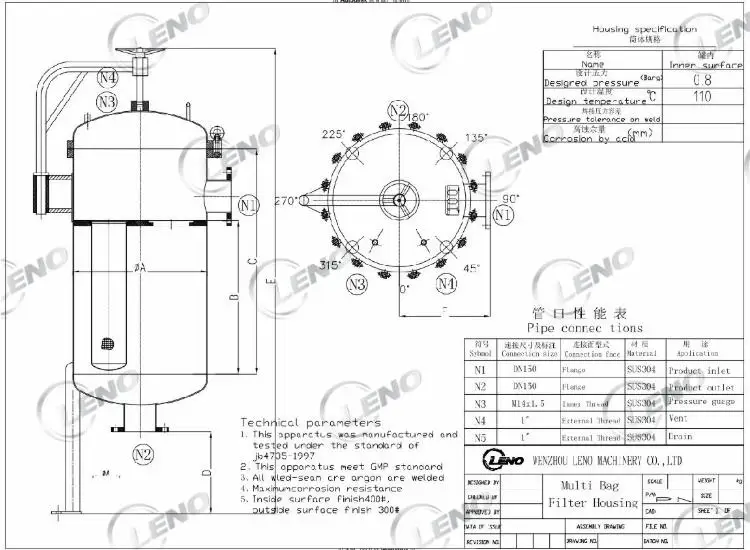

8:LENO Bag filter housing can provide the drawing to meet customer's requirement.
IF you want to know more details of the Bag filter housing,feel free to contact me.
Recommend Related Products

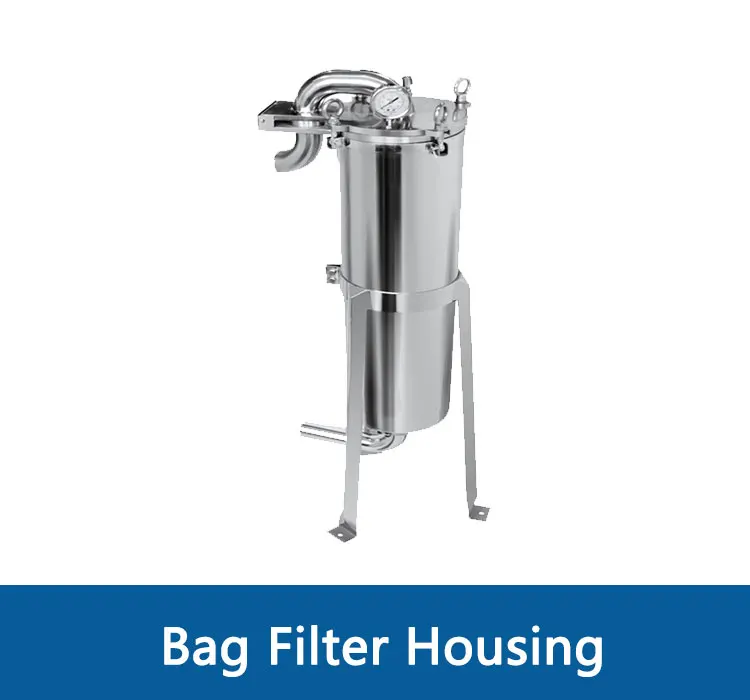

LENO Bag filter housing works by passing the fluid or gas through a filter bag, which captures and retains particulate contaminants.

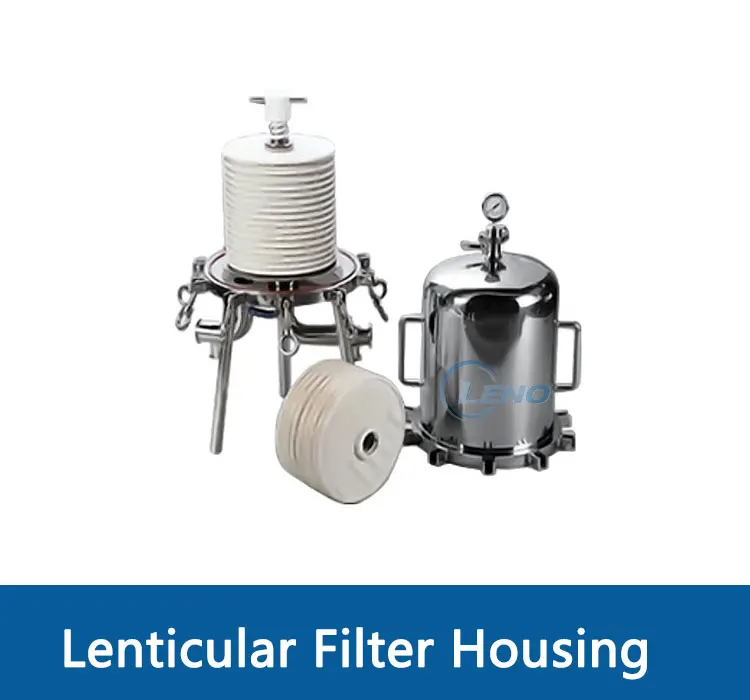

LENO lenticular filter housing is a type of filtration system that utilizes a stack of lenticular filter modules to remove particulate contaminants from liquids.

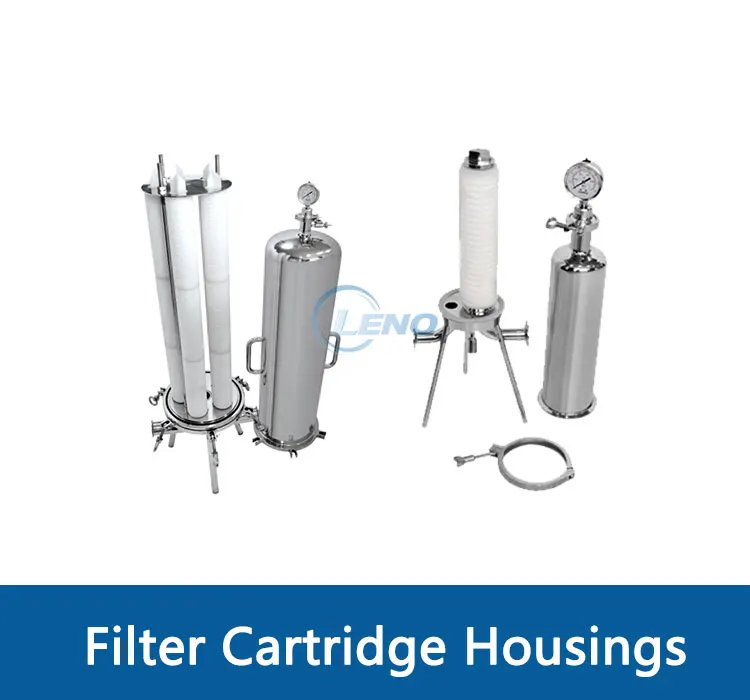

LENO Filter cartridge housing is a type of filtration system that uses replaceable filter cartridges to remove particulate contaminants from liquids or gases.

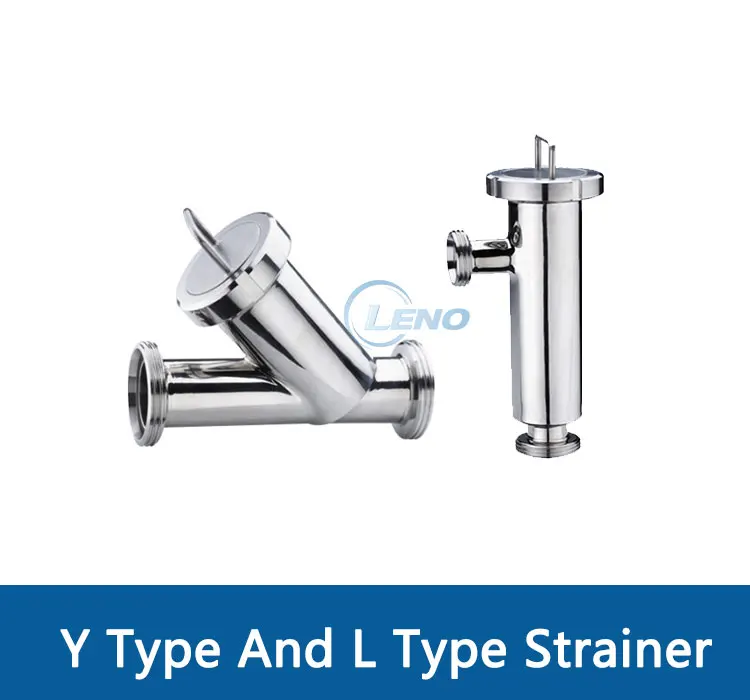

LENO Tube strainer, also known as a pipe strainer or inline strainer, is a type of filtration device used to remove unwanted particles or solids from a flowing liquid or gas. It consists of a cylindrical housing with a perforated or mesh-lined tube inside

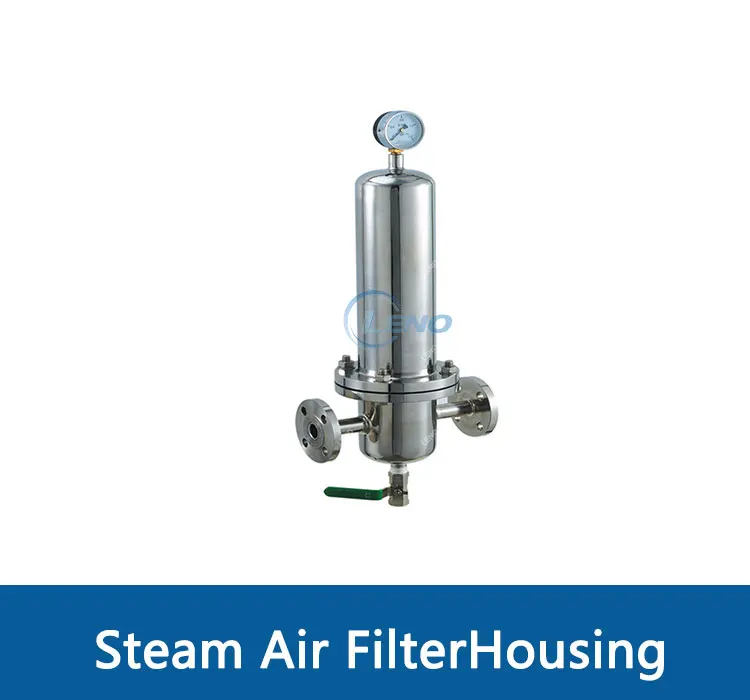

LENO Air Steam filter housing, also known as an air cleaner or air filtration system, is designed to remove airborne contaminants from the air before it enters an engine, HVAC system, or any other application that requires clean air
LENO lenticular filter housing is a type of filtration system that utilizes a stack of lenticular filter modules to remove particulate contaminants from liquids.
LENO Filter cartridge housing is a type of filtration system that uses replaceable filter cartridges to remove particulate contaminants from liquids or gases.
LENO Tube strainer, also known as a pipe strainer or inline strainer, is a type of filtration device used to remove unwanted particles or solids from a flowing liquid or gas. It consists of a cylindrical housing with a perforated or mesh-lined tube inside
LENO Air Steam filter housing, also known as an air cleaner or air filtration system, is designed to remove airborne contaminants from the air before it enters an engine, HVAC system, or any other application that requires clean air

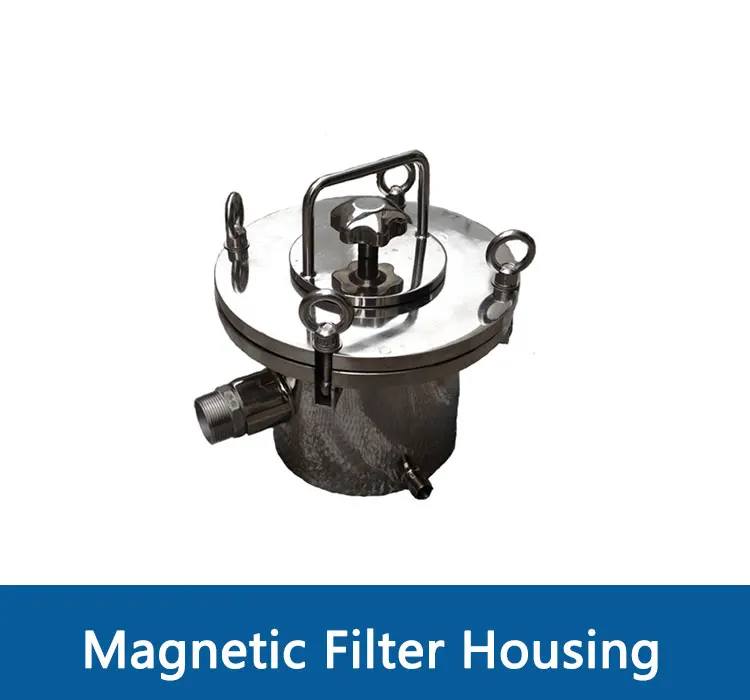

LENO Magnetic filter housing, also known as a magnetic separator or magnetic trap, is a type of filtration system that utilizes magnetic force to remove ferrous (magnetic) particles from fluids.
Company Profile
Logistics information
FAQ
1. | Are you trade or manufacturer? |
We are a factory with an international sales company specialized in support for global distributors. | |
2. | Can you provide instant technical consulting services? |
We are able to discuss technical details and offer suggestions over the phone in English. You can get the answers in minutes, instead of days. | |
3. | What is the payment terms? |
We accept Alibaba Trade Assurance Order, also can T/T and L/C. | |
4. | How to choose the shipment way? |
It is according to the order quantity, delivery time, costs and customs policy etc. (Or decide by customers) | |
5. | How about the after-sales service? |
Ast after-sales support. Our products have a one-year warranty and free permanent consulting services. | |
6. | what can you buy from us? |
Stainless steel tank, mixing equipment, sanitary pump, distillation equipment, Vacuum Concentrator |
