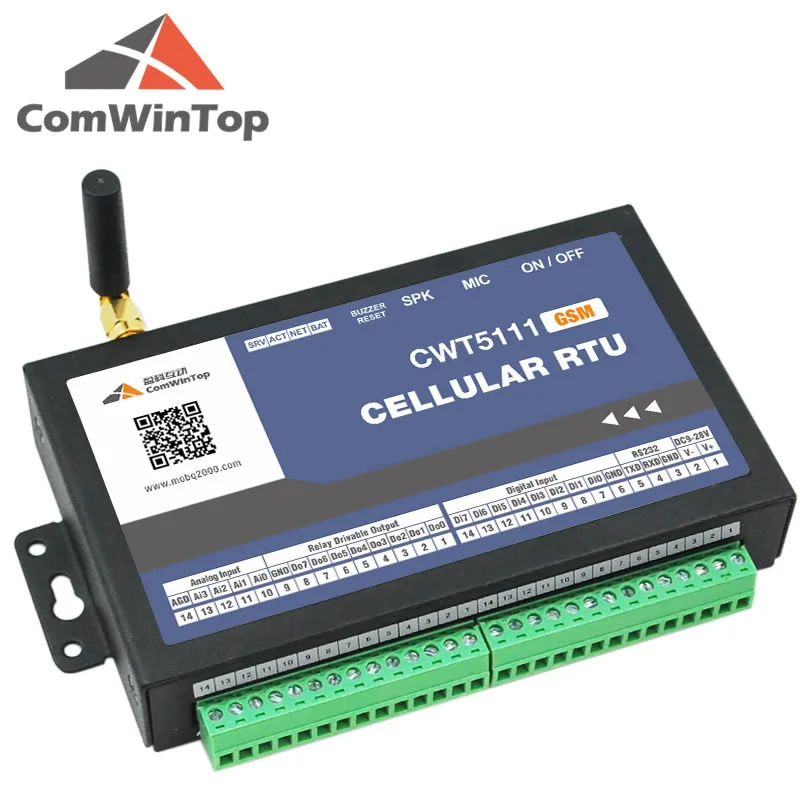

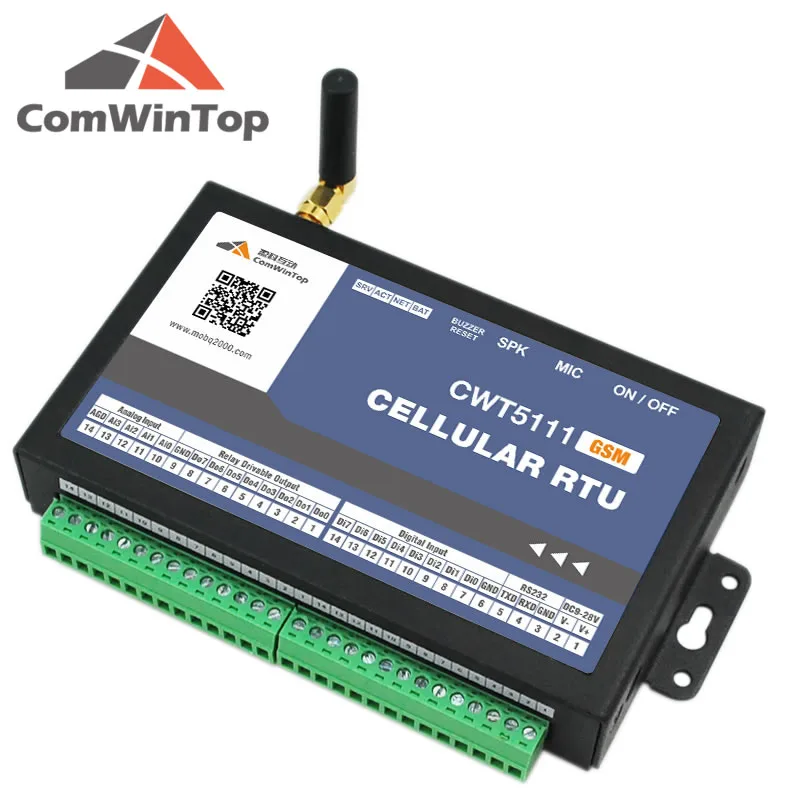

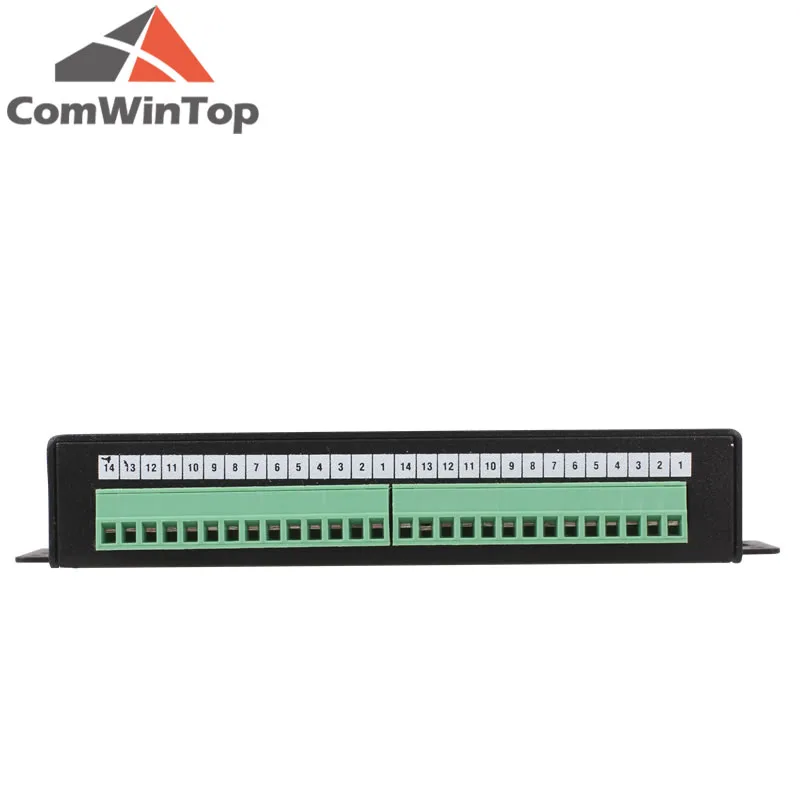

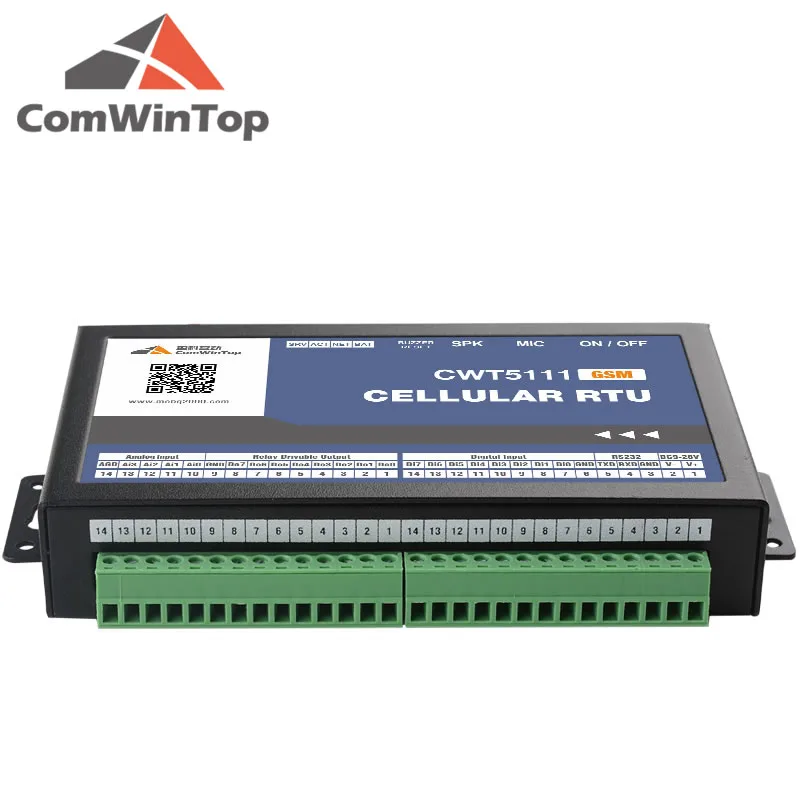

CWT5111 8DI 8DO 4AI RS232 USB web cloud server to record gsm gprs data logger, gsm remote module

Product Overview

Description



Product overview

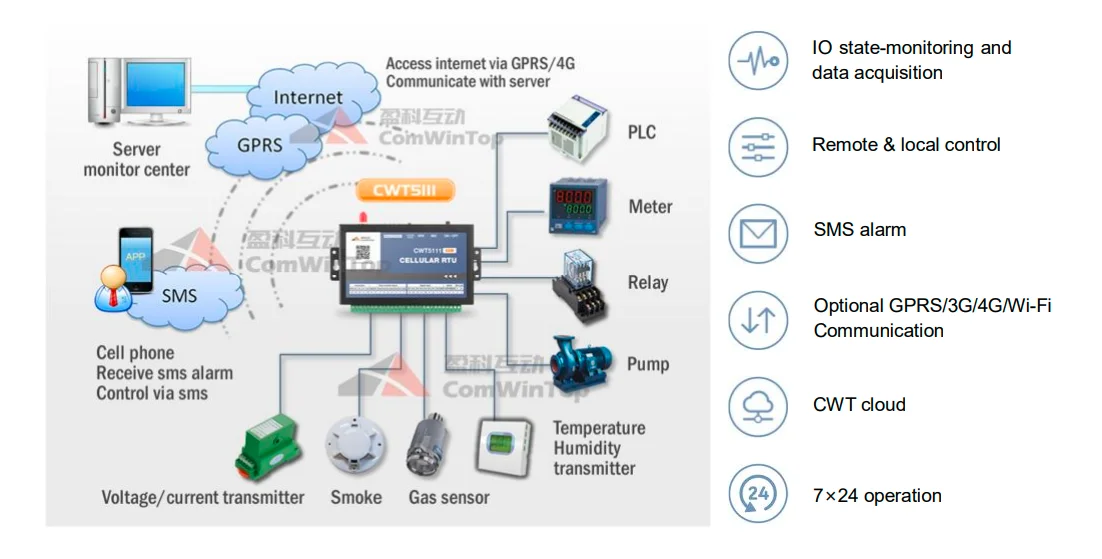

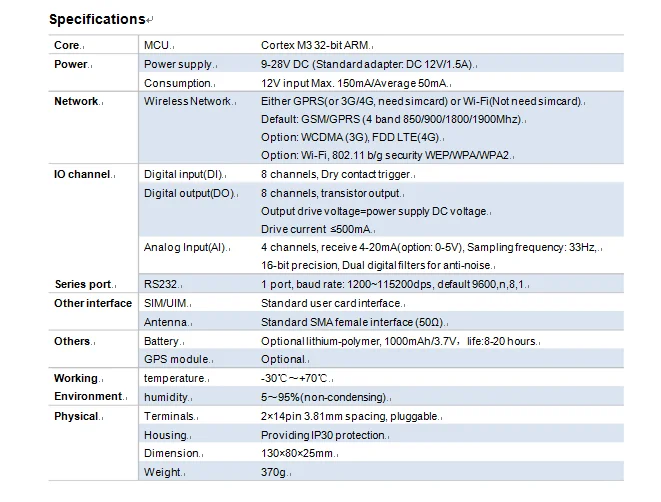

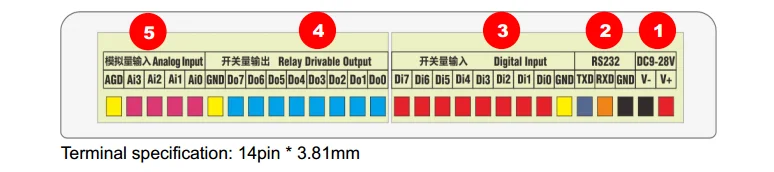

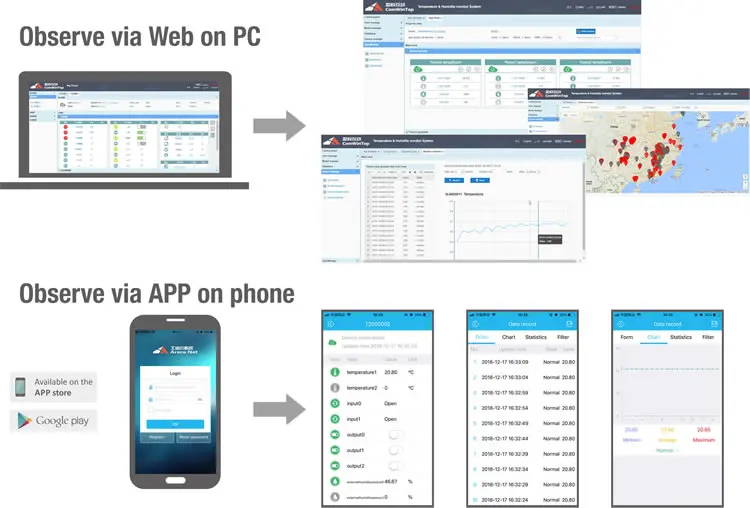

CWT5111 RTU with 8 DI, 8 DO, 4 AI, RS232standard electrical interface can connect various industrial equipment, such as PLC, meters, sensors, electrical switches. It monitors the industrial system real-time running status and data, as well as constructs the remote device to a proprietary central computer and mobile phones through the GSM/GPRS/3G/4G/Wi-Fi/Ethernet communication network. It efficiently acquires the remote equipment operating parameters and process management, can be widely used in industrial automatic control, base station / computer room monitoring, environmental monitoring, water conservancy project, power industries, agriculture, etc.







System Features

Adopted highly integrated industrial 32-bit ARM MCU Reliable performance with built-in double watchdog, 24×7 operation With signal filtering mechanisms Network-reconnect and retransmission to ensure data accurately transmit Update RTC automatically or manually, clock source support Sms, NTP, CwtIO Server Can set multiple timers(second, minute, day, week, month) to execute actions, e.g. output, upload data, change setting Event-based linkage programming, e.g. alarm linkage output Provide configure software, visual programming, over 100 parameters can be set Inside temperature optional, can set high or low to alarm Optional inside battery that life is 8-20 hours, cellular module Intelligent sleep when power lost

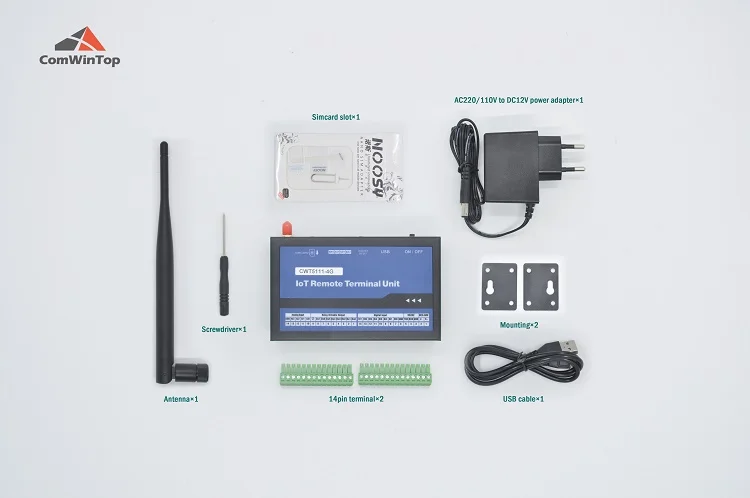

2G/4G Version Standard Package
