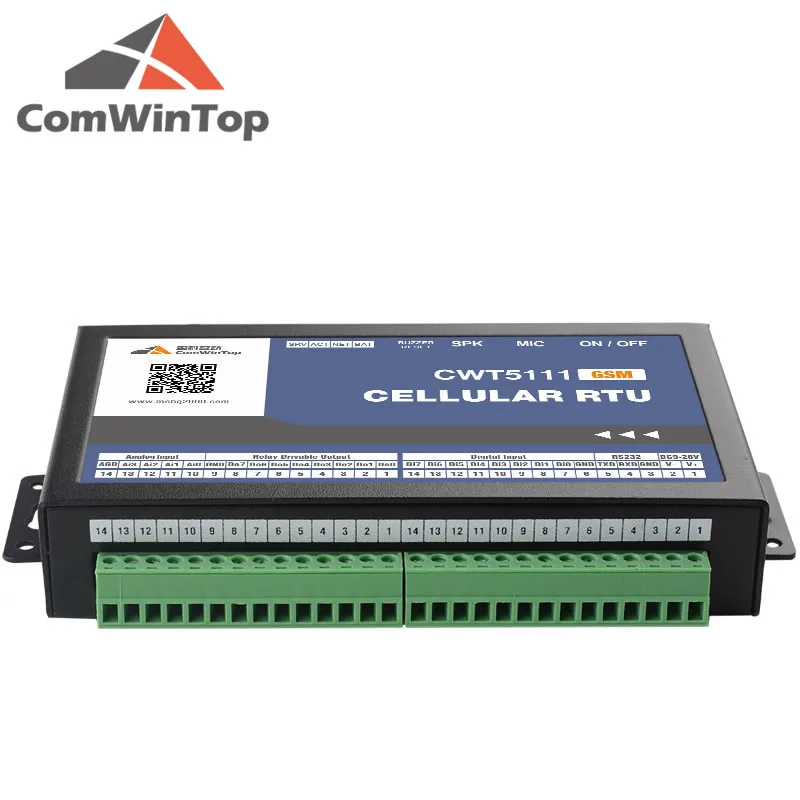

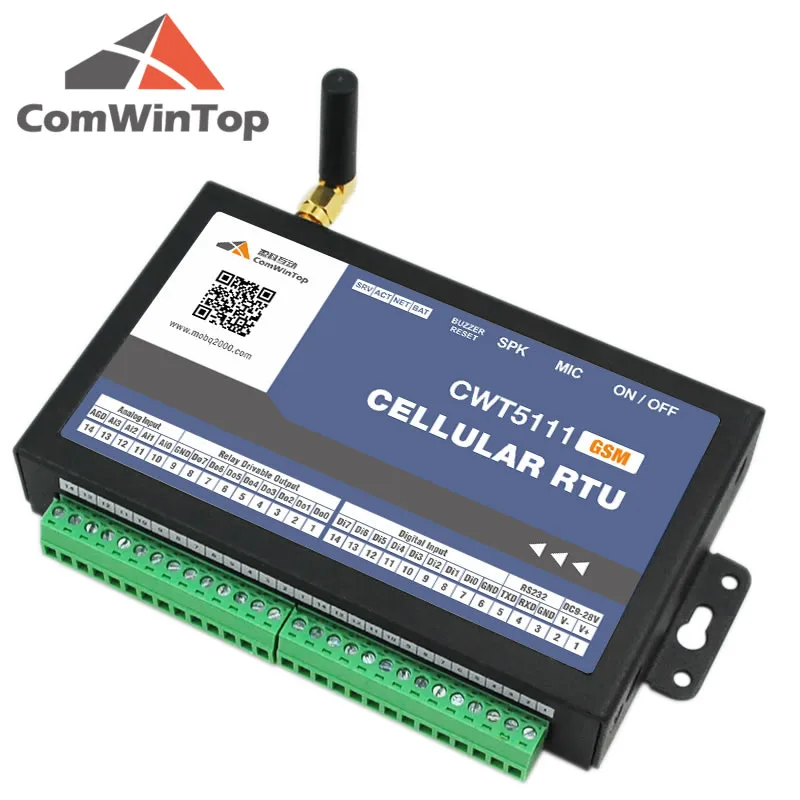

CWT5111 Industrial Programmable 3g 4g Gsm Sms Gprs Rtu Controller
CWT5111 Industrial Programmable 3g 4g Gsm Sms Gprs Rtu Controller
CWT5111 Industrial Programmable 3g 4g Gsm Sms Gprs Rtu Controller
CWT5111 Industrial Programmable 3g 4g Gsm Sms Gprs Rtu Controller
CWT5111 Industrial Programmable 3g 4g Gsm Sms Gprs Rtu Controller
CWT5111 Industrial Programmable 3g 4g Gsm Sms Gprs Rtu Controller
CWT5111 Industrial Programmable 3g 4g Gsm Sms Gprs Rtu Controller

CWT5111 Industrial Programmable 3g 4g Gsm Sms Gprs Rtu Controller

Share on (62013586203):


Price:

Quantity:


Product Overview

Description

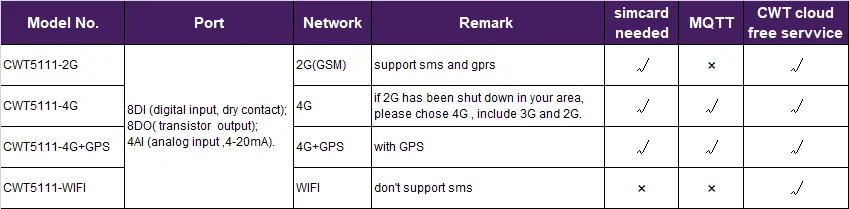

Options




Product overview

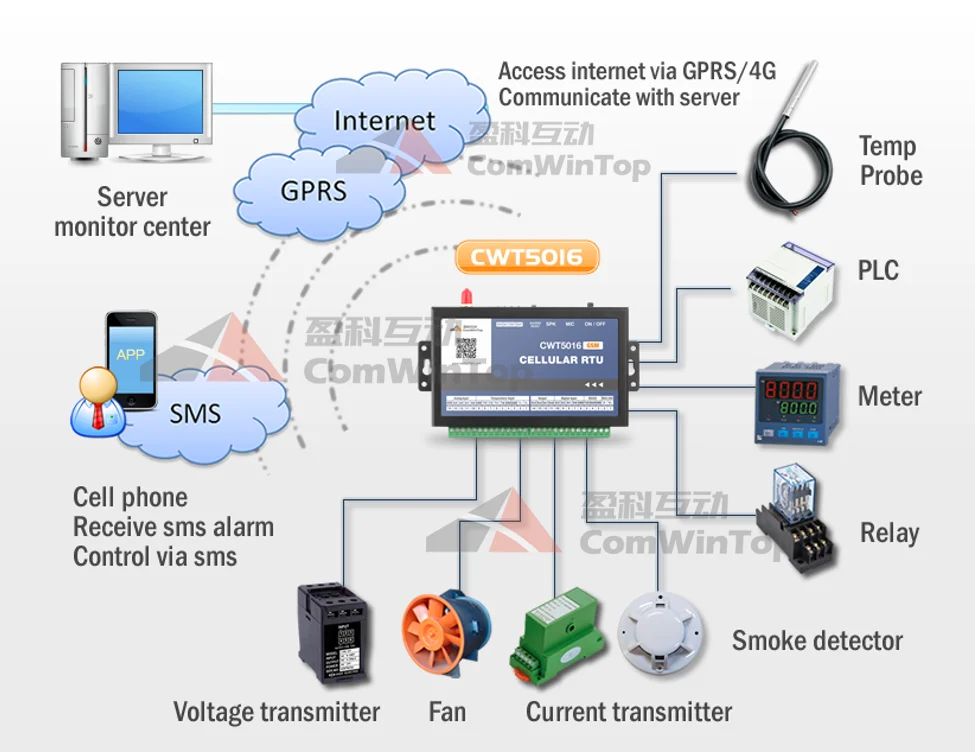

CWT5111 RTU with 8 DI, 8 DO, 4 AI, RS232standard electrical interface can connect various industrial equipment, such as PLC, meters, sensors, electrical switches. It monitors the industrial system real-time running status and data, as well as constructs the remote device to a proprietary central computer and mobile phones through the GSM/GPRS/3G/4G/Wi-Fi/Ethernet communication network. It efficiently acquires the remote equipment operating parameters and process management, can be widely used in industrial automatic control, base station / computer room monitoring, environmental monitoring, water conservancy project, power industries, agriculture, etc.




Port Features


Port
Qty
Features
DI
(digital input)
8
● Accept dry contact
DO
(digital output)
8
● Transistor output (drive voltage=power supply voltage, Drive current≤500mA
● Remote or local event activate DO on/off/pulse
● Remember status when power lost
AI
(analog input)
4
● Accept 4-20mA (option: 0-5V), Sampling frequency: 33Hz, 16-bit precision)
● Convert signal to actual measure value，support adjustment
● Configurable parameters for signal acquisition, alarm, data communication
● Detect connect or disconnect to alarm
RS232
1
● Configuration port (baud rate: 1200~115200dps, default 9600,n,8,1)


Communication Features


Wireless network communication
● Option network: GPRS, 3G, 4G
● TCP/IP connect at most 4 servers(support Static IP address or domain)
● Events(e.g. alarm, timer) trigger upload data
● Communication protocol: Modbus TCP,http post, Cwt_IO(two-way communication
● Support two-way data transparent transmission with RS485 or RS232
SMS Communication(only available for cellular version)
● Preset 10 phone numbers (support distribute authority to receive sms)
● Sms alarm when any IO channel triggered or out of preset normal range
● Editable alarm and recover sms with time stamp
● Query any IO channel’s status or value via sms command
● Control output via sms command
● Sms report any IO channel’s status or value on schedule
● Remote setting via sms commands
● Can query SIM card balance, sms forward
● Support power lost sms alarm and recover sms(works with inside battery)


System Features


● Adopted highly integrated industrial 32-bit ARM MCU
● Reliable performance with built-in double watchdog, 24×7 operation
● With signal filtering mechanisms
● Network-reconnect and retransmission to ensure data accurately transmit
● Update RTC automatically or manually, clock source support Sms, NTP, CwtIO Server
● Can set multiple timers(second, minute, day, week, month) to execute actions, e.g. output, upload data, change setting
● Event-based linkage programming, e.g. alarm linkage output
● Provide configure software, visual programming, over 100 parameters can be set
● Inside temperature optional, can set high or low to alarm
● Optional inside battery that life is 8-20 hours, cellular module Intelligent sleep when power lost


Product packaging




Specifications


Core
MCU
Cortex M3 32-bit ARM
Power
Power supply
9-28V DC (Standard adapter: DC 12V/1.5A)
Consumption
12V input Max. 150mA/Average 50mA
Network
Wireless Network
Either GPRS (or 3G/4G, need simcard) or Wi-Fi (Not need simcard)
Default: GSM/GPRS (4 band 850/900/1800/1900Mhz)
Option: WCDMA (3G), FDD LTE(4G)
Option: Wi-Fi, 802.11 b/g security WEP/WPA/WPA2
IO channel
Digital input (DI)
8 channels, Dry contact trigger
Digital output (DO)
8 channels, transistor output
Output drive voltage=power supply DC voltage
Drive current ≤500mA
Analog Input (AI)
4 channels, receive 4-20mA (option: 0-5V), Sampling frequency: 33Hz, 16-bit precision, Dual digital filters for anti-noise
Series port
RS232
1 port, baud rate: 1200~115200dps, default 9600,n,8,1
Other interface
SIM/UIM
Standard user card interface
Antenna
Standard SMA female interface (50Ω)
Others
Battery
Optional lithium-polymer, 1000mAh/3.7V，life:8-20 hours
GPS module
Optional
Working
Environment
temperature
-30℃～+70℃
humidity
5～95%(non-condensing)
Physical
Terminals
2×14pin 3.81mm spacing, pluggable
Housing
Providing IP30 protection
Dimension
130×80×30mm
Weight
370g

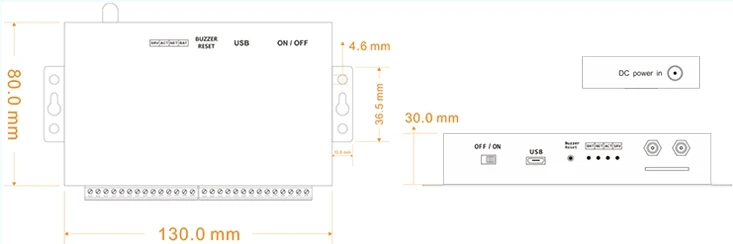

Size diagram




Terminals




Free Configure Software
● No programming! set parameter by visual interface
● Can save config file, one click finish config
● Over 100 parameters can be set, flexible! Meeting various industrial requirements




CWT Cloud Summary
CWT cloud is an industrial equipment management system based on internet, cloud computing.With CWT RTU, CWT cloud can get status, value, position of remote industrial equipment, built a very complete M2M, M2H industrial ecosystem.
CWT cloud can manage thousands CWT RTU remotely, display all industrial equipment real-time data, location tracking, control device, send commands and store data, analysis data, export data. Operations are based on internet, just login cloud via PC browser or cell phone app to do.
