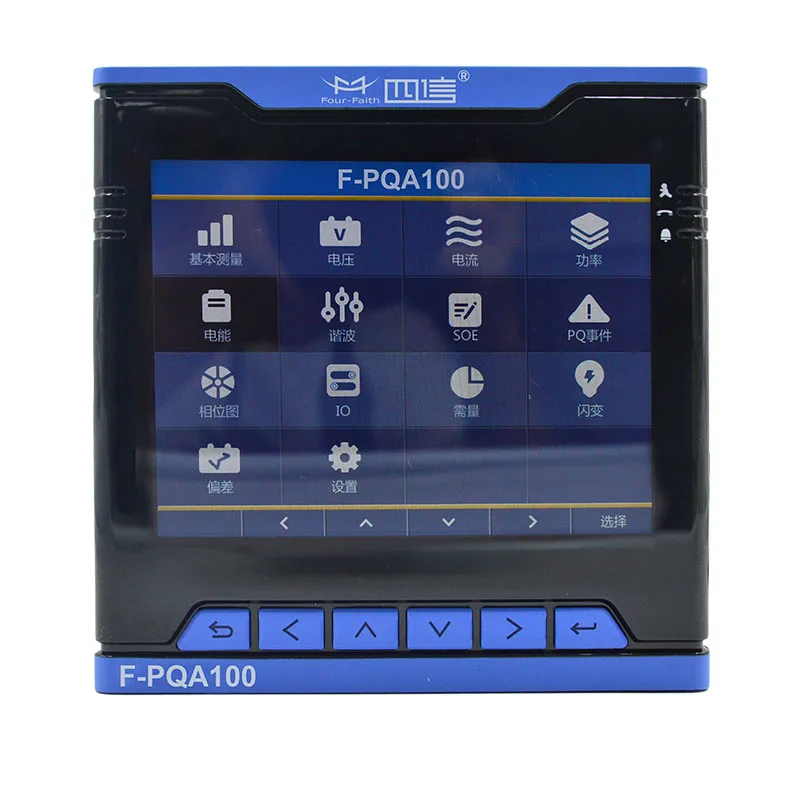

Four-Faith F-PQA100 Power Quality Meter
Four-Faith F-PQA100 Power Quality Meter

Four Faith F PQA100 Power Quality Meter

Share on (62018760691):


Price:

Quantity:


Product Overview

Description


Application

Power Quality Management System
Harmonic Analysis
Energy Supply failure analysis
Voltage Sag Source Location
Transient disturbances location

Function

Class A Power Quality Measurement: Harmonic and inter-harmonic, voltage deviation, frequency deviation, unbalance, fluctuation and flicker, transient disturbances, EN50160 statistics

Class 0.2s Accuracy: Harmonic, ,fundamental harmonic, sub-harmonics energy

High Resolution Failure Record: support 1024 point/cycle, Min.tansient disturbance record for 20us

Failure Diagnose Location: support voltage sag source, harmonic source, flicker source, asymmetric source location and power supply failure type diagnose

Full Real-time Data Measurement

Feature

With all Multifunction Power meter function

Class 0.2s high accuracy energy measurement

Power Quality Analysis: harmonic analysis, record analysis and flicker analysis

Failure Record: Bulk memory for data record and setpoint alarm

Failure Diagnose location, 20us for transient disturbance record

Parameters
\t











Power Quality Analysis and location

\t
 Wave Sampling
\t
 1024 points/cycle wave
\t
 Harmonic
\t
 2~63rd Harmonic, harmonic ratio, phase angle, total harmonic distortion (THD), total odd / even harmonic distortion
\t
 Inter-Harmonics
\t
 2~63rd Inter-harmonic, harmonic ratio, Total inter-harmonic distortion
\t
 Voltage Sag/Swell/Stop
\t
 Waveform record, DO alarm, timing record, record voltage sag/ swell's start time, stop time, duration time and their Max. and Min. value and voltage variation depth
\t
 Transient Capture
\t
 Capture 20us circle wave transient, trigger/ DO port, waveform record, record voltage transient happen time, amplitude and durantion time etc.
\t
 Unbalance
\t
 Voltage, current unbalance and zero sequence unbalance
\t
 Voltage / Frequency Deviation
\t
 Setpoint alarm and record
\t
 Repid Voltage Alteration
\t
 Trigger DO point, waveform record
\t
 Voltage Fluctuation and Flick Analysis
\t
 Calculate long time flicker Plt and Short time Pst
\t
 Sag Source Location
\t
 Can locate power supply side or load side abnormal and fault
\t
Measurement Channel
\t
 Voltage
\t
 4 Channels
\t
 Current
\t
 4 Channels
\t




Real-time Data
\t
 Voltage
\t
 Phase / line / average voltage, phase angle, refresh time : 1s, 0.5s circle waveform
\t
 Current
\t
 Phase / average current, phase angle, refresh time: 1s, 1 circle waveform
\t
 Active power, Reactive power,  Apperant Power
\t
 Phase & total poower, refresh time: 1s, 1 circle waveform
\t
 Power Factor
\t
 Phase & total power factor, refresh time: 1s, 1 circle waveform
\t
 Frequency
\t
 50/60Hz, refresh time: 1s, 1 circle waveform
\t



Energy
\t
 Energy
\t
 Positive / Negative active, reactive, apparant energy ; Positive / Negative base wave active, reactive energy
\t
 Harmonic Energy
\t
 2~31st positive active, reactive harmonic energy, Negative active, reactive harmonic energy
\t
 History Energy
\t
 Storage latest 30 days and latest 12 months history energy data
\t
 Multi-tariff Energy
\t
 4 tariff, 8 time period, 2 time zone
\t



Demand
\t

Real-time Demand
\t
 Has fixed window and slid window record volue including: three phase current, total active power, total reactive power, total apparant power, support real-time demand and predict demand, Max. demand and happend time, support DI demand synchronization
\t
 Predict Demand
\t
 Predict next demand circle value according to present real-time active power value. Interval demand fixed circle: 15min.
\t











 Data and Evern Record
\t
 Memory
\t
 8G
\t
 Max. / Min Record
\t
 This month and last month Max./Min. value and happen time
\t
 SOE Record
\t
 1024 records, time resolution: 1ms
\t
 PQ Record
\t
 1024 records, time resolution: 1ms
\t




 Waveform Record
\t
 Circle wave before failure is settable, Waveforme record mode as below:
1: 1024 points / circle wave @ 50 circle wave:
2: 512 points/circle wave @ 100 circle wave;
3: 256 points/circle wave @ 200 circle wave;
4: 128 points/circle wave @ 400 circle wave;
5: 64 points/circle wave @ 800 circle wave;
6: 32 points/circle wave @ 1600 circle wave;
7: 16 points/circle wave @ 3200 circle wave
\t
 Transit Wave Record
\t
 256 piece
\t
 ITIC Curve
\t
 1 Group
\t
 EN50160 Statistics Function
\t
 In accordance with EN 50160 power quality standard, Statistics voltage,
frequency, harmonic, flicker, deviation, unbalance and voltage disturbance passed rate and other power quality index
\t
 Mark Function
\t
 Mark voltage sag/ swell/ stop etc. transit even data, statistics by customer
\t
DI/DO
\t
 Digital Input (DI)
\t
 8 Channels
\t
 Relay Output (DO)
\t
 4 Channels
\t

Display
\t
 Optocoupler Output
\t
 2 Channels
\t
 Display
\t
 LCD colorful interface, display measurment value, harmonic bar chat, vetorgram, time record, I/O status, ITIC waveform etc. resolution: 640 * 480
\t
Communication
\t
 RS485 Port
\t
 2, baud rate:1200~38400bps, MODBUS-RTU protocol
\t
 Ethernet Port
\t
 1, Modbus TCP/ IEC61850 (optional), support Ethernet Gateway
\t


Time calibration

\t
 Software Time Calibration
\t
 SNTP, Modbus
\t
 Hardware Time Calibration
\t
 GPS pulse, IRIG-B signal
Interface

Home Page

Real-time Monitoring


Evaluation Report

Real-time Waveform

Vector Analysis

63rd Real-time Harmonic Analysis

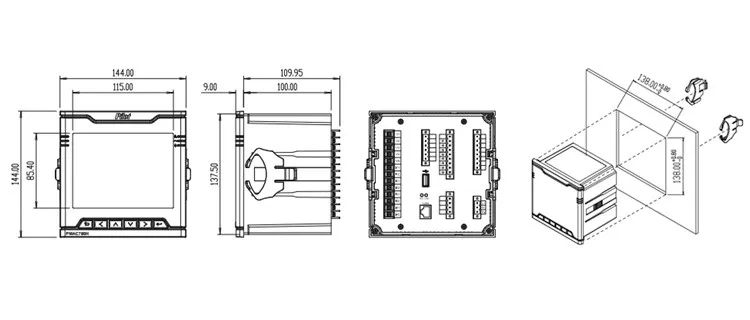

Dimensions
