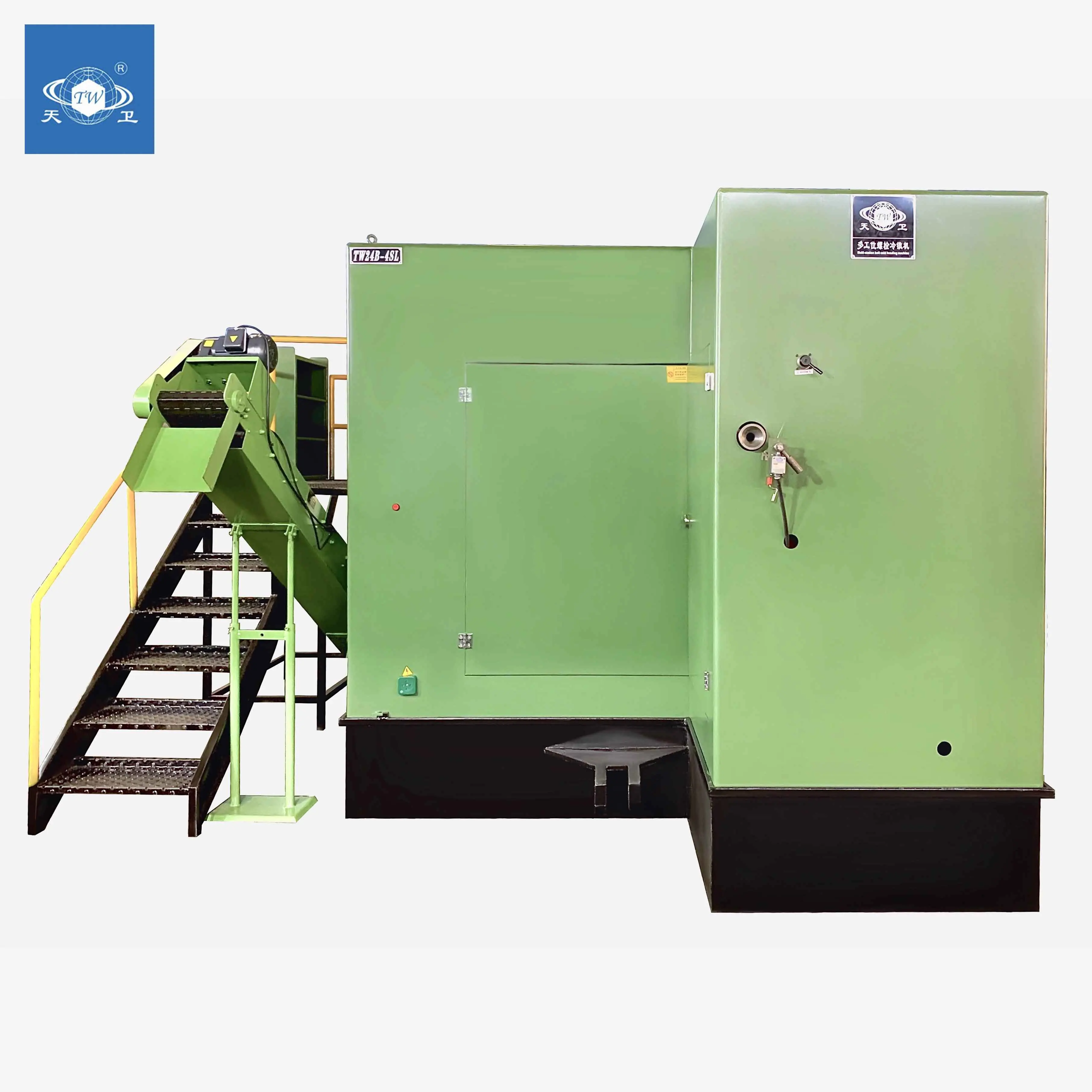

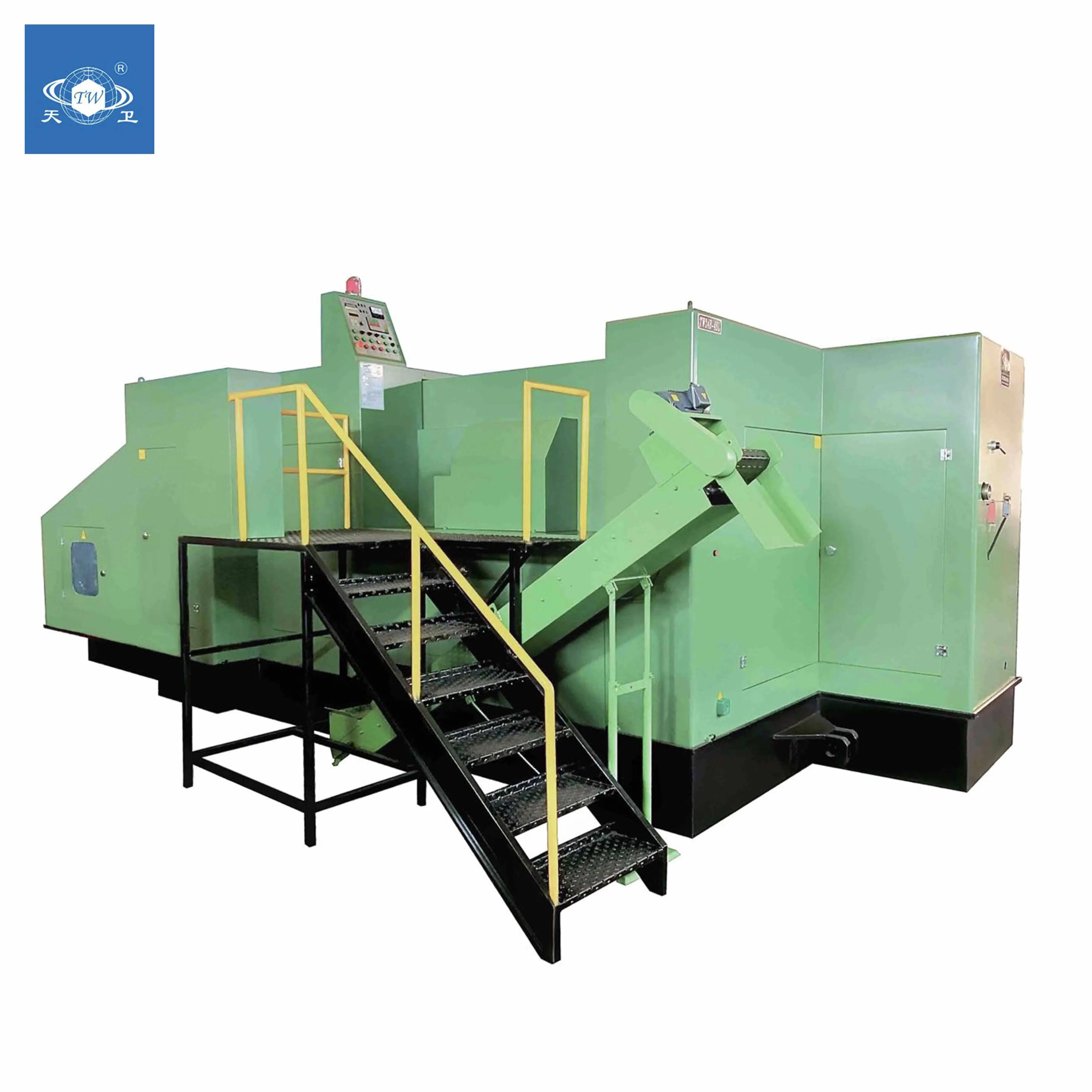

China 5 Die 5 Blow Bolt Cold Former Machine Automatic Heading Machine for Screw Making M6 M24, 12 250mm

Product Overview

Description

1.      Being equipped with air clutch.

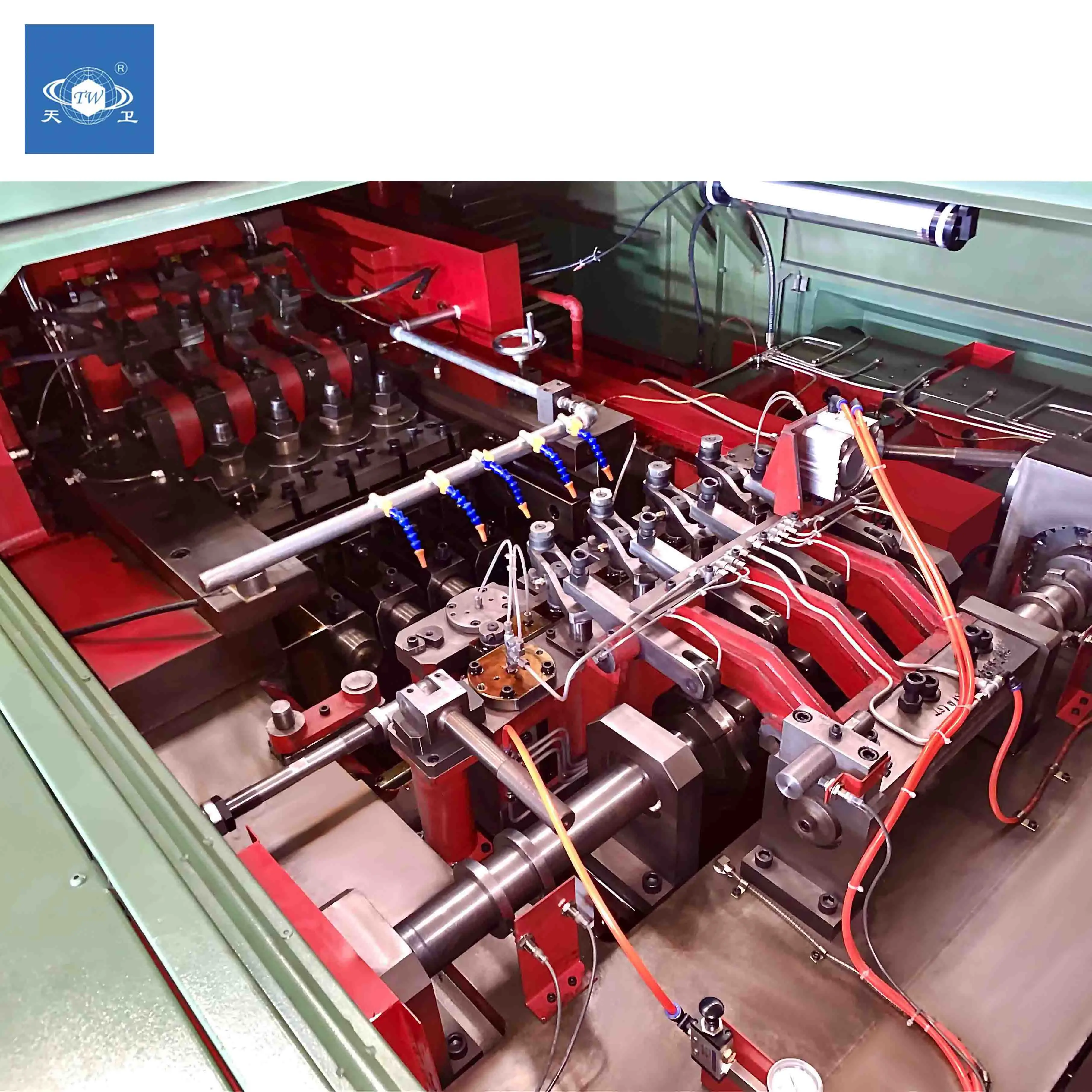

2.      Swing type pneumatic gripping mechanism, the gripping capacity is adjustable and clamping power is stable even at high working speed.

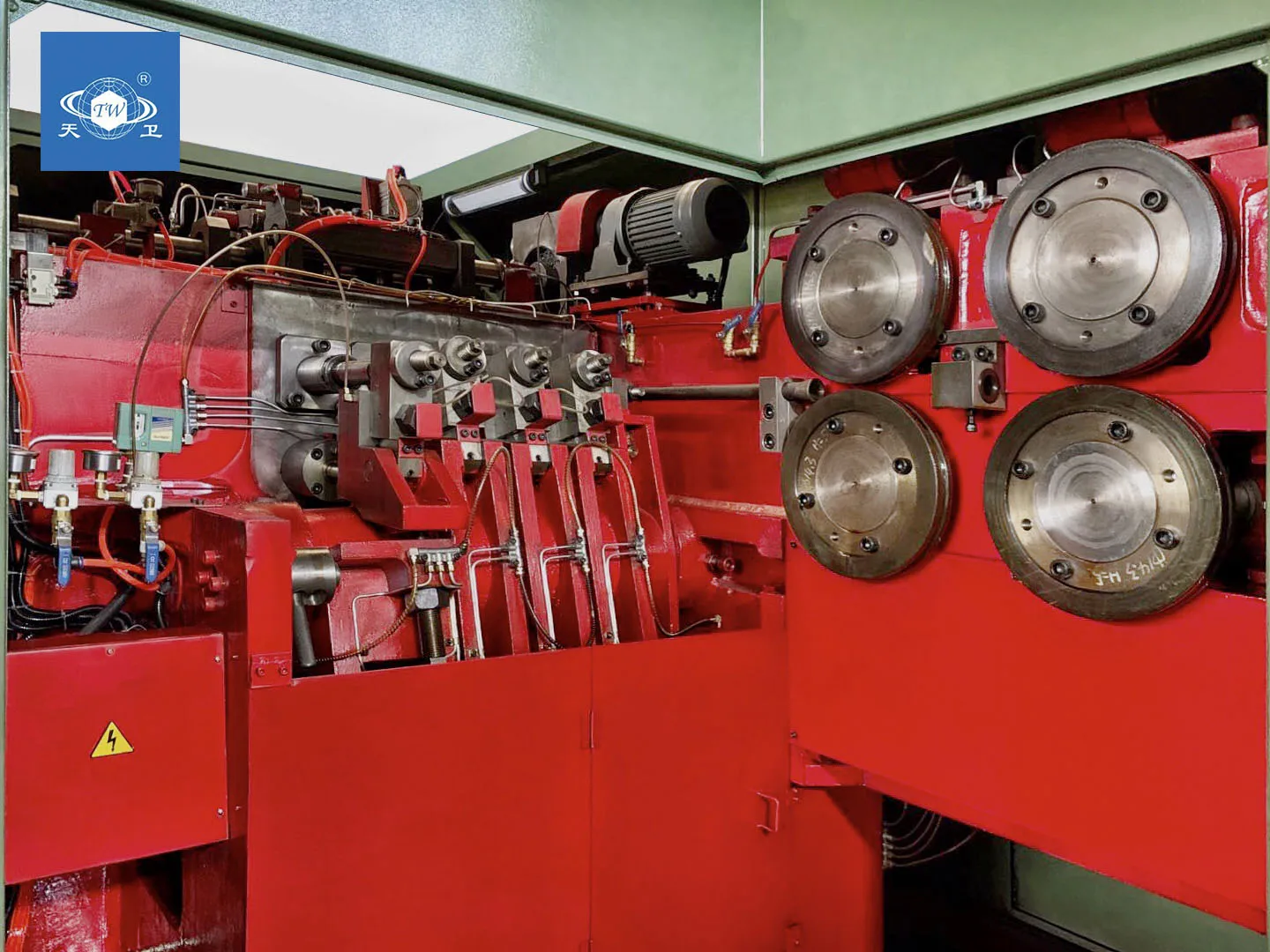

3.      Pressing and feeding wire, there are two overdrive clutches fixed in the feeding course.
4.      Wire cutting part is actuated by strong link-block system
5.      Each station of rear knock out device can be adjusted individually, and the last station can realize the action of knocking out trimmed product via adjusting the location of cam or changing different cam.
6.      Front knock out part moves simultaneously with the retreat movement of the main ram.
7.      Either front knock out device or rear knock out device is fixed a safety pin with the function of pressure check-up.
8.      There is imported converter available in electrical system.
9.      Both main and auxiliary rams, all are made of abrasion resistant alloy, and the inside plates of the formers are made of imported quench alloy.

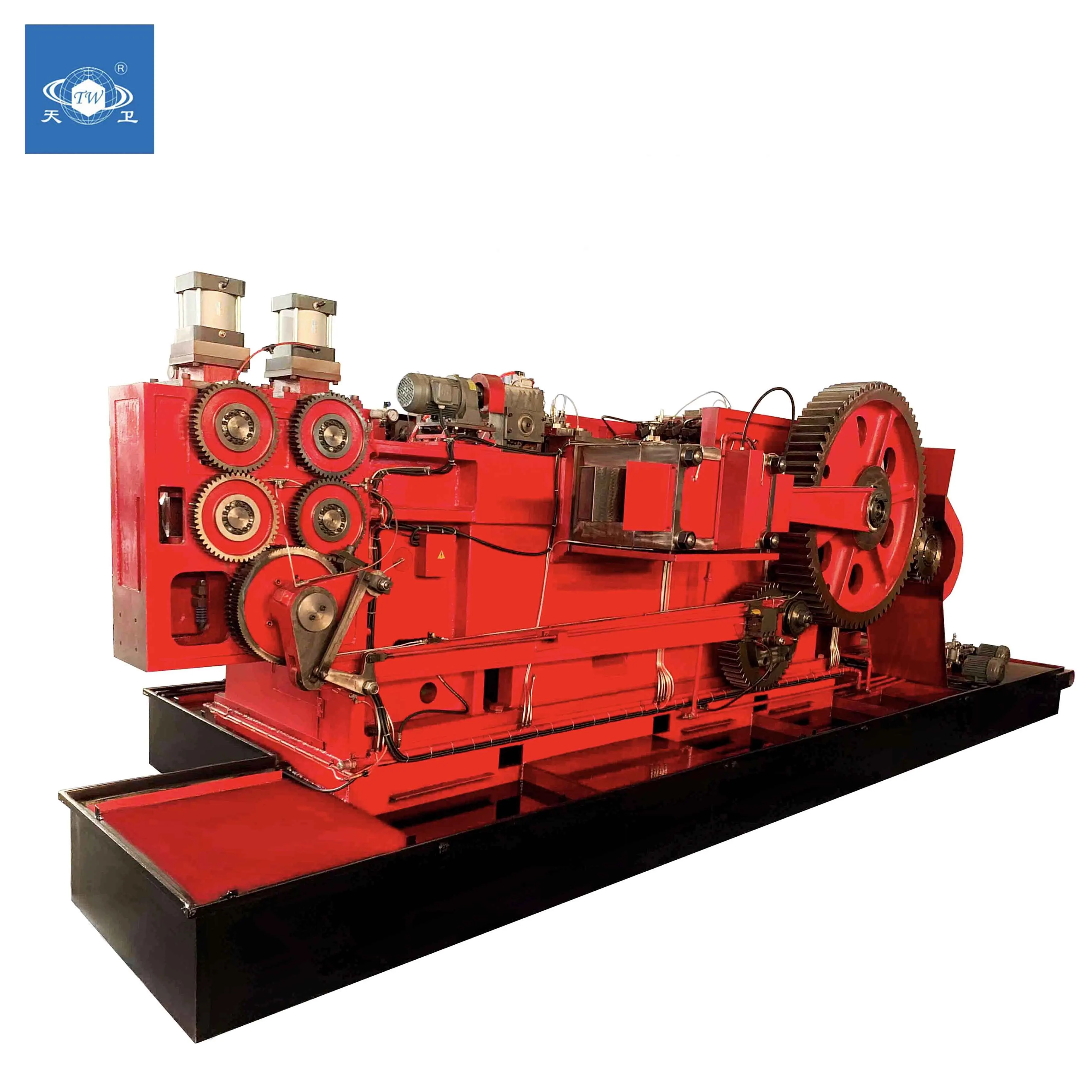

10.  The principal parts such as body frame, main ram, main link lever etc. all are made of high-strength material.
11.  Main components for each part and all cams all are machined by numerically-controlled machine tools, for guaranteeing precision and the curve smooth and sliding.
12.  Touch screen and man-machine dialogue numerical control system are optional for meeting customer’s requirement.



- By equipping with a rotating pilers system, which allows it to be turned up to 180 degrees and moved horizontally, the machine can be easily arranged for the product forming process by engineers. There is an option of the grip system that adapts pneumatic cylinder stand, the grip arms are individually operating and it is able to adjust gripping pressure upon the wire size and weight.  Clipper is changeable to bolt type.  Base on the working procedure of the work-piece, you can flip or transfer it levelly.



- Trimming and forming can be done in one machine. When clients want to produce outer hexagon bolts, they just need to switch the phase position of the cam to trimming mode. And when they try to produce hexagon socket bolts, they can switch the phase position of the cam to forming mode. With this advantage, our clients can flexibly switch their production line according to orders.



- The main slider is connected with a rear suspension wing which enhances its stability and accuracy. JIS FCD55 material is used for the independent forward adjusting parts, alloy steel is used for the die holder shell, and SKD-11 is used for the neck bush of the automatic bolt machine. By using these materials, it could improve the machine accuracy level and life span.









Wenzhou Tianwei Machinery Co., Ltd. was founded in 2010, located in Wenzhou, Zhejiang Province, China. The plant area of our company is 17000 square meters. We were formerly known as Ouhai Sanyang Transmission Machinery Co., which was founded in 1986 and specialized in making 1 die 2 blow machines for over 20 years. In 2010, we decided to change our product line to the innovative automatic multi-station cold forging machine, which will be the trend in the fasteners manufacturing industry due to its capability of making complicated products at a high speed. Since then, we accumulated rich experience in the multi-station screw machinery manufacturing industry.



Q: What equipment do you use in your factory?
A: We use multi-process automatic CNC machine tools, NC boring machines and CNC lathes in our production. We also have various turning lathes for finishing process of metal parts. Those mechanists who operate these machines are experienced and skilled to process metal accurately and efficiently.



Q: I'm going to run a new plant for making screws. What equipments do I need to start?
A: Depending on what kind of screws that your want to make, the equipments may be different. But basically, you will need at least a cold forming machine and a thread rolling machine. In addition, you may need a wire drawing machine. And if your want your products to be galvanized, you may need to look for local galvanizing factories.



Q: Can we quote the item that's not included in our catalog?
A: Yes. If you cannot find the suitable machine for your product, please don't hesitate to send us your requirement since we offer customization for some machines. Our engineers will give you some advices for your desired machine.



- Guarantee period: one year after the equipment arrived at the client's plant.

- The professional technical team will offer proposals for customers of all kinds of requests.

- Before shipping the machines, they will be tested and adjusted to the best condition for customers' using, so you can start running machines directly once you get it. Operation video & instruction will also be sent to you.

- Professional advice will be offered when you have problems running our products.

- The best technician will be sent to clients' factories for installation, debugging, and training.

- Within the guarantee period, if any components are broken down due to the design faults, we will send new items for free.

-  Man-made destroy will be an exception under warranty.

- 24 hours technical support by e-mail, phone call, WhatsApp/Skype/WeChat.
