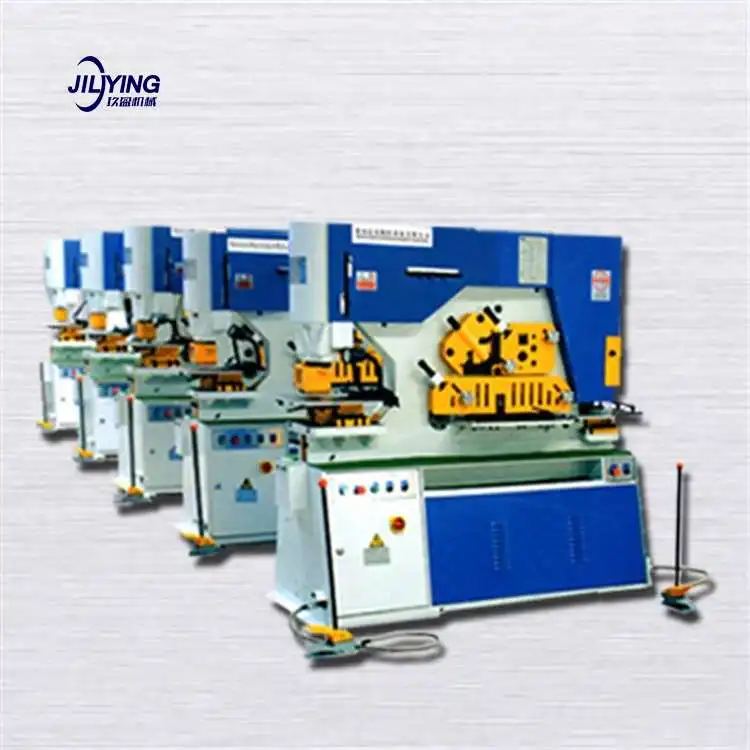

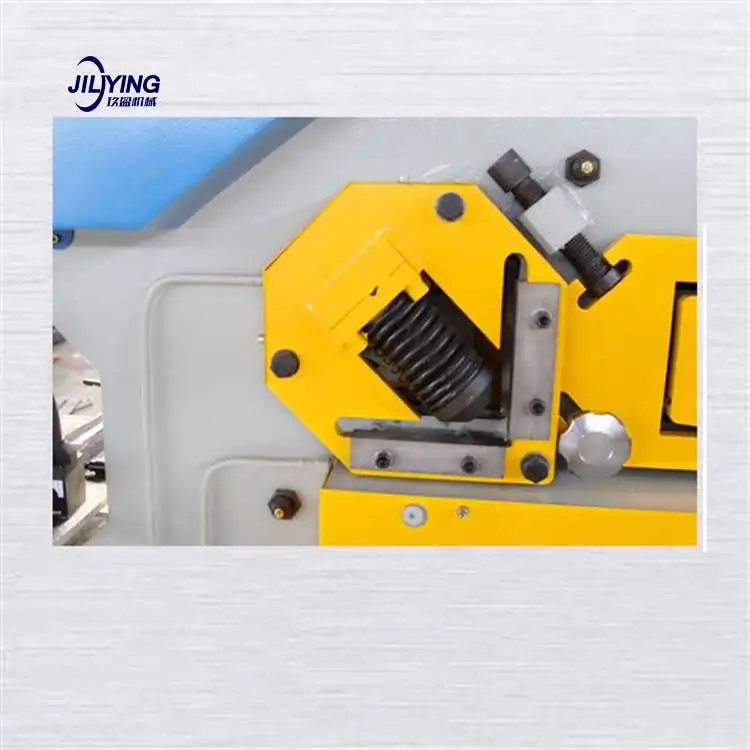

Q35Y Multi Wrought Hydraulic Ironworker Combined Punching Cutting Shearing And Notching Machine For Sale From China
- Category: Hydraulic Ironworker >>>
- Supplier: Dalian J&Y Heavy Machine Co. Ltd.
Share on (62021237232):
Product Overview
Description
Product Description
Q35Y series industrial-grade hydraulic Ironworker
Q35Y series industrial-grade hydraulic combined punching and shearing machine are designed with multiple functions to save labor, time, energy and cost. This allows Ironworker to meet the diversified needs of the metal fabricating industry. Maximum efficiency and long life is guaranteed by using the latest manufacturing methods, including powerful CAD design, modern production line with CNC equipment and continuous quality control.
Q35Y hydraulic iron worker combined punching and shearing machine Features
1.Double-cylinder hydraulic punch and shearing machine

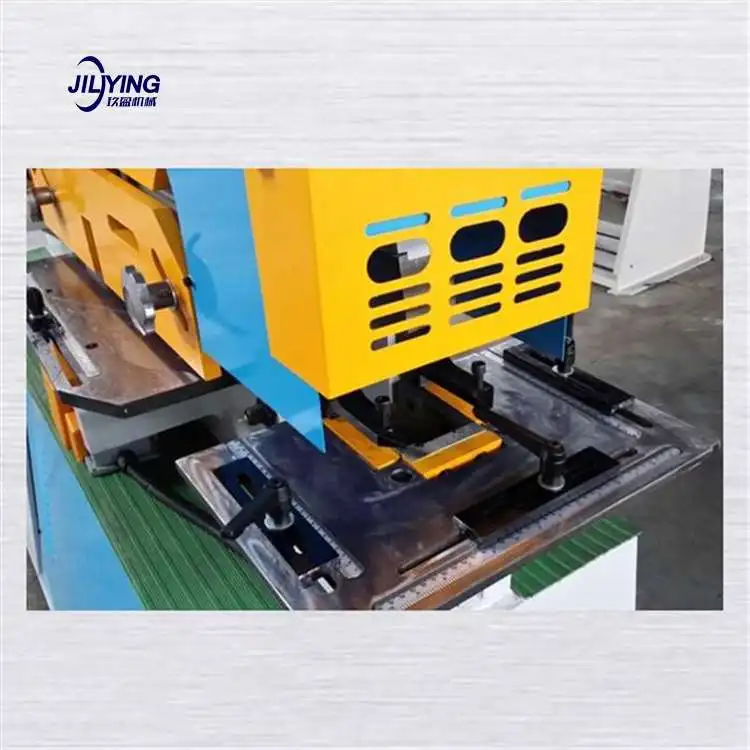

2.Large punching table with multi-purpose bolster
3.Rear notching station, Low power inching and adjustable stroke at punching station
4.Punching Full range of universal punches and dies are available.
5.Shearing Round and square bar shear has multiple holes for a variety of sizes.

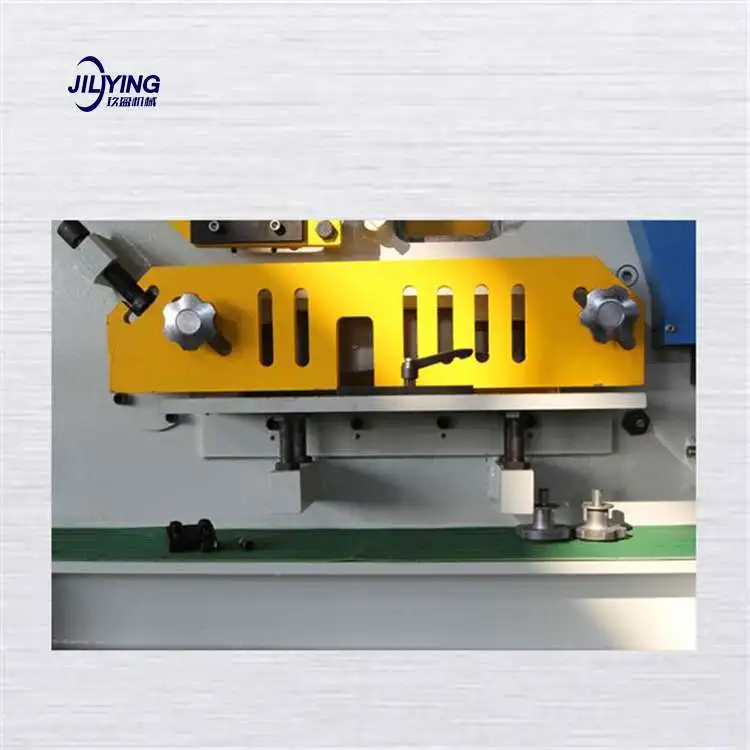

6.Notching Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and three gauging stops for precise positioning.
Working Principle

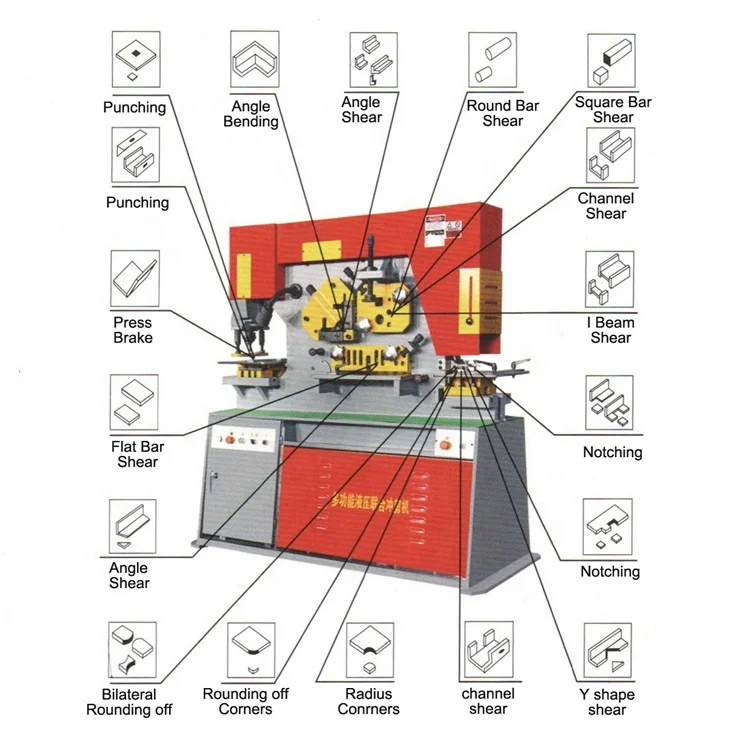

The multi-functional combined hydraulic punching and shearing machine is suitable for steel bar processing plants, tunnels, bridges and other projects of highways and high-speed railway projects. It is suitable for processing steel plates, angle irons, channel steels, I-beams, round steels, and square steels. This machine has multiple functions, high efficiency, labor saving, and equipment investment. It is an indispensable tool for steel processing.

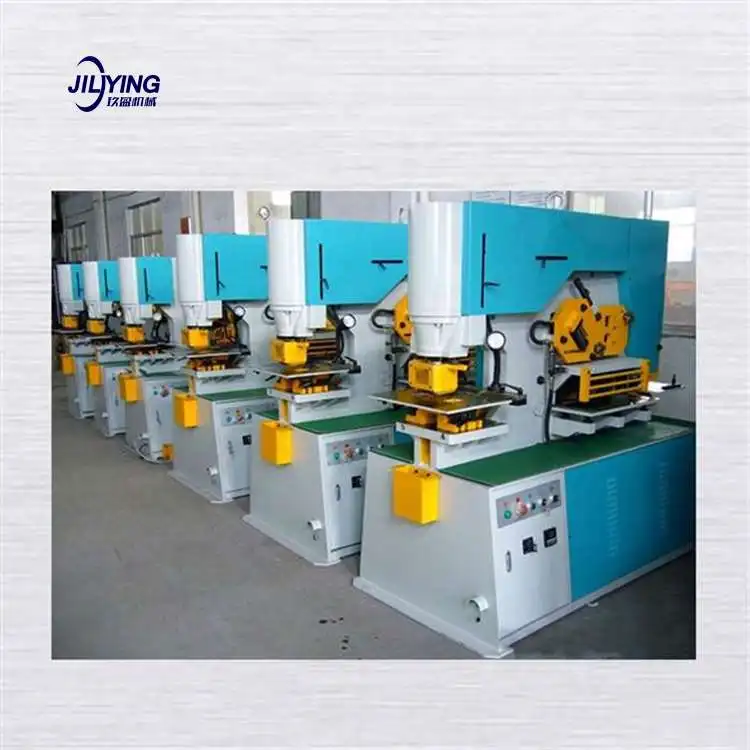

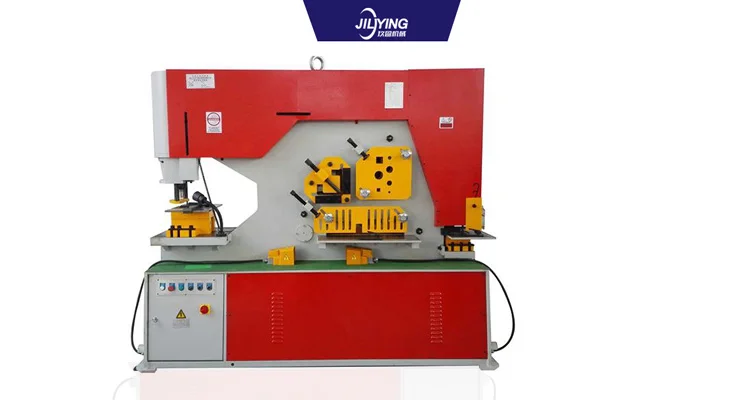

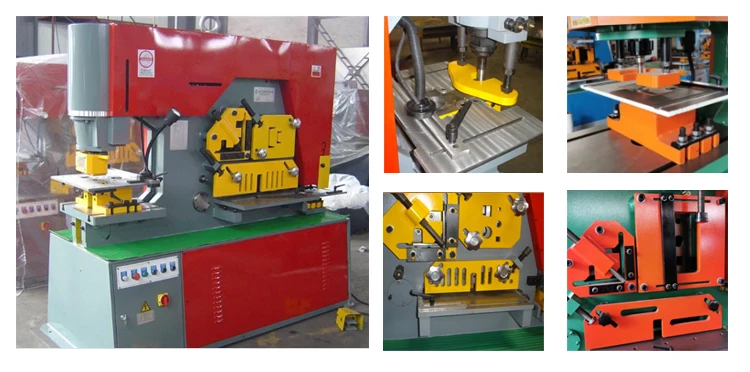

Product detail presentation

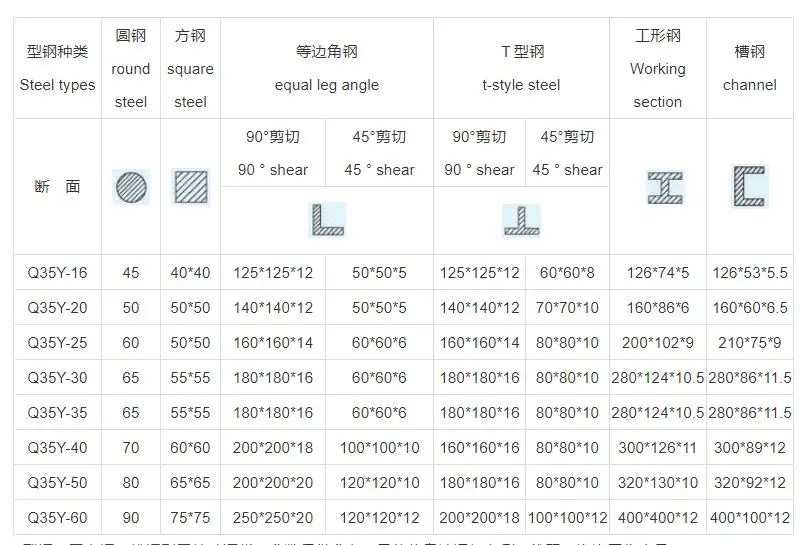

Specification
Type | Punching pressure | Cutting thickness | Max punching diameter | Power |
Q35Y-12 | 350KN | 12mm | 25mm | 4.0kw |
Q35Y-16 | 550KN | 16mm | 25mm | 4.0kw |
Q35Y-20 | 750KN | 20mm | 30mm | 5.5kw |
Q35Y-25 | 1100KN | 25mm | 35mm | 7.5kw |
Q35Y-30 | 1400KN | 30mm | 38mm | 11kw |
Q35Y-40 | 2000KN | 40mm | 40mm | 18.5kw |
Q35Y-50 | 2500KN | 50mm | 50mm | 22kw |
Products Recommended

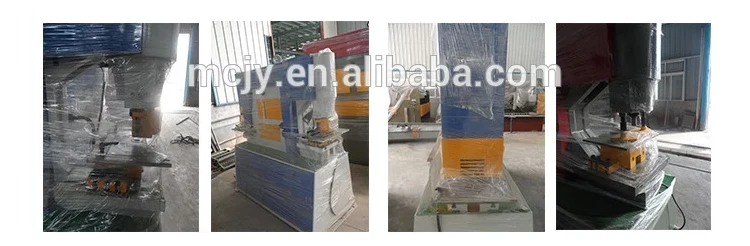

Packaging & Shipping
