Dryer is widely used to dry materials in industries like cement, mine, construction, chemical, food, compound fertilizer, etc. Thermocouples are installed in feeding and discharging units to control the temperature. The temperature change of the dryer also can be indicated by the thermometer, which is convenient for temperature control inside the dryer ( it is usually 250-350℃).
Applications
Powder & particle: Sands, limestone, stones, clay, mineral filter cake, coal, iron sulfate, filter cakes, fly ash, gypsum etc.
Damp and sticky material: Coal slime, sewage sludge, bentonite, Kaolin, etc.
Corrosive material: Distillers ‘grains, Fertilizer, animal dung, slag, etc.
Biomass material: Sawdust, wood chips, etc.
Features
1.International standard with ISO, CE certificate.
2.Simple system, safe and easy operation.
3.Flexibility in fuels used (NG, Oil, Coal etc.).
4.Year of experience with all types of dryers.
5.Capable of installation anywhere in the world.
6.In house engineering for custom fit applications.
7.Proven design.

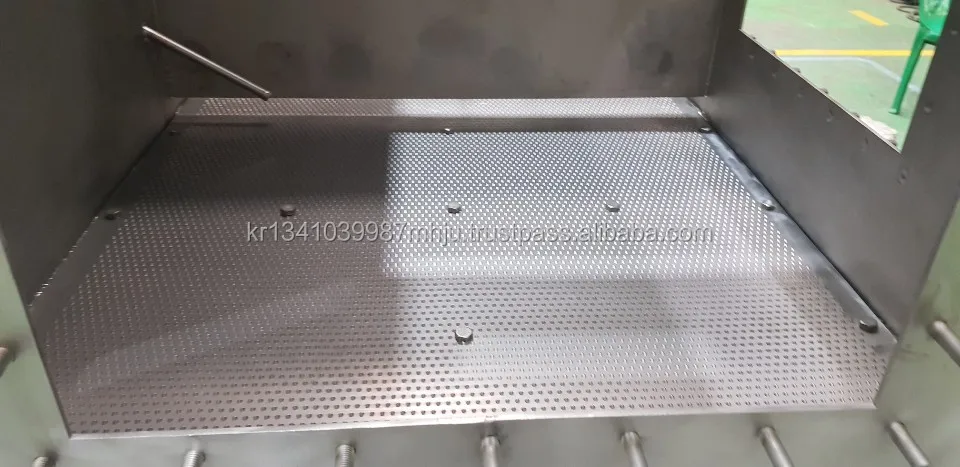

Detailed Images

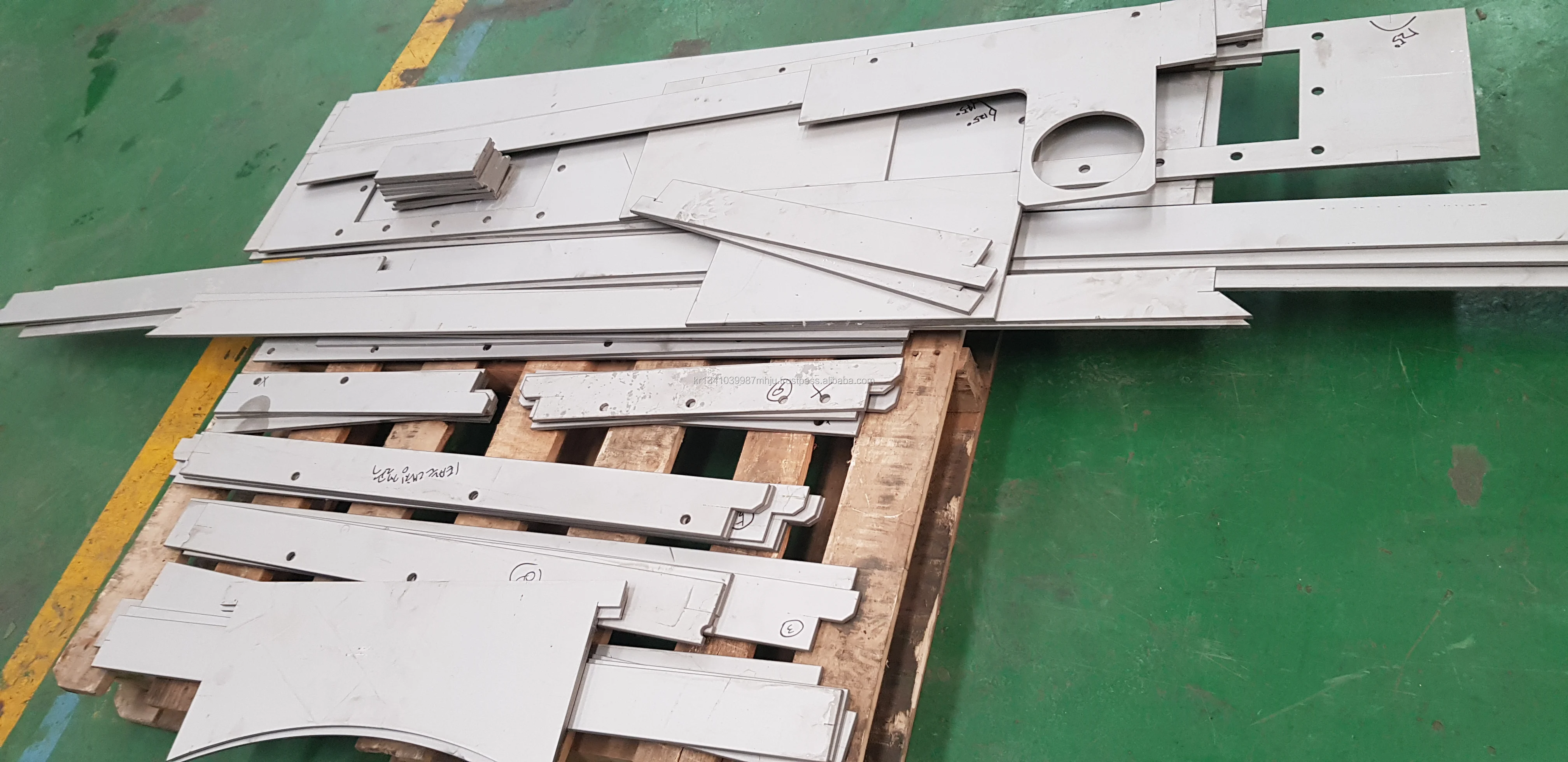

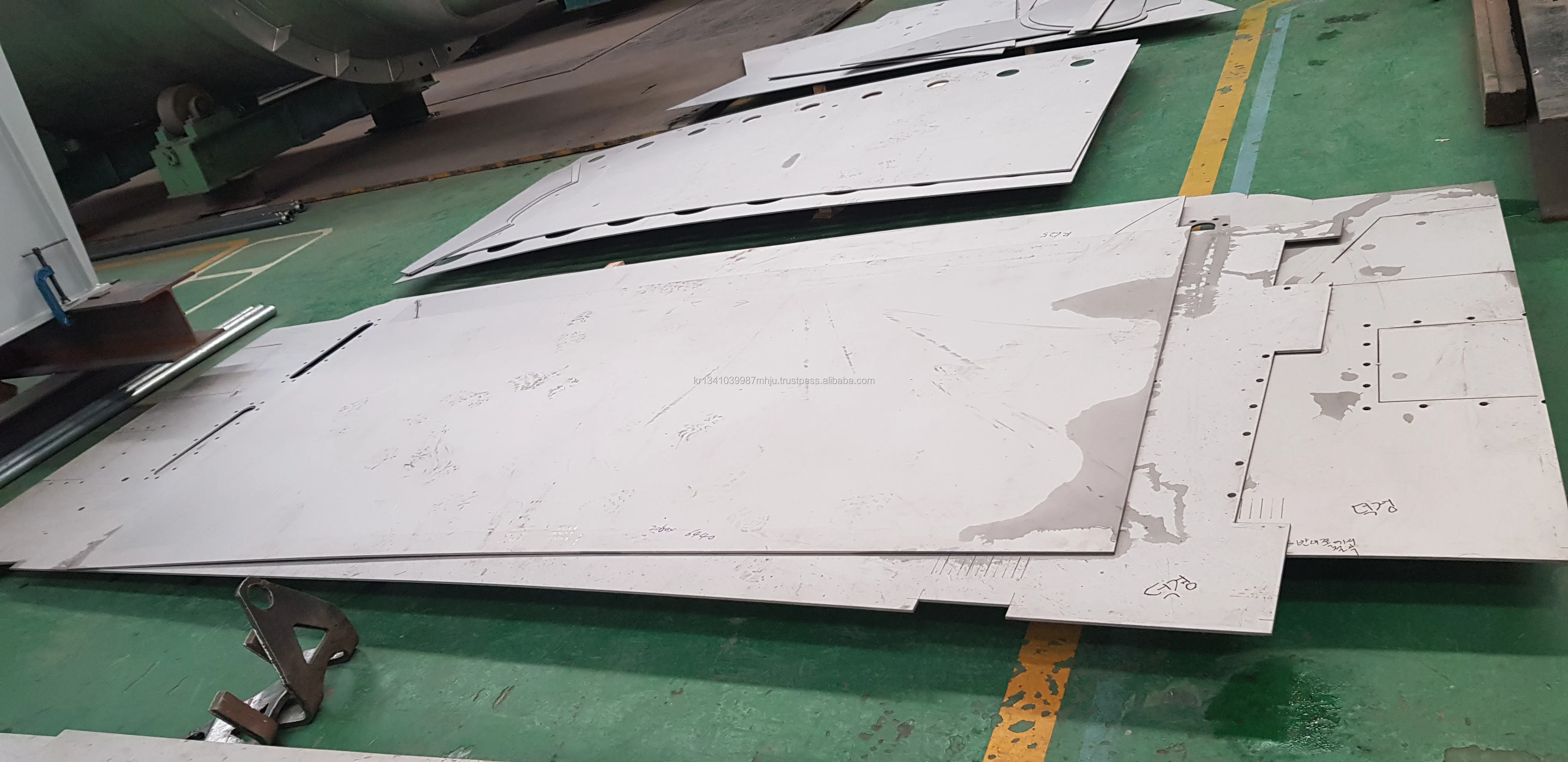

Point 1-Steel Plate Selection
Chemical analysis was carried out on the material inspection, according to the requirements of GB700-2006, dryer drum thickness < = 20 mm we use Q245 - A, > 20 mm we use Q245 - B; According to the GB/T 2970-2004 class ii, the range of 60 mm weld edge every board before cutting for ultrasonic flaw detection.
Point 2-Dryer Drum Welding
The dryer cylinder section for toroidal welding, longitudinal along the entire circumference of not more than two weld article number, and shell welds shall be full, the minimum is not lower than the parent metal surface, the top should not be higher than 3 mm, feed plate weld should be smooth. Weld edge bite depth should not be greater than 0.5 mm, continuous length should not be greater than 100 mm, should not exceed the total length of each weld bite edge which 10% of the weld length.
Point 3-inspection
Examination all the parts according to the drawing after processing completion. Spraying primer, rust preventing paint, and heat resistance paint.

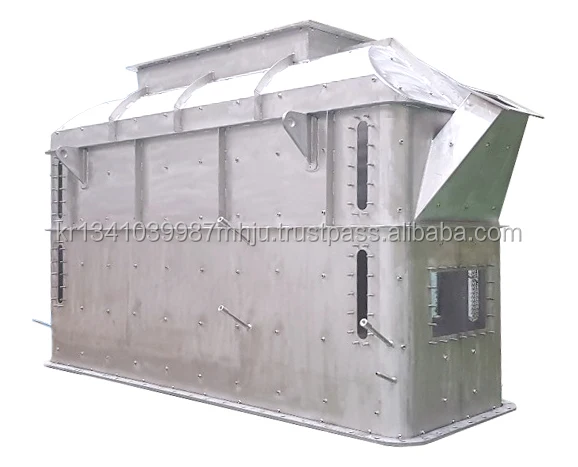

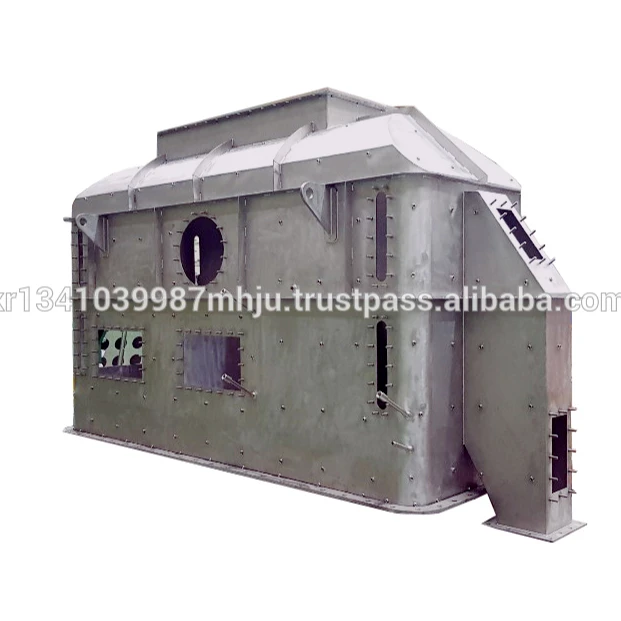

Dryer Structure
Working Site of Rotary Dryer

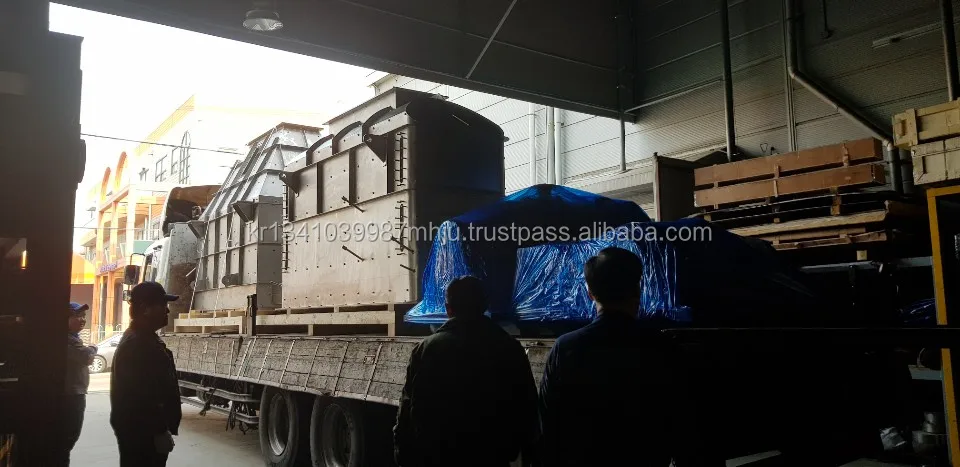

Packing & Delivery
Packing & Delivery
Company Information
1.Since 1990, about 30 years business experience.
2.Expert in Special Metal Business. Provide one-stop service from Material to Product
3.Advanced production equipment &professional QC to esure High-Quality of the products.
4.Factory located near to Incheon Sea / Air port.
If you want to find OEM supplier in Korea, contact us!
If you want to find Competitve Price in Korea, contact us!
If you want to find Professional Special Metal factory in Korea, contact us!
If you want to find Reliable Partner who helps you save trouble and time in program, contact us!
FAQ
Q: For providing you the suitable quotation we need to know the following information: A: 1. What is the raw material for the production line? 2. What is the capacity per hour you required? 3. What is the maximum input size of the raw material? 4. What is the output size and application for the final product? Once we get your answers, I can provide you the best quotation immediately. Remarks: The price will depend on different models. Reply message you will get 5% discount price.
Q: What about the Warranty of the products? A: ATX Machinery grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in normal operation, we will at our discretion replace or repair the defective parts freely.
Q: The reason you choose ATX Machinery: A: 1. Professional manufacturer of supplying mining crushing equipment, construction equipment, Ore beneficiation equipment, and mining dryers. 2. Experienced and professional R&D team and manufacturing team; 3. The professional sales team consisted of dedicated, dynamic and innovative people with the international version. 4. Professional logistics service ensuring the safety and timely delivery of products all over the world through ocean, airline, road, and railway.
