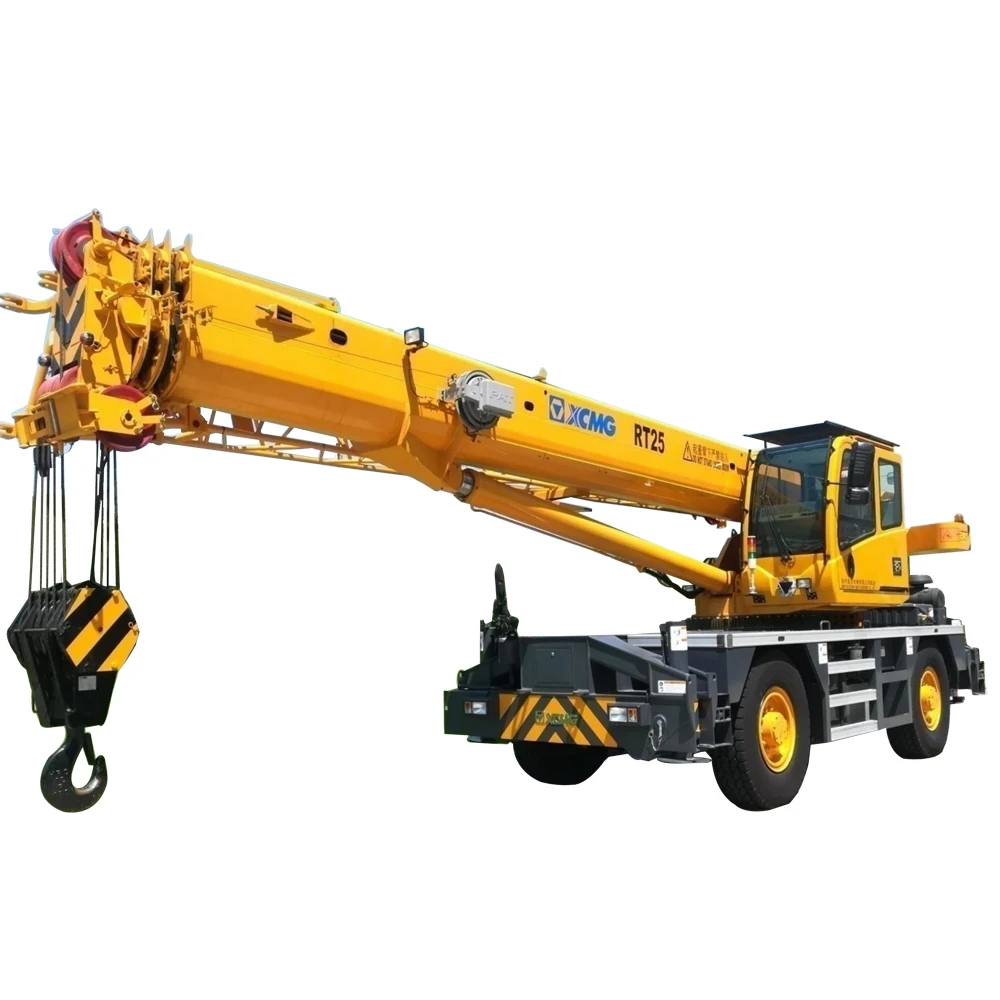

XCMG RT25 Hot Sale 25 ton rough terrain tractor crane .
RT25 is equipped with the two-axle loading chassis, which has two types of drive modes, four types of steering modes and backward-forward driving functions. It also has four sections of dodecagon main booms, Jib stowed under boom, H-type outrigger, fixed balance counterweight, as well as three working modes, including: hoisting with the support of outriggers, hoisting with the support of tire and hoisting when driving. It is widely used in oil field, mine, road and bridge construction, warehousing base and other construction sites.
Product Highlights:
1，Strong Power of Hoisting, Wide Range of Work
It has 31m main booms, 13m auxiliary booms, with the longest main booms and the highest comprehensive hoisting performance in the product of the same tonner.
2，Maneuvering and Flexible, Quick and Efficient
The max speed reaches 50km/h and the max gradeability is 55% and the min. turning radius is 5m. All these three factors make it flexible.
3，Economic and Environmental Protection, with Cost Saving
The product is equipped with optical matching power transmission system and torque converter with lockout function, which decrease the oil consumption over 20% at high speed.
Specification
Project | Unit | Parameter | ||||
Engine Type | - | QSB6.7-C190 | ||||
Engine Rated Power | (kw/(r/min)) | 142 | ||||
Engine Max Torque | (N.m/(r/min)) | 931 | ||||
Driving | ||||||
Max Travel Speed | (km/h) | 50 | ||||
Min Travel Speed | (km/h) | 2 | ||||
Boom Length of Crane | ||||||
Basic Boom | (m) | 9.7 | ||||
Longest Main Boom | (m) | 31 | ||||
Lifting Speed | ||||||
Main Hoisting Mechanism | (m/min) | 130(Unload) | ||||
Auxiliary Hoisting Mechanism | (m/min) | 130(Unload) | ||||
Stretching and Retracting Time of Crane Boom | ||||||
Full Stretching | (s) | 70 | ||||
Full Travel Boom Lifting | (s) | 55 | ||||

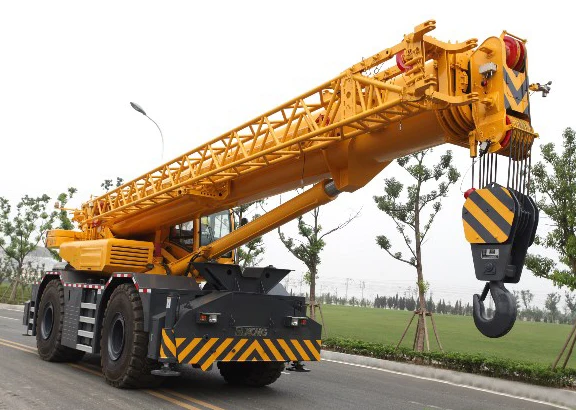

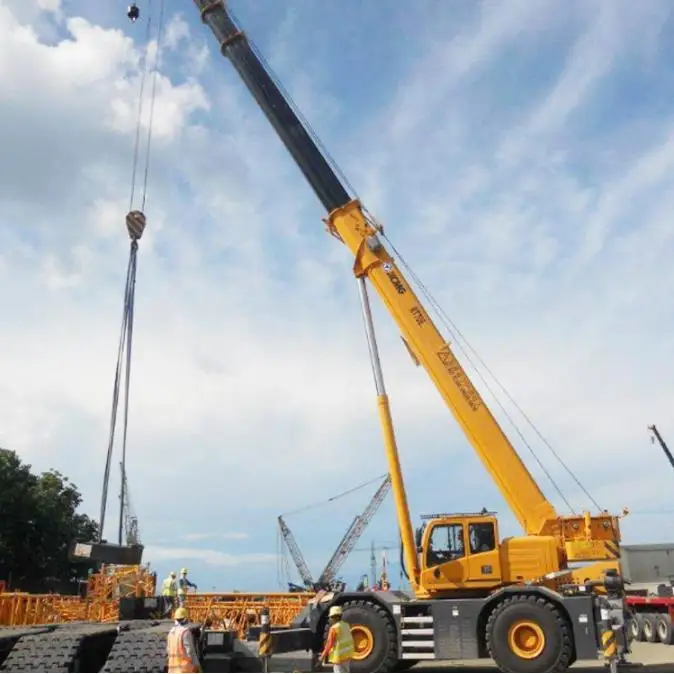

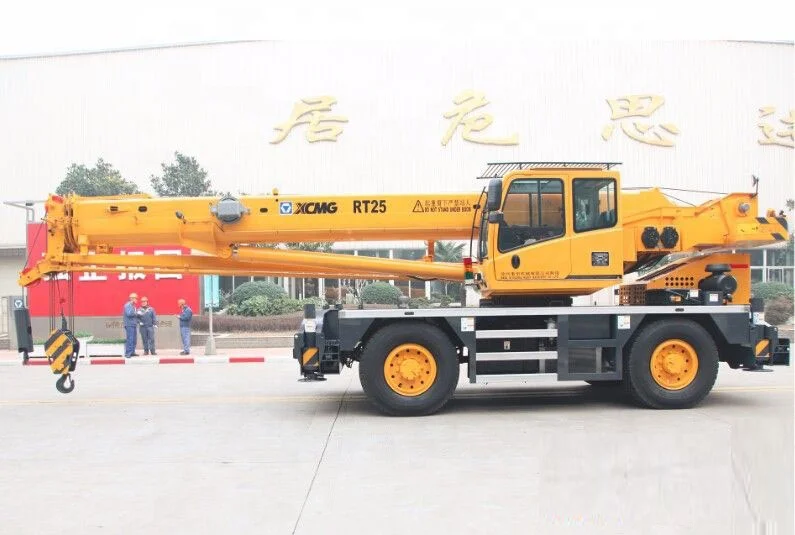

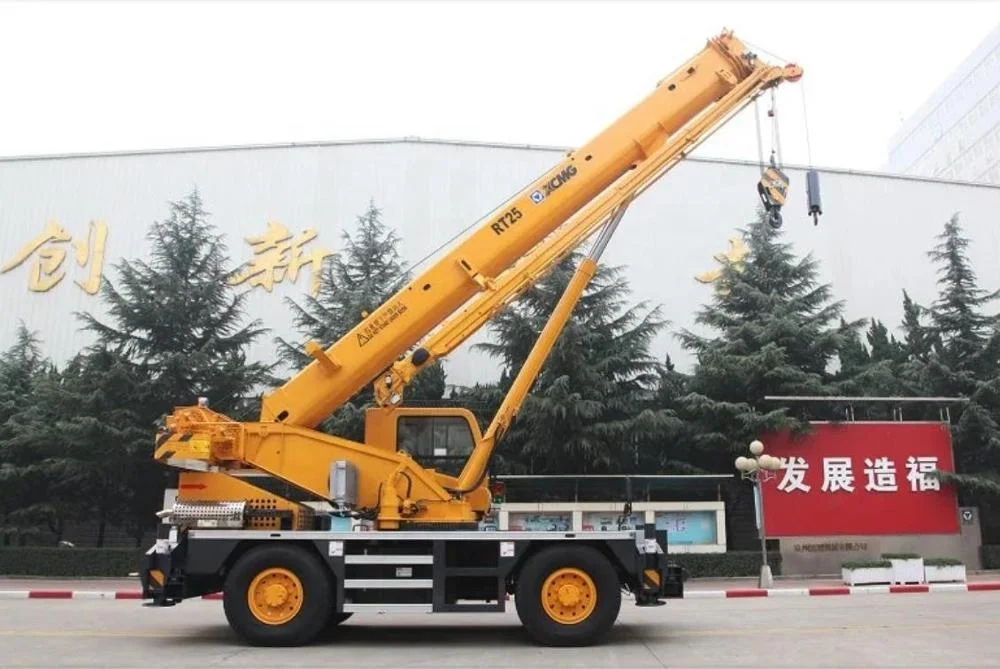

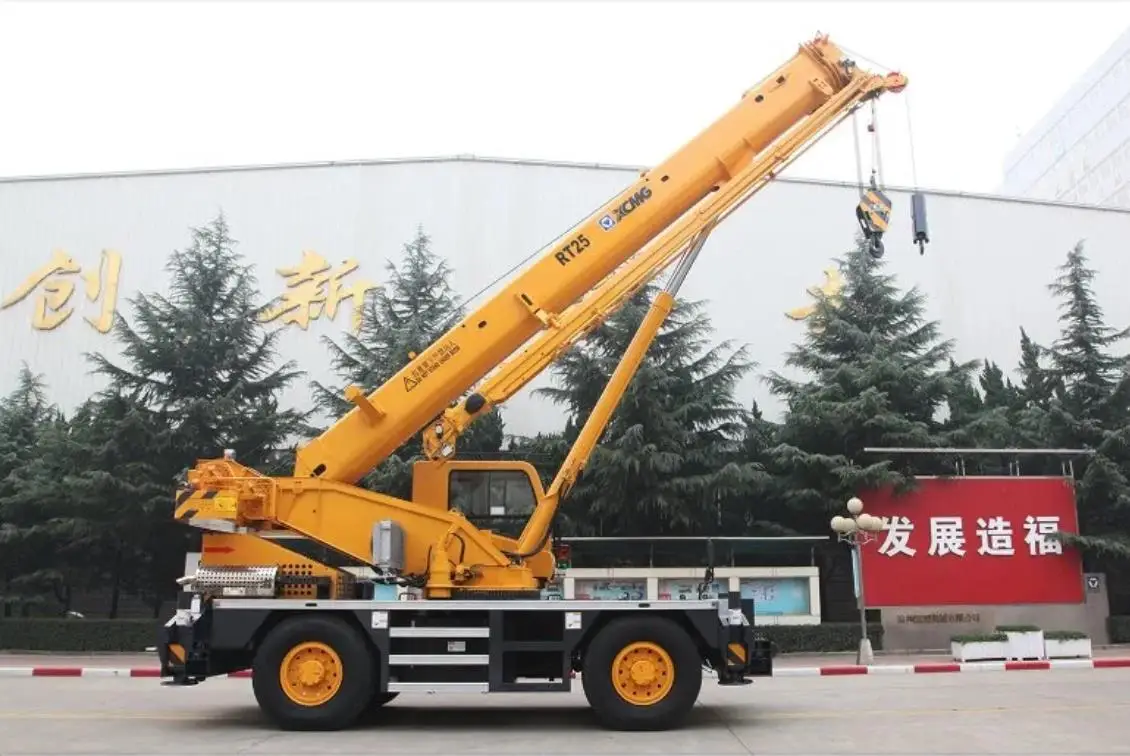

Product Show
