Kaishan KG520/KG520H дизельный двигатель с приводом DTH crawler, Полностью Гидравлическая цена, буровая установка

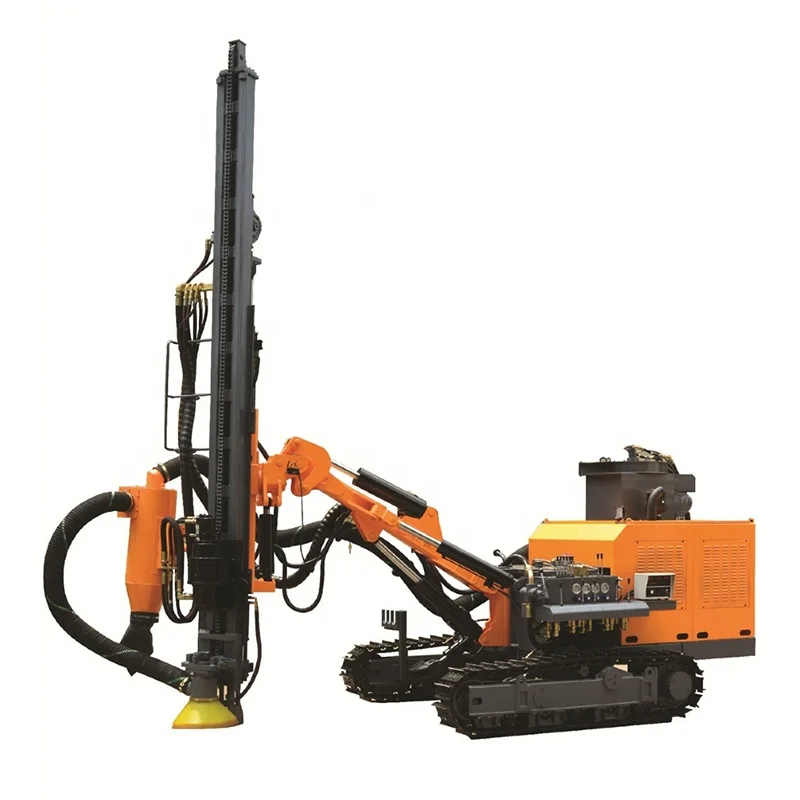

KG520/KG520H Down the hole Drill Rig for Open Use

The KG520/KG520H down the hole drill rig for open use is an improved device in compliance with national regulations on diesel-engine emissions.Equpped with the Yuchai four-cylinder engine(China III),the drill rig meets national standards for emissions and environment.The folding frame track and four-wheel drive are adopted,and track leveling and the walking motor of plunger piston improve the working pressure and climbing capacity.The enpanded pitch and lifting-arm hydrauliccylinder enable it to meet the requirements of limiting position.The rotary torqe and revolving speed are raised,the propulsion motor and chain are used to raise the lifting force and reliability.The dust collector is enlarged to produce a better effect on dust collection.The thickened profile is used for the housing,and the additional ring makes handling and lifting convenient.

Comment:The KG520H down the hole drill rig for open use is equipped with a dust collector,thus making operation more environment-friendly and reliable
