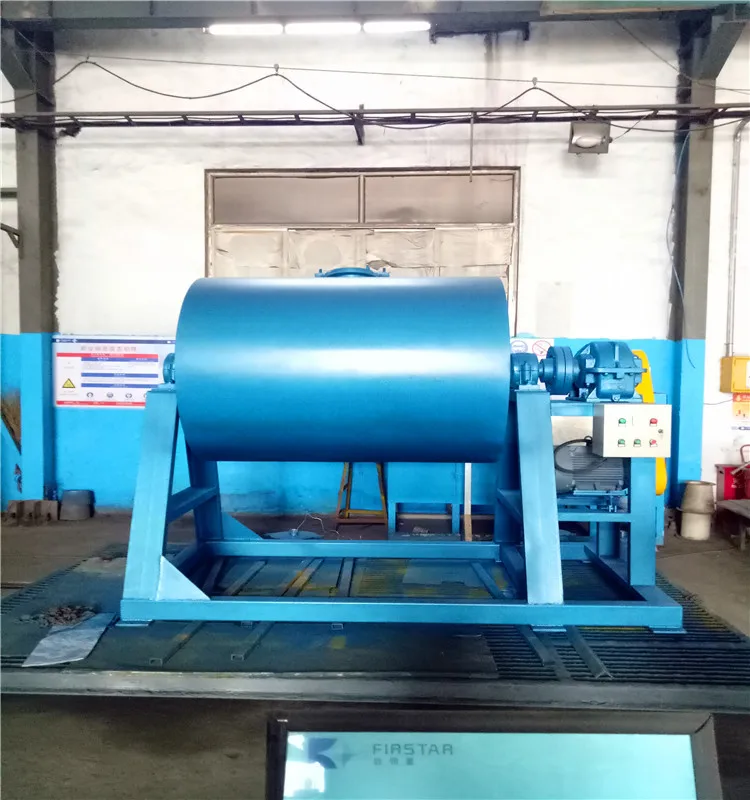

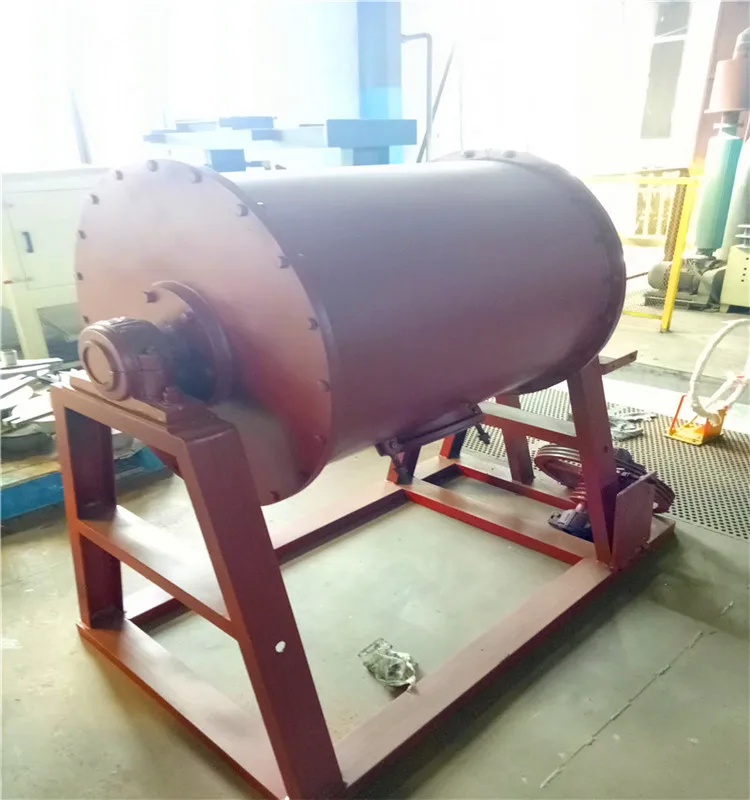

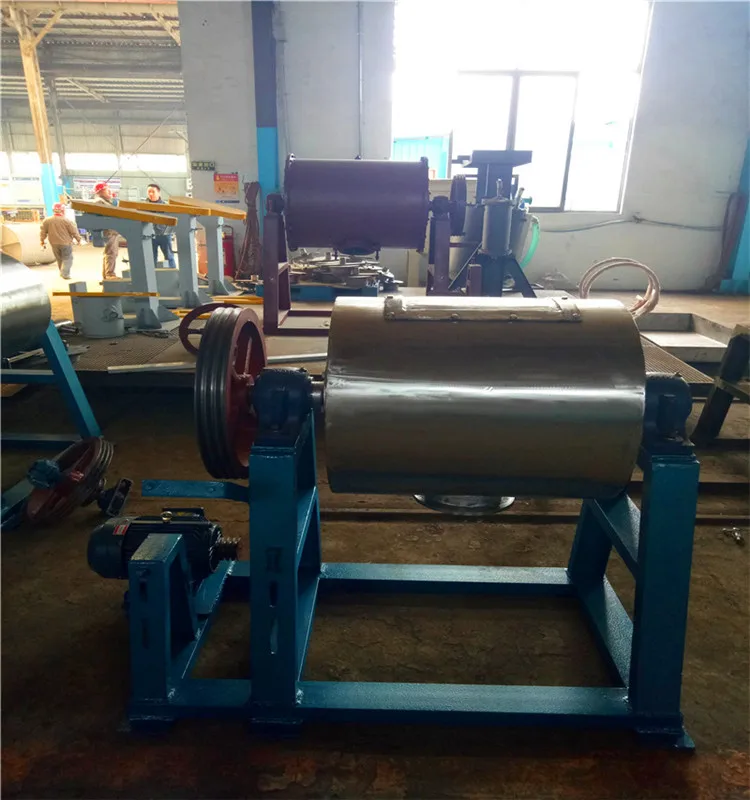

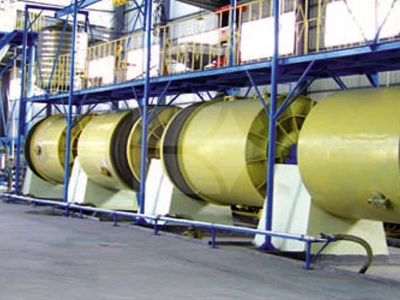

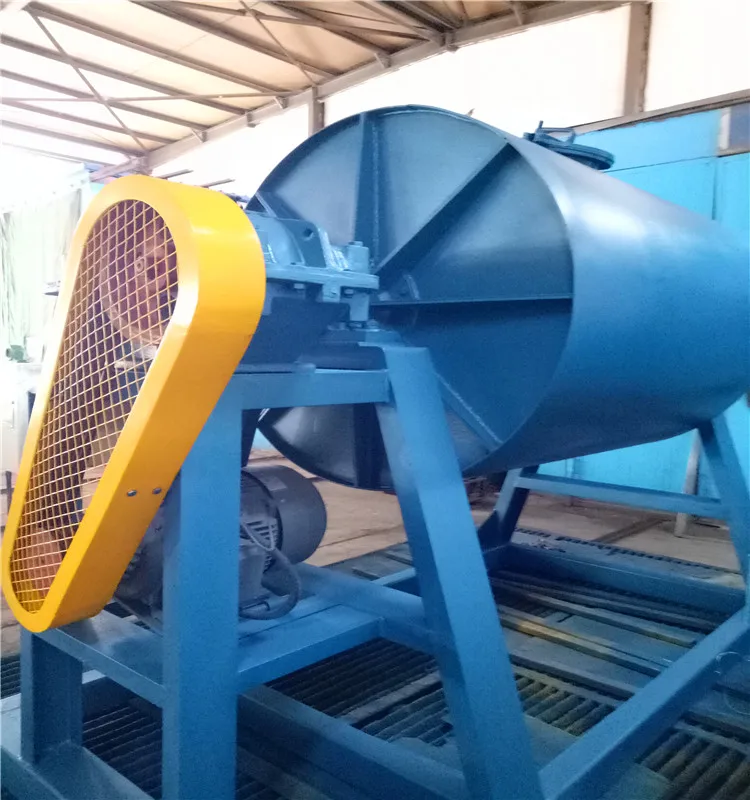

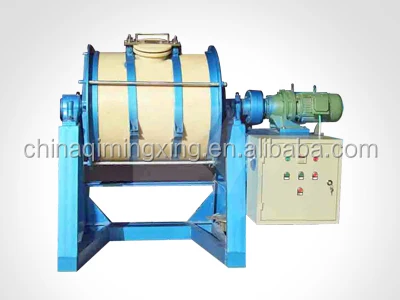

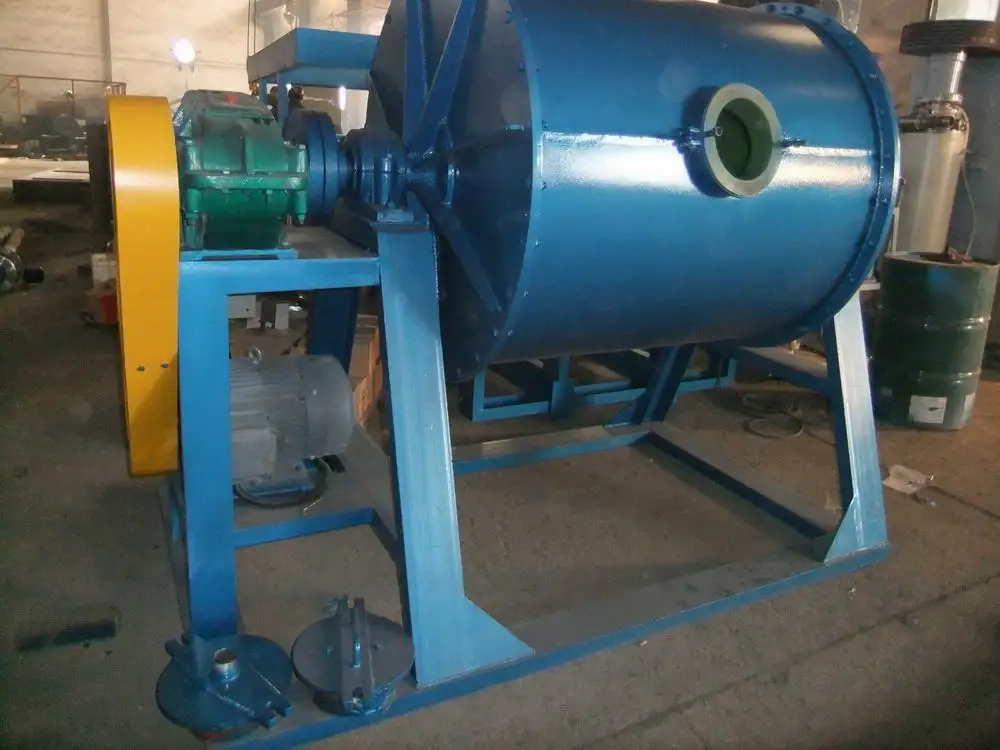

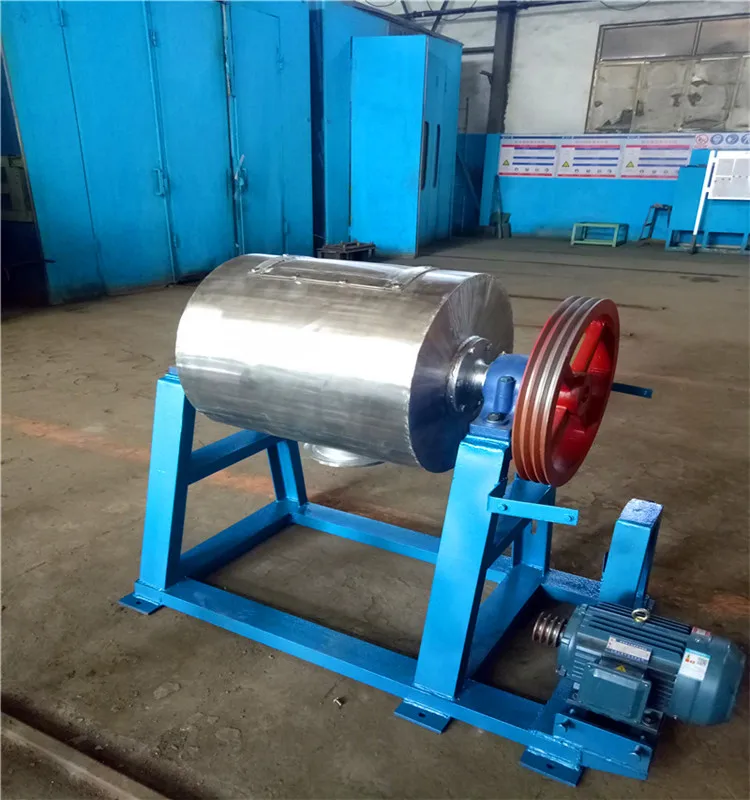

Ball Mill With Alumina Lining Brick Used For Grinding
- Category: Mining Machinery >>>
- Supplier: Zibo Qimingxing New Material Incorporated Co. ltd.
Share on (62054318975):
Product Overview
Description
Ball mill is essential equipment used for crushing and grinding raw material. It is widely used in ceramic, cement, glass, fertilizer, mine industry etc. Wet and dry grinding of minerals and other material is applicable.
|
Name |
Volumen(L) |
Power (kx) |
Rotating speed (r/min) |
Production capacity |
Size (mm) |
Out Size (mm) |
The ball mill Weight (Ton) |
The Bricks weight (Ton) |
Total weight (Ton) |
|
QM200KG |
525 |
5.5 |
36 |
200KG |
D810*1020 |
2000*930*1260 |
1.5 |
0.8 |
2.3 |
|
QM300KG |
850 |
5.5 |
34 |
300KG |
D950*1200 |
2500*1100*1600 |
2 |
1 |
3 |
|
QM500KG |
1235 |
7.5 |
32 |
500kg |
D1100*1300 |
2730*1220*1590 |
2.6 |
1.35 |
3.95 |
|
QM1000KG |
2260 |
11 |
29 |
1000kg |
D1300*1700 |
3200*1450*1820 |
3.8 |
2 |
5.8 |
|
QM1500KG |
4000 |
30 |
25 |
1500kg |
D1600*2000 |
4000*1850*2000 |
4.5 |
2.8 |
7.3 |
1. Less investment and eletricity saving compared with similar products;
2. Easy and safe to operate, stable performance;
3. The ball mill size, liner and grinding media can be properly selected according to density and hardness of raw material and production capacity etc;
4. Grinding time can be adjusted according to production requirement;
5. Suitable for mixing and grinding different kinds of material.
