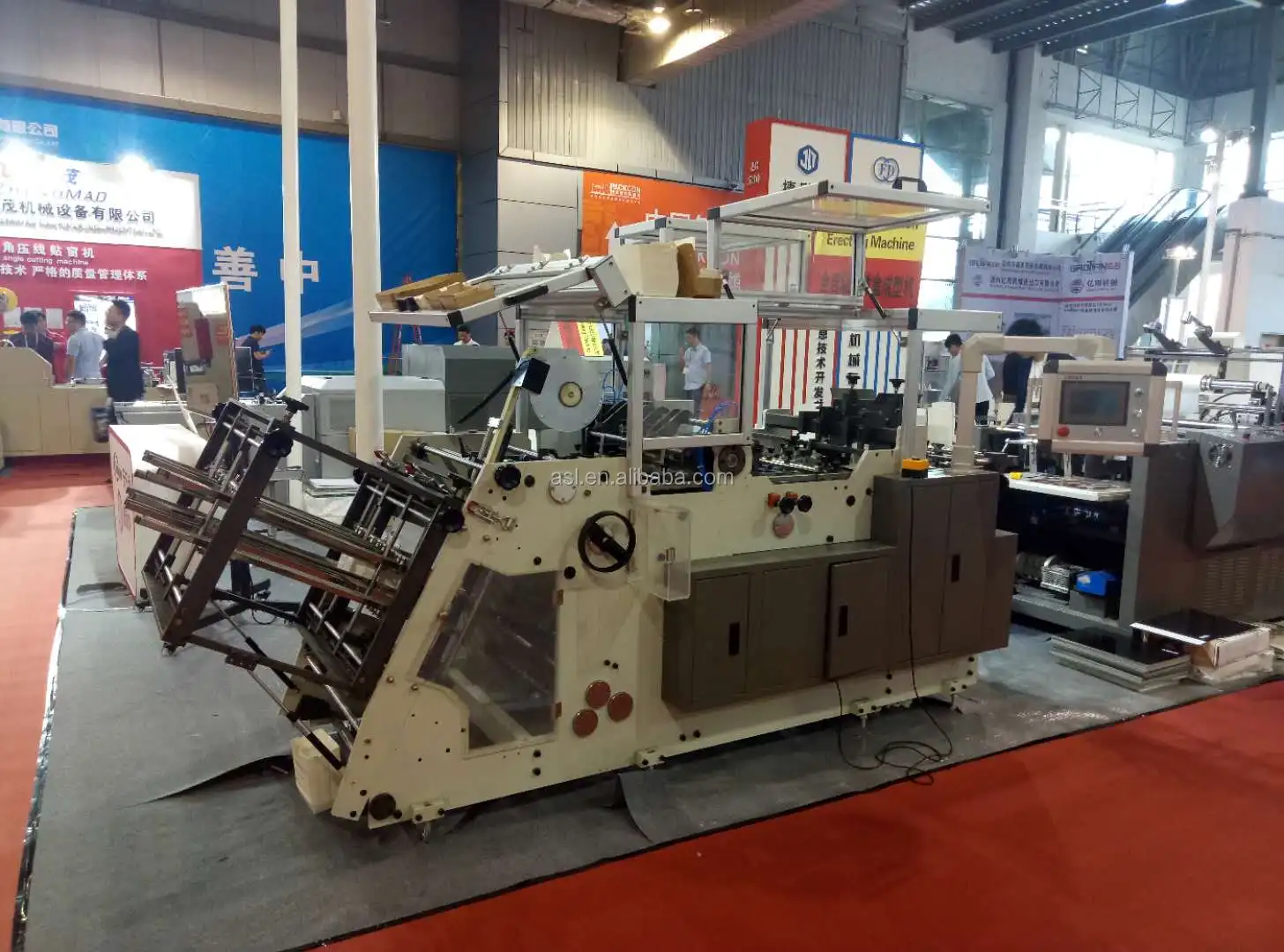

Paper Carton Erecting Machine for Hamburger Box and Trays

Product Overview

Description

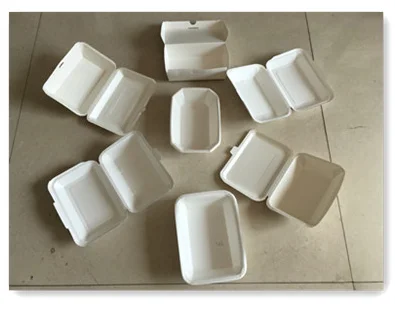

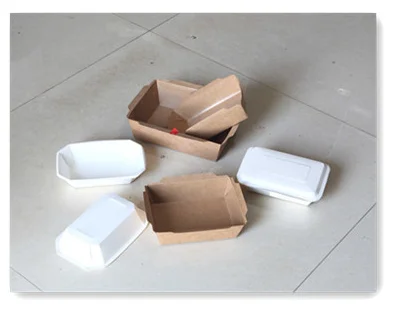

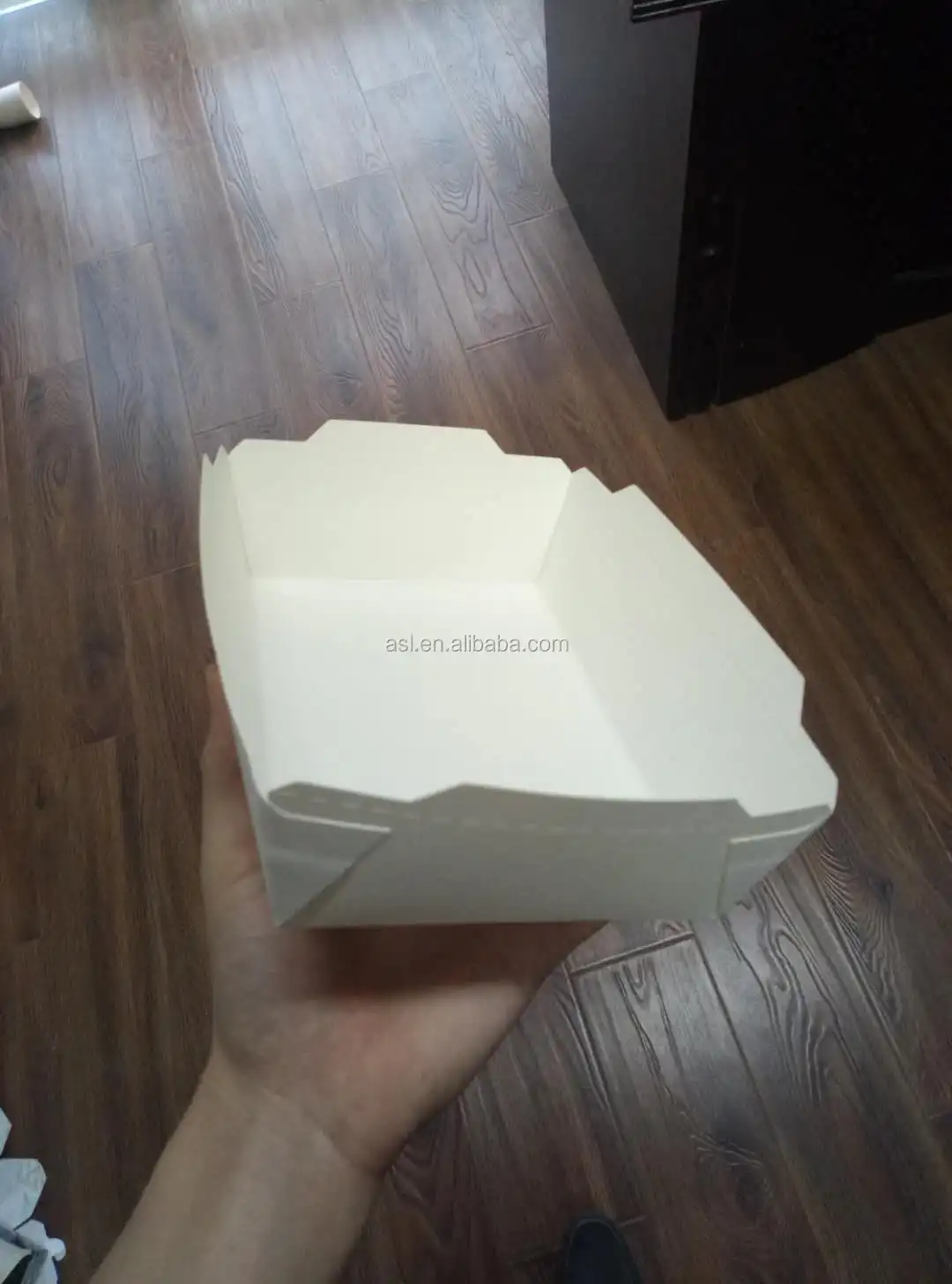

Automatic hamburger box making machine is molding equipment specialized in producing various paper products, which can produce hamburger box, square box, potato chipper, food box(portable outside),and other boxes made by paperboard and corrugated paper.





Working principle

The paper will be printed and cardboard cut from paper placing frame brought out to the conveying chain, and then sent to die, in the process card paper is coated with a water-based glue, glue position can be adjusted, the amount of coating glue can be adjusted in production without stopping, cardboard film coating adhesive to the collector after forming, automatic stacking and counting, and according to a predetermined number of stack automatic mark without stopping.

Feature

1.the machine is with stable quality, high efficiency, speed up to 180PCS/MIN

2.Multi functional :In the same machine, only need to change a touch can create different specifications of the boxes, boxes, hamburger boxes, boat shaped box, food packing box, carton products such as chicken

3.The machine uses the water-based glue device, can achieve high efficiency, high accuracy. Water based adhesive is a water-soluble adhesive glue for food grade (high security).

4.This machine is mostly used high quality seal bearing, long service life, good stability.

5.The machine uses the PLC intelligent control system, in the paper, no paper state automatic shutdown.

6.The main mold with pine material, the replacement of the mold with high efficiency.

7.Can automatically collect deposits, inventory of finished goods.

8.Synchronous belt drives all adopt high quality, make the machine running almost no error.



Specification

Paper   Size	60*100-480*580mm
Raw Material	Whiteboard and other similar PE coated paper (200-600g/m2)
Rated Productivity	80-160 pcs/minute
Unfold paper width	max 600mm
Total Power	2.2KW
Total Weight	2000KG
Package Size	3000*1200*1600mm
