Automatic PCB Etching Machine / PCB Circuit Board making machines

Name: Automatic PCB Etching Machine / PCB Circuit Board making machines
SKU: 62070907760
Availability: InStock

Price:

Quantity:

Product Description

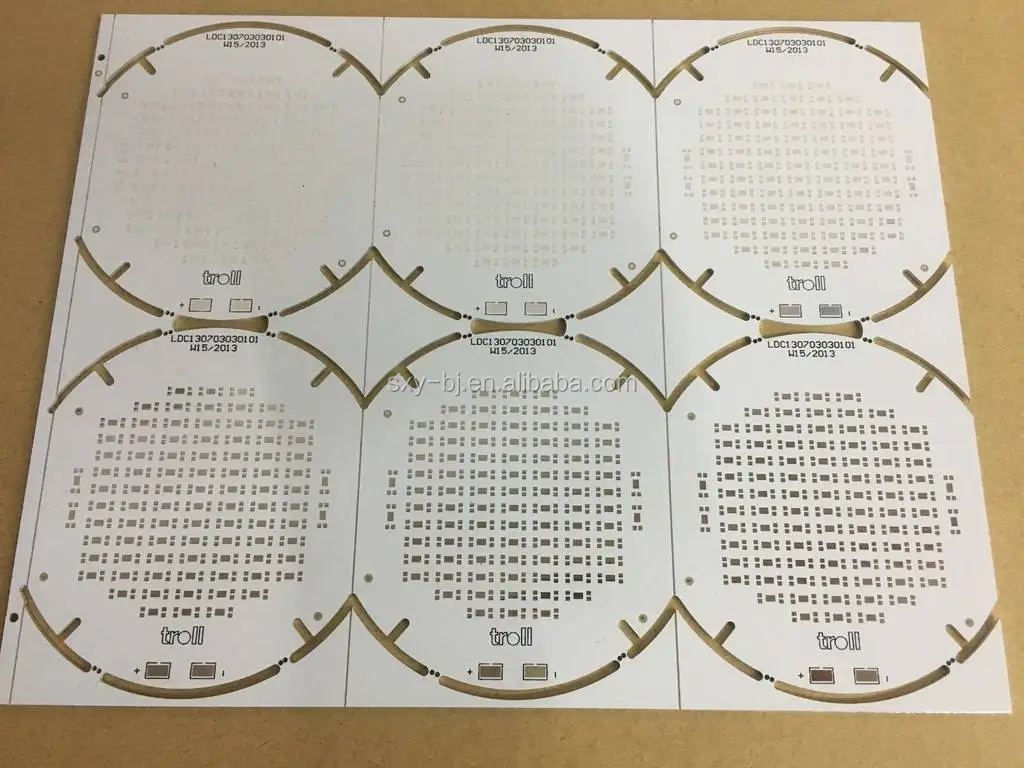

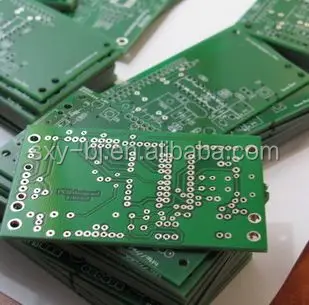

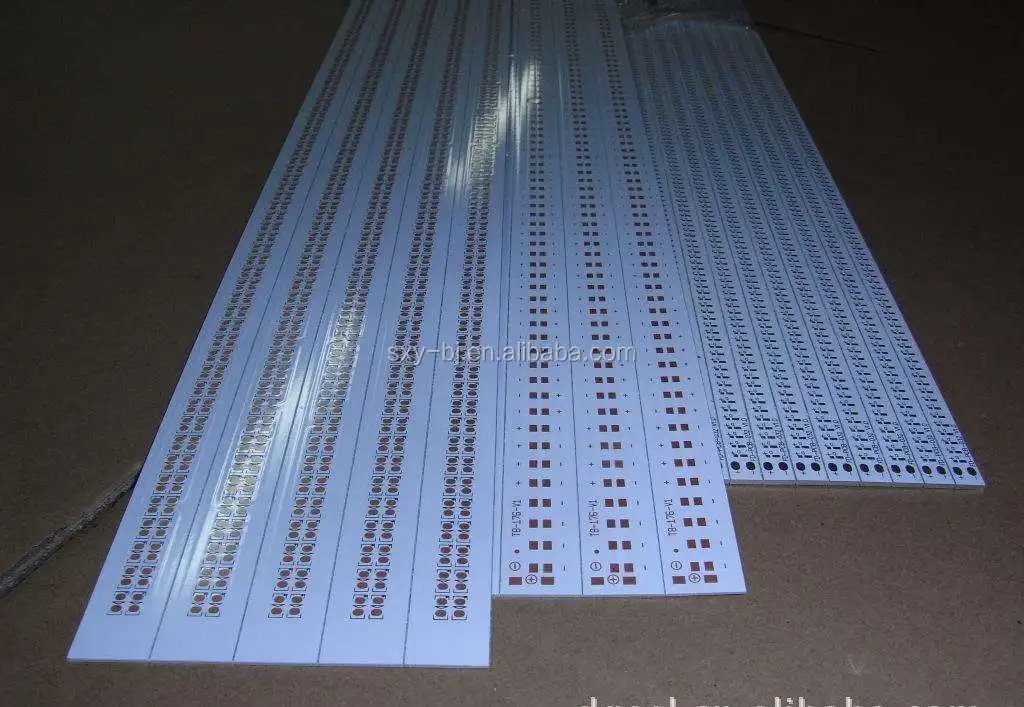

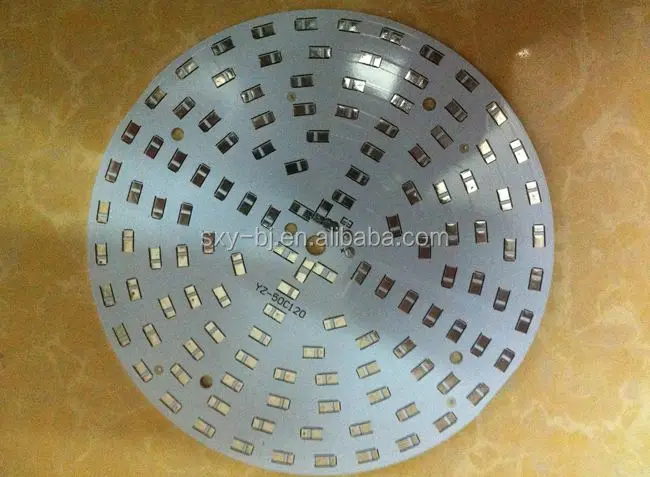

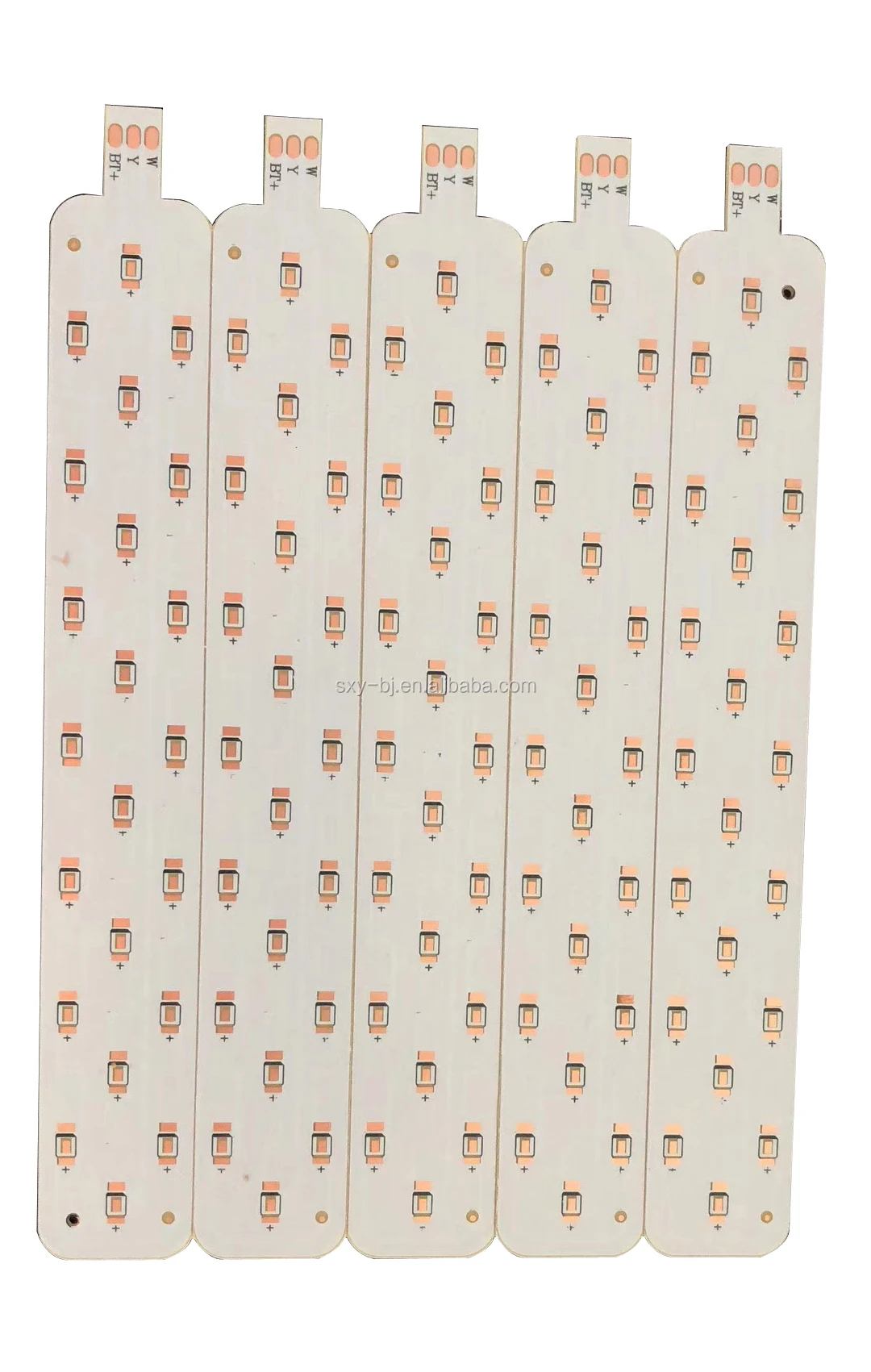

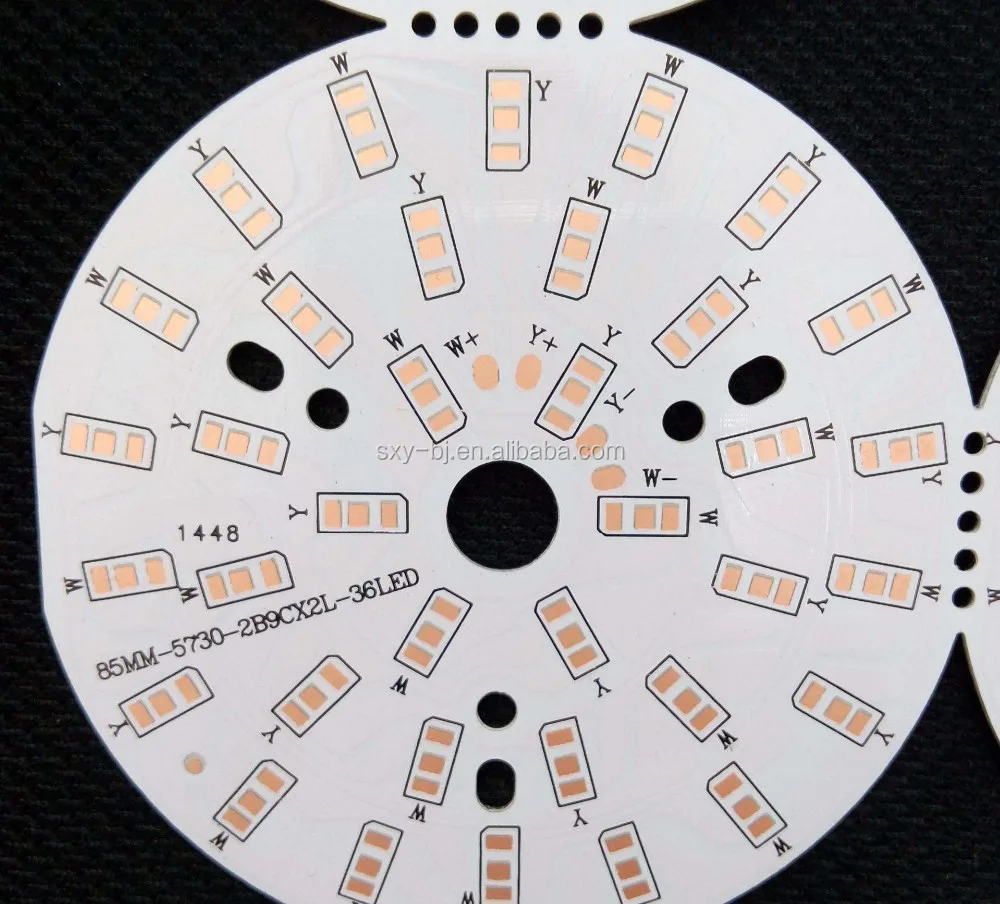

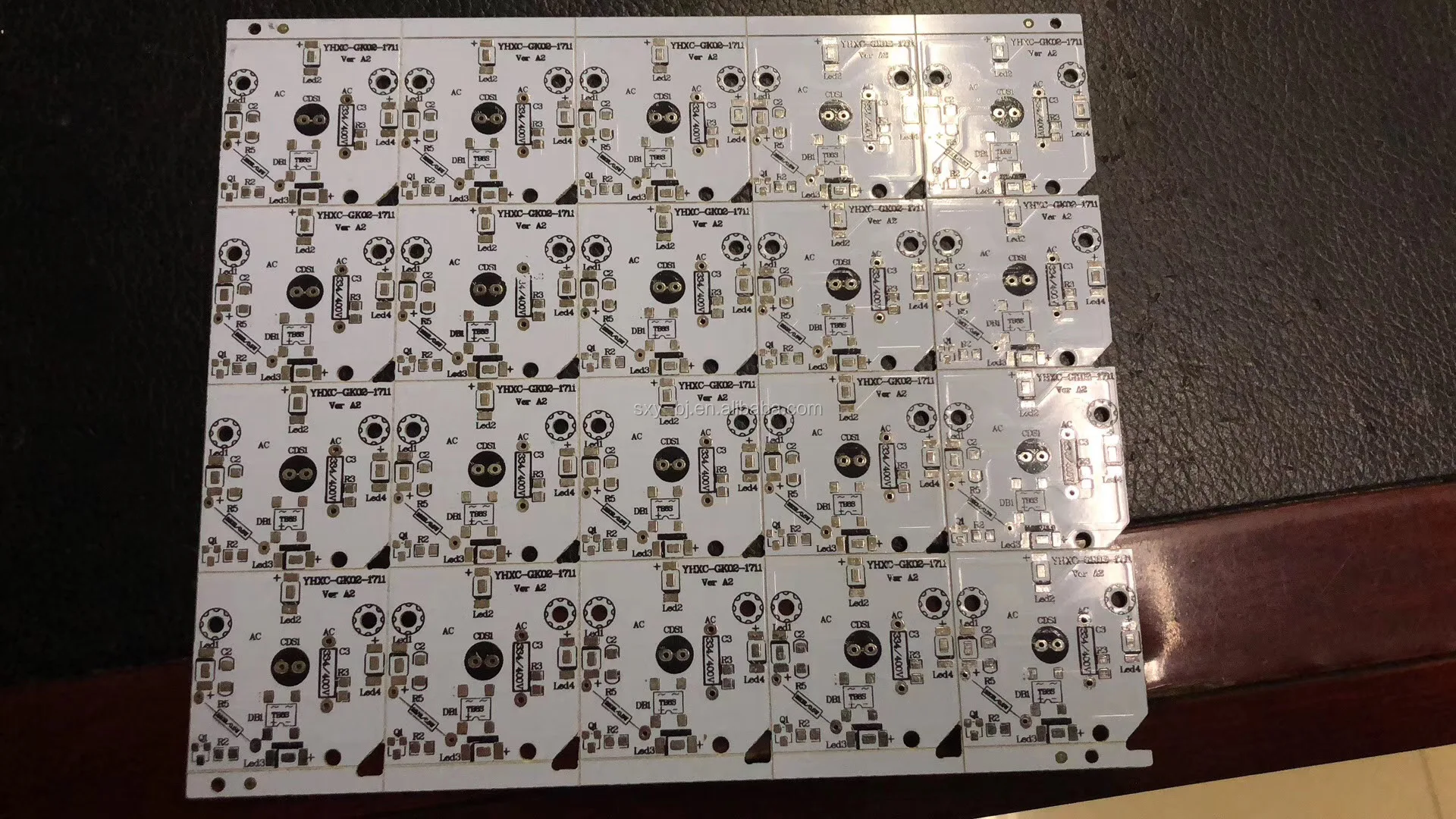

This automatic PCB etching machine is suitable for making circuit board,like aluminum PCB, FR-4 board.

The surface of the copper-clad plate is chemically etched to remove the unwanted copper conductor to form a circuit pattern.

PCB Etching Machine Advantage:

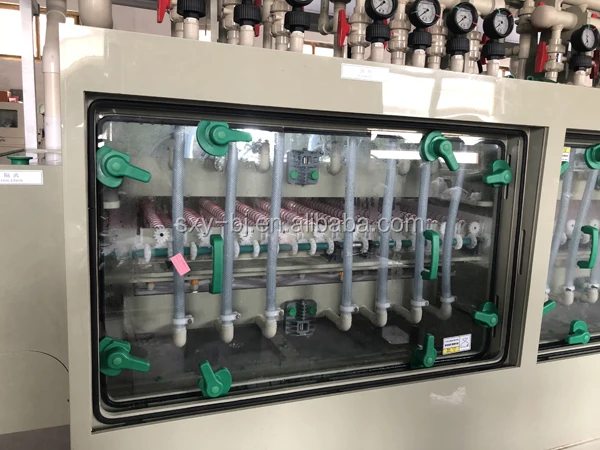

1.Transparent glass is used in the upper cover and side window of the machine to facilitate the observation of the spraying situation and the conveying of the workpiece.
2.The etching section adopt the horizontal swing spraying system, quick-detachable nozzle, convenient maintenance and repair.
3.The etching solution is filtered by multiple stages, which can effectively prevent the nozzle from blocking.
4. The washing section adopts cascade washing structure, which can greatly reduce the consumption of fresh water.
5. The machine adopts dc speed regulation, digital display, stable operation and simple operation of centralized electric control box.

PCB Etching Machine Details:
Machine Model			SK700-2
Machine Power			380V/50Hz/60Hz
Working width			700mm
Plate Thickness			0.05~3.2mm
Transmission Speed			0~6 M/Min (adjust)
Etching area			size: 700mm W x 2000mm L pump: 4KW motor x 2sets double etching with oscillation heater: titanium -- 6KW cooling : titanium pipe nozzle: Fan-nozzles
Rinse area			700x1200mm double side spraying
Stripper area			size: 700mm W x 2000mm L pump: 4KW motor x 2sets double etching spray sytem heater: titanium pipe cooling : titanium pipe nozzle: Fan-nozzles
Machine Material			PP plate, resist high temperature
Machine Size			10500x1600x1750mm
Protection Function			1. Temperature Control System 2. Pressure Control System 3. Double Filter System 4. Conveyor Control System

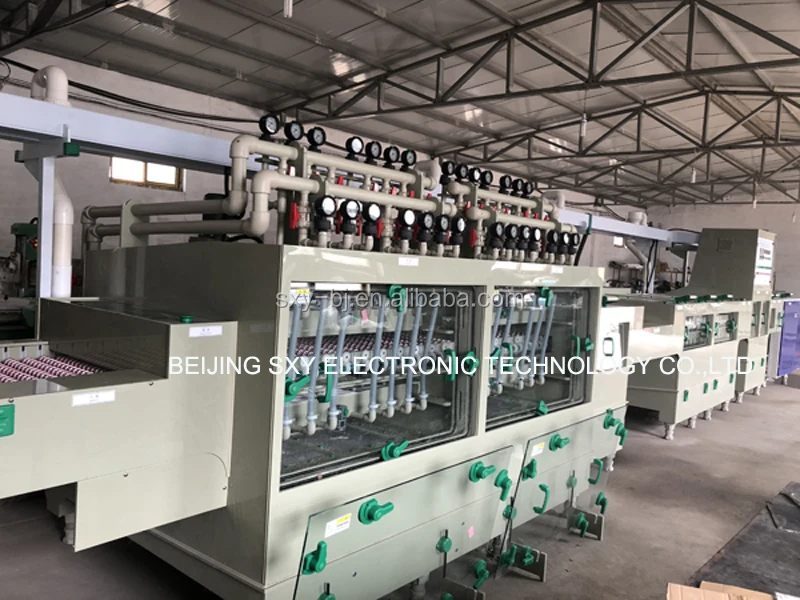

Detailed Images
