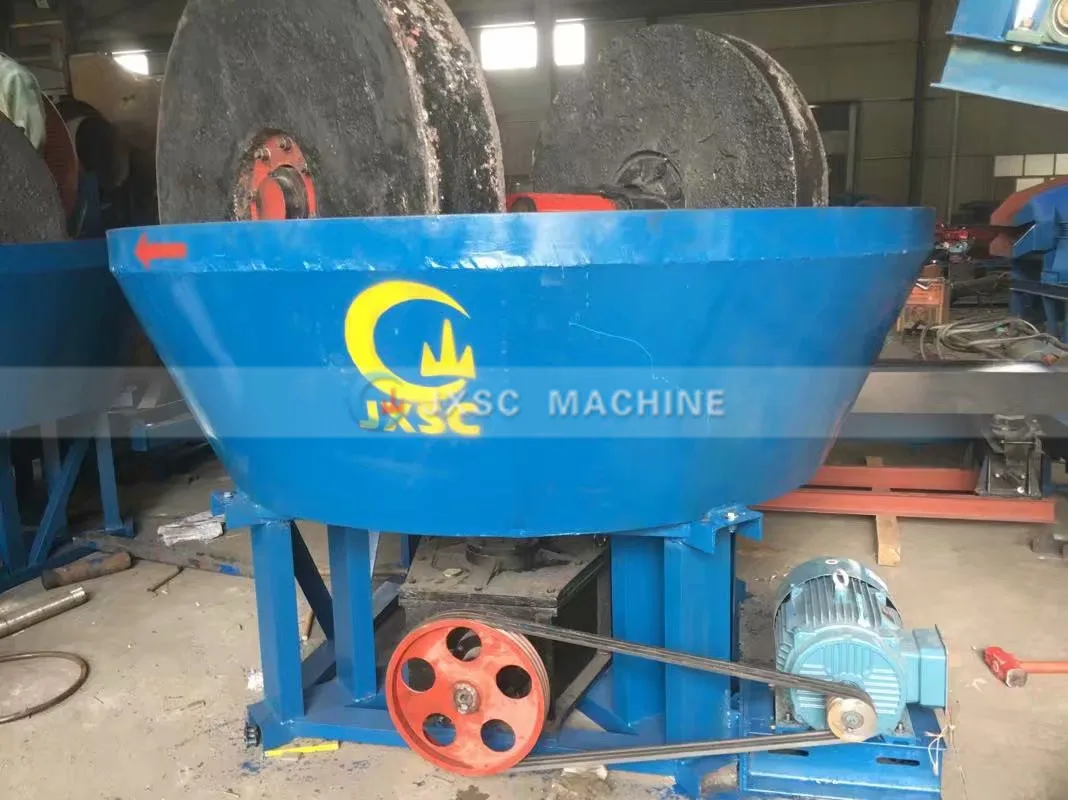

CE ISO Quality Verified Best Factory Price Gold Grinding Machine China Wet Pan Mill for Rock Gold Processing Plant
- Category: Mine Mill >>>
- Supplier: Jiangxi Province County Mining Machinery Factory
Share on (62078105578):
Product Overview
Description
Product Description

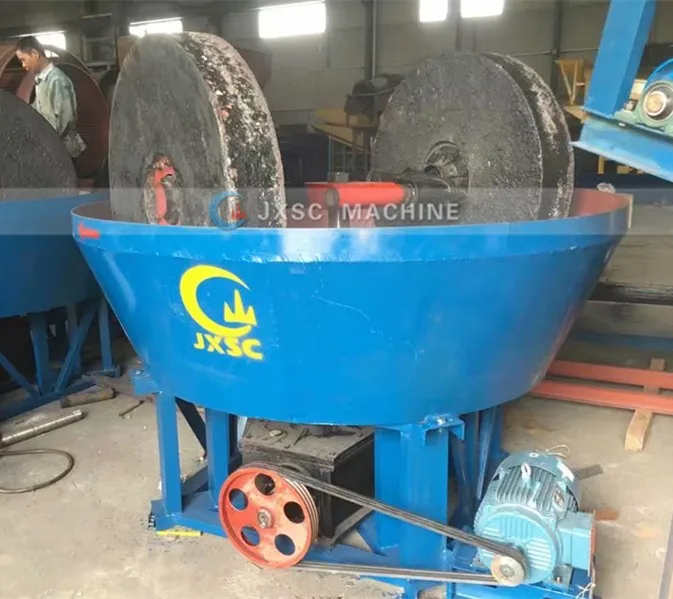

The Wet Pan Mill is also called a wet grinding machine. Based on the different structure it is divided into double roller grinding and three rollers, most often used is double rollers, the center material is fed on the inner grinding road by two feeders. It is widely used for selecting ferrous metals, nonferrous metals, and nonmetals, as well as precious metals like gold and silver, tin ore, coltan ore, tungsten ore, chrome ore, etc.
Wet Pan Mill is widely used in rock gold ore processing.
It is the excellent equipment for replacing ball mill, is the first choice for milling equipment for small and medium-sized miners.

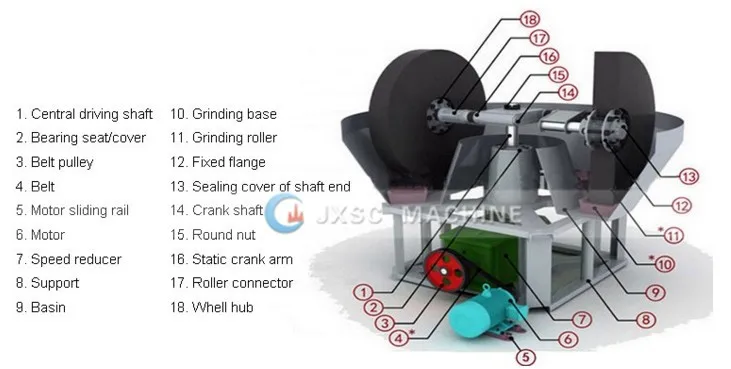

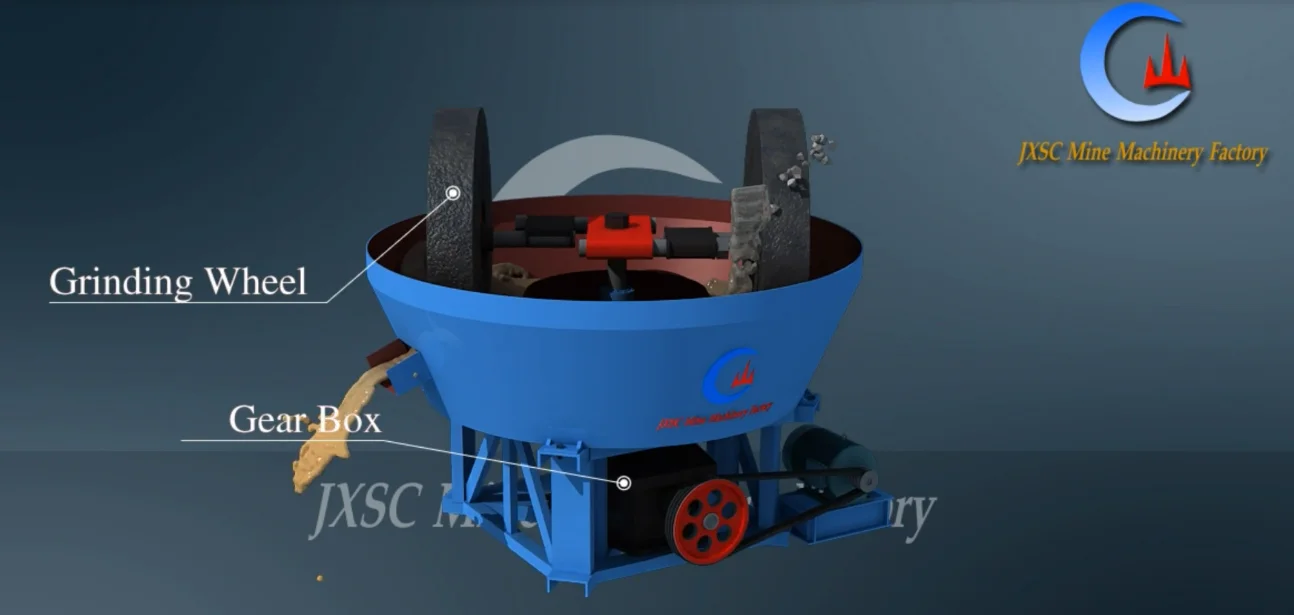

The main parts of the wet mill are driving shaft, bearing seat, roller, speed reducer, motor and so on. First, the motor transfers power to the decelerator, then the central drive shaft transfers to the horizontal shaft, finally the Roller moves the anticlockwise direction, the material in the wet mill is ground into fine particles.
Model | Specifications | Input size | Rotate speed | Capacity | Power | Machine weight |
1600A | 1600×400/2100×500*180±20mm | <30mm | 18-20 | 5-6T/H | 37KW | 16.3 |
1500A | 1500×400/2100×500*180±20mm | <30mm | 18-22 | 4-5T/H | 30KW | 13.5 |
1500B | 1500×350/2050×450*150±20mm | <30mm | 18-22 | 4-5T/H | 22KW | 12.3 |
1500C | 1500×300/2050×400*150±20mm | <30mm | 18-22 | 4-4.5T/H | 22KW | 11.3 |
1400B | 1400×250/2050×350*150±20mm | <30mm | 18-22 | 3-4T/H | 15kw | 8.5 |
1400A | 1400×300/2050×400×150±20mm | <30mm | 18-21 | 3-4T/H | 18.5kw | 9.6 |
1300B | 1300×250/2000×350×150±20mm | <30mm | 18-22 | 2.5-3.5T/H | 11kw | 7.5 |
900A | 900×170/1700×220×45±10mm | <30mm | 11-13 | 0.1-0.5T/H | 3kw | 2.9 |
900B | 900×140/1700×170×45±10mm | <30mm | 11-13 | 0.1-0.5T/H | 3kw | 2.6 |
1200A | 1200×200/1800×250×100±10mm | <30mm | 11-19 | 2-3T/H | 7.5kw | 5.5 |
1200B | 1200×180/1800×250×100±10mm | <30mm | 11-19 | 2-3T/H | 5.5kw | 5.5 |
1100A | 1100×200/1800×250×100±10mm | <30mm | 11-19 | 1-2T/H | 7.5kw | 5 |
1100B | 1100×180/1800×250×80±10mm | <30mm | 11-19 | 1-2T/H | 5.5kw | 5 |
1000 | 1000×200/1800×250×80±10mm | <30mm | 11-19 | 0.5-1T/H | 5.5kw | 4.5 |
Main Features
1) Uniform grinding, fine output size small to 1mm.
2) Lower cost than ball mill machine.
3) Low energy consumption, silent, safe operation.
4) Easy to operate and maintain.
5) Wearable grinding roller, longer service life.

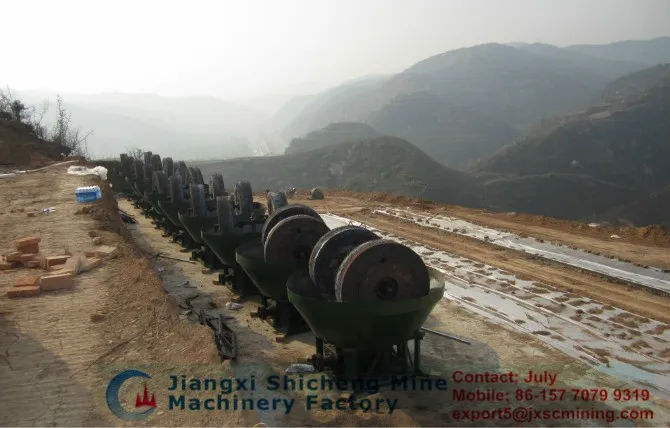

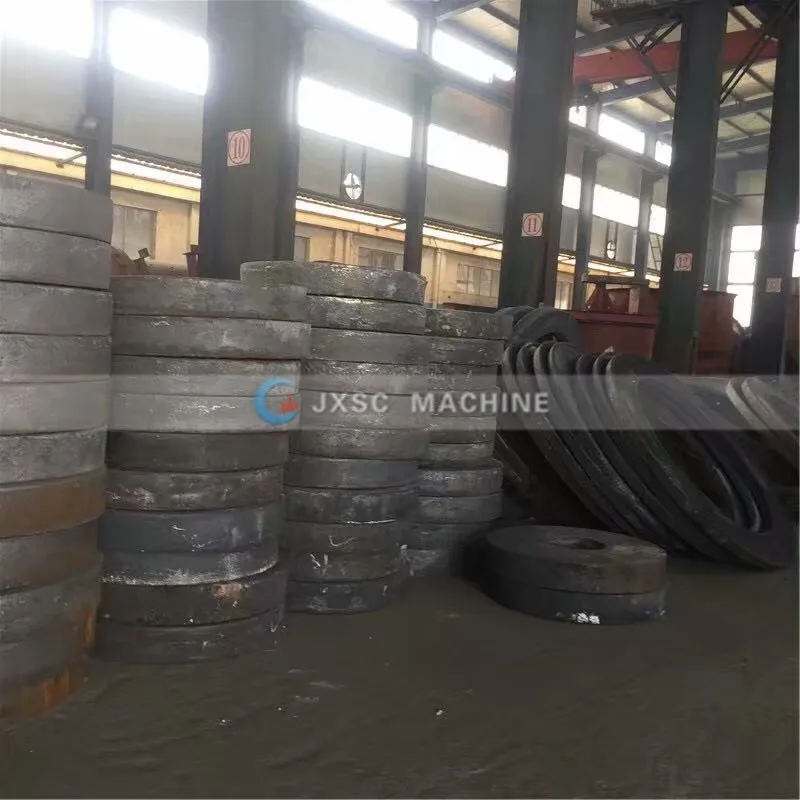

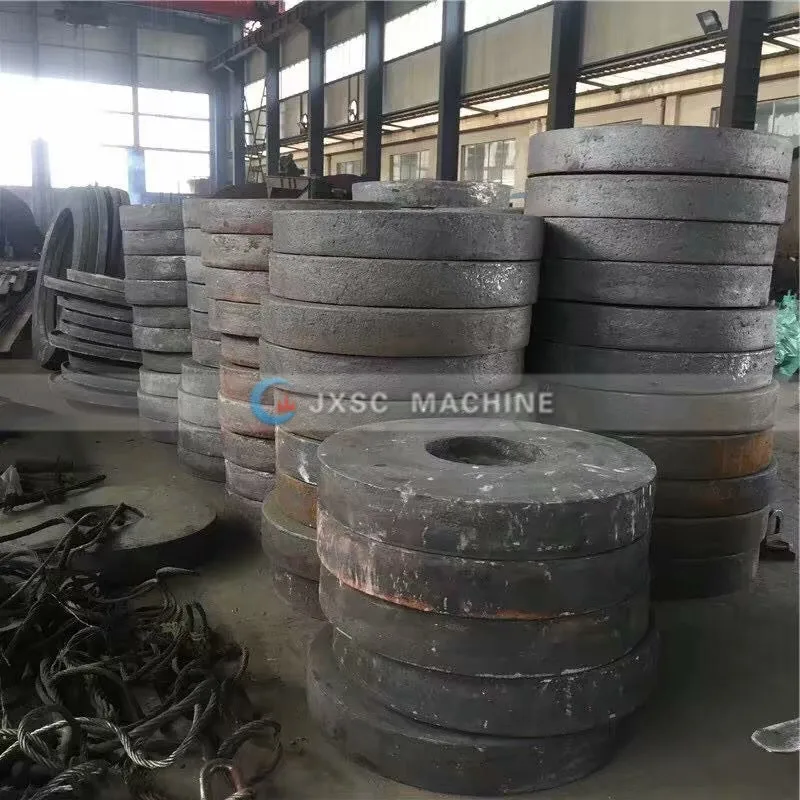

Production Site

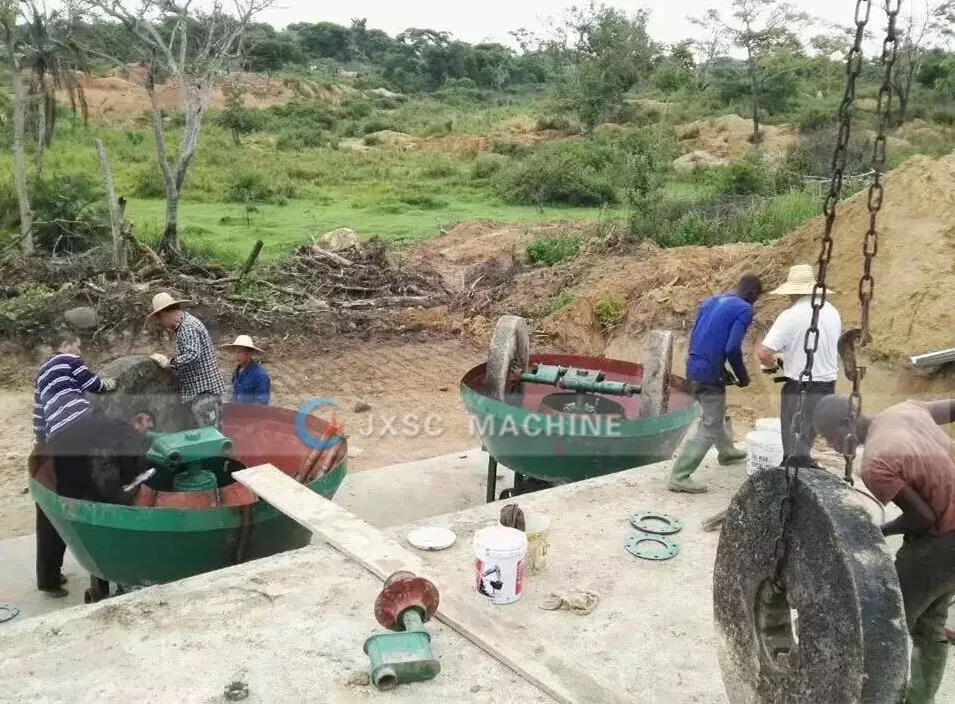

In site Cases

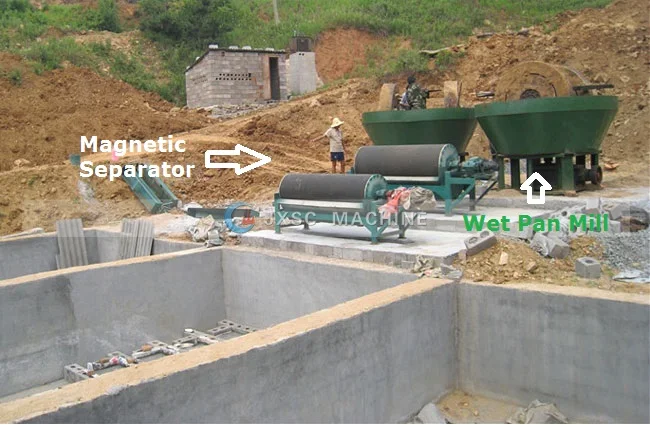

Wet pan mill work with Jaw crusher/Magnetic separator
The feeding size of Gold pan mill machine is <30mm, normally in the first stage, will adopt Stone crusher/Jaw crusher/Hammer mill crush gold ores under 30mm, then feed into wet grinding machine.
If gold ores contain magnetic minerals, will adopt Magnetic separator to remove the Iron/magnetite ores.

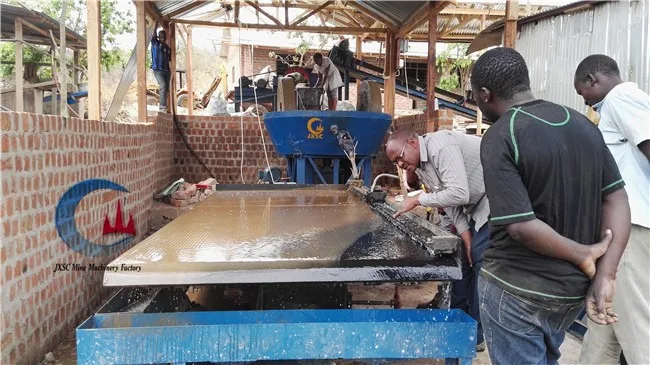

Wet pan mill work with Shaking table
Shaking table is a gold concentration machine. It enjoys very high, up to 95% high recovery ratio for recovering fine gold.
Quite some our African customers from Uganda, Tanzania, Zimbabwe, Kenya, prefer Wet pan milling machine combine with Shaking table for rocky gold separation.

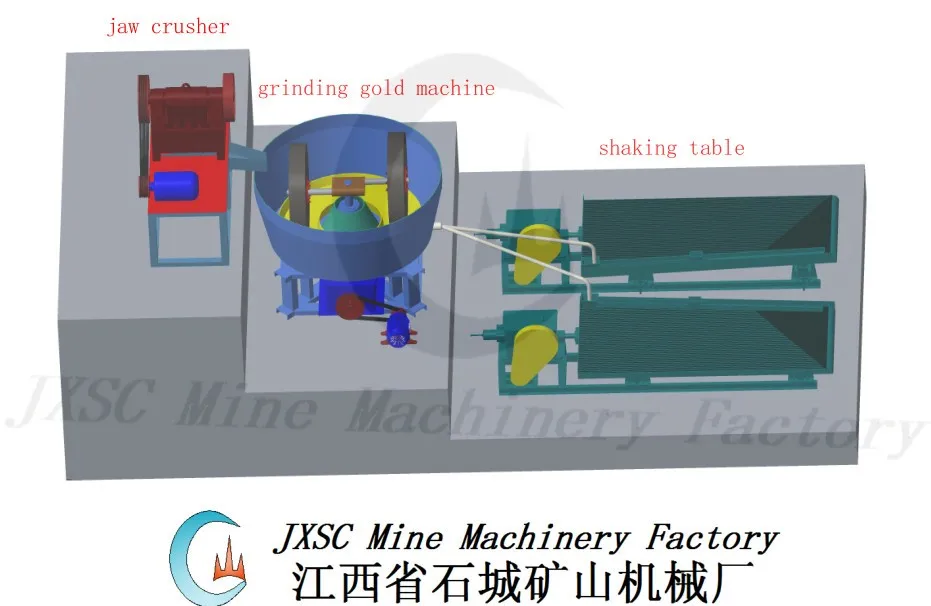

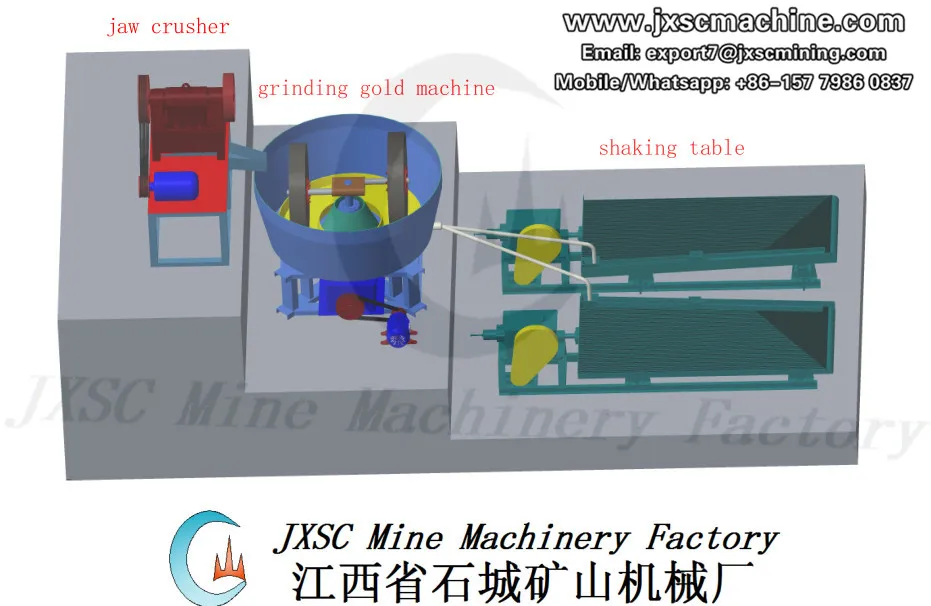

Small Scale Rock Gold Processing Plant
Small capacity 1-2 tons per hour: Jaw crusher/Stone crusher, Wet Pan Mill/Gold Grinder Machine, Shaking Table/Gold shaker table, low investment cost which is quite suitable for small-medium miners.

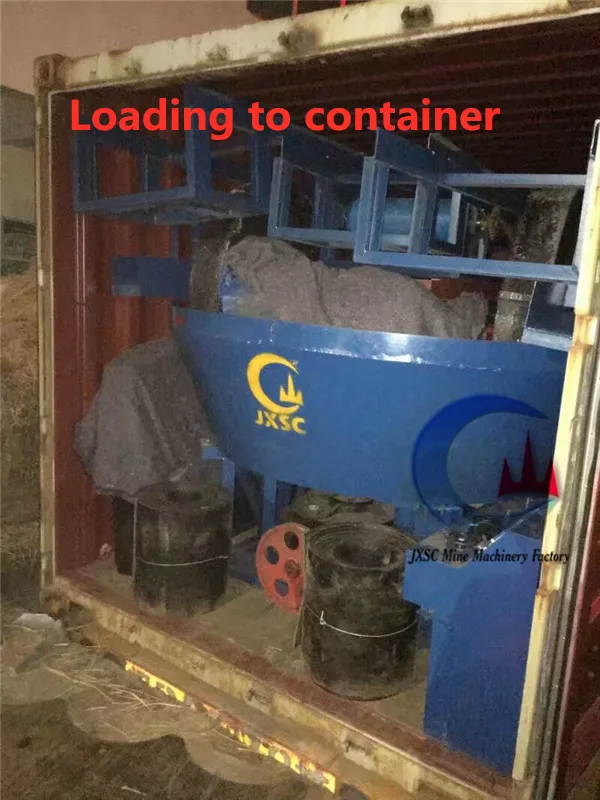

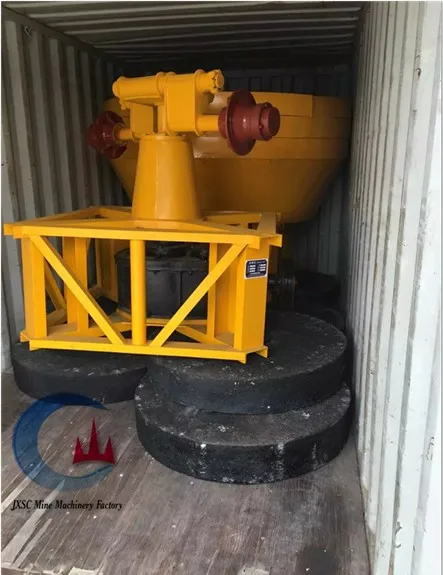

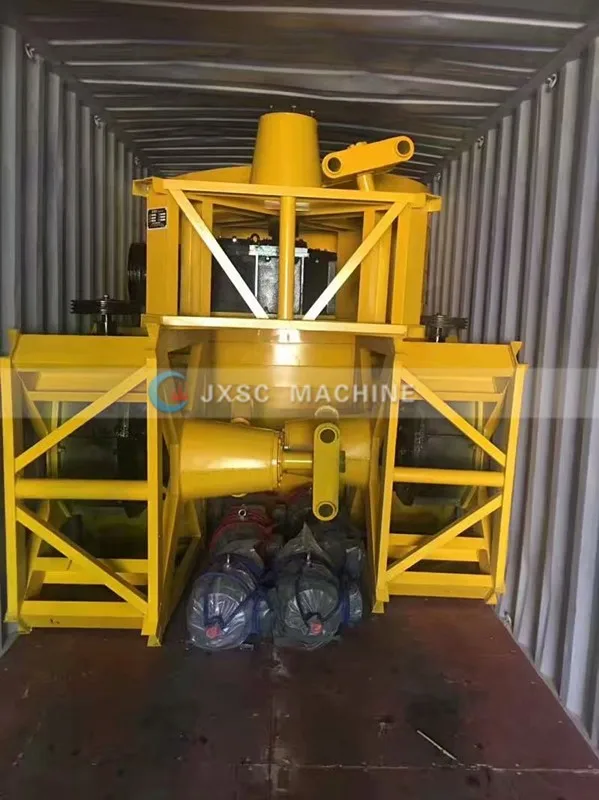

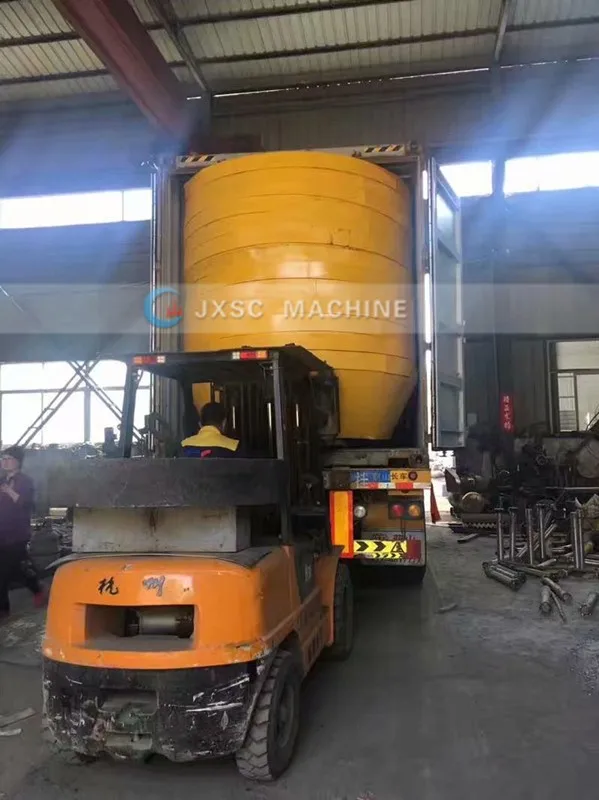

Packing & Delivery
Company Introduction
Engineer Field Installation&Commissioning&Training
FAQ
1.How is the quality of your products? (mining equipment/mining machine)
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
2.Guaranteed ?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
