CNC металла фрезерный станок VMC 650 новый vmc вертикальный обрабатывающий центр цена
- Category: Machine Centre >>>
- Supplier: Zaozhuang Wojie CNC Machinery Co. Ltd.
Share on (62082463707):
Product Overview
Description
Product Description
Product Application：
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough
machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
CNC Machining Feature:
* High quality resin sand , ensure machine driven stability
* Separated electronic handwheel
* External 232 interface
* Taiwan high precision and speed spindle
* Taiwan armless type ATC with 16 tools
* Coolant system with high flow and high head pump, ensure sufficient cooling at high speed running.
* Totally enclosed, safety and beautiful
* Separated electronic handwheel
* External 232 interface
* Taiwan high precision and speed spindle
* Taiwan armless type ATC with 16 tools
* Coolant system with high flow and high head pump, ensure sufficient cooling at high speed running.
* Totally enclosed, safety and beautiful
Product main technical specifications:
specifications | unit | unit | VMC650 | |||
Table size | mm | mm | 800x400 | |||
X axis travel | mm | mm | 650 | |||
Y axis travel | mm | mm | 400 | |||
Z axis travel | mm | mm | 500 | |||
Distance between spindle center and column surface | mm | mm | 469 | |||
Distance between spindle nose and table surface | mm | mm | 100-600 | |||
T slot | 3-18*125 | |||||
Spindle taper | mm | mm | BT40 | |||
Max. spindle speed | r/min | r/min | 8000(10000 optional) | |||
Main motor power | kw | kw | 5.5 | |||
X/Y/Z axis servo motor torque | N.M | N.M | 10/10/15 | |||
X/Y/Z motor connection | direct | |||||
X/Y/Z guide rail form | linear guide rail | |||||
Max.table load | kg | kg | 450 | |||
Automatic tools changer | 16 Armless type(optional:24 arm type) | |||||
Max.tool weight | kg | kg | 7 | |||
Max. tool length | mm | mm | 250/350 | |||
Max. tool diameter | mm | mm | 100(Adjacent)/150(Apart) | |||
X/Y/Z axis rapid traverse | M/min | M/min | 24(optional :48) | |||
Cutting feed speed | M/min | M/min | 10 | |||
Position accuracy | mm | mm | ±0.005 | |||
Repeat positioning accuracy | mm | mm | ±0.003 | |||
Machine dimension | mm | mm | 2400x2000x2550 | |||
Machine weight | kg | kg | 4000 | |||

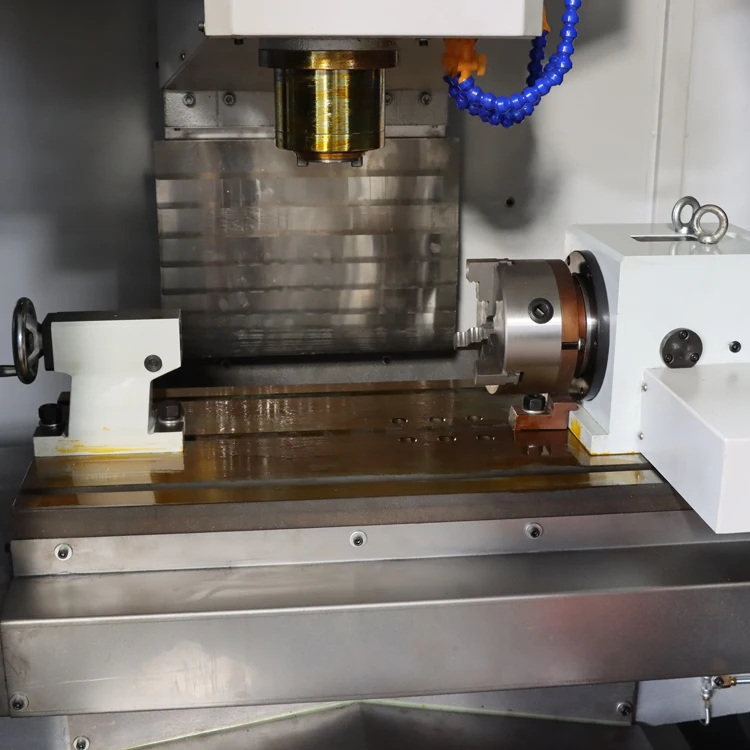

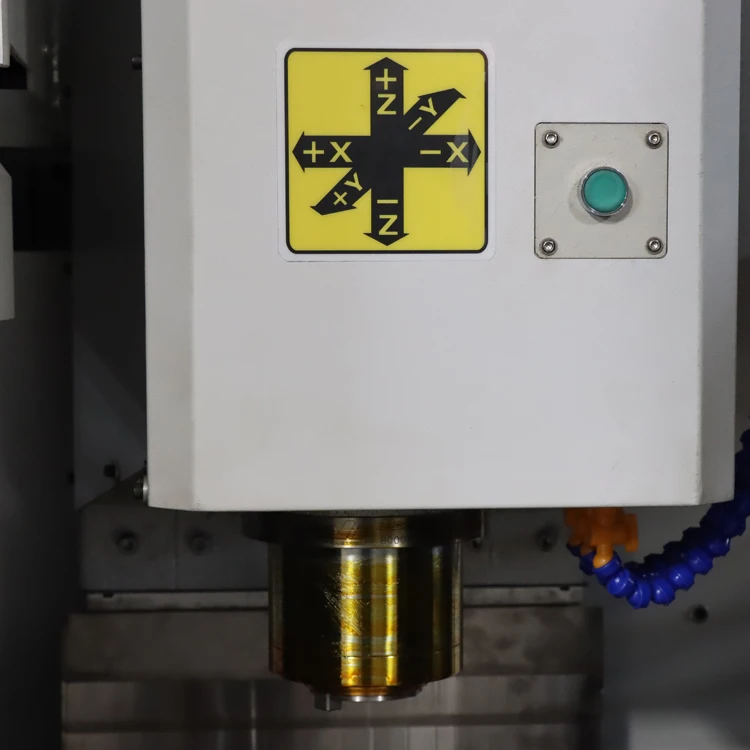

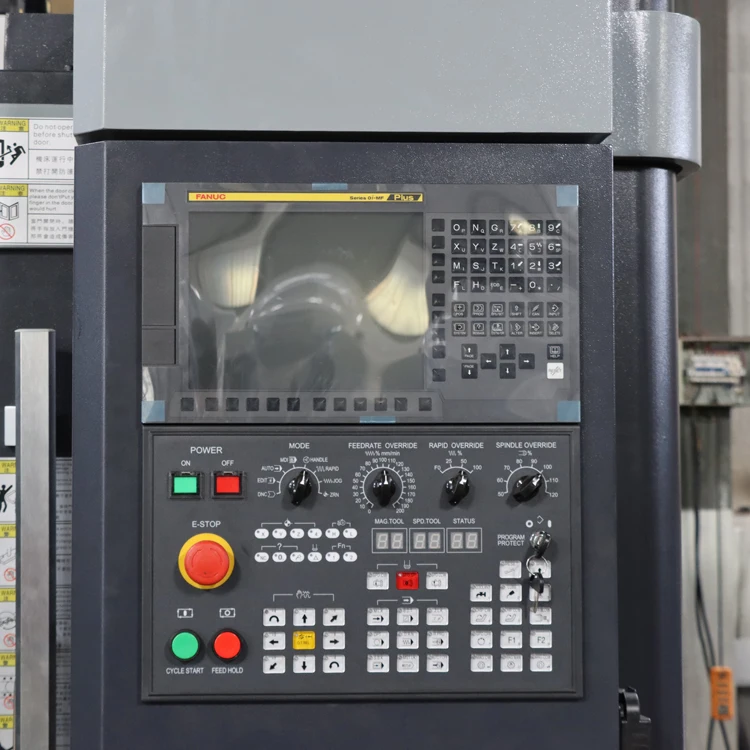

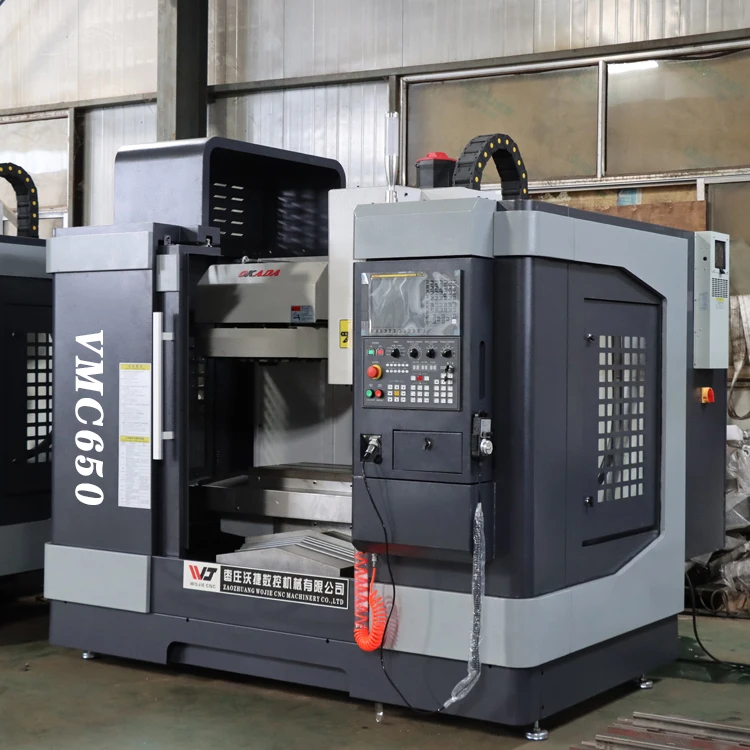

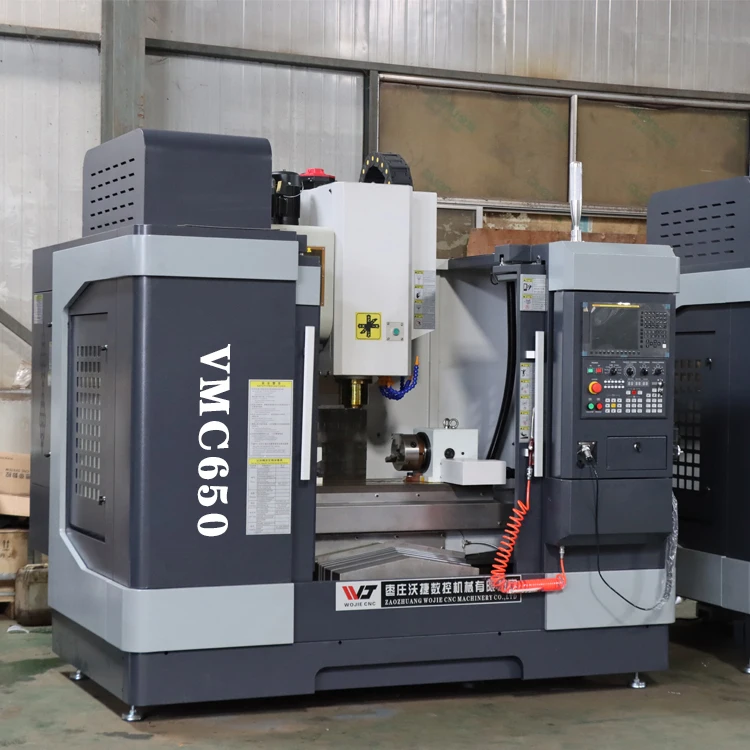

Detailed Images
Related Products
Sales And Service Network
Company Introduction
Packing&Shipping
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
