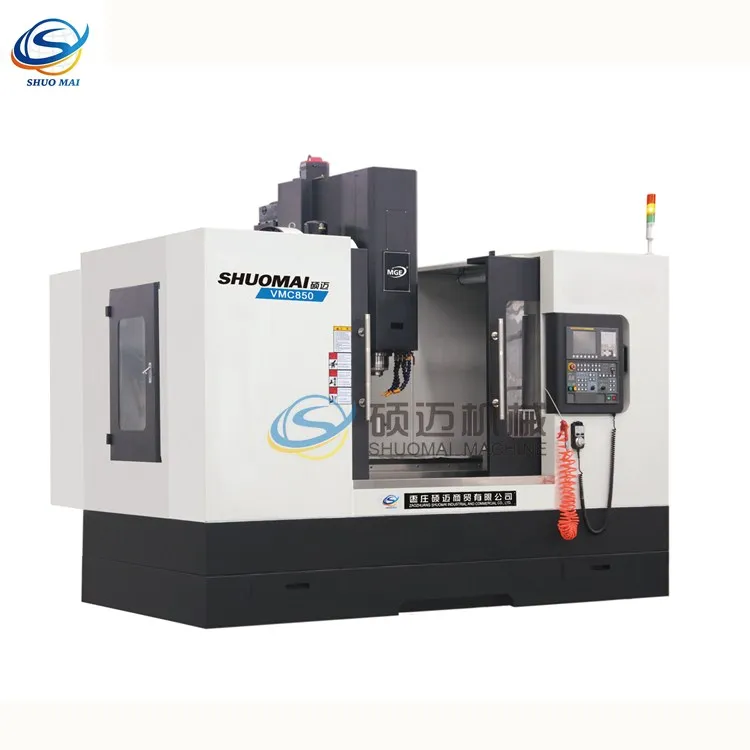

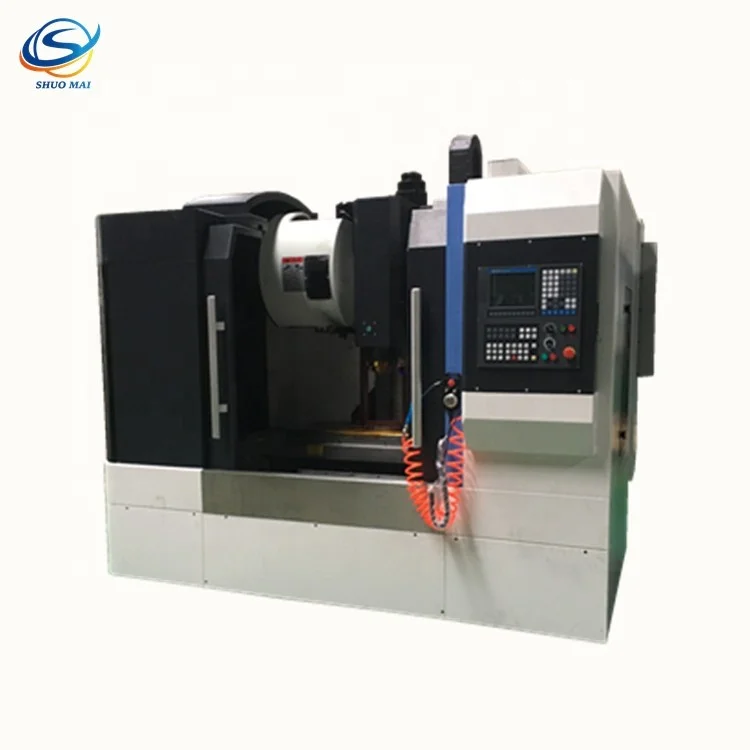

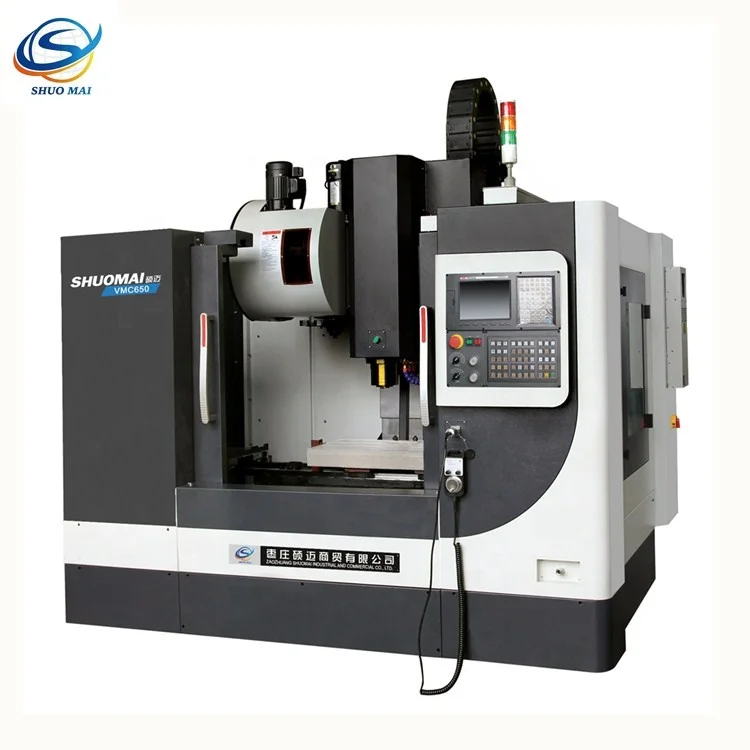

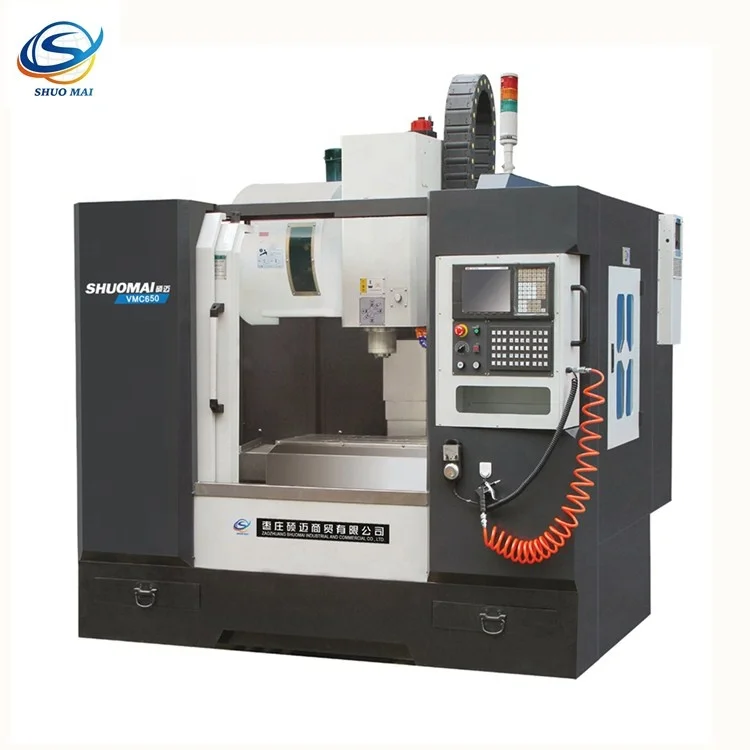

High precision high speed 3 axis vertical CNC milling machine center VMC850
- Category: Machine Centre >>>
- Supplier: Zaozhuang Shuomai Industrial And Commercial Co. Ltd.
Share on (62083584089):
Product Overview
Description
Product Description

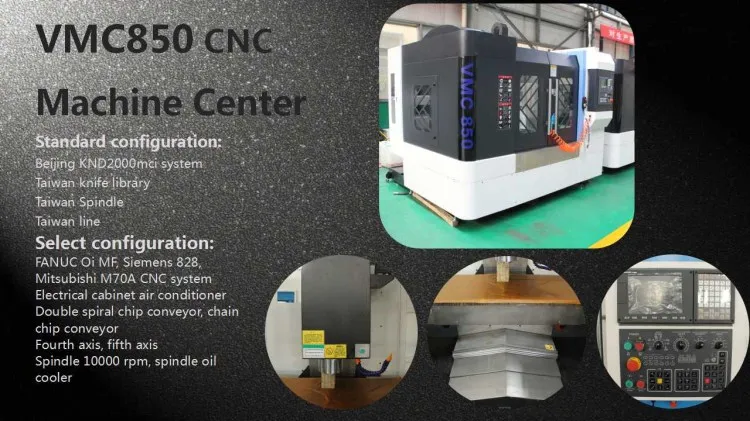

VMC850 CNC Milling Machine Center
Main Specification
Standard configuration:

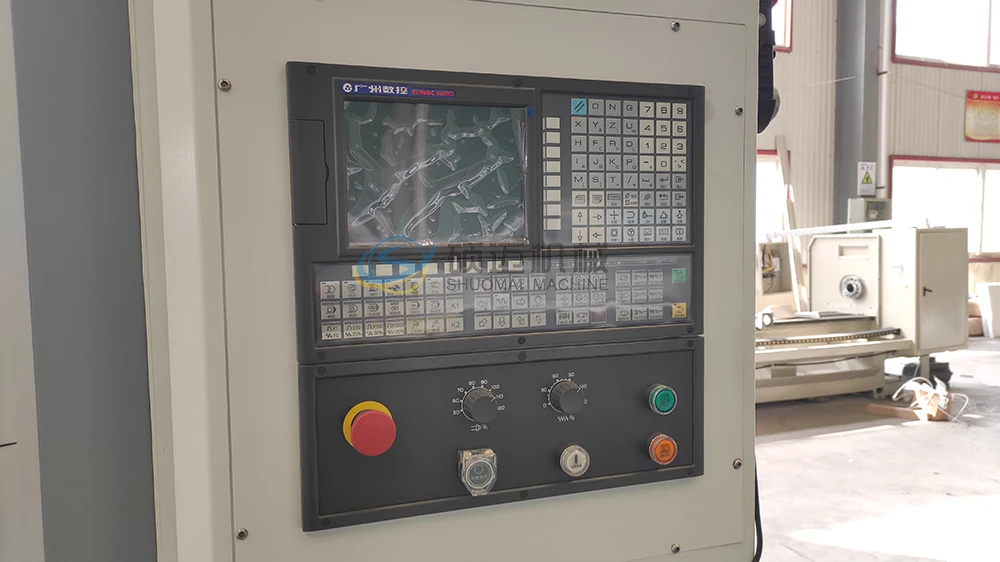

Beijing KND2000mci system

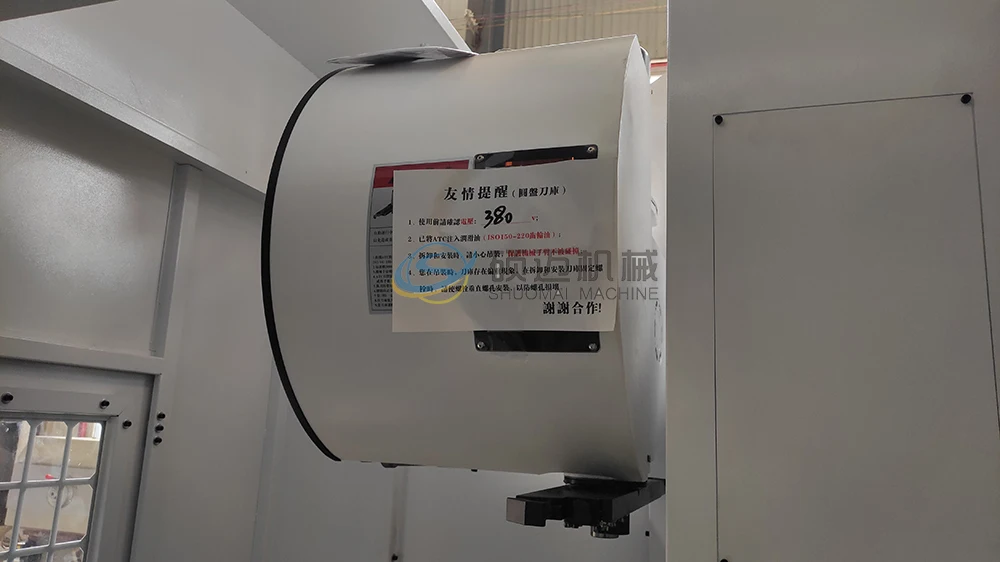

Taiwan knife library
Taiwan Spindle
Taiwan line
Select configuration:
FANUC Oi MF, Siemens 828, Mitsubishi M70A CNC system
Electrical cabinet air conditioner
Double spiral chip conveyor, chain chip conveyor

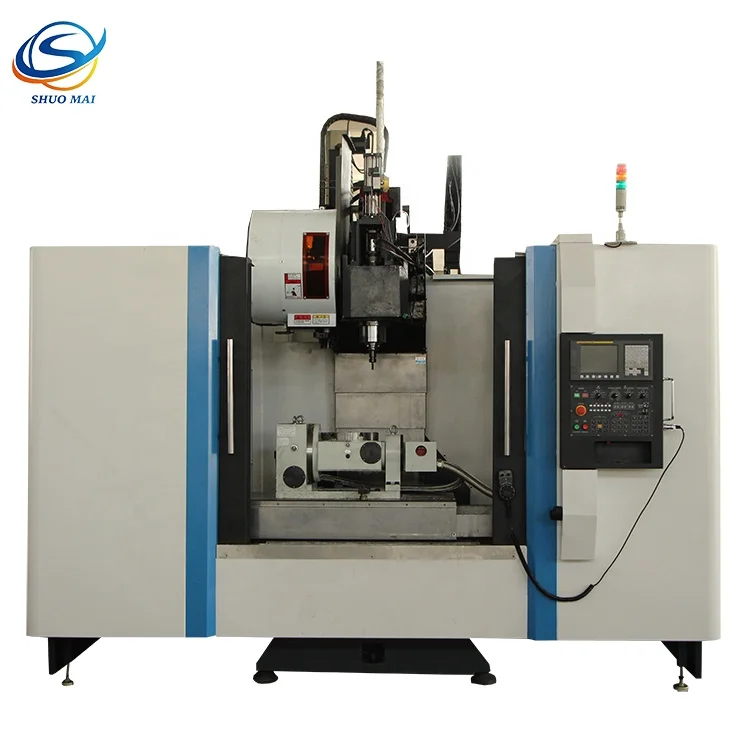

Fourth axis, fifth axis
Spindle 10000 rpm, spindle oil cooler
MAIN TECHNICAL DATA | Unit | VMC850 | VMC855 | VMC960 | VMC1050 |
X-axis travel | mm | 800 | 800 | 900 | 1000 |
Y-axis travel | mm | 500 | 550 | 550 | 550 |
Z-axis travel | mm | 500 | 550 | 550 | 550 |
Table size(L x degrees) | mm | 1000×500 | 1000×500 | 1200×500 | 1200×500 |
Maximum table load | kg | 500 | 600 | 800 | 800 |
T-slot( slot number x width x pitch | mm | 5×18×100 | 5×18×95 | 5×18×100 | 5×18×100 |
Spindle taper |
| BT40 | BT40 | BT40 | BT40 |
Spindle power | KW | 7.5/11 | 7.5/11 | 7.5/11 | 11/15 |
Maximum spindle speed | rpm | 8000 | 8000 | 8000 | 8000 |
Rapid traverse(X/Y) | m/min | 48/48/48 | 48/48/48 | 48/48/48 | 48/48/36 |
Cutting feed | mm/min | 1-8000 | 1-8000 | 1-8000 | 1-8000 |
Feed motor | mm | 130-630 | 130-660 | 130-800 | 130-680 |
Spindle nose to table | mm | 525 | 590 | 590 | 600 |
Spindle center to column surface distance rail | mm | Φ90 | Φ90 | Φ90 | Φ78/Φ120 |
Maximum tool diameter | mm | 300 | 300 | 300 | 300 |
Maximum tool length | kg | 8 | 8 | 8 | 8 |
Positioning accuracy | mm | ±0.0075 | ±0.0075 | ±0.0075 | ±0.0075 |
Repeat accuracy | mm | ±0.005 | ±0.005 | ±0.005 | ±0.005 |
Machine weight | kg | 5200 | 6000 | 6800 | 6900 |
Dimensions | mm | 2600×2300×2800 | 2900×2400×2800 | 2600×2300×2800 | 3200×2400×2800 |

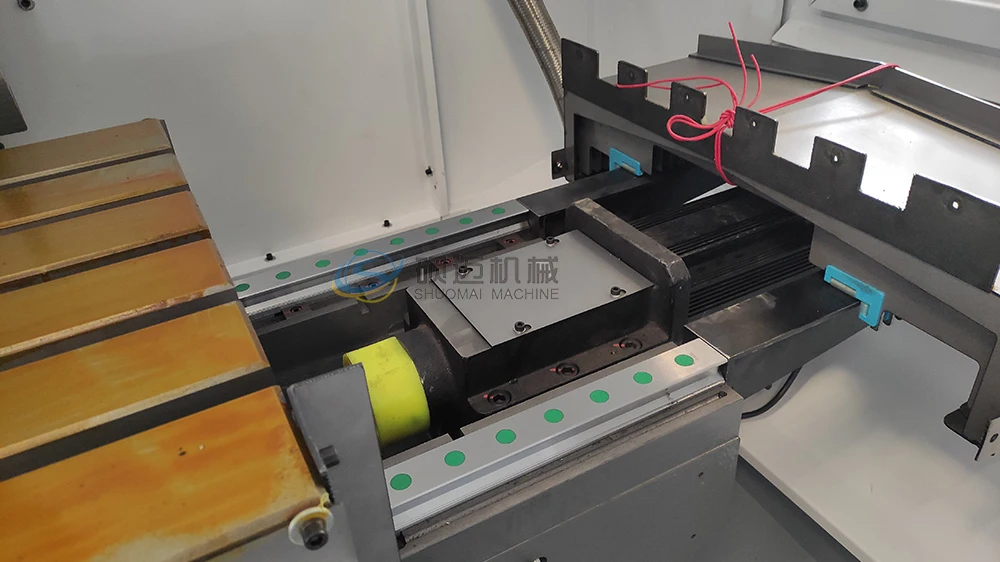

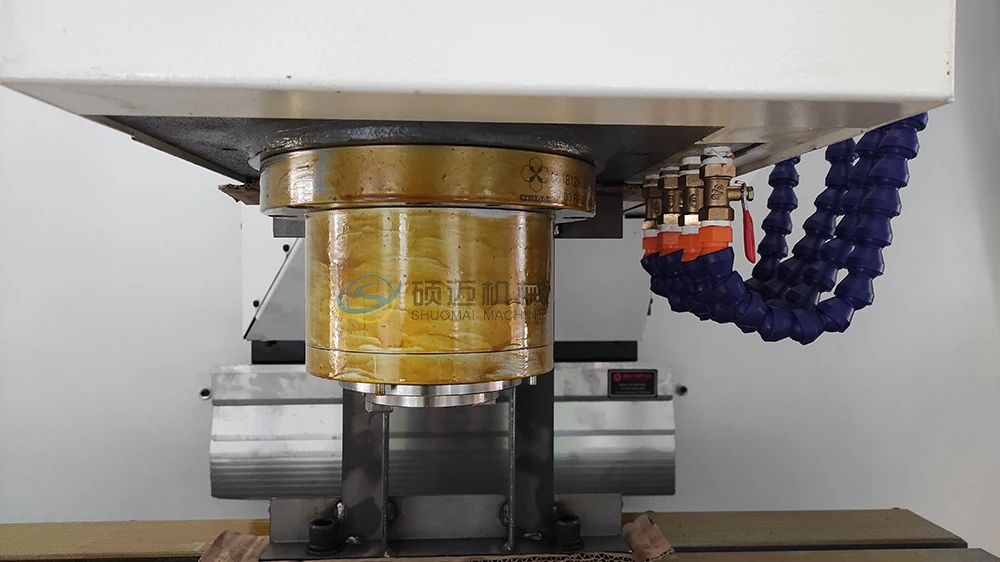

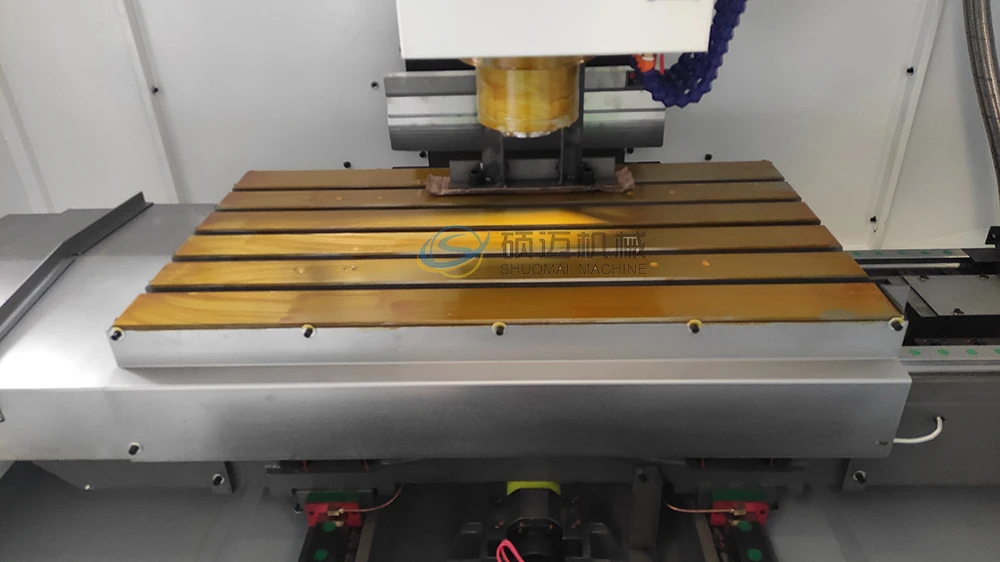

Details display
Packaging & Shipping
| Packing Size | 2600×2300×2800mm |
| Packing Weight | 5200kg |
| Packing mothed | Nude, or wooden case, or customer's request |
| 20'GP | About >2sets |
| 40'HQ | About >5sets |
| MOQ | 1 set |
| Delivery time | 7-25days |
Related hot products
We suppy all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine, Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine , Shaper machine and so on, Welcome to inquiry us.
Company Information
Zaozhuang Shuomai Industrial and commercial Co., Ltd is a foreign-oriented enterprise engaged in the development, design, manufacture, sales and import and export of metal cutting machine tools. Metal cutting machine tools include two major categories, one is CNC lathe, CNC machine center, CNC drilling machine, CNC milling machine, the other is the ordinary machine tools, include lathe machine, radial drilling machine, vertical drilling machine, drilling milling machine, metal band saw, grinding machine, hydraulic machine, boring machine and so on, more than 100 kinds of specifications. Market coverage of the country and exported more than 30 countries and regions.
FAQ
1: Are you original manufacture:
A: Yes, we are an official leading manufacture in MACHINE TOOLS in China, we have the whole series products you need.
2: What’s your company main product:
A: We suppy all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine, Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine , Shaper machine and so on .
3: What is your trade terms?
A : FOB, CFR and CIF and so on.
4: What's the Payment Terms ?
A : Alibaba trade assurance 30% advance payment ,70% balance payment before shipment ;
Or Irrevocable LC at sight .
5: what about the delivery time?
A:7-30 days after receiving the deposit.
6: what about the warranty time?
A: 12 months after shipment.
7: What's the MOQ?
A: 1 set .
