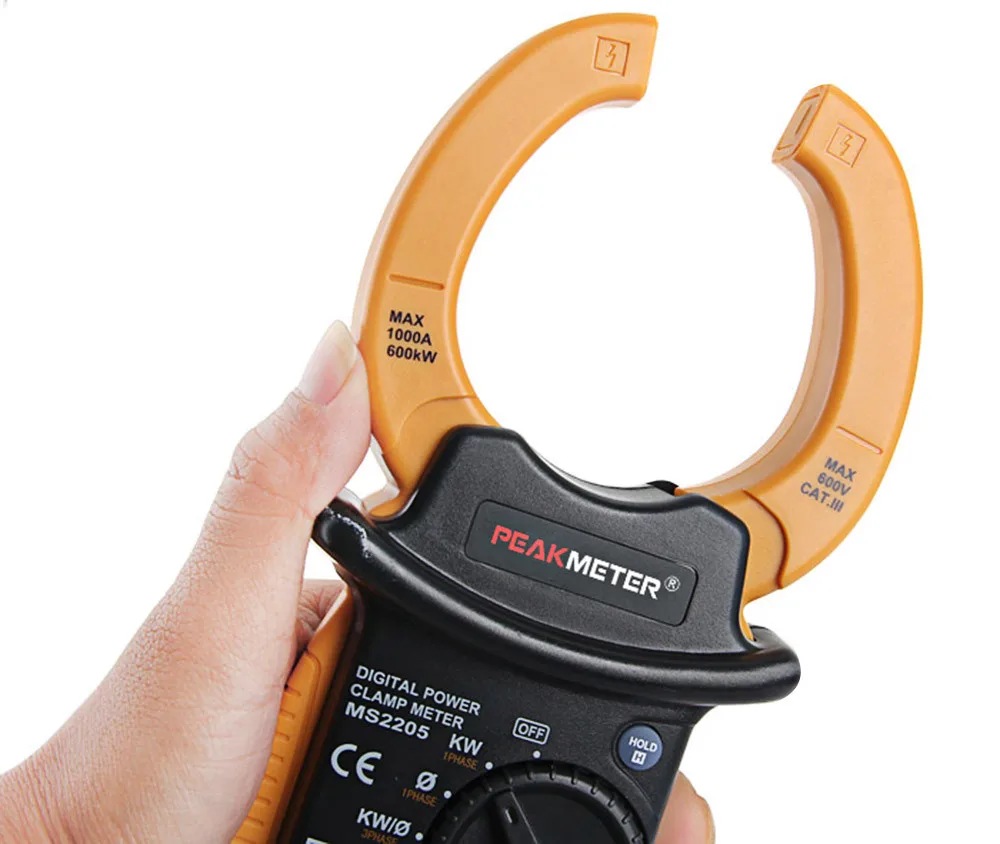

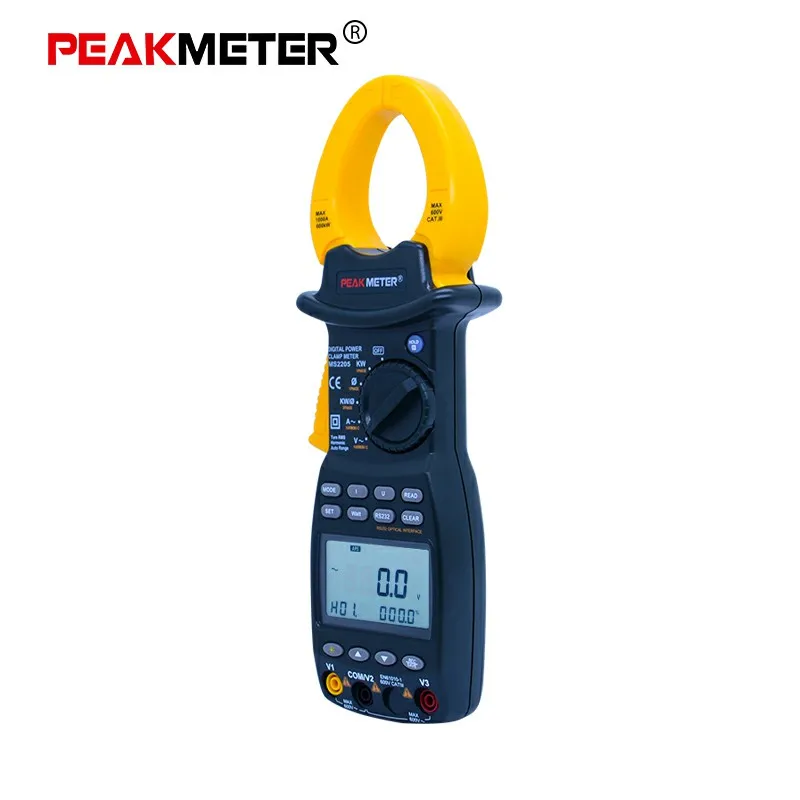

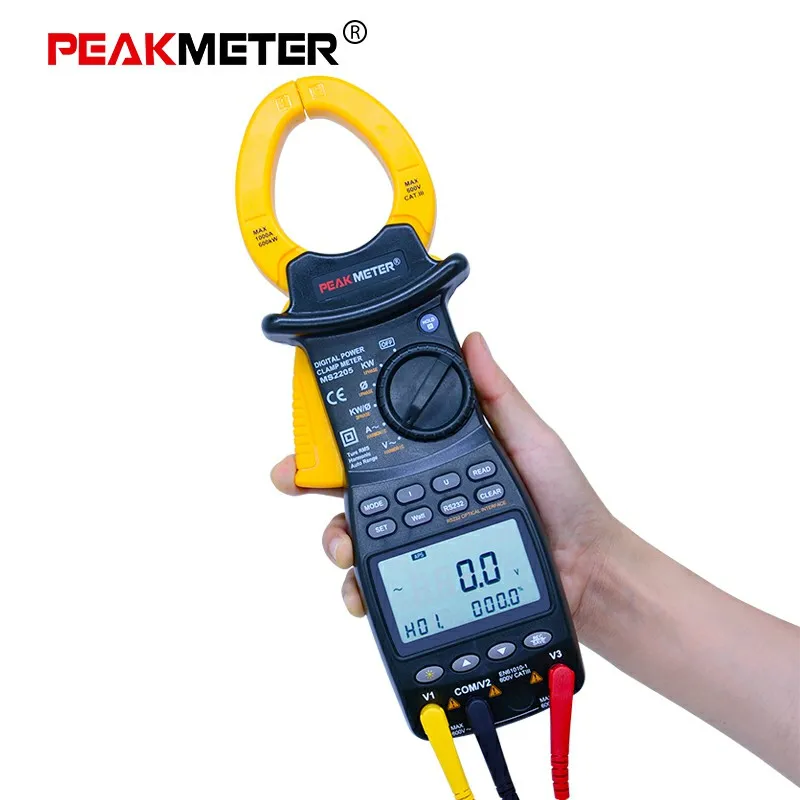

MS2205 Digital Harmonic Power Clamp Meter

Features

Display

6000 counts

Jaw Opening

Φ50mm/2.0”

Auto Ranging

√

Data Logging

100 groups

True RMS

True root mean square measurement

Data Hold

√

Display Backlight

√

Auto Power Off

√

Low Battery Indication

√

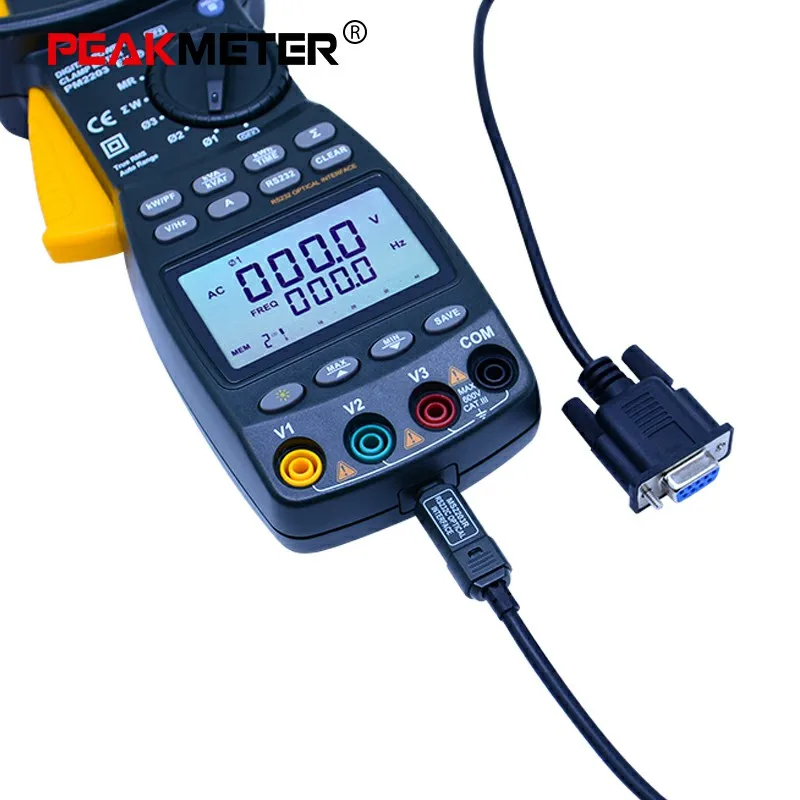

RS232 Interface

Windows OS

Power Supply

√

Size

300mm x103mm x51mm(11.8" x4.1" x2.0")

Weight

640g(1.4Ib)

Category

CE CAT .III 600V RoHS

Specifications

Functions

Range

Accuracy

AC Voltage(V)

0.1V ~ 600V

±(1.2% +5)

AC Current(A)

0.1A ~ 1000A

±(2.0%+5)

Active Power(kW)

0.1kW ~ 600kW

±(3.0%+5)

Apparent Power (kVA)

0.1kVA ~   600kVA

±(3.0%+5)

Reactive Power (kVAr)

0.1kVAr ~   600kVAr

±(3.0%+5)

Power Factor

0.3 ~ 1

±(2.0%+2)

Harmonic measurement 45hz~65Hz (fundamental frequency)

Harmonic number   1

±(3.0%+10)

Harmonic number   2-6

±(3.5%+10)

Harmonic number   7-8

±(4.5%+10)

Harmonic number   9-10

±(5.0%+10)

Harmonic number   11-15

±(7.0%+10)

Harmonic number   16-20

±(10%+10)
