Induction Crucible Melting Electric Furnace For Sale Golden Copper And Steel Materials
- Category: Metal & Metallurgy Machinery >>>
- Supplier: Guangzhou Wangxin Mechanical & Electrical Equipment Co. Ltd.
Share on (62094806914):
Product Overview
Description
Induction Crucible Melting Electric Furnace For Sale Golden Copper And Steel Materials
Main Features
1. High power, low frequency and good diathermancy. Mainly used for heating, forging, melting, heating treating various metal material
2. The absolute load merit rate design , 100% duty cycle and 24 hours continuous working
3. Small size, high efficiency, economize on power , easily installed and simply operation.
4. Adopted IGBT inverting device tracks frequency automatically.
5. Complete protection from over voltage , over current , lack of water, phase failoverheating etc.
6. Manual or automatic regulating, enhances the work piece heating quality, theheating repeatability and the continuity.
2. The absolute load merit rate design , 100% duty cycle and 24 hours continuous working
3. Small size, high efficiency, economize on power , easily installed and simply operation.
4. Adopted IGBT inverting device tracks frequency automatically.
5. Complete protection from over voltage , over current , lack of water, phase failoverheating etc.
6. Manual or automatic regulating, enhances the work piece heating quality, theheating repeatability and the continuity.
Technical Parameters
Model | Input Voltage | Frequency | Max Input Power | Max Input Current |
WXM-15 | 3 phase 380V, 50/60HZ | 1-20KHZ | 15KVA | 24A |
WXM-25 | 3 phase 380V, 50/60HZ | 1-20KHZ | 25KVA | 36A |
WXM-35 | 3 phase 380V, 50/60HZ | 1-20KHZ | 35KVA | 51A |
WXM-45 | 3 phase 380V, 50/60HZ | 1-20KHZ | 45KVA | 70A |
WXM-70 | 3 phase 380V, 50/60HZ | 1-20KHZ | 70KVA | 105A |
WXM-90 | 3 phase 380V, 50/60HZ | 1-20KHZ | 90KVA | 135A |
WXM-110 | 3 phase 380V, 50/60HZ | 1-20KHZ | 110KVA | 175A |
WXM-160 | 3 phase 380V, 50/60HZ | 0.5-10KHZ | 160KVA | 240A |
Melting Ability
Machine Models and Maximum Melting Ability
Melting speed: the first cool furnace 50-60mins/furnace, the second heated furnace 20-30mins/furnace
Model | Steel ,iron | Copper, Gold , Silver | Aluminum |
WXM-15KW Melting Furnace | 10KG | 3KG | |
WXM-25KW Melting Furnace | 5KG | 20KG | 6KG |
WXM-35KW Melting Furnace | 10KG | 30KG | 10KG |
WXM-45KW Melting Furnace | 18KG | 50KG | 20KG |
WXM-70KW Melting Furnace | 25KG | 100KG | 30KG |
WXM-90KW Melting Furnace | 40KG | 120KG | 40KG |
WXM-110KW Melting Furnace | 50KG | 150KG | 50KG |
WXM-160KW Melting Furnace | 100KG | 250KG | 100KG |
Machine Show

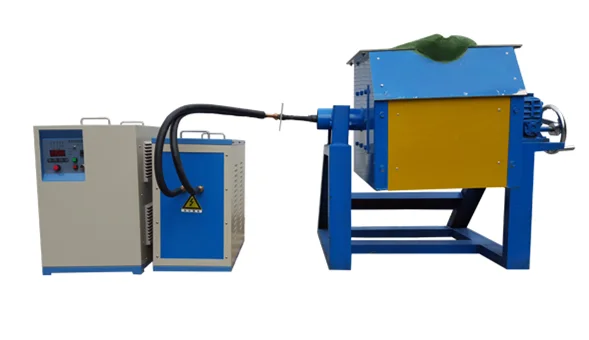

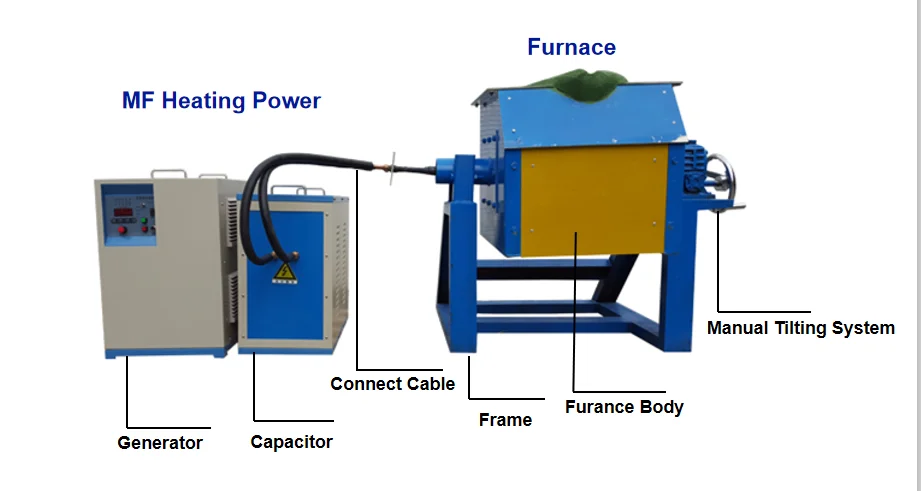

Induction furnace main devided two parts: heating power and tilting furnace part
Heating Power
Front Panel
Rear Panel

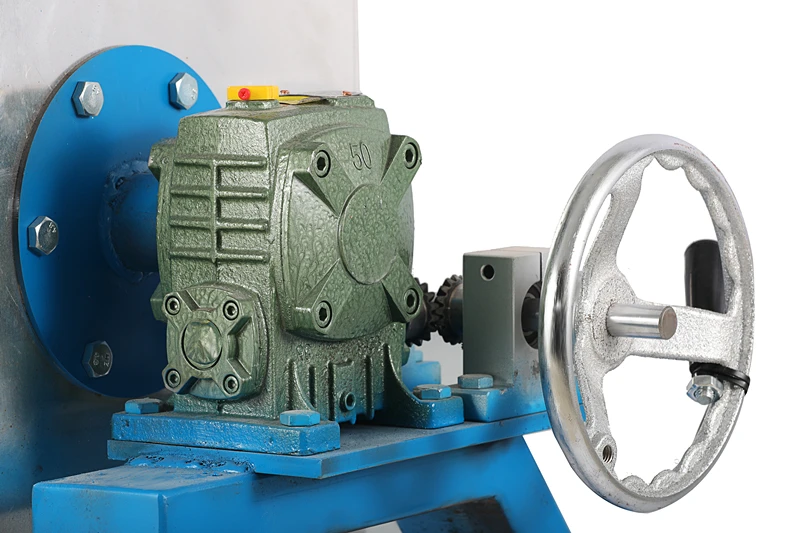

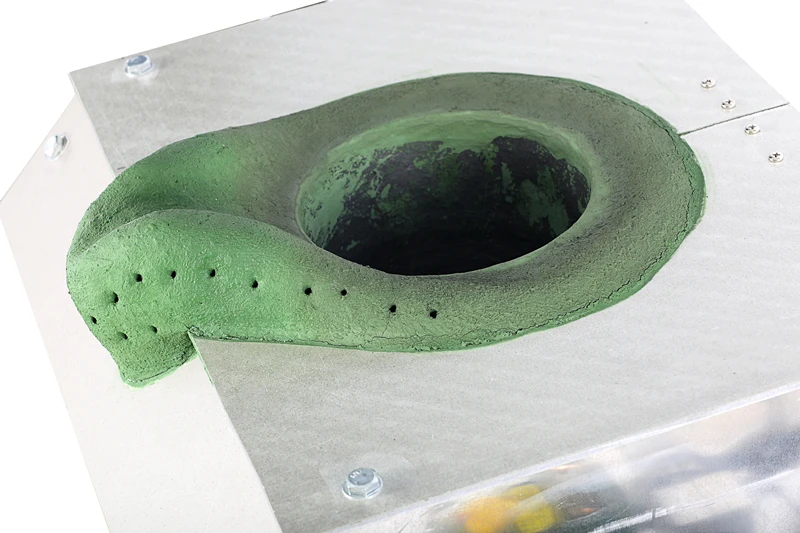

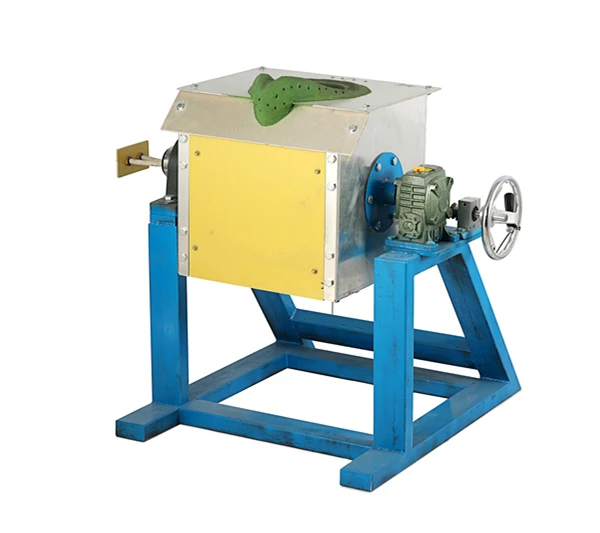

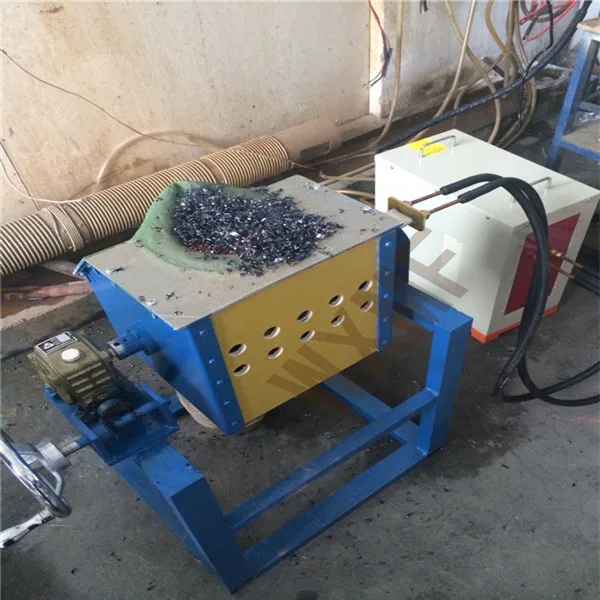

Tilting Furnace
Process Flow
Recommend Products
Evaluation From Customer
Qatar Customer
Croatia Customer
Bangladesh Customer
Amernia Customer
Finland Customer
Alibaba Customer
Company Profile
Guangzhou Wangxin Electrical & Mechanical Equipment Co.,Ltd is based in Guangzhou, more than 20 years focused on the development and manufacture of induction heating machine. Customers’ satisfy is our constant aim, hope our professional induction heating solutions can benefit you a lot.
We mainly have four series of machine divided by frequency:
Medium Frequency Series Machine (WXM): Frequency 0.5-20KHZ
Ultrasonic Frequency Series Machine (WXU): Frequency 10-30KHZ
High Frequency Series Machine (WXH): Frequency 30-100KHZ
Superhigh Frequency Series Machine (WXS): Frequency 100-1100KHZ
We mainly have four series of machine divided by frequency:
Medium Frequency Series Machine (WXM): Frequency 0.5-20KHZ
Ultrasonic Frequency Series Machine (WXU): Frequency 10-30KHZ
High Frequency Series Machine (WXH): Frequency 30-100KHZ
Superhigh Frequency Series Machine (WXS): Frequency 100-1100KHZ
