Product Overview
Description

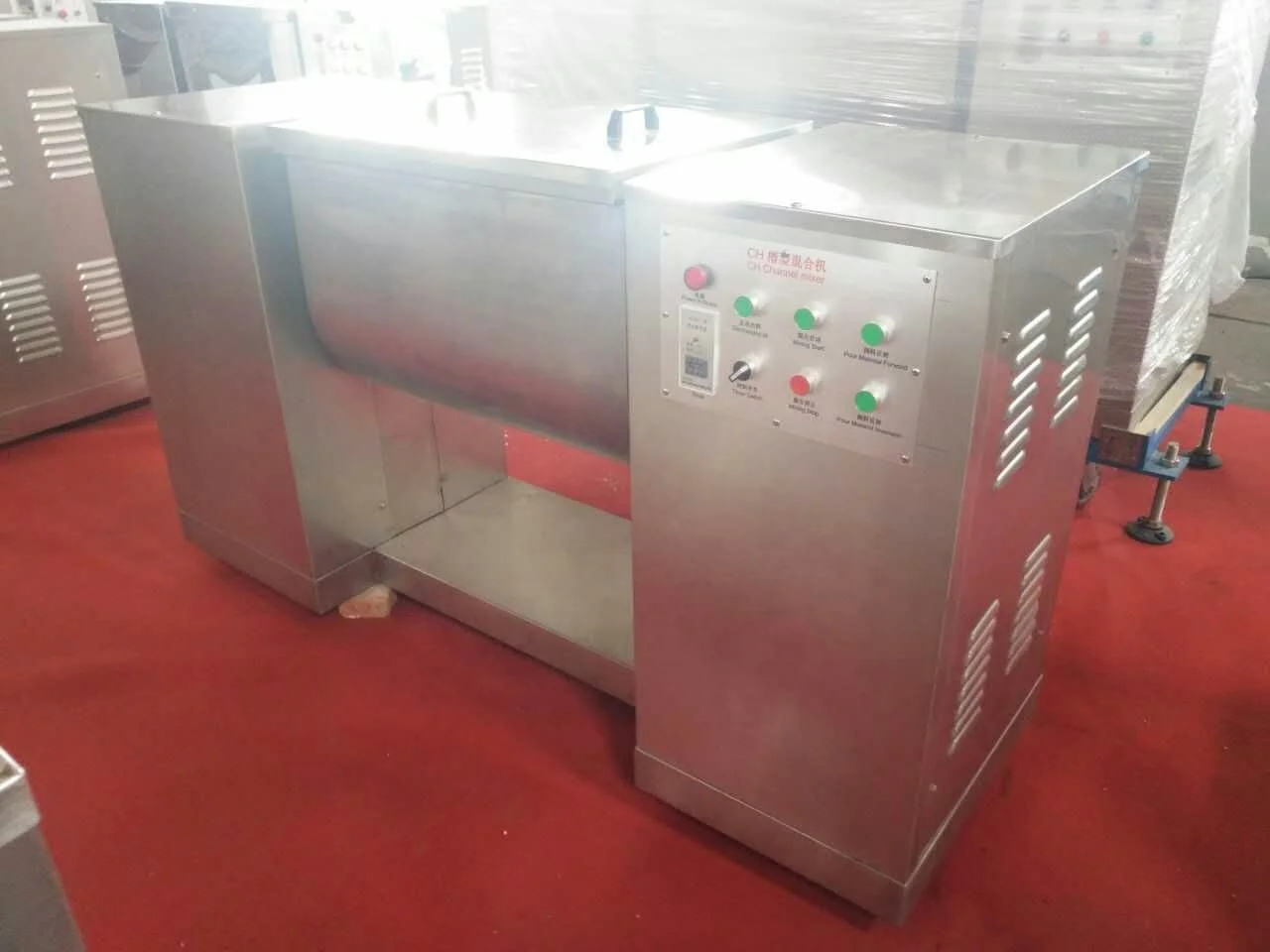

Wanda Double Z Arm Blade Single Slurry Tank Lab Sch Series Type Bald Extuder Mixer
Product Description
| Model | CH-50 | CH-100 | CH-200 | CH-300 | CH-400 |
| Working volume(L) | 50 | 100 | 200 | 300 | 400 |
| Spindle rotation speed(r/min) | 24 | 24 | 24 | 24 | 24 |
| Mixing time(min) | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 |
| Hybrid motor power(kw) | 1.1 | 3 | 5.5 | 7.5 | 7.5 |
| Reverse motor power(kw) | 0.75 | 0.75 | 1.1 | 1.5 | 1.5 |
| Dimensions(mm) | 980x420x800 | 1100x440x900 | 1400x600x1200 | 1850x700x1200 | 2100x750x1250 |
| Weight(kg) | 280 | 350 | 450 | 520 | 580 |
Scope of application
The trough mixer can be used for the uniform mixing of dry powdery or granular materials with good fluidity, and is suitable for many fields;
Medicine: Mixture of granules, Chinese herbal condiments, powdered or granulated Chinese herbal medicines.
Feed: It can be used for the mixing of various feeds such as fish feed, poultry feed, wild animal feed, and bird feed.
Food: such as condiments, additives, vitamins, various sugar products, and so on. Fuel: a mix of various firecrackers, pyrotechnics and other raw materials.
Ore: It can be a mixture of various powdery or granular ores.

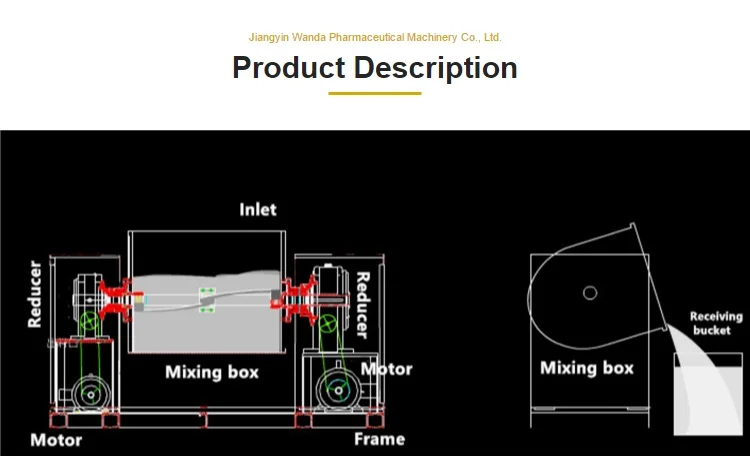

Working principle

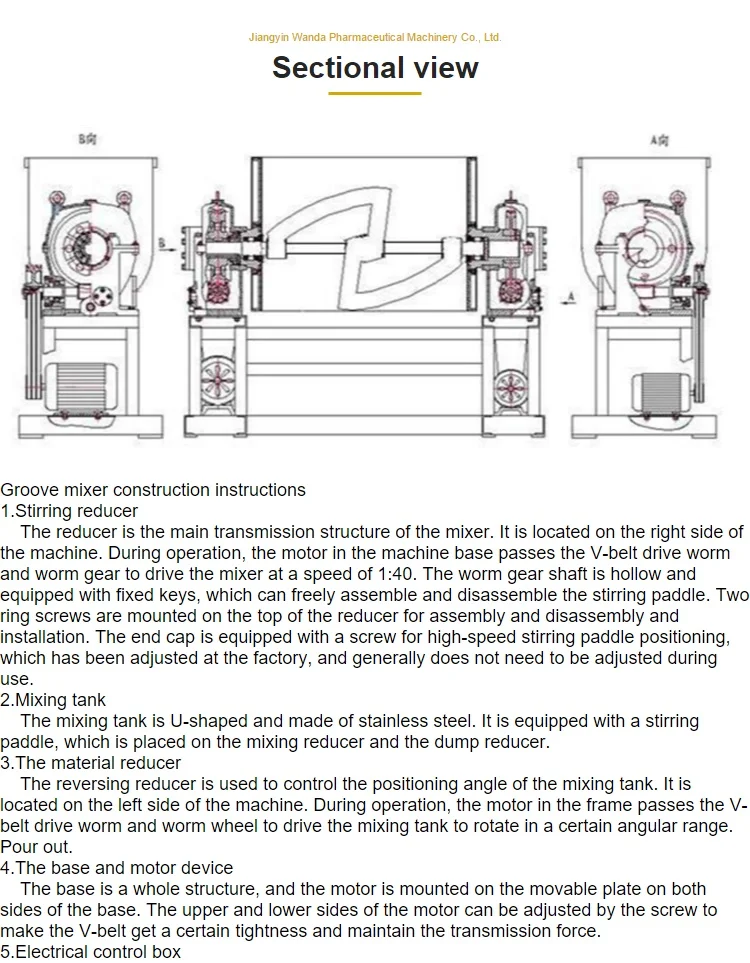

The machine is driven by mechanical transmission to make the S-type stirring paddle rotate, push the material to reciprocate, and mix evenly. The operation adopts electric control, which can set the mixing time, automatically stop when it arrives, and electric dumping, thus improving the mixing quality of each batch of materials. Achieve high uniformity mixing.

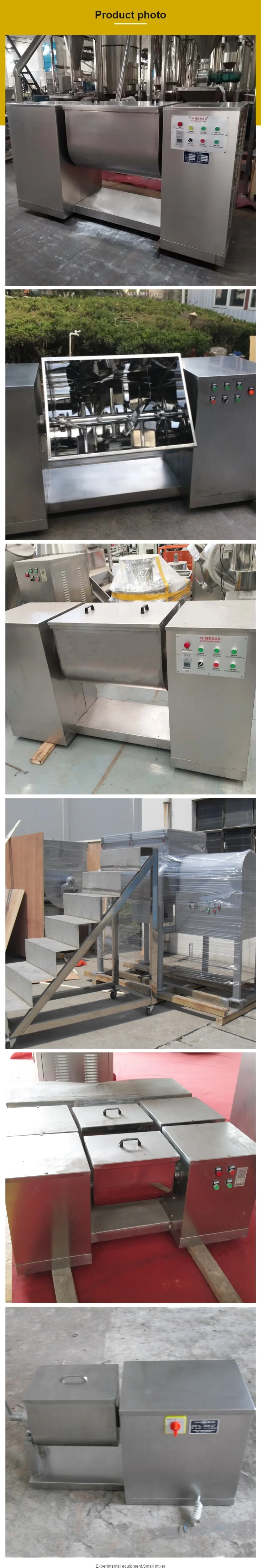

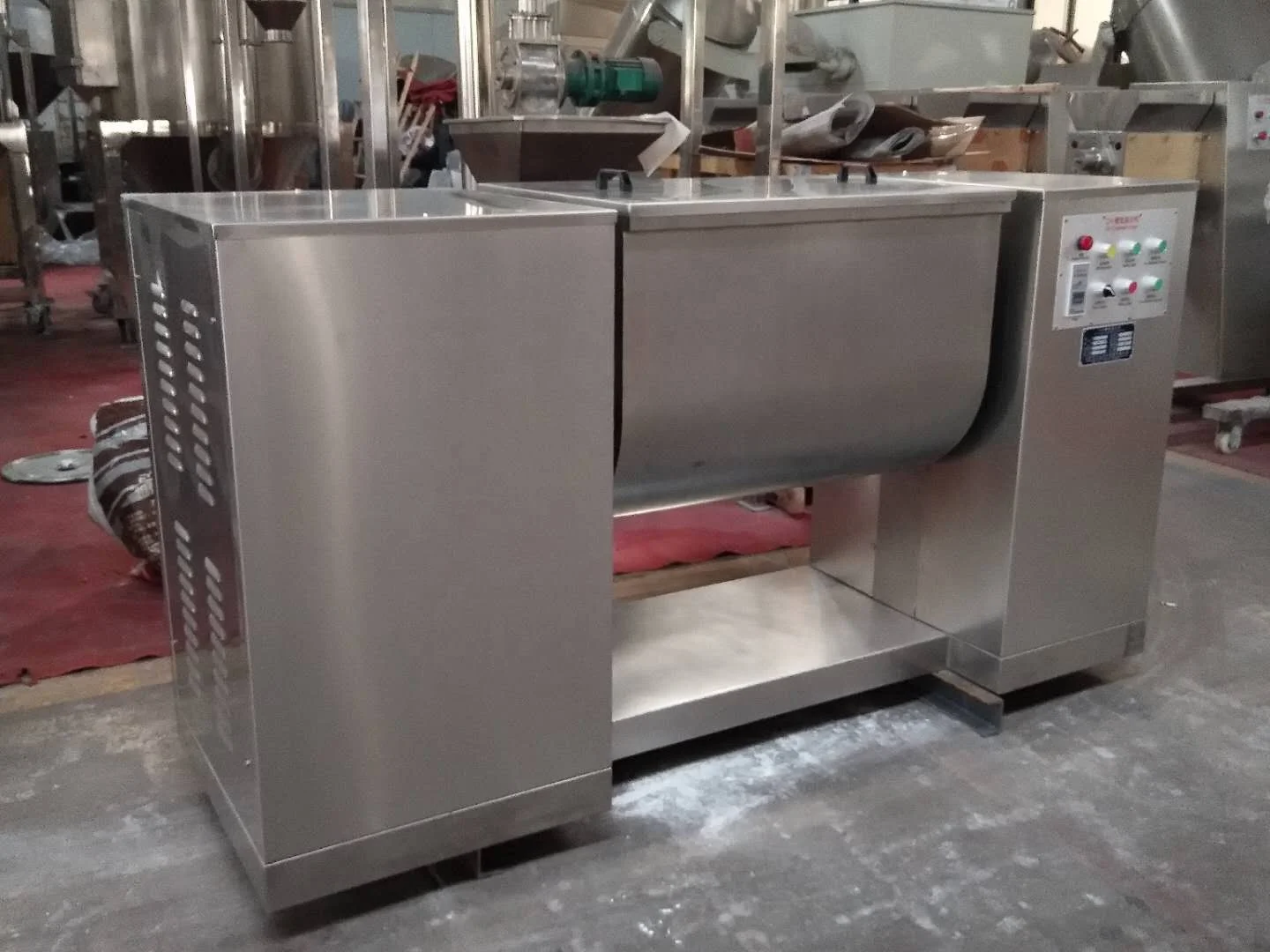

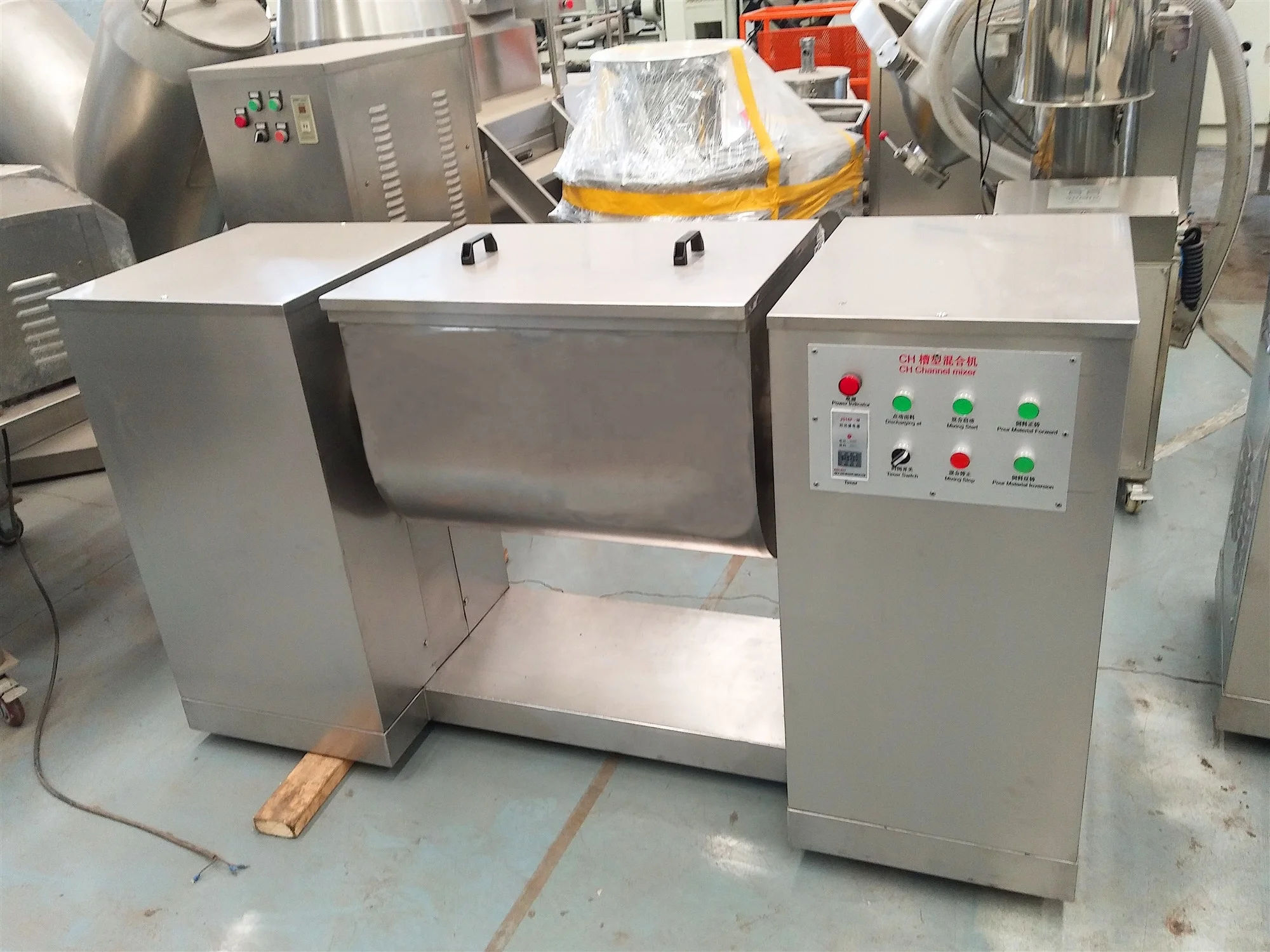

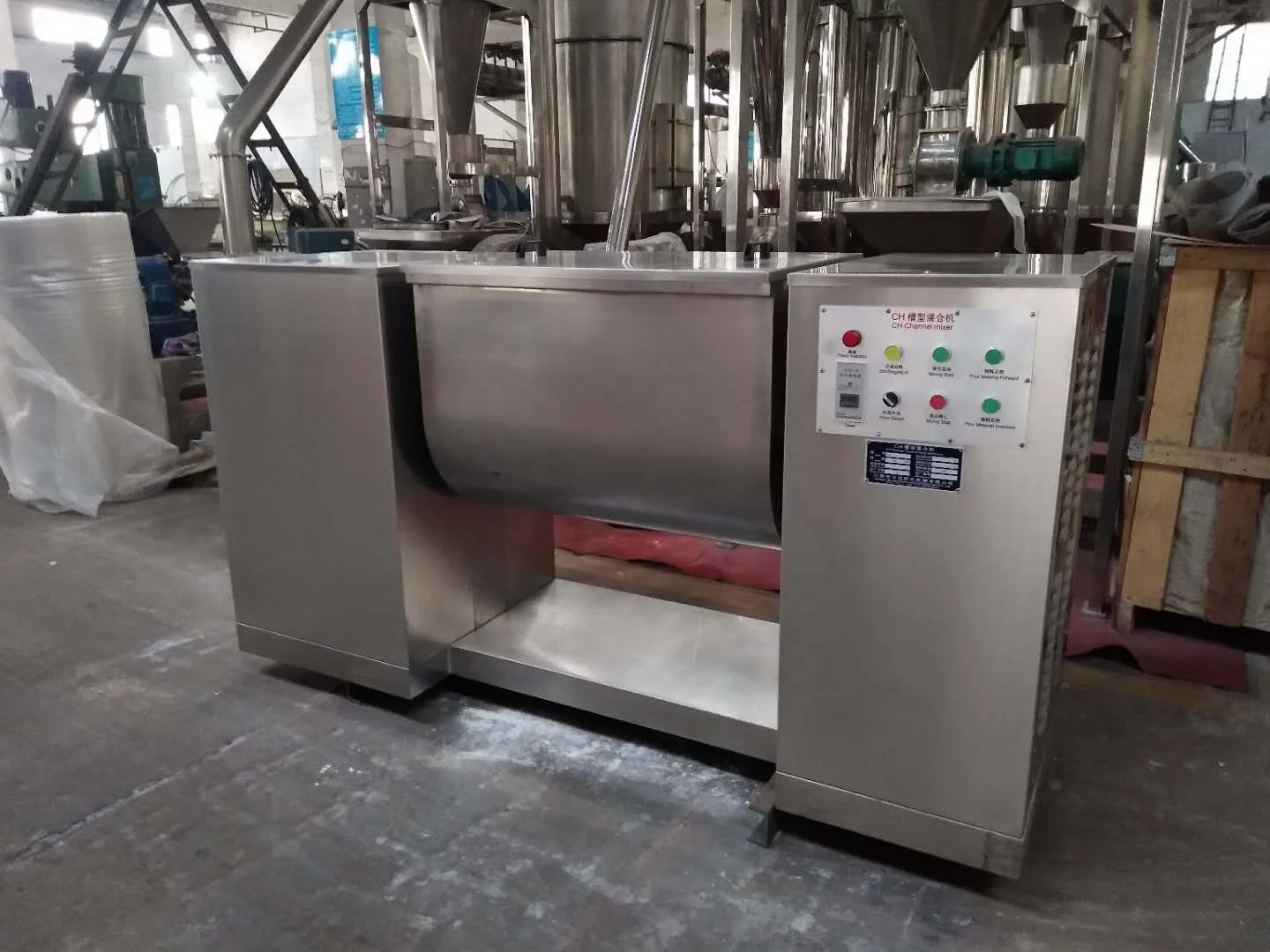

Product Images

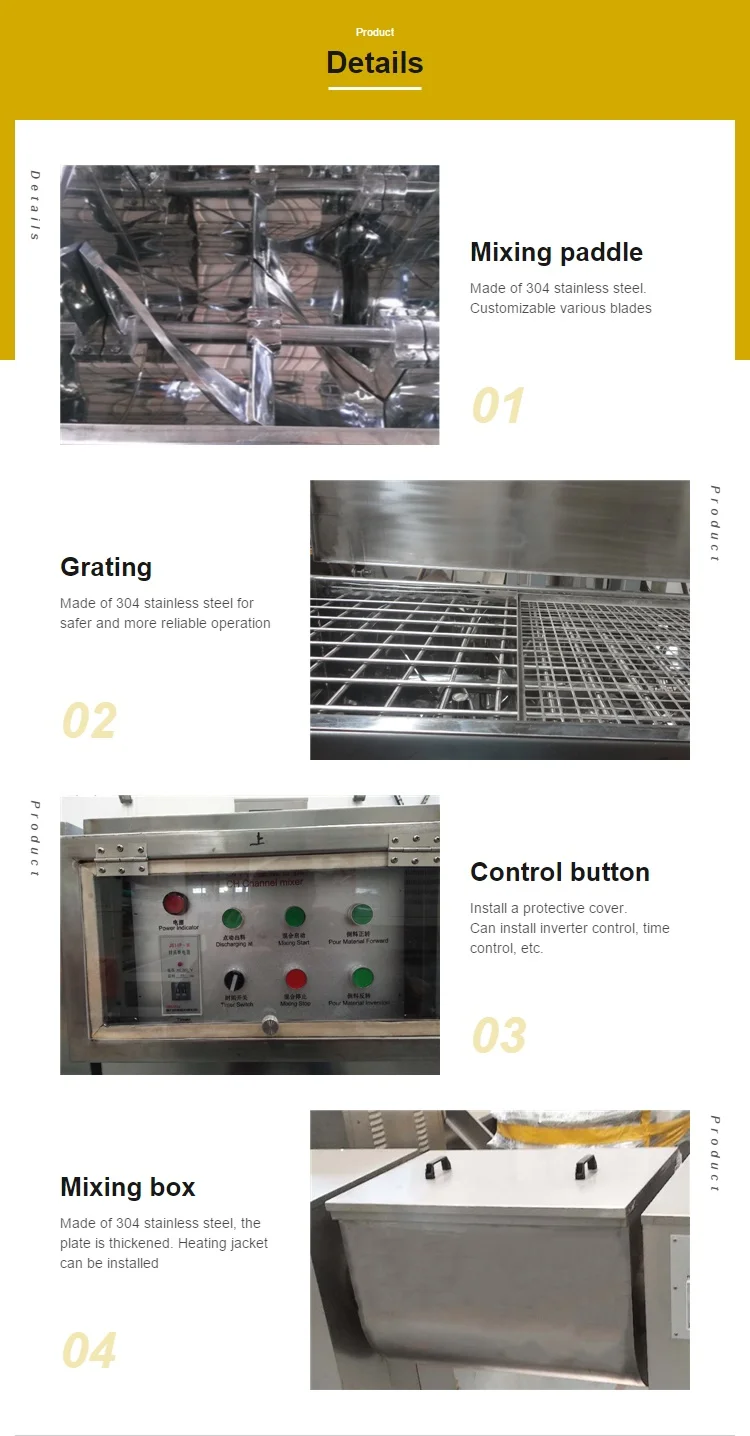

Product Details
1. Good dispersibility: The equipment completely solves the problems of low uniformity and dead angle caused by the specific gravity of the materials. This machine adopts a mixed structure of five-axis with flying knife mortar, which can effectively disperse various short fibers.
2, a wide range of uses: the equipment can meet the different, performance requirements of the production of dry mortar. Such as: masonry mortar, plaster mortar, polymer mortar required for insulation system, polystyrene granule moisturizing mortar and other dry powder mortar.
3. Small investment: The equipment has obvious price advantage, small investment and quick effect.
4. Simple and convenient to use: The device has small footprint, simple operation and low energy consumption.
5. Long service life: The vulnerable parts of the equipment are all made of high-strength wear-resistant steel, which makes it have the characteristics of long service life.

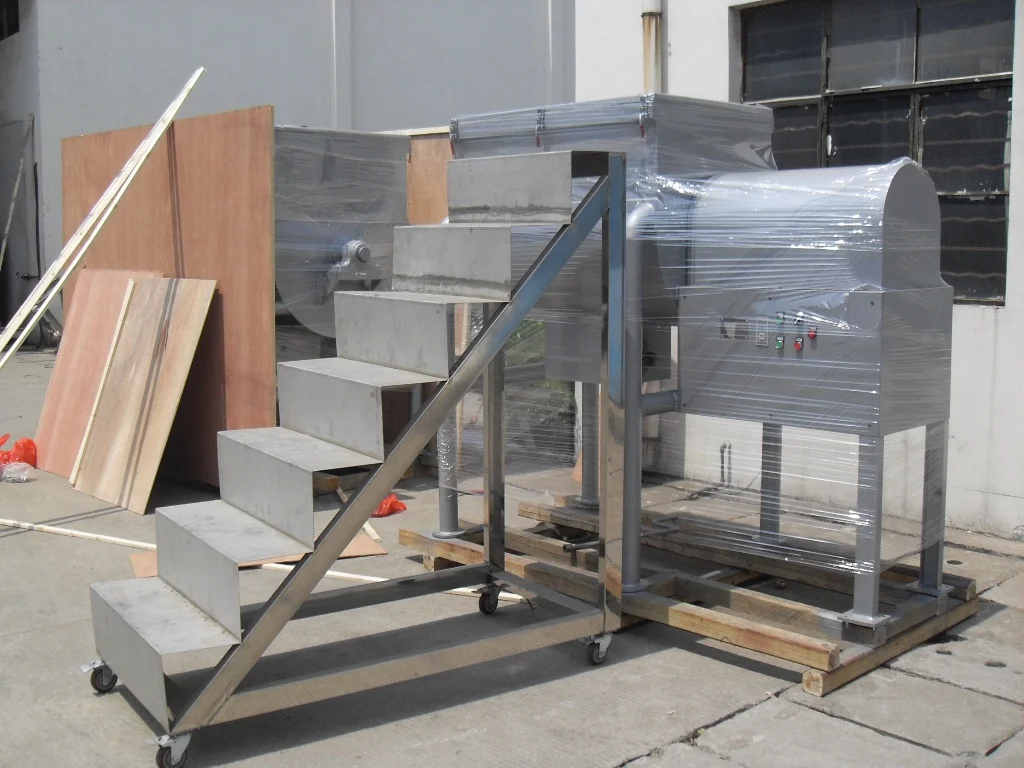

PRODUCT PACKAGING
Hot-sale Product
Company Information
Our Service
Before placing an order:
After placing an order:
FAQ
Q1: Are you a factory or a trading company?
A1: We are production plants.
Q2:What is the packaging of the equipment before shipment?
A2:The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Q3:I don't know if your equipment is suitable for our products.
A3:You can send a sample, we will test and take a video to you.
Q4:I bought the equipment, what should I do if it is broken during use?
A4:We have overseas maintenance personnel, can come to repair or video.
