3 Layer Corrugated Paperboard production Line
- Category: Packaging Line >>>
- Supplier: Hangzhou Royall Import & Export Co. Ltd.
Share on (62104574407):
Product Overview
Description
MJT model 3-Layer Corrugated Paperboard production Line
Introduction
Corrugated cardboard production line includes mill roll stand, single facer, pre-heater, conveyer bridge, gluing machine, slitter scorer machine, cut off machine and stacker. We can produce the three ply, five ply and seven ply corrugated cardboard production line, Widths from 1400 to 2500mm\\min,production speeds from 60 to 250 meters/min Customer's can choose according his own needs. We can provide a complete production line and can also provide individual parts to complete customer’s own line.

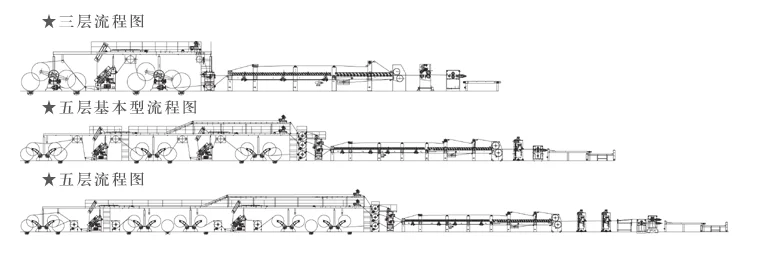

Common Design Chart
TECHNOLOGICAL PARAMETERS
MJT-60-1800 Economical model | MJT-80-1800 Standard model | MJT-100-1800 High-Speed | |
Line size L*W*H(m) |
32×3.6×4.5 |
36×3.6×4.5 |
48×4×4.5 |
Factory size L*W*H(m) |
35×11×4.5 |
40×11×4.5 |
55×11×4.5 |
Steam cost | 0.8~1.2Mpa About 2T/h | 0.8~1.2Mpa About 2T/h | 0.8~1.2Mpa About 2T/h |
Starch Cost (g/m2) |
11-13 |
11-13 |
11-13 |
Raw paper width (mm) |
1600 |
1600 |
1600 |
Mechanical Speed |
60m/min |
80m/min |
100m/min |
Economical speed |
45m/min |
50m/min |
80m/min |
Shift capacity (*104m/8h) |
2.5 |
3 |
5 |
Transversely cutting precision |
±2.5 |
±1 |
±1 |
Transversely cutting scope (mm) |
600-2600 |
500-9999 |
500-9999 |
Slitting scope (mm) |
145-1600 |
145-1600 |
160-1600 |
Slitting precision (mm) |
±1 |
±1 |
±1 |
Workers |
6-9 |
6-9 |
6-9 |
Note: Above parameters are for your reference. It depends on the different machines you choose.
