Technical parameters:

1,MAX  working width: 2200mm

2,operation direction:left or right(determined to the customer’s factory)

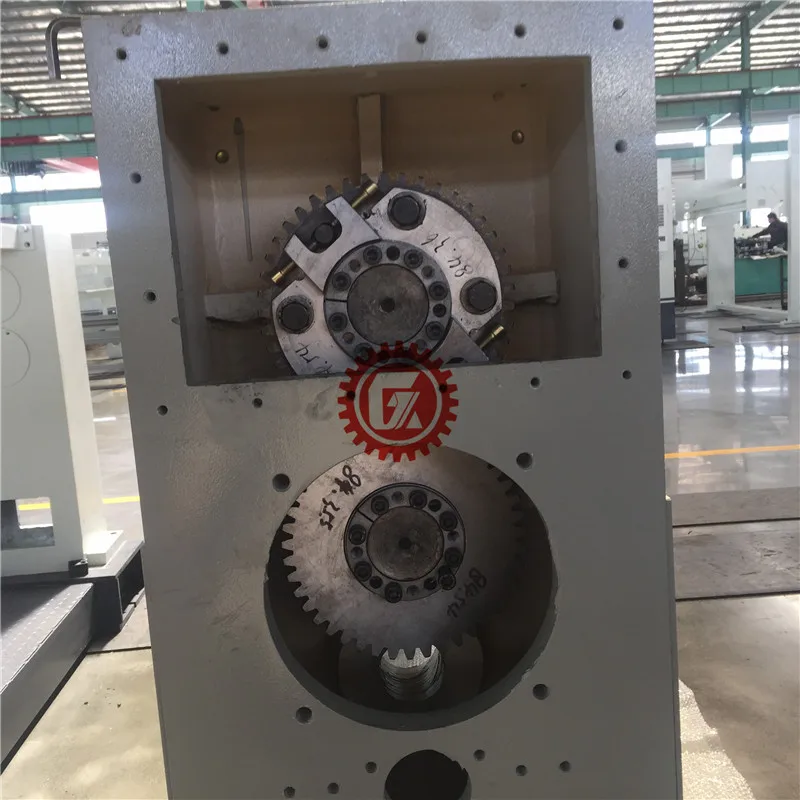

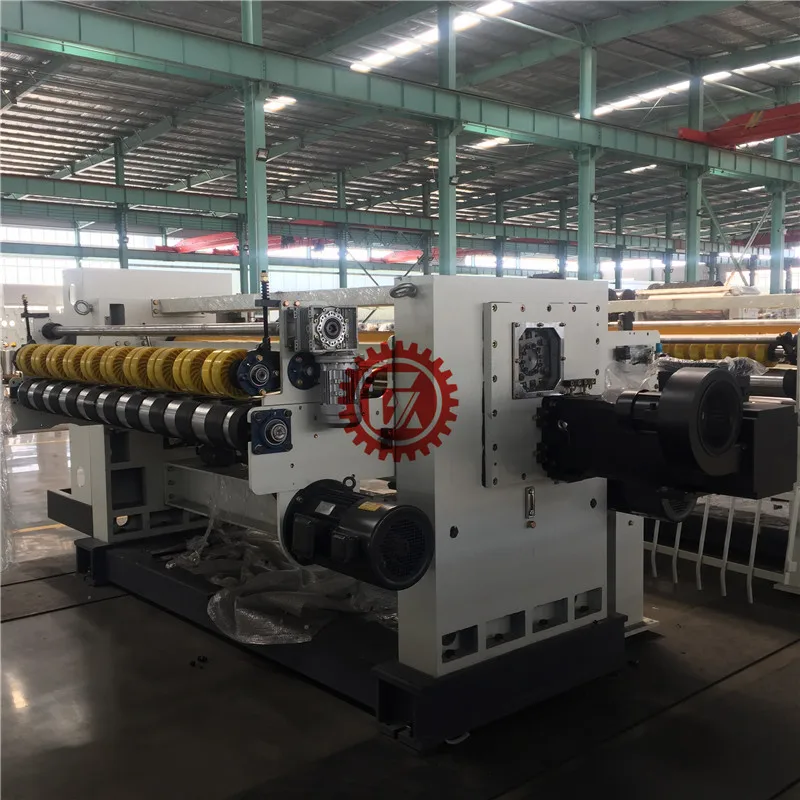

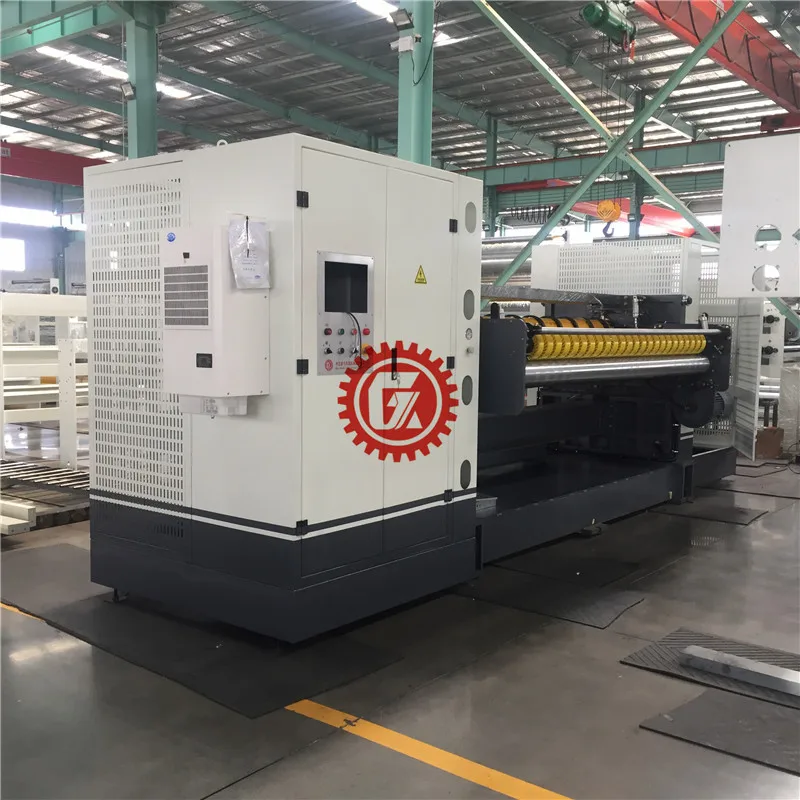

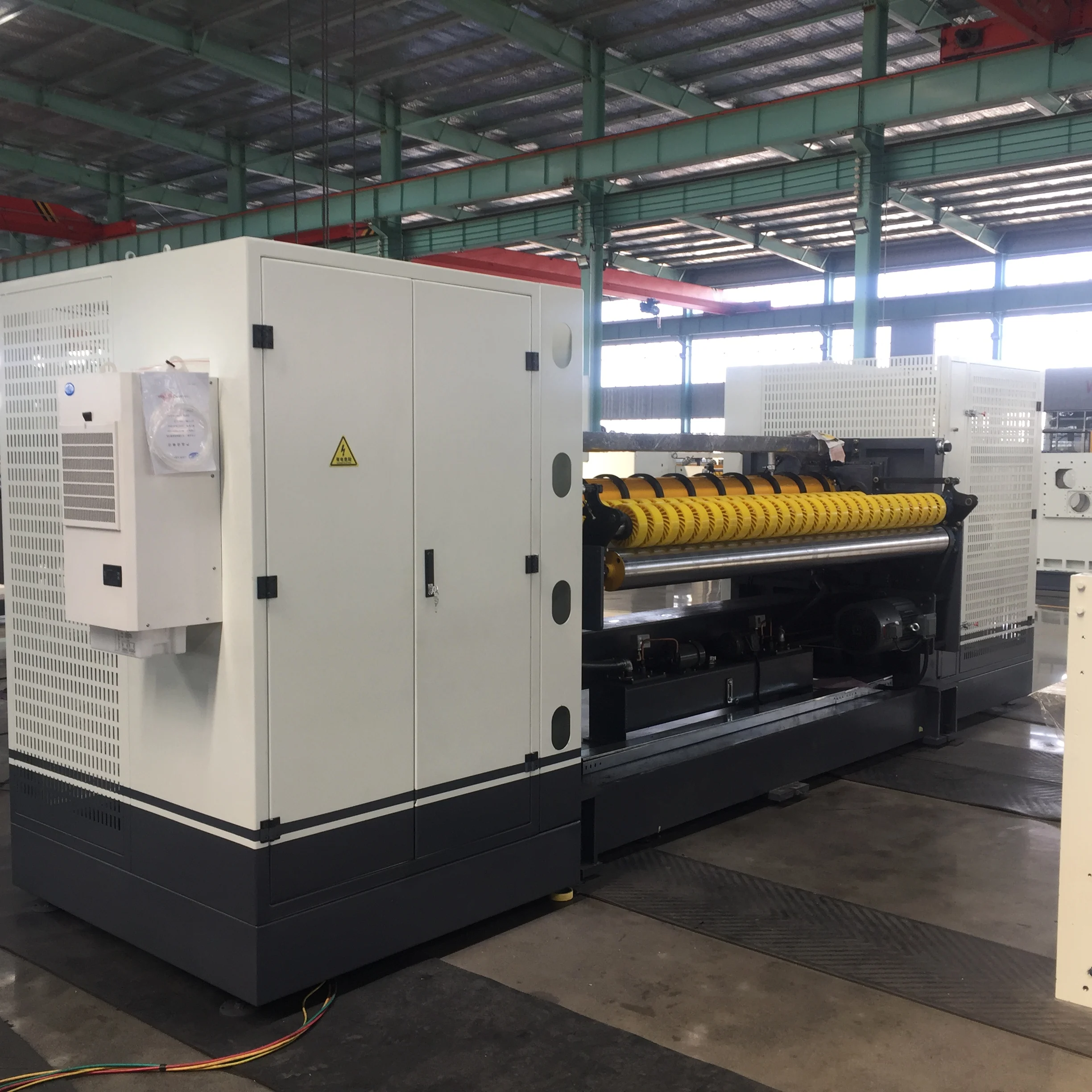

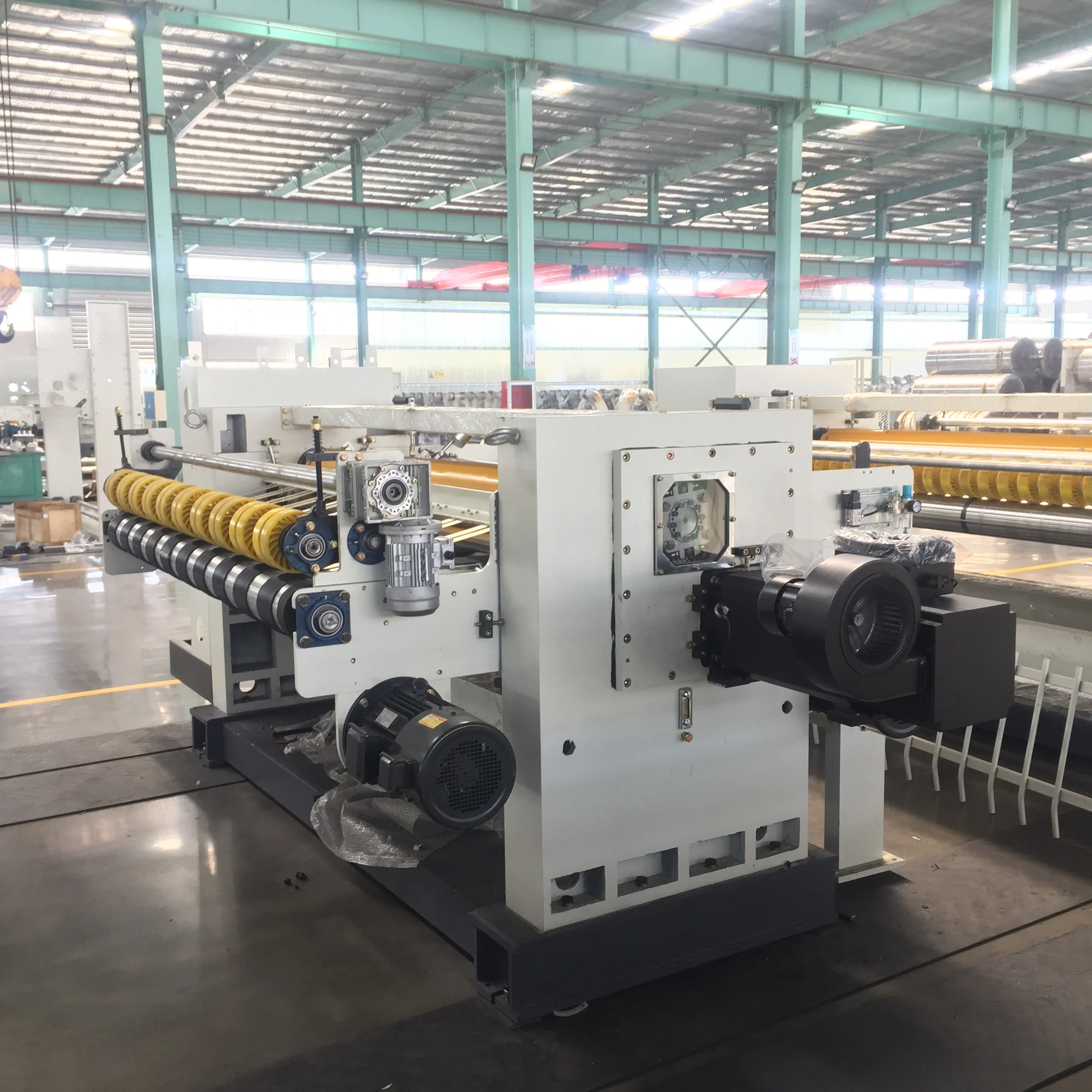

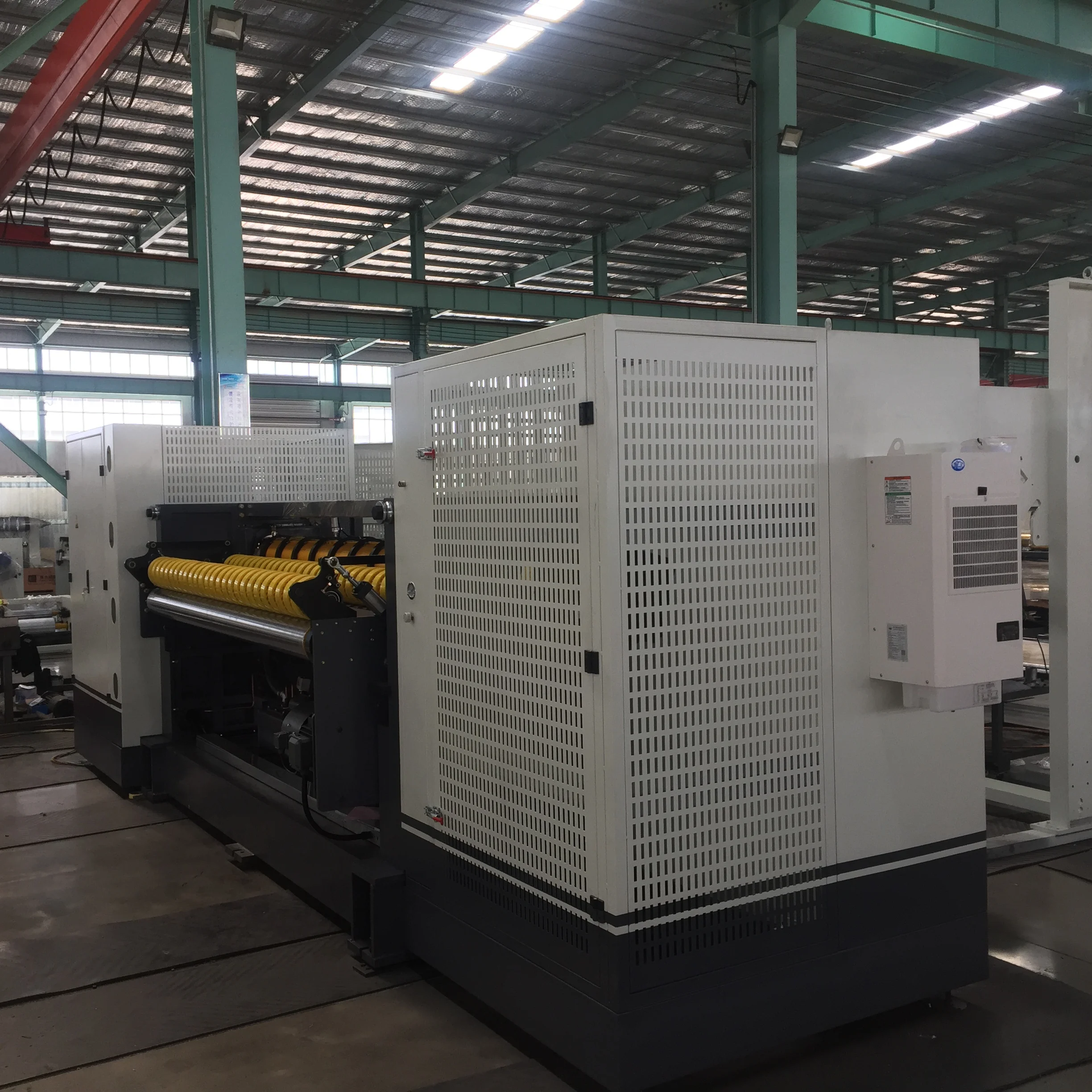

    3,highest machinery speed:200-250m/min

    4,Mechanical configuration:computer-control helical cross cutter

5,Minimum cutting length:500mm

6,Maximum cutting length:9999mm

7,Precision of cutting paper:uniform ±1mm,non-uniform±2mm

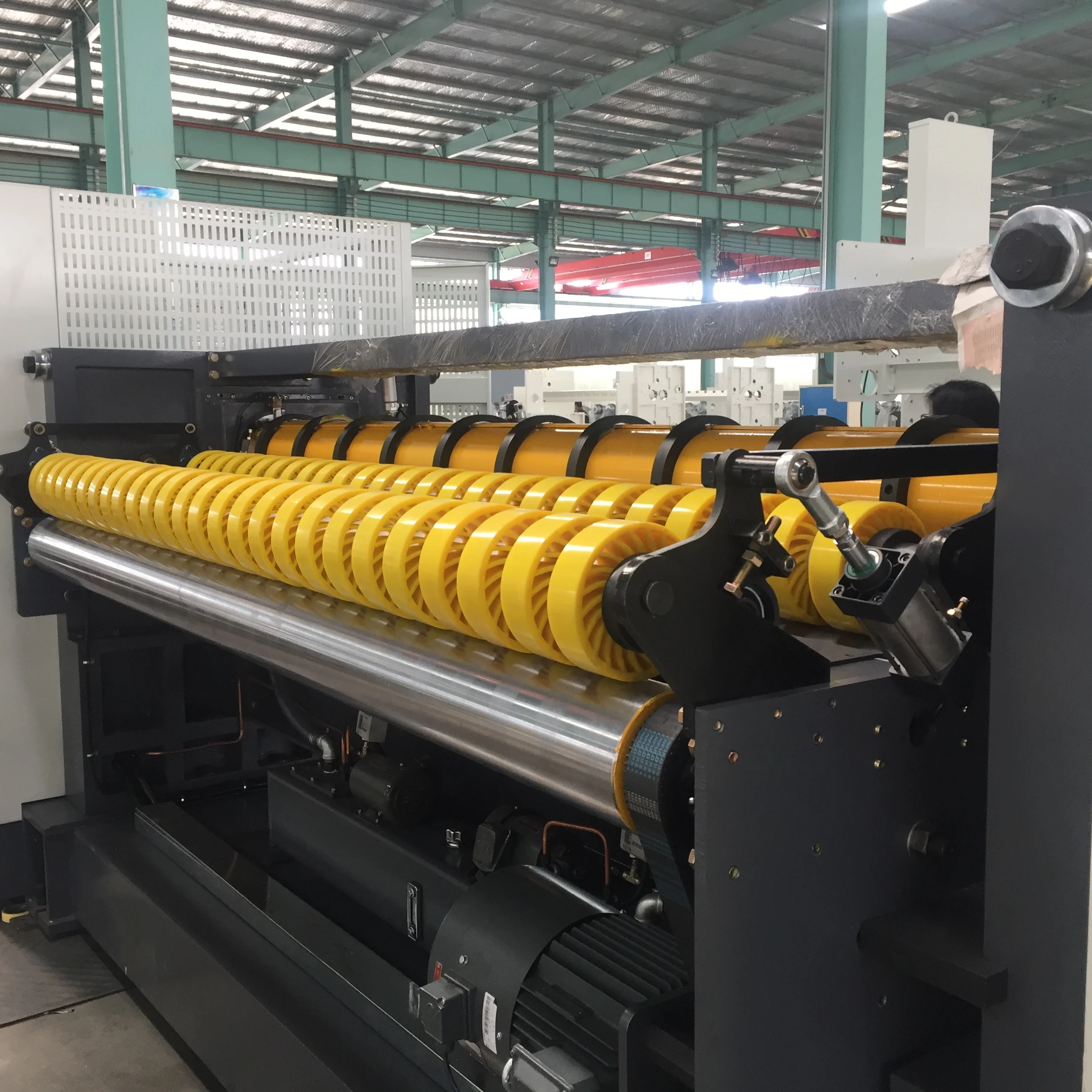

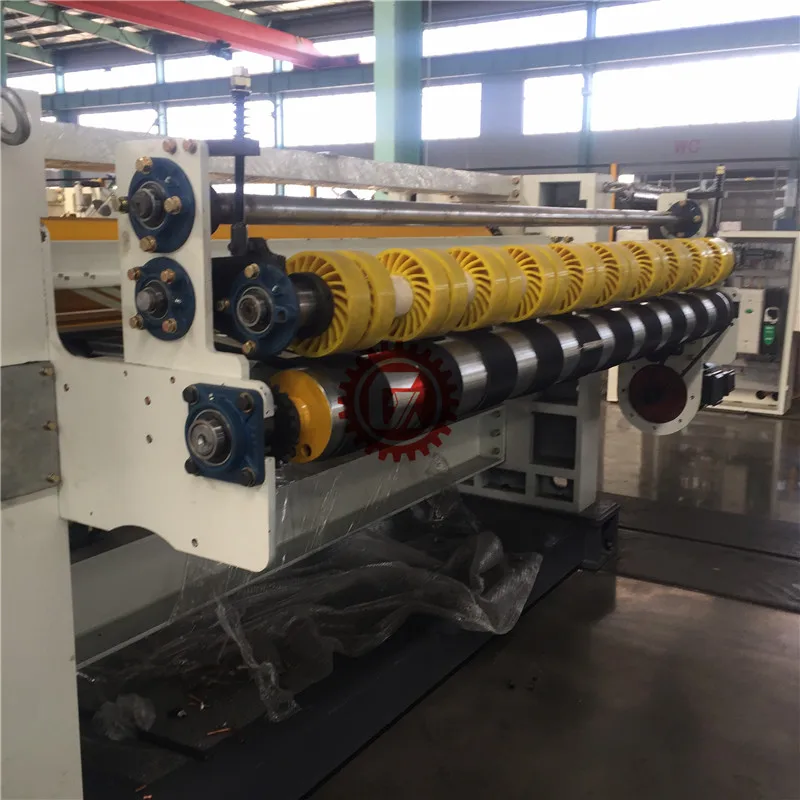

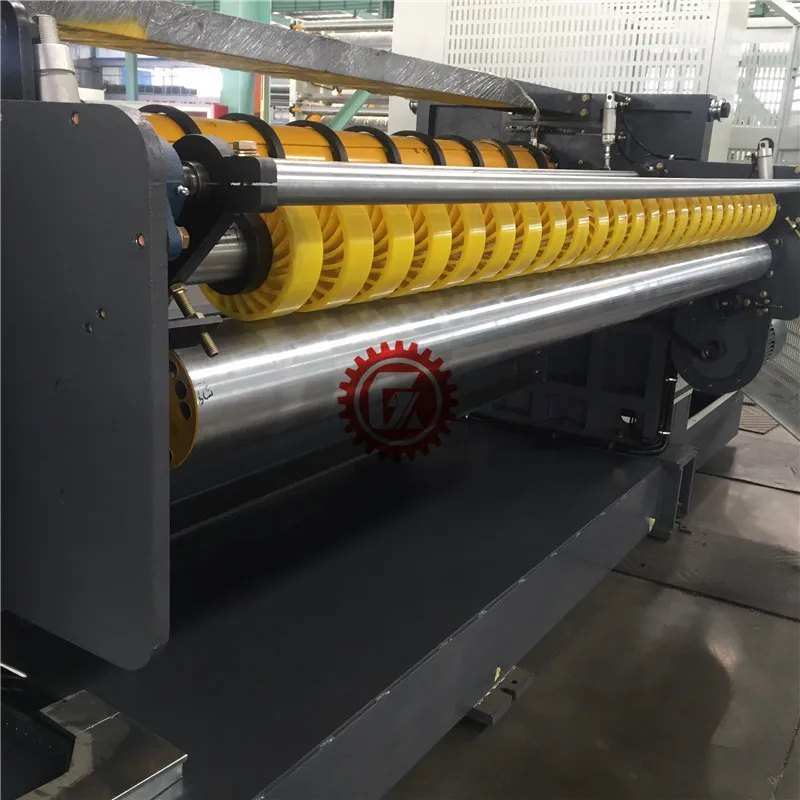

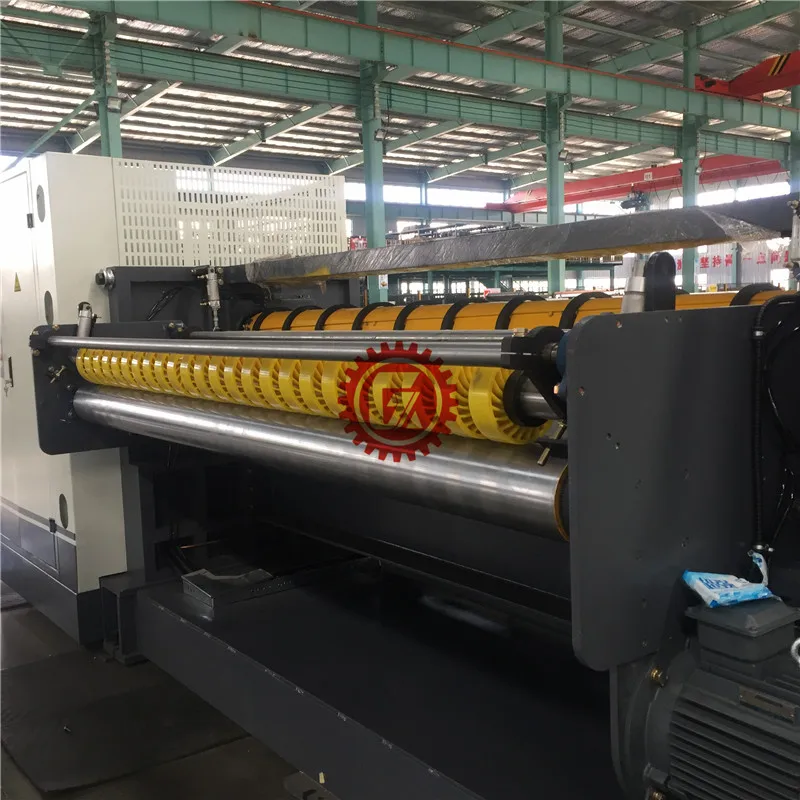

Roller diameter parameters:

1,Cross on the knife shaft center distance:216mm

2,Before the lower conveying roller diameter  156mm

3,After the lower conveying roller diameter:      156mm

4,The front of the platen roller diameter: 70mm

5,The front of the platen roller diameter:      70mm

Note: After all have been grinding rollers, hard chrome plated at (on except under the knife shaft) dealing.

Power motors and electrical parameters::

1,main drive motor power:37KW   Full AC synchronous servo

2,Before and after feeding motor power:4KW(Frequency Control)

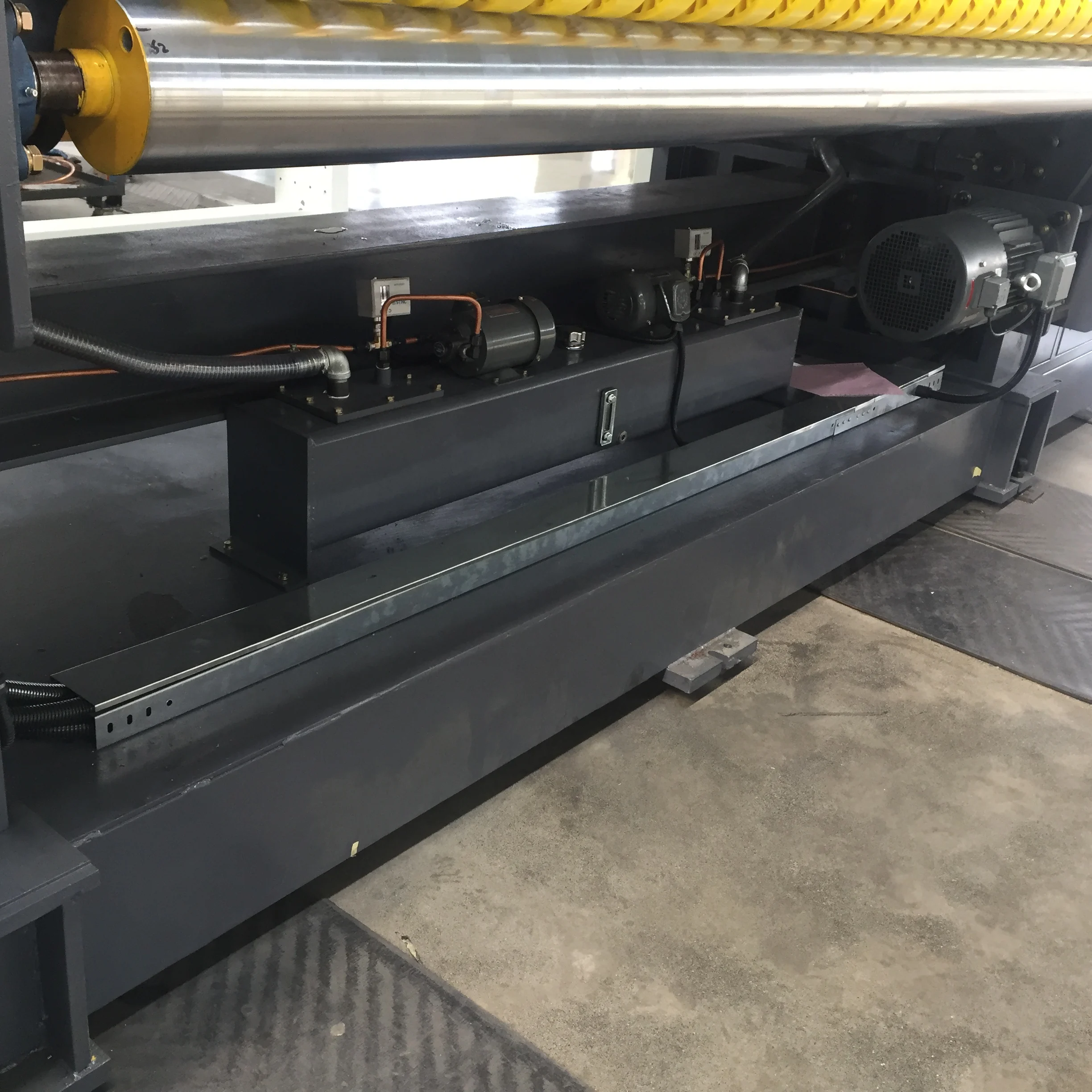

3,Oil pump motor power:0.18KW*2

Certificate

1.Q:Whether you have manufacture ?

A:Yes ,we have manufacture factory for make machine . And all the machineries related to corrugated cardboard.

2. Q:Whether you have export licence ?

A:Yes ,we have export licence we can export by ourself .

3. Q:Where you are located ?

A:We located dongguang city ,cangzhou city ,hebei pronvice , china ,

4. Q:How to travel to your city ?

A:Our nearest airport beijing international airport , and jinan airport , our nearest high speed train station , cangzhou west station;
From beijing to our city need 2 .30 hour by car , from beijing sourth station to cangzhou west station 1 hour by high speed train .

5. Q:About quality control and delivery?

A:Inhouse inspection and third party inspection,our delivery time is on time.

6. Q:How buy the machine from our company ?

Tell me your requirement --- quote the price - accpet the price - make contract -- prepare the machine - check the machine - shipment the machine

7. Q: Do you have any working machine for us to visit?

A: Yes,We have running machine near our factory also in our city, we can arrange visiting

8. Q: How is the warranty of the machine?

A: Our machines have ONE YEAR WARRANTY. And the engineers available for overseas service.

9. Q:Is it safe on the payment for me as we are the first cooperation?

A: We can do the trade assurance on Alibaba, which will guarantee your products receiving, we also accept other safe payment way as you want.
