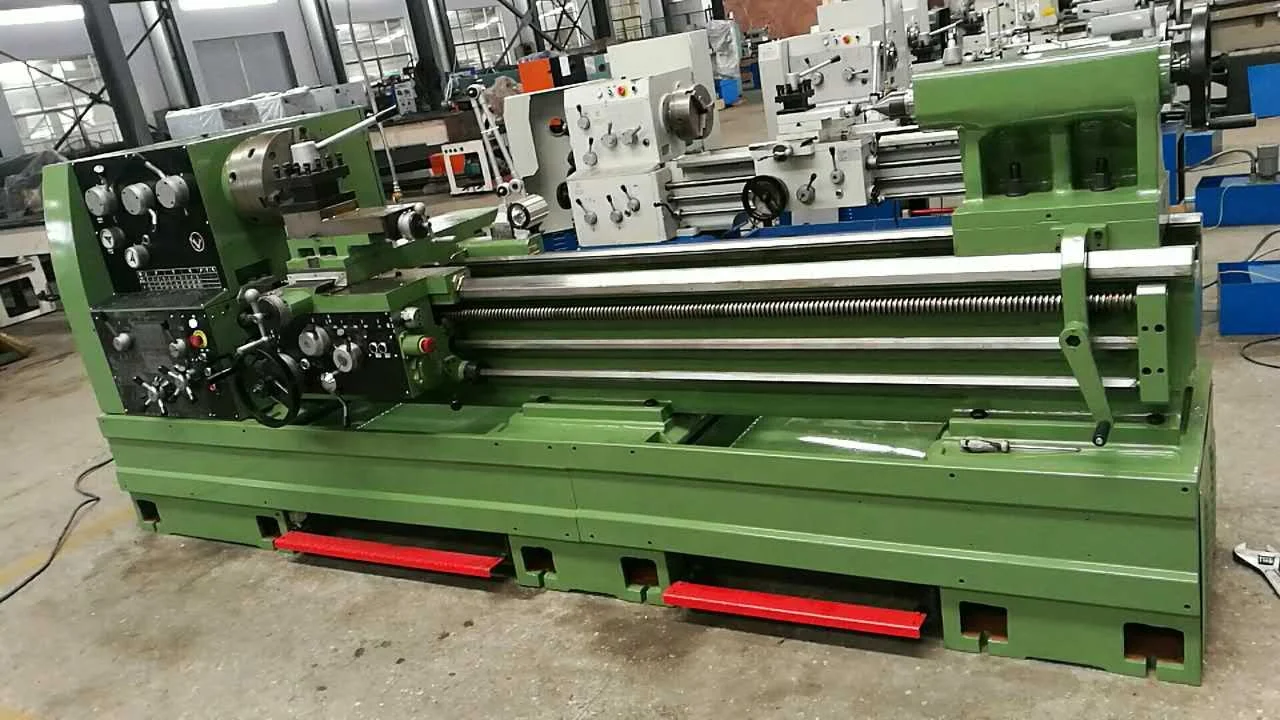

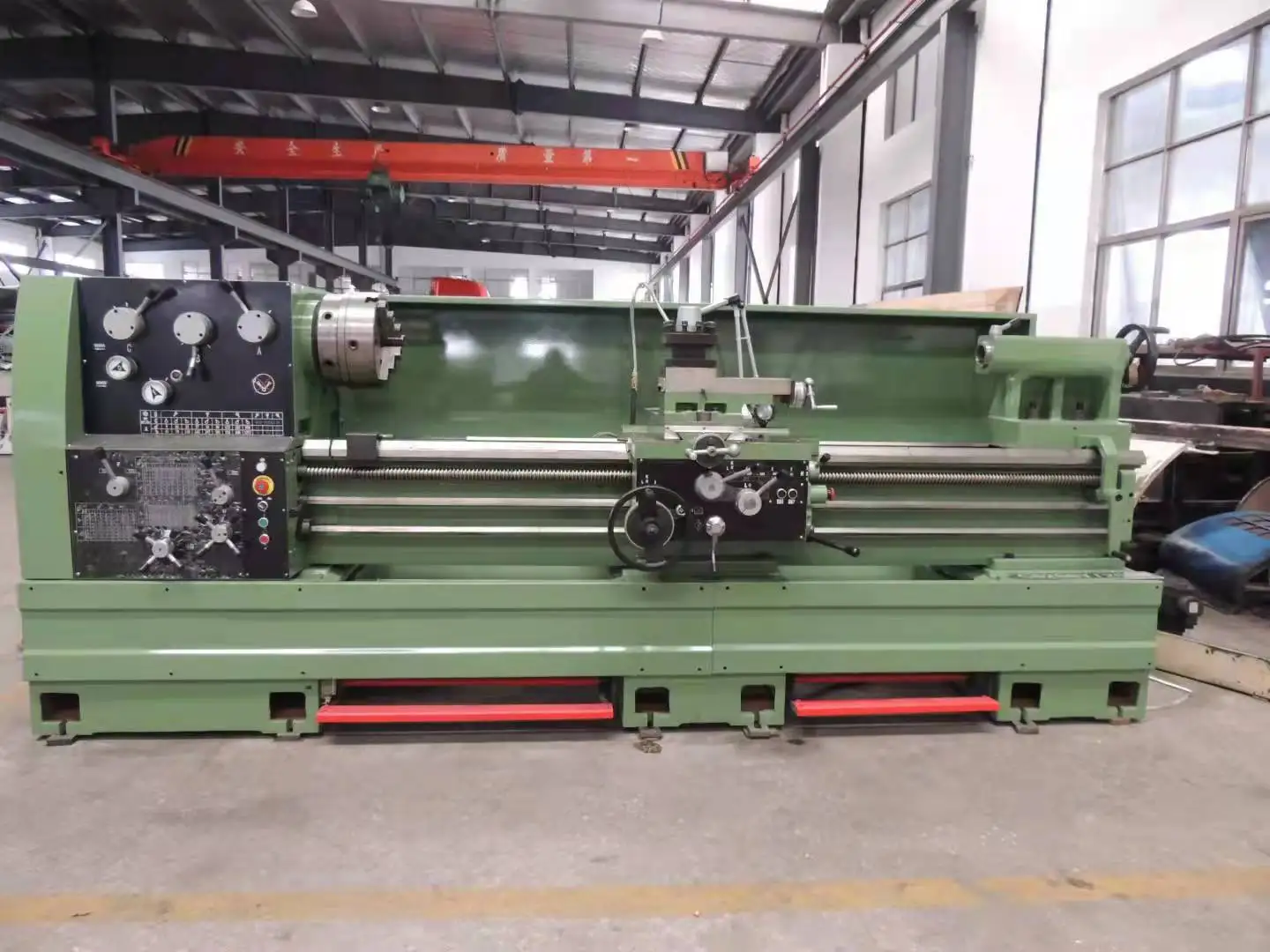

CY 6250B/1000 High speed precision lathe manual metal turning lathe machine tool torno mechanico horizontal lathe machine
- Category: Lathe >>>
- Supplier: Shenzhen Integrity Industry Co. Ltd.
Share on (62116279264):
Product Overview
Description
PRODUCT DESCRIPTION
SPECIFICATION | CY-6250B/1000 |
Swing over bed | 500mm |
Swing over cross slide | 300mm |
Swing in gap | 710mm |
Width of gap | 240mm |
Width of bed | 390mm |
Length of work piece (max) | 1000mm |
Spindle nose | D8 |
Taper of spindle center | 1:20 |
Spindle bore diameter | 82MM |
Spindle speed | 9-1600rmp |
Max. output torque of spindle | 1500N.m |
Range of longitudinal feed | 0.028-6.43mm/rev |
Range of transverse feed | 0.12-2.73mm/rev |
Lead screw pitch | 12mm(metric system) 2TPI (inch system) |
Lead screw diameter | 40mm |
Metric threads | 0.5-224mm(48 pitches) |
Inch threads | 72-1/8TPI (46 pitches) |
Module threads | 0.5-112mm(42 pitches) |
Diameter pitch threads | 56-1/4DP (45 pitches) |
Cross slide travel(max.) | 320mm |
Top slide travel (max.) | 145mm |
Section specification of tool post | 25x25mm |
Longitudinal rapid traveling speed | 4.5m/min (50HZ) 5.4m/min (60HZ) |
Transversal rapid traveling speed | 1.9mm/min(50HZ) 2.3m/min(60HZ) |
Morse taper of tailstock center | M5 |
Max. travel of tailstock quill | 150mm |
Tailstock quill diameter | 75mm |
Main motor | 7.5kw |
Rapid travel motor | 250w 1360rpm |
coolant pump motor | 90w 25L/min |
RECOMMENDED PRODUCT
COUPONS

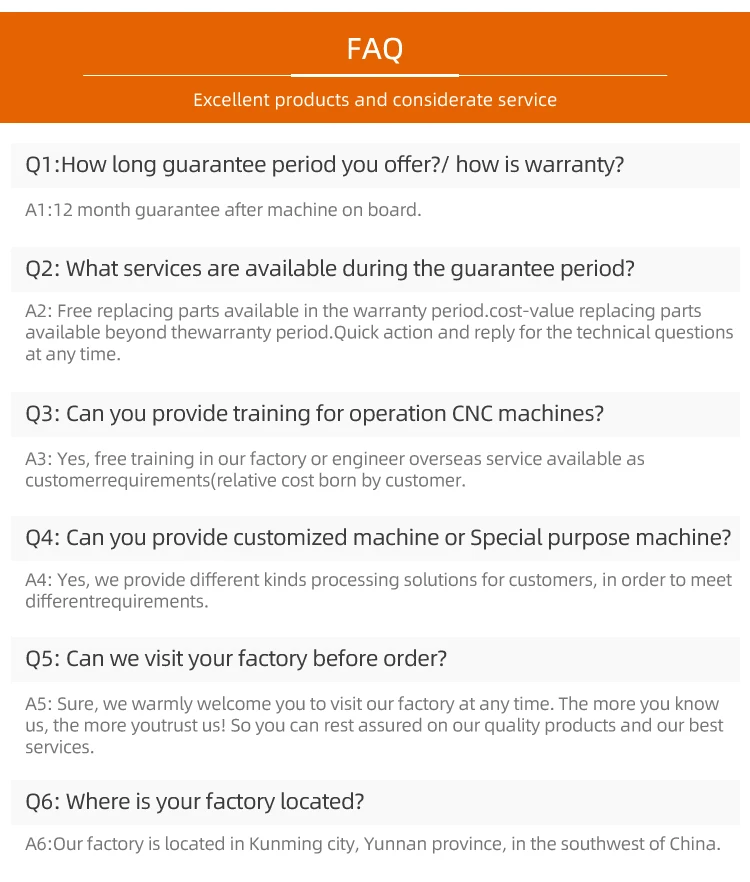

Q1:How long guarantee period you offer?/ how is warranty?
A1:12 month guarantee after machine on board.
Q2: What services are available during the guarantee period?
A2: Free replacing parts available in the warranty period.cost-value replacing parts available beyond thewarranty period.Quick action and reply for the technical questions at any time.
Q3: Can you provide training for operation CNC machines?
A3: Yes, free training in our factory or engineer overseas service available as customerrequirements(relative cost born by customer.
Q4: Can you provide customized machine or Special purpose machine?
A4: Yes, we provide different kinds processing solutions for customers, in order to meet differentrequirements.
Q5: Can we visit your factory before order?
A5: Sure, we warmly welcome you to visit our factory at any time. The more you know us, the more youtrust us! So you can rest assured on our quality products and our best services.
Q6: Where is your factory located?
A6:Our factory is located in Kunming city, Yunnan province, in the southwest of China.
A1:12 month guarantee after machine on board.
Q2: What services are available during the guarantee period?
A2: Free replacing parts available in the warranty period.cost-value replacing parts available beyond thewarranty period.Quick action and reply for the technical questions at any time.
Q3: Can you provide training for operation CNC machines?
A3: Yes, free training in our factory or engineer overseas service available as customerrequirements(relative cost born by customer.
Q4: Can you provide customized machine or Special purpose machine?
A4: Yes, we provide different kinds processing solutions for customers, in order to meet differentrequirements.
Q5: Can we visit your factory before order?
A5: Sure, we warmly welcome you to visit our factory at any time. The more you know us, the more youtrust us! So you can rest assured on our quality products and our best services.
Q6: Where is your factory located?
A6:Our factory is located in Kunming city, Yunnan province, in the southwest of China.
