QIHE Factory Direct Supply 64 Feeders Automatic LED Light Making Machine SMT Chip Mounter Pick and Place

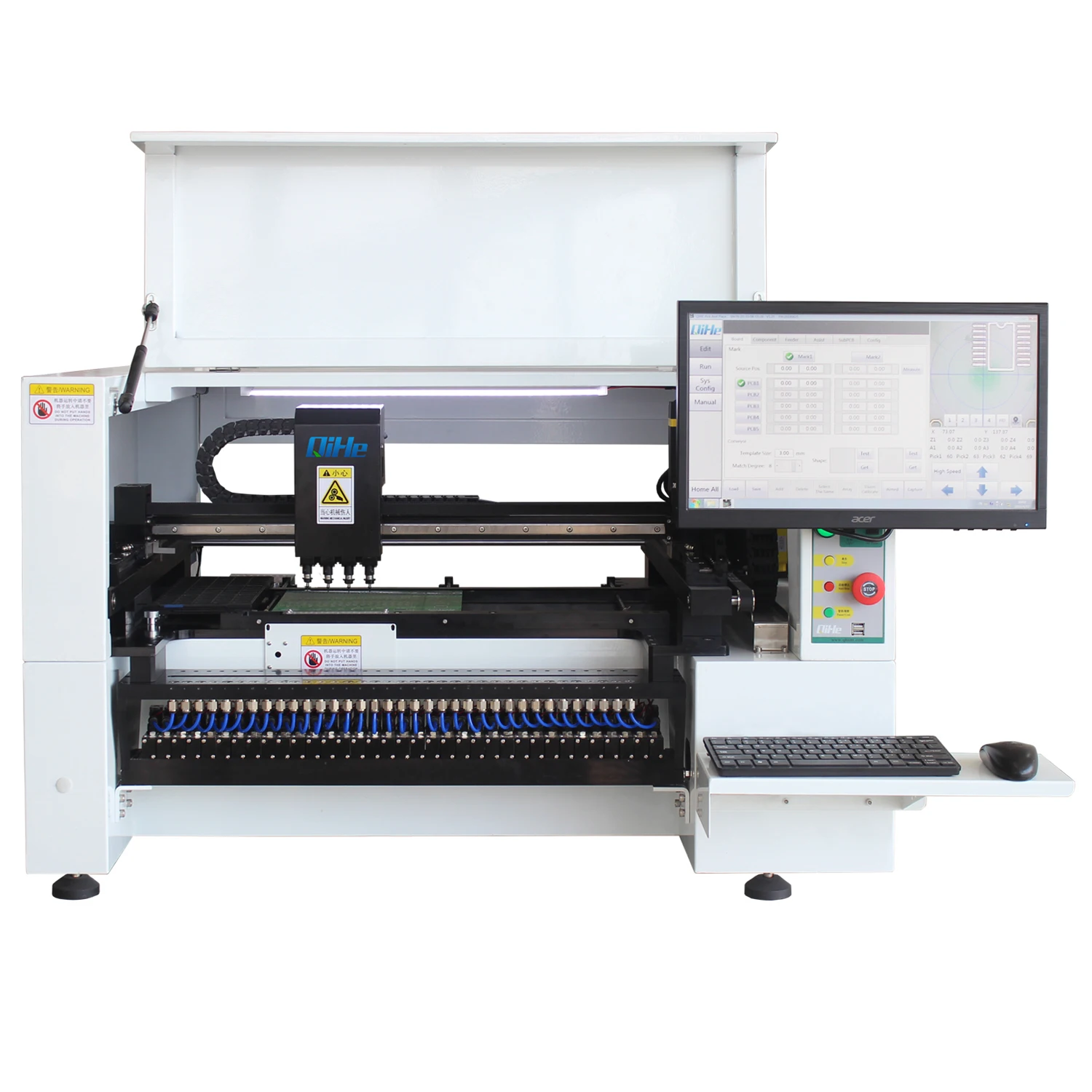

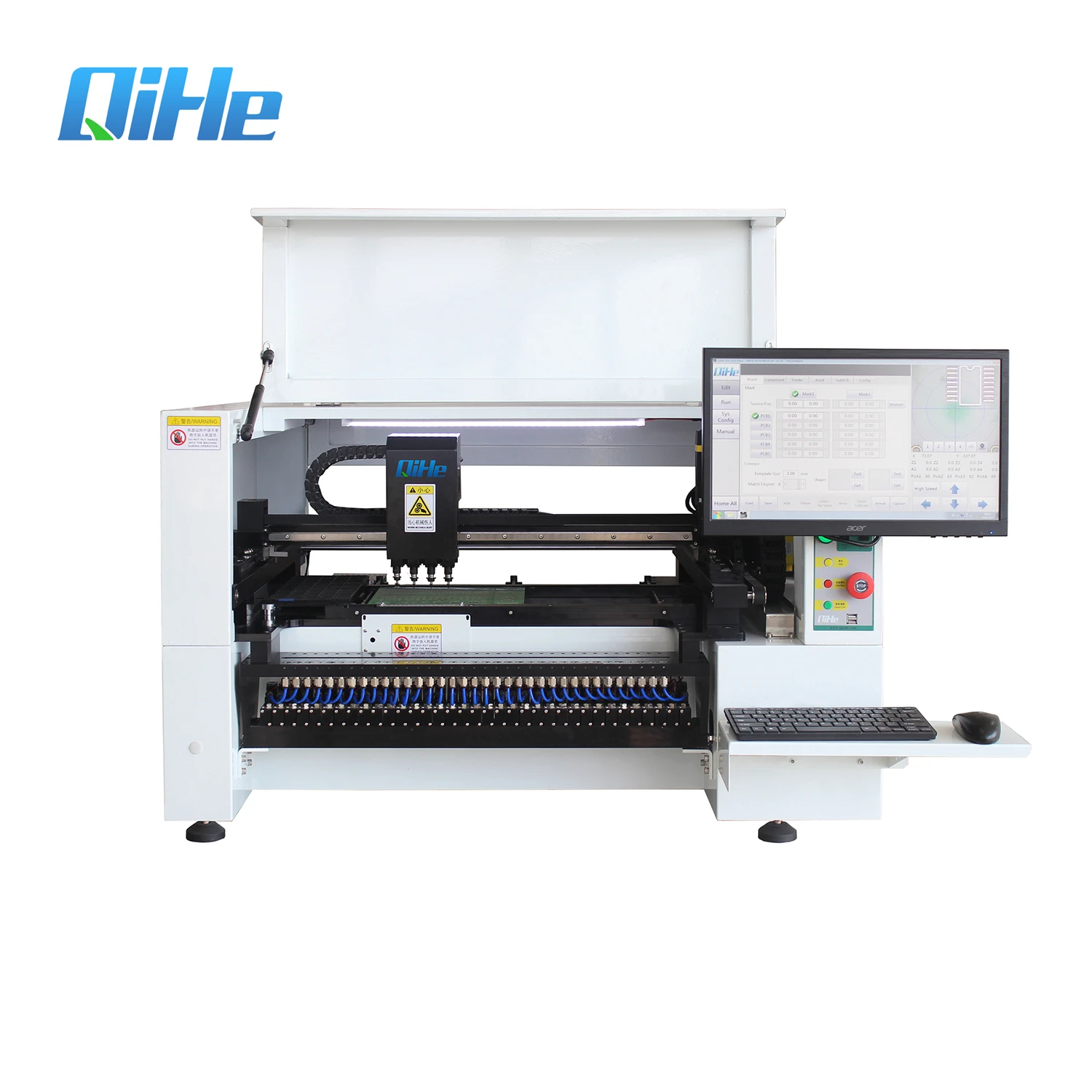

QIHE TVM926 is a high speed pick and place machine for medium production line.
Up to 64 feeder slots, it can mount many kinds of component.
Multi-Vision System: Total six cameras make placement more accurate.
Time saving by the four nozzles are examined over the four cameras at the same time.
It is a compact placing machine that offers the flexibility (component flexibility, PCB flexibility and production flexibility) and speed to meet the demands of an ever-changing market.
Specification
Model
TVM926
Max applicable PCB size
330*580mm
Max xy moving range
585*620mm
Max z moving range
16mm
Placementhead quantity
4
Max mounting capability
Vision on: 9000pcs/h
Vision off: 7000pcs/h
Feeder Capacity
64 (YAMAHA Feeder is available)
Applicable component
Smallest size: 0402
Largest size: 16*16mm (Pitch 0.5mm)
Max height: 5mm
Visual camera
5CCD cameras & 1 HD CCD camera
Power supply
220V/110V
Net weight
160kg
Machine Dimension
1060*865*650mm
Packing size
0.98CBM
Main Features
1. Vision system: one down-looking camera. Four CCD cameras and one HD camera.
2. Four placement heads can pick up and calibrate components at one time.
3.Up to 64 feeder slots, Yamaha standard feeder is available.
4. Built-in computer mainboard, the monitor, key board and mouse will ship with machine.
5. Video tutorials make you operate machine easily
6. Free to upgrade software and provide technology support for life.

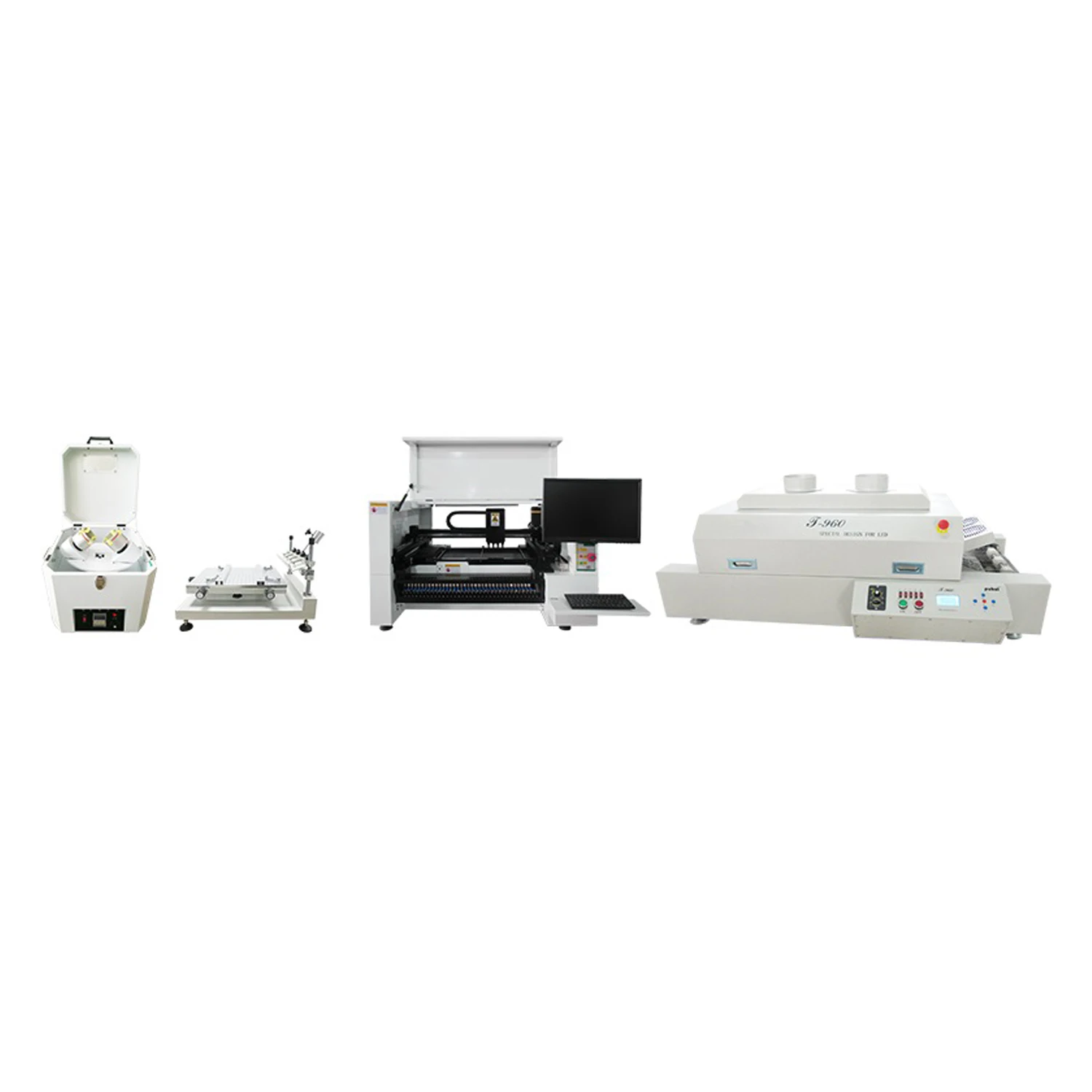

Production Line Recommend
Company Show
Exhibition Show
Certificate
Recommended Products
P & P MACHINE
HOT SALE
PLS CLICK PICTURE DIRECTLY FOR DETAIL!!!
FAQ
1. Q: How many nozzles do you supply? Do you sell nozzles and spares?
A: The TVM802 has two nozzle-heads, we supply 4 nozzles. The TVM925 has 4 nozzle-heads, we supply 6 nozzles. Yes, we do sell nozzles and spares. If you need any spars, just let us know.
2. Q: Do you provide software updates?
A: Customers who buy our machines, we can offer free upgrades software for you.
3. Q: What air supply is required?
A: Oil free compressor and air dryer be used.
4. Q: What is the performance?

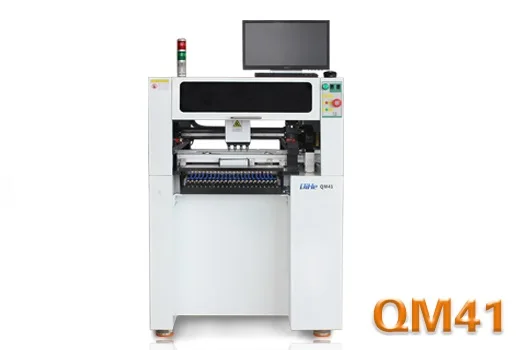

A:For QM41 it's 9,500cph without vision mode; 7,000cph with vision mode.

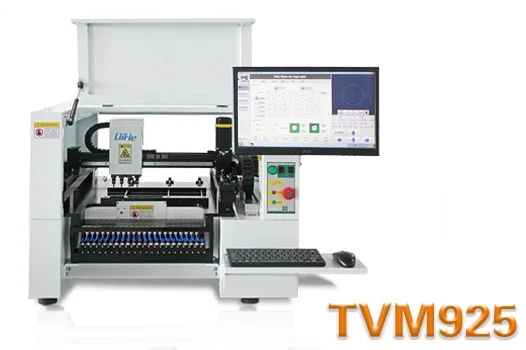

For TVM925 it's 9,000cph without vision mode; 7,000cph with vision mode.
For TVM802, it's 6,000cph without vision mode ; 4,000cph with vision mode.
5. How about the warranty?
A: We support one year warranty.We will regularly update the software for customers.
If there is any doubt in the process of operating the machine, please feel free contact us. All the spare parts will be provided free of charge for you within the warranty period.
