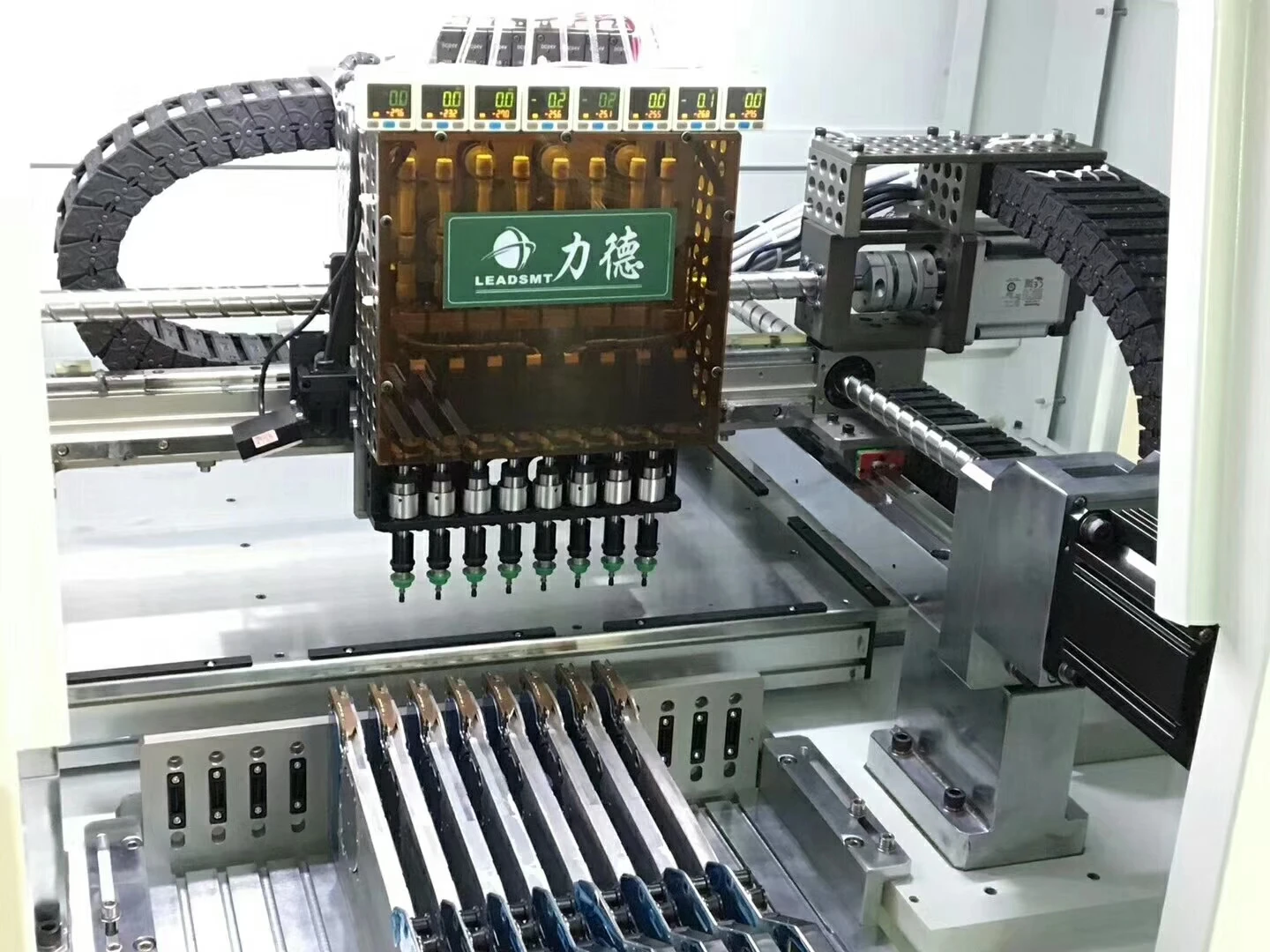

2022 new ,Smd led pick and place machine ,led placement equipment high precision model
- Category: Electronics Production Machinery >>>
- Supplier: Shenzhen Leadsmt Technology Co. Ltd.
Share on (62118074560):
Product Overview
Description
Product Description
Product Application

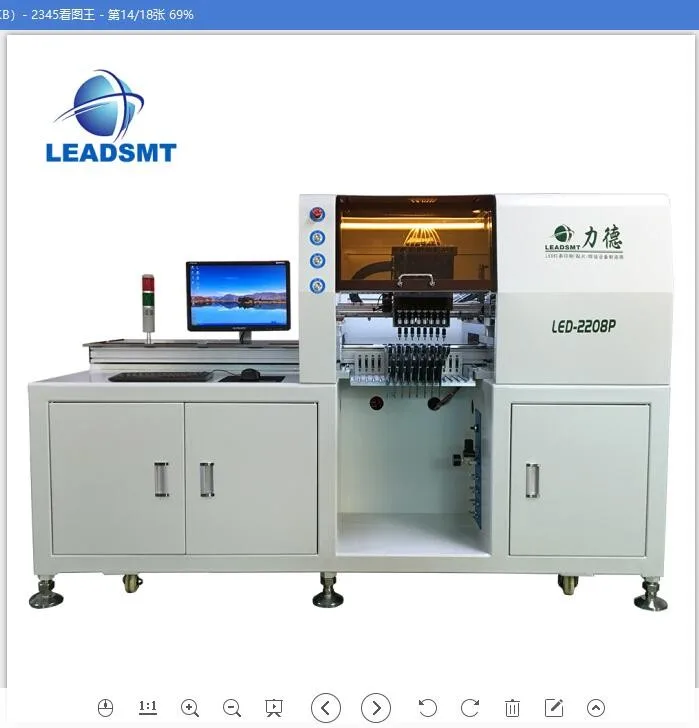

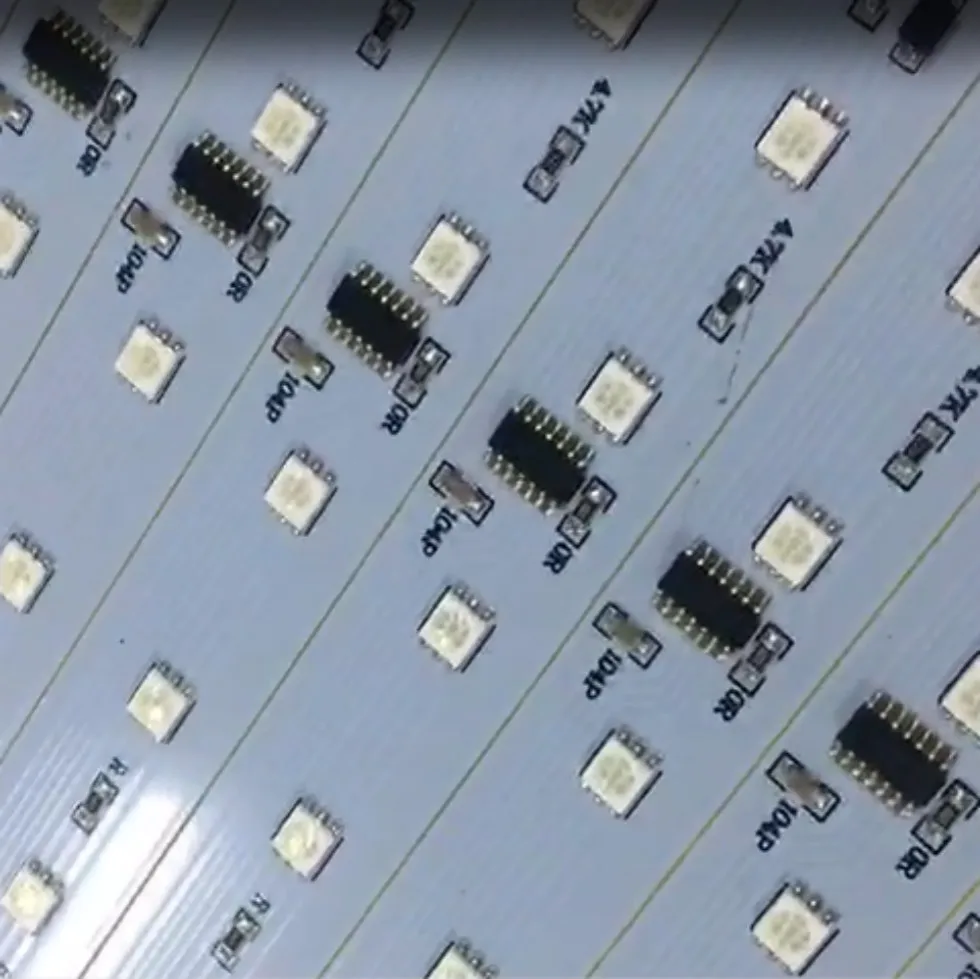

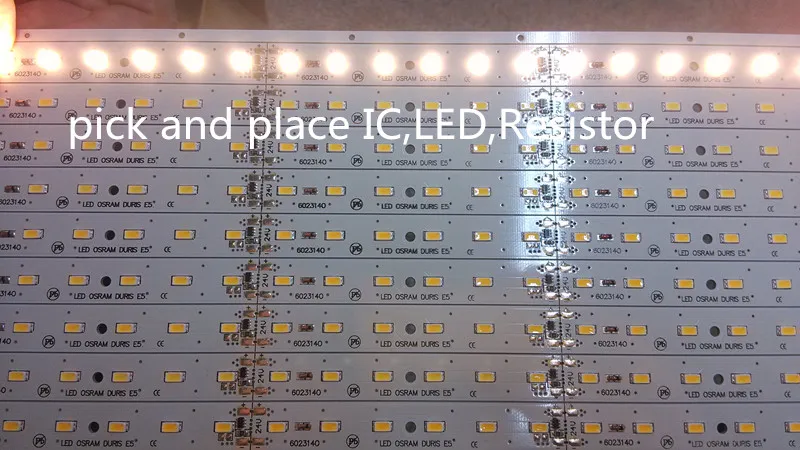

LED-2208P Leadsmt smd pick and place machine update in 2019 equipped with electric feeding system and Flying camera check system for higher precision solution for smd PCBA solutions for led lighting industries .It can work perfectly to place leds , ICS , Resistors and even smd capacitors correctly without missing or delay in speed ,That is a very good progress in Technology development from Shenzhen Leadsmt Technology Co.,Ltd .
Specifications For LED-2208P Smd placement Machine | ||||||
Machine Model | LED-2208P 8 Nozzle heads | Nozzle head structure | Excellent Spline structure with Crash Avoidance System | |||
Machine Net Weight | Approx 800kgs | Practical Speed | 40000-45000cph (tube pcb boards) | |||
Machine Diemension | L 200*W 105*H 150cm | Max Speed | 70000cph | |||
Placement speed | 0.01mm | Position Method | Sony 5 million Pixels Camera Position |
Rotation | 0-360 degree | Component Sizes | 0402-1210 All kinds of leds and IC ,Resistor and smd Capacitors |
Max PCB Board Sizes | 1220*400mm | Feeding system | Electric feeders ,8mm, 12mm, 16mm,24mm |
Max Component Height | 20mm | No.of Feeder Position | 16 PCS |

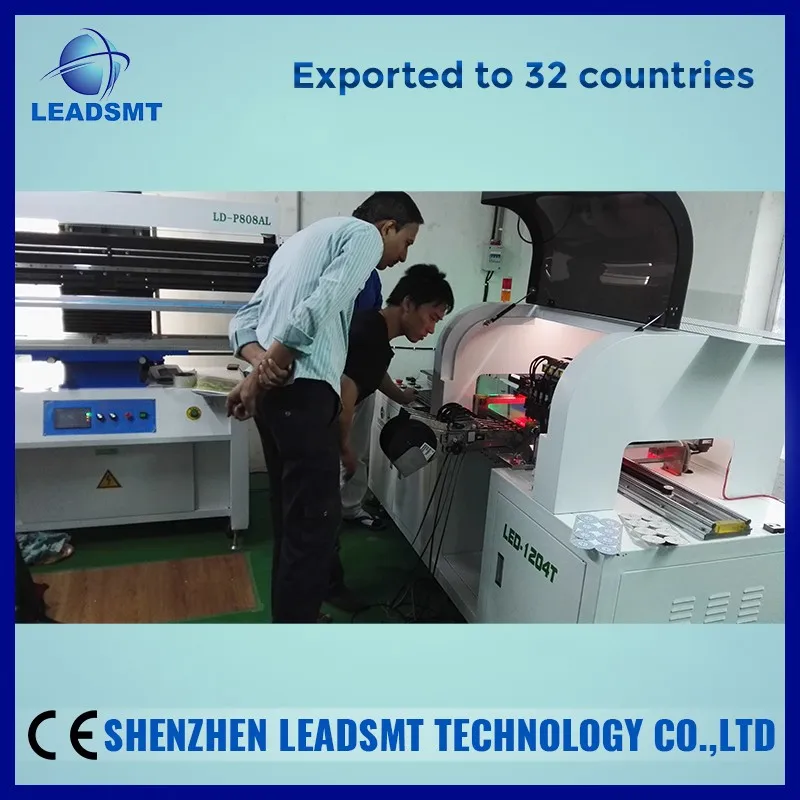

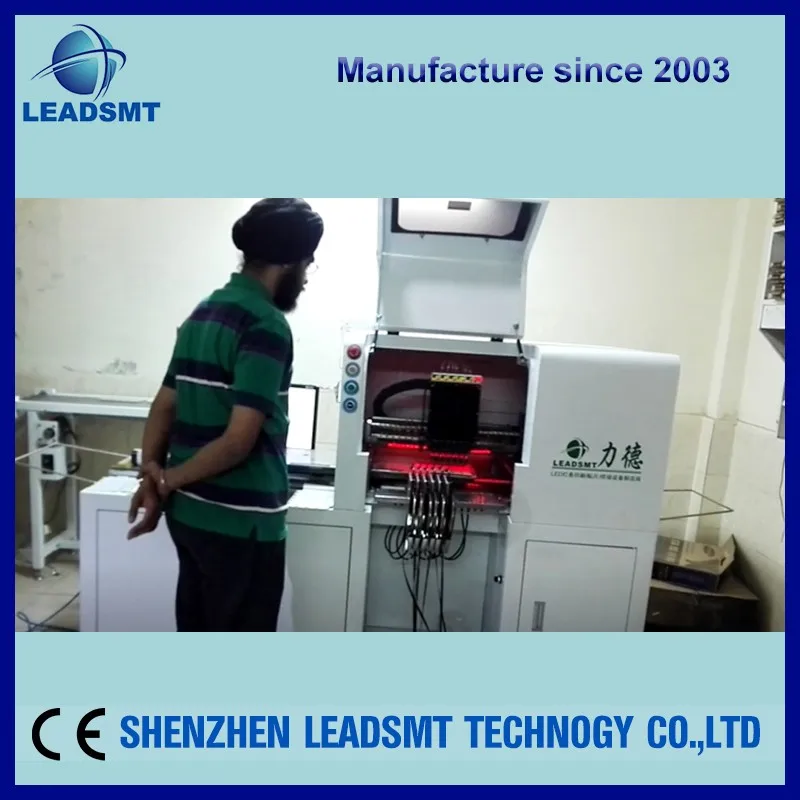

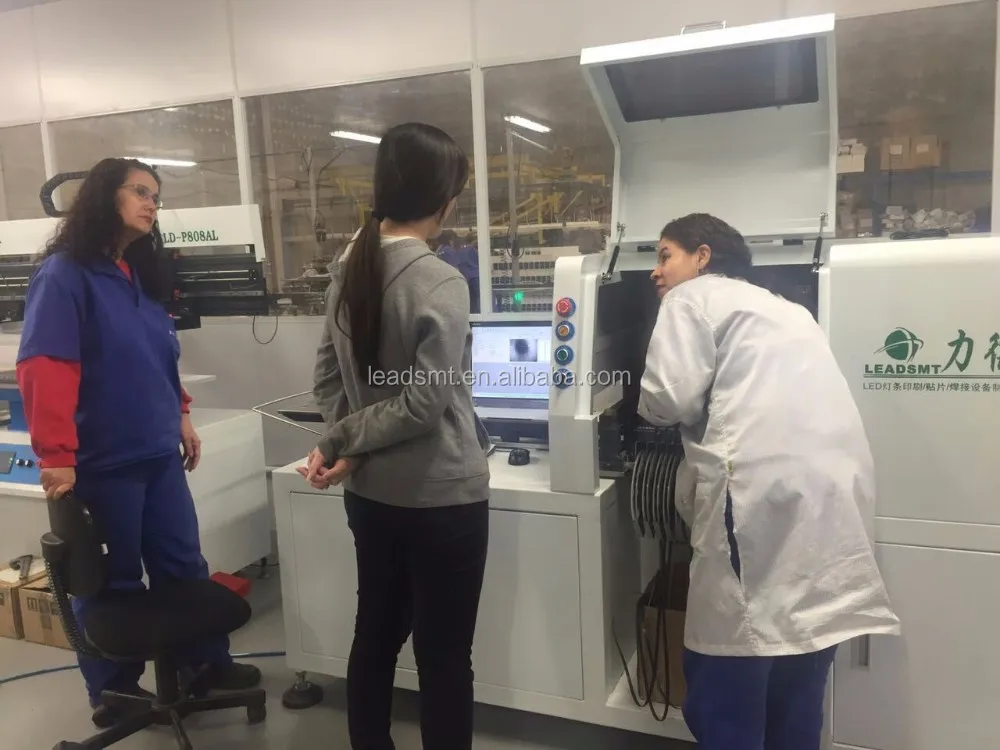

Our Users at present

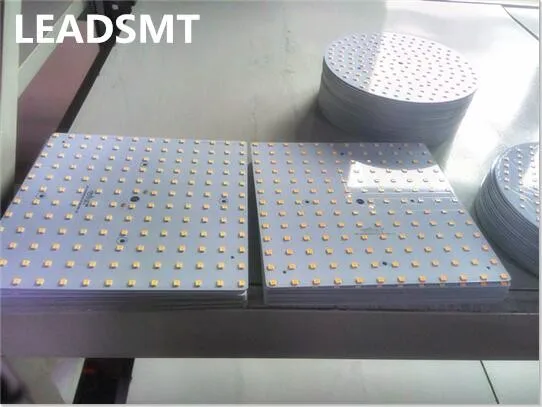

Leadsmt is a True smt machines manufacturer on Alibaba ,already worked with 32 countries established the Led Lights Factories to made Led products .We are still consistent on Led Lights production flied in the near future .
Shows in main led lighting fairs
We can find Leadsmt machines in Main shows among Led Lighting fairs in Guangzhou and Guzhen and sometimes in Greater Noida in India and Istanbul in Turkey .
Main Features
1) Long lifetime design , the machine is designed for at least 20 years for working ages .
2)Designed for high end and high precision led smd placement for led lighting Industries .
3) Experienced Manufacture since year of 2010, skillful and deeply understand the key to build the machine from R&D design to production parts to assembly into machines to testing before delivery ,to packing for export to delivery to train customer's expert to maintenance for after-sales . we just let you know we are professional on this job .
4) Strict control on quality , we have smd workshop running for the EMS PCBA services for the local led lighting companies , we have the falicities and raw materials to testing the machine for a week before packing ready for delivery

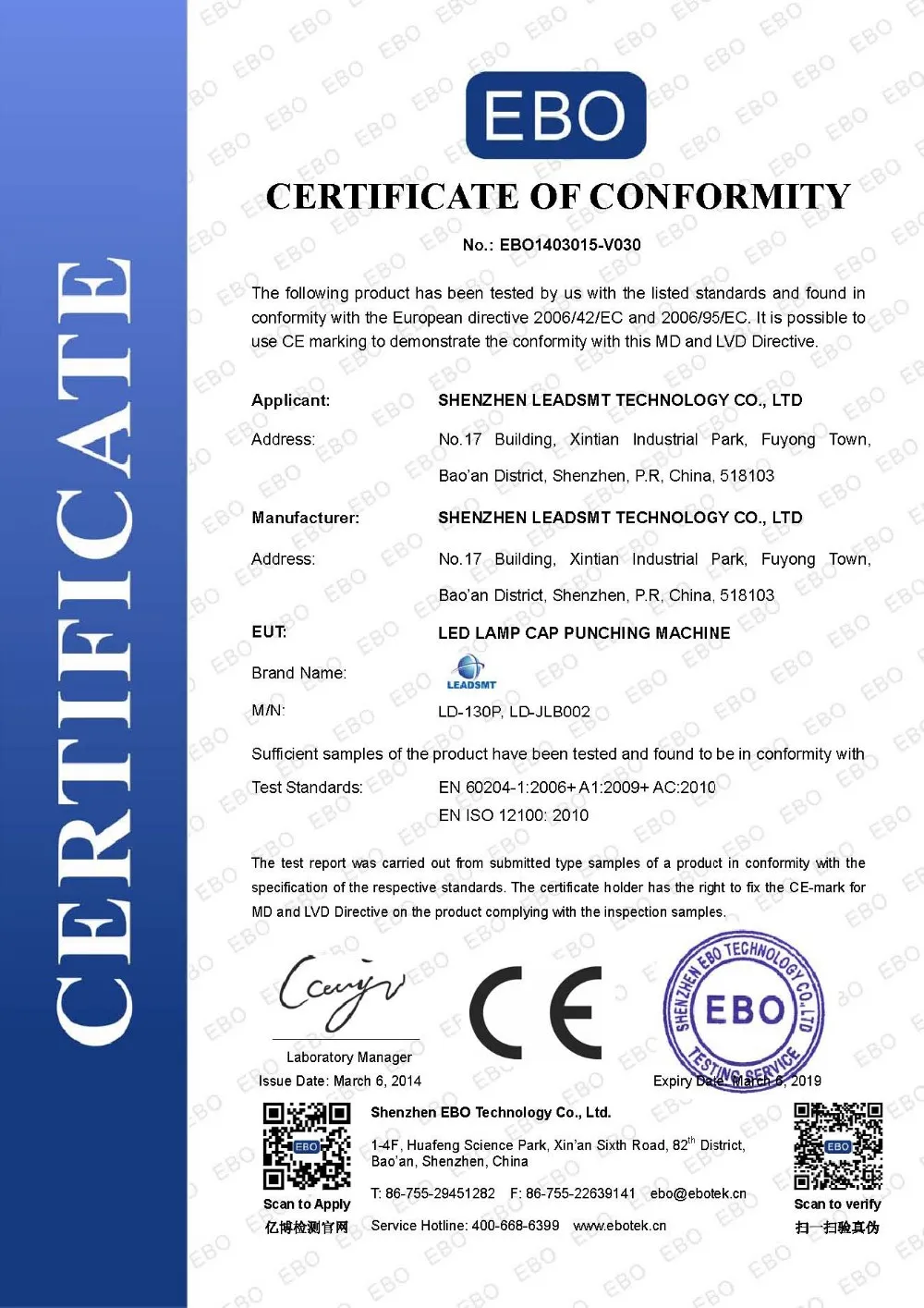

Certifications
Detailed Images
Machine Parts

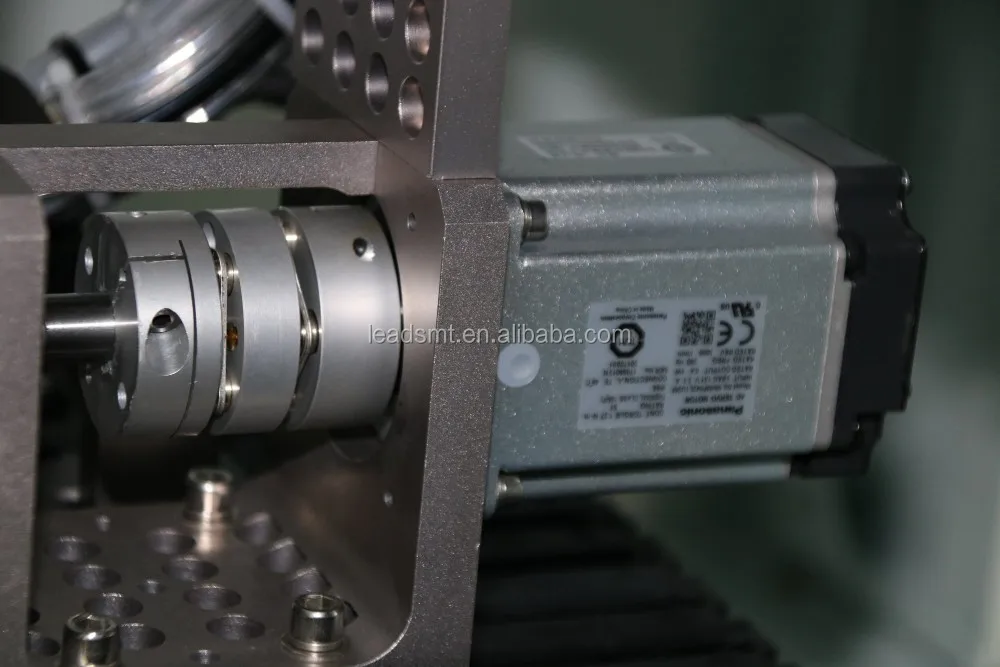

Name: Panasonic Servo motors
1.the carrying table of LED-2208P adopts Japanese Panasonic Servo motor ,and imported rail which ensures its movements with excellent stability and high precision
Main Features
Name: THK Grind treated screw rod & Linear rail
1.X,Y axis driven by panasonic servo motors too , with combination of linear rail from Taiwan ,make the components placement on boards with strong abilities: higher precision,faster speed ,more stable .
2.Meanwhile ,machine running with low noise with high presion speed,due to THK Grind treated screw rod equipped correctly on the head stucture .
Machine Parts

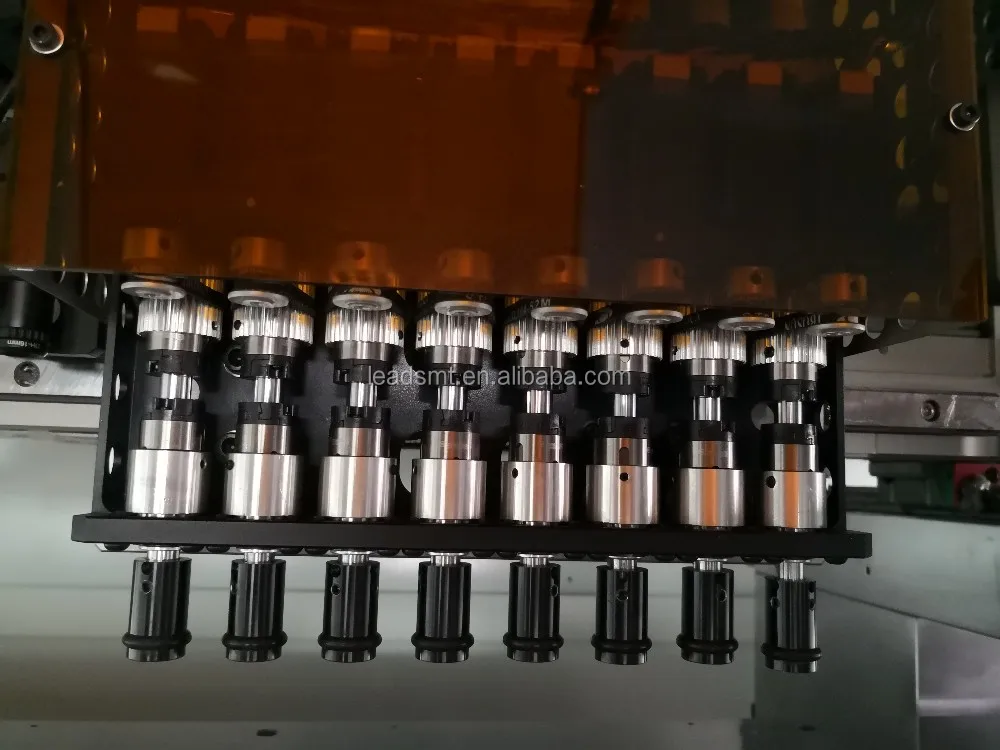

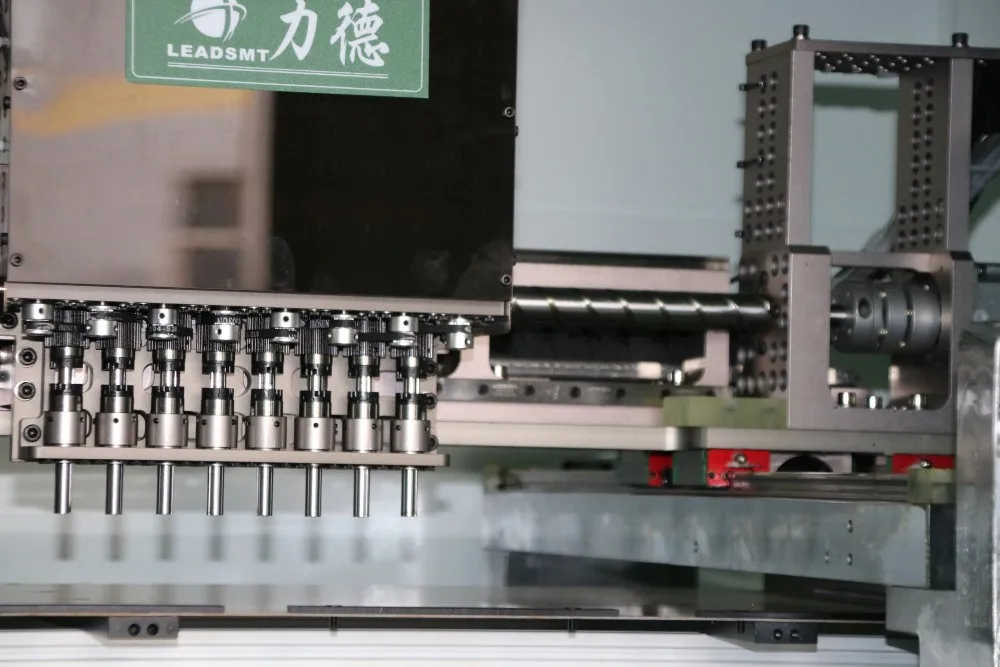

Name: Excellent Spline structure with Crash Avoidance
Brand: Leadsmt
Original: CHINA
1.Eight pieces of nozzles working together,greatly improve the productivity of the machine ,nozzle up and down move on imported ,precise and durable rail , Imported spline for nozzles rotation sure the high placement for round pcb boards.
2.Nozzlesstructures designed by Taiwan Engineer and made by leadsmt itself and use grind splines with crash avoidance system,all life of the machine no need to change nozzle rod even if it crash by mistakes .
Main Features

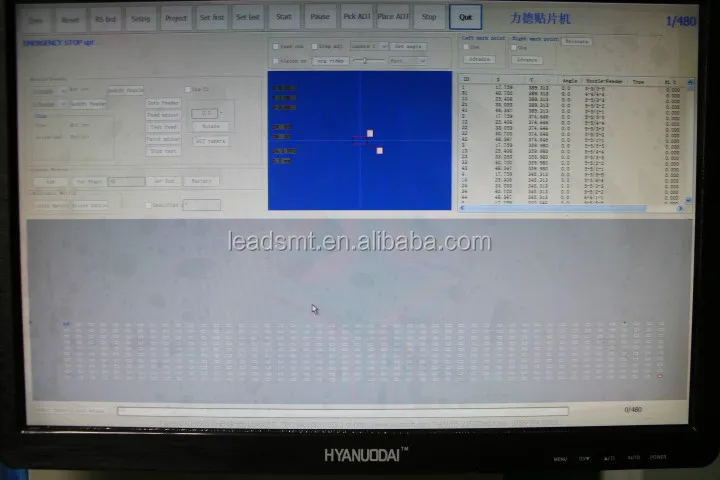

Name: Programming Interface
Brand: LEADSMT
Original: CHINA
1.Easy understand imaging type programming methodon the machine which make it more convenient for operators under the help of pcb pads position cameras .
2.DFI Industrial computer system and self design control software on the level of industrial stability and easy to learn .
Our Service
Pre-Sales Service
* Inquiry and consulting support.by face to face discuss or email contact or other communications .
* Sample testing support. Welcome to send your materials to our factory for a test for speed or for work process idea.
* View our Factory. welcome to visit our factory in Shenzhen,China
After-Sales Service
* Training how to instal the machine, training how to use the machine and how to daily or weekly or monthly or year maintenance of the machine .
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 215 (L) * 113(W) * 155 (H) CM | |
Weight | 820KGS | |
Packaging Details | The normal package is wooden (plywood) box(Size: L215*W113*H 155cm).other special packing will be according to customers special request. | |
