rotate column carton case bag palletizer machine
- Category: Packaging Line >>>
- Supplier: Suzhou Lianzhilong Industrial Automation Co. Ltd.
Share on (62122776276):
Product Overview
Description
Rotary palletizer, rotate column palletizer,
Full automatic rotate stand column hay bag pallet palletizer
(with clap boards and vacuum cups bag gripper)
product description:

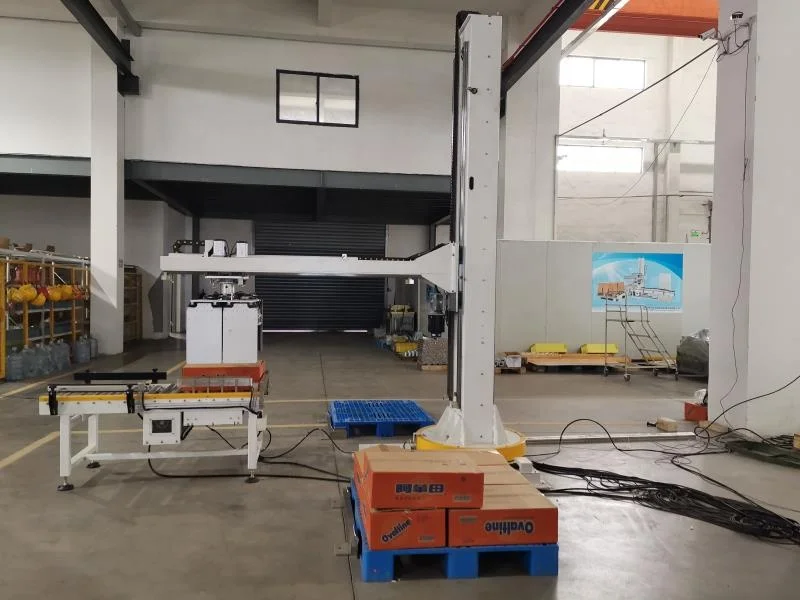

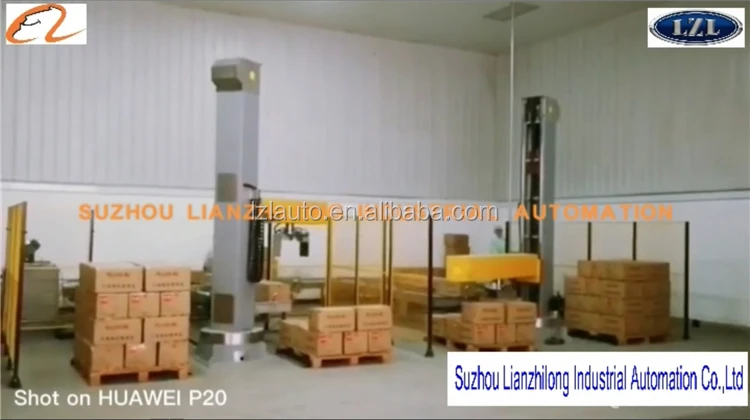

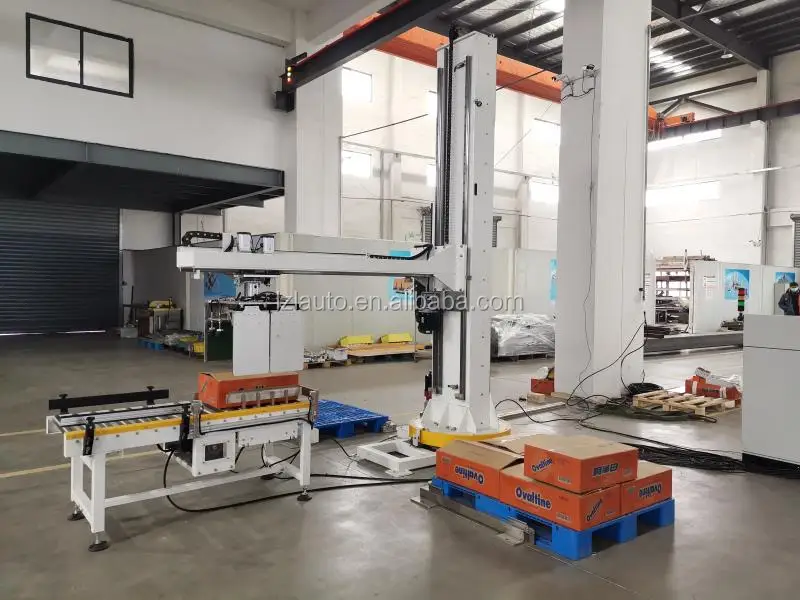

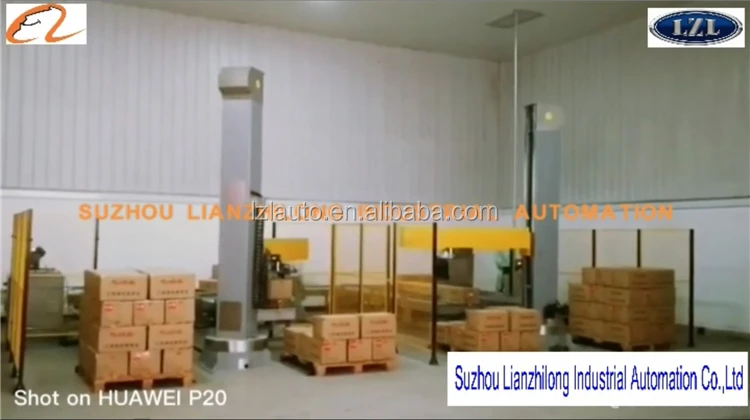

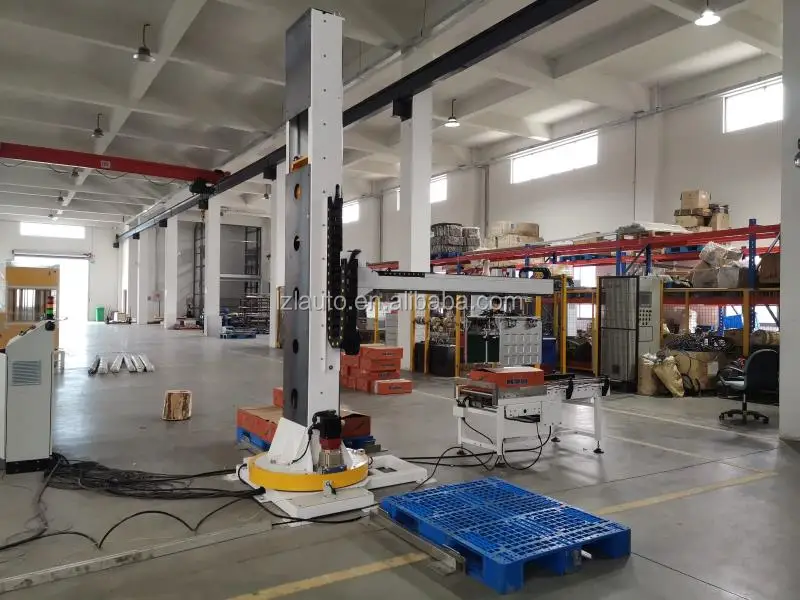

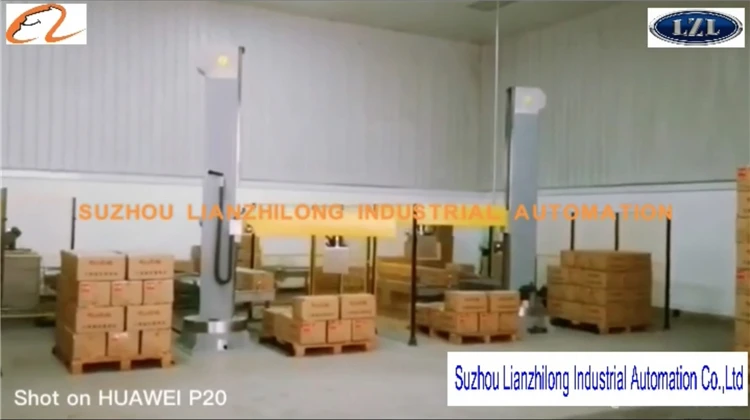

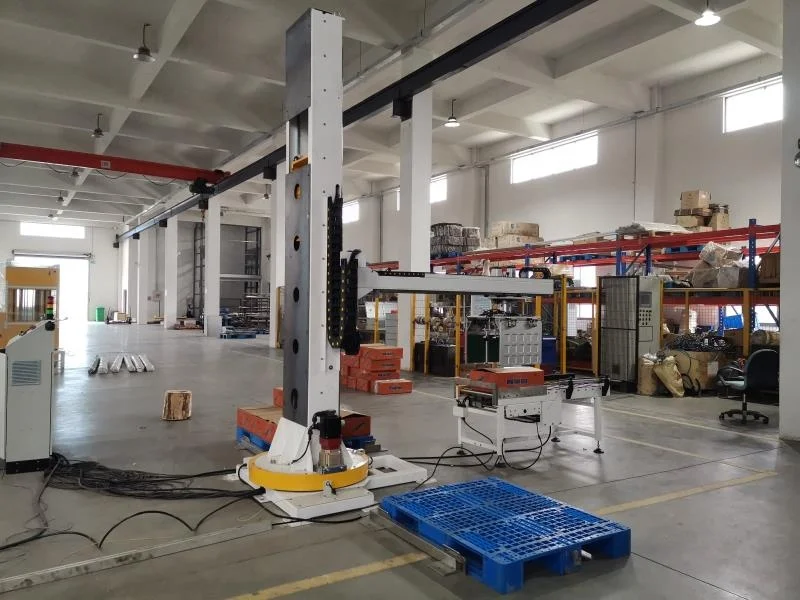

Rotary column palletizing machine is mainly used in the back-end palletizing of production lines in beer, beverage, pharmaceutical and other industries. It has a rotating function of more than 180 degrees. It can be applied to multiple pallets at the same time, with flexible rotation, small footprint and many Dimensions, performance comparable to robotic palletizing.
Features:
Use power and power: 400V/50Hz,5kw
Use air source: Air pressure 550NL/min
Mechanical size: R2000*H4000mm
Pallet size: ≤1200*1200mm
Arm load: ≤100kg
Action beat: 5-8S
Stacking height: ≤3000mm (customized)
Model: LZL-RP
Production capacity: 5-6 bags / minute
|
Name |
Specification |
|
Speed (boxes/min) |
5-6 bags / minute (customized) |
|
Air power |
0.6-0.8MPa |
|
Machine weight |
About 2000kg |
|
Power requirement |
(400V / 50HZ, 3 phase, 4 wires ), (customized) with earth wire, machine wire requirements: Brown: First phase, Orange: Second phase, Yellow: Third phase, Green: earth wire |
|
Machine Dimension |
About 1000×2000×4000mm ( by actual dimension) |
|
Power Consumption |
4-5KW |
|
Delta control system(PLC,servo controller,frequency changer invert, etc) |
|
|
Machine with pallet and bag absent automatic stop work and alarm alert function, |
|
|
PLC & Touch screen |
PLC: Delta |
|
Touch screen:Delta |
|
|
Motor |
Servo motor: Delta Servo controller: Delta |
|
Motor: JSCC, CPG |
|
|
Frequency changer invert:Delta |
|
|
Electrical element |
Chint, Schneider |
|
pneumatic component |
SMC, AIRTAC, |

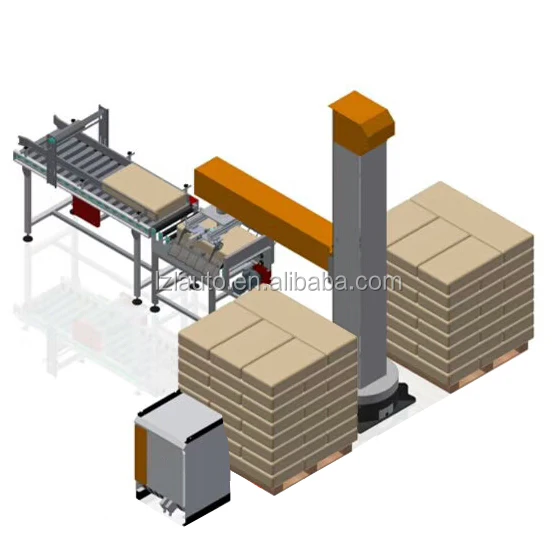

Equipment composition:

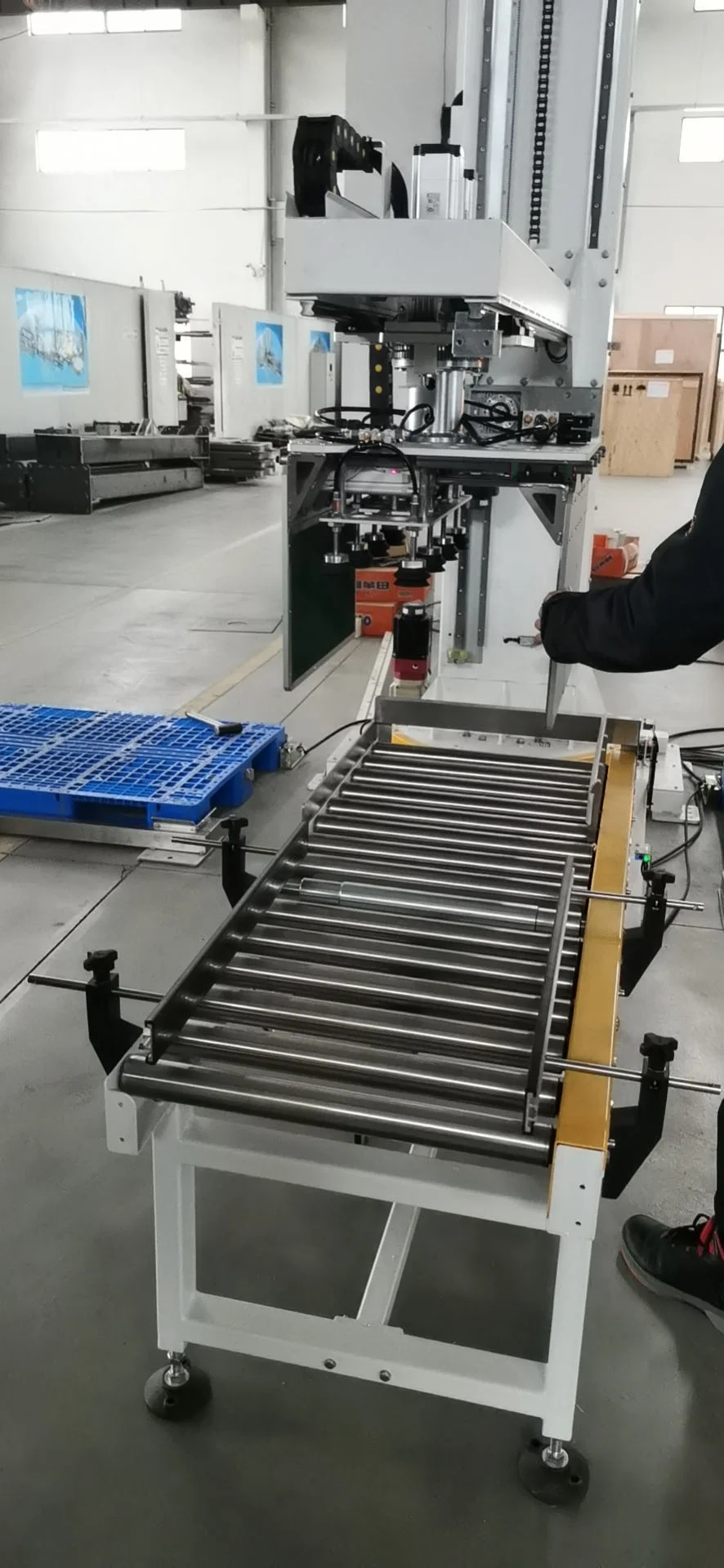

1.5 meter motor drive hay bag conveyor
Full automatic rotate stand column hay bag pallet palletizer
Two Pallet palletize positions
Touch screen control panel
Alarm lights
palletizing process:
hay bags are transported by the bag conveyor to the palletizer
the palletizer will grasp the hay bag with clap boards and vacuum cups gripper.
The gripper put the hay bag on the right pallet or left pallet follow the PLC program.
Machine Material:
Columns: stainless steel or SS41 (A3 steel powder paint)
Shaft: stainless steel or S45C bearing steel
Roller: double-ended bearing roller (stainless steel or steel galvanized)
conveyor: stainless steel or SS41 (A3 steel powder paint)
Guide plate: stainless steel or SS41 (A3 steel powder paint)
Features:
The use of touch screen operation to achieve man-machine dialogue, can display the production speed, the cause and location of the problem, a high degree of automation. The order of stacking of pallet or drums using PLC can be programmed, Using Delta PLC and Delta brand touch screen (6 inches) or other imported brands, electrical components in line with international standards, reliable performance, interchangeability, durability and strong. Using Airtac or Japan SMC and Taiwan's pneumatic production of pneumatic components and cylinders, quality, reliable performance.
with stop work switch, cover with electrical induction device, when the door is open, the machine stops working, can be staff protection. The stacking method is easy to adjust, simple, can be carried out on the touch screen. Stacking stability, high efficiency, can greatly save manpower.
Servo motor using Panasonic brand, gear motor using Taiwan Sheng State Electric and Italy SITI brand.
Common consumption:
Air consumption: 500NL / MIN (air usage: 5-6kg / cm2)
