Product Overview
Description
Iot Hot Sale High-Quality 433mhz 1w Relay 1km Range Wireless Module Lora Sx1278
Products Description

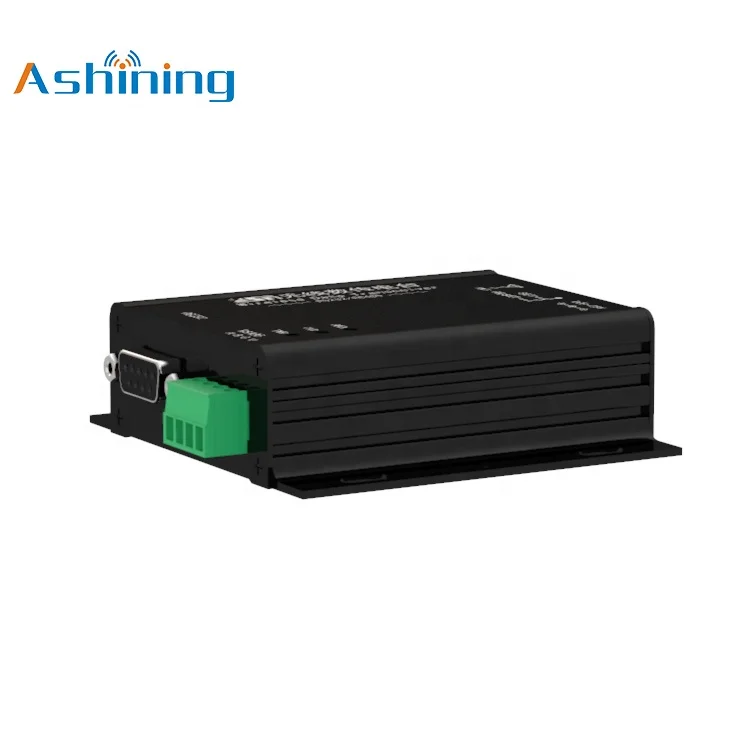

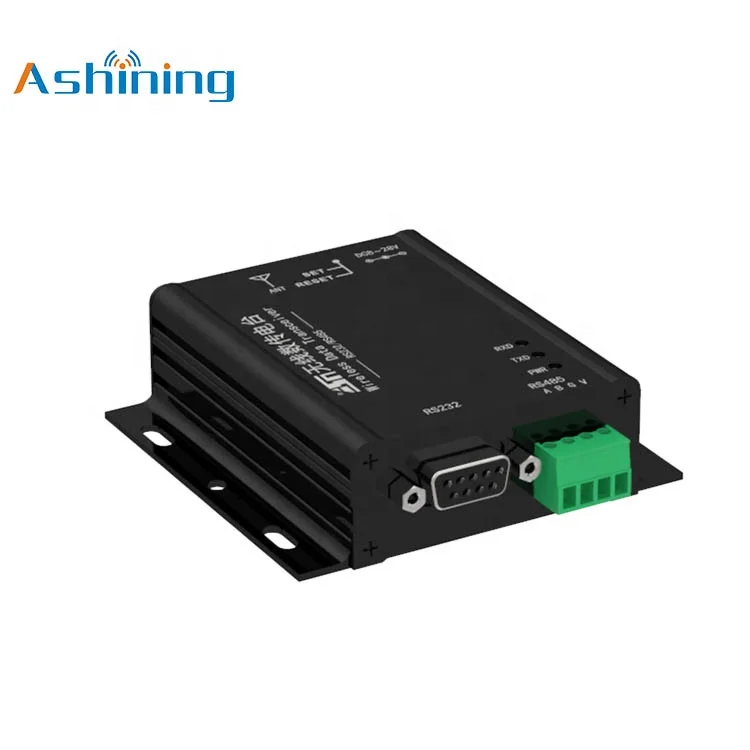

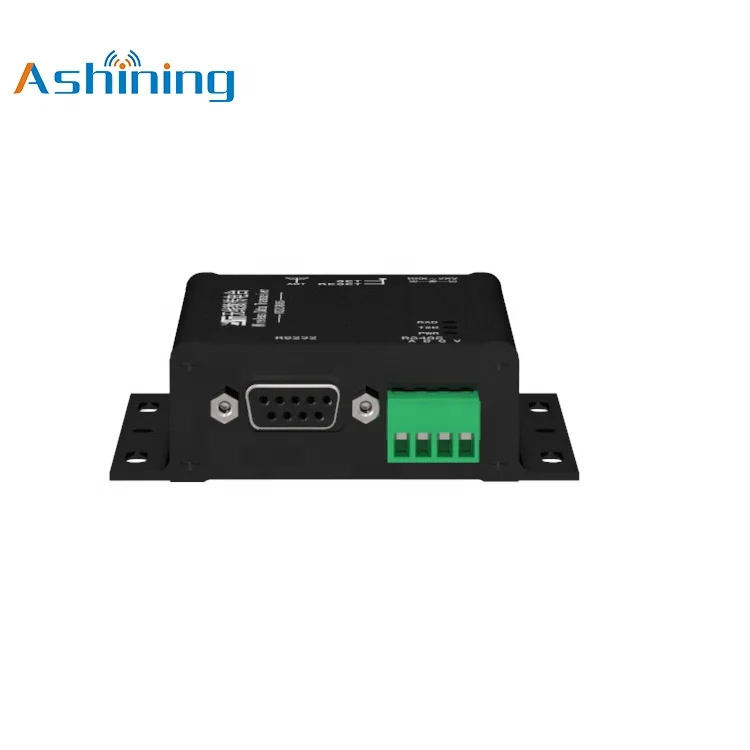

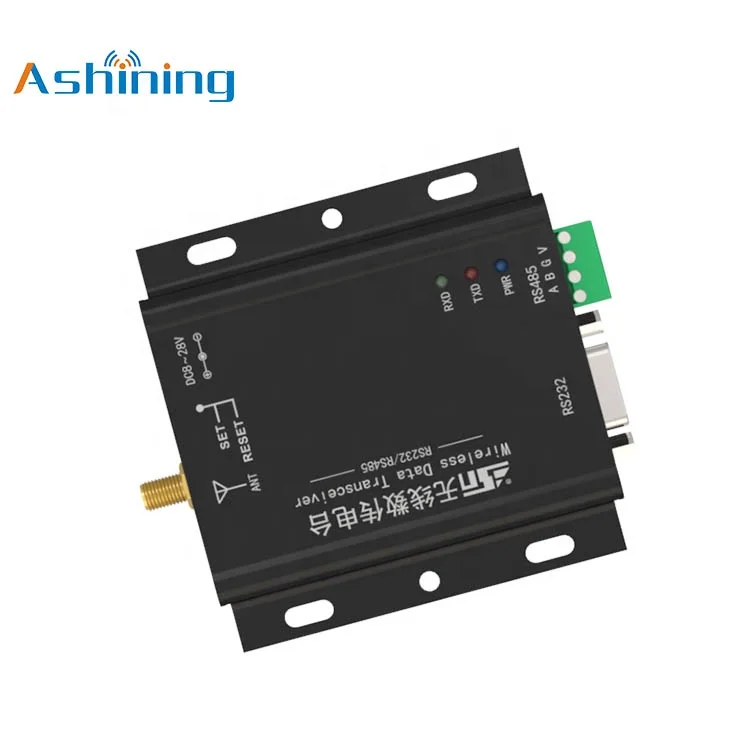

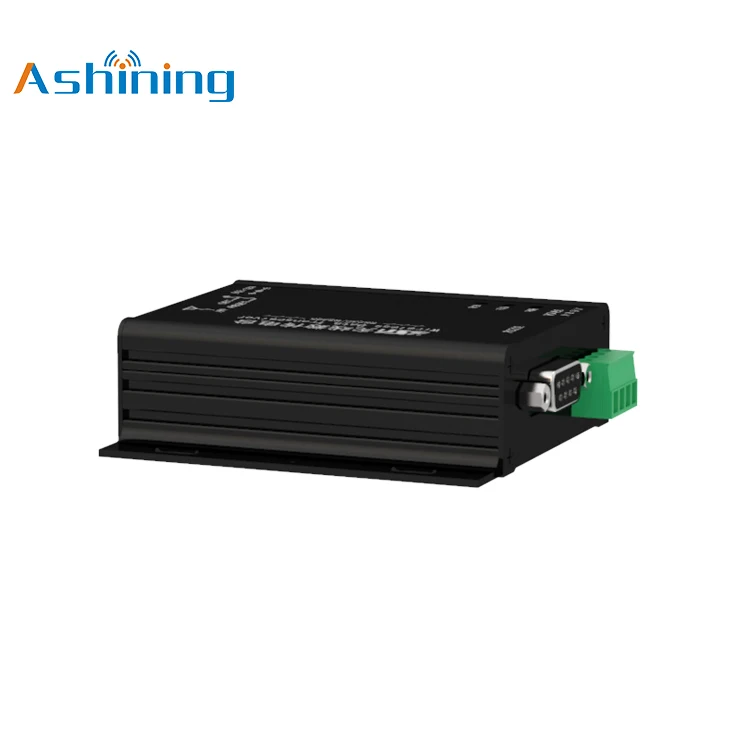

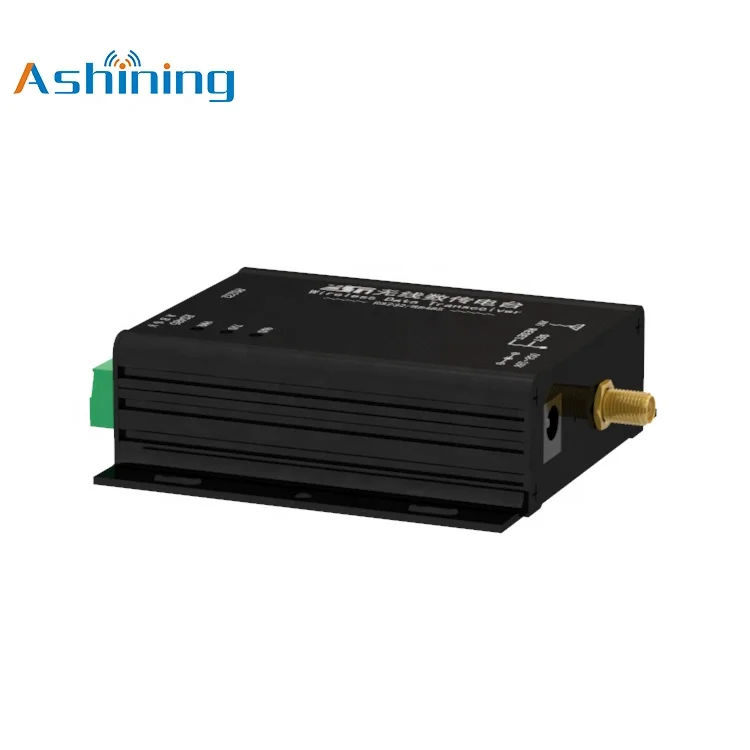

AS62-DTU30 is a 433MHz,1W industrial-grade wireless data transmission unit with high stability. The DTU uses SX1278 main chip, LORA spread spectrum transmission, RS232/485 level output. The DTU adopts the efficient cyclic interleaving error correction coding algorithm, which has high coding efficiency and good error correction ability. In the case of sudden interference, the DTU can correct the interrupted data packets, and the maximum continuous error correction is 64bit, which greatly improves the DTU’s Anti-jamming ability and transmission distance, and in the absence of error correction algorithm, this error packet can only be discarded. Using LORA spread spectrum technology makes the module have a longer communication distance.
KEY FEATURE
Specifications
| No. | Parameter Name | Parameter values detail |
|---|---|---|
| 1 | Module Size | 23 * 43mm (Excluding antenna or SMA junction) |
| 2 | Origin of Components | All components are imported from Japan, USA and Germany |
| 3 | Production Craft | Lead-free, electrostatic bag packaging |
| 4 | Interface Mode | 1 * 7 * 2.54mm, plug in packaging, you can use the universal board and DuPont line |
| 5 | Operating Frequency | 410 - 441MHz, 1MHz step by step, factory default 433.0MHz |
| 6 | Supply Voltage | 2.5V - 5.5VDC, meet a variety of system requirements (If the voltage is smaller than 4.5V, the output power will decline, but it has little impact on the receiving performance) |
| 7 | Communication Level | Maximum 5.2V, The difference between the recommended and supply voltage is less than 0.3V to reduce power consumption |
| 8 | Measured Distance (3.0VDC) | About 8,000m. Test conditions: sunny, open, the maximum power, Antenna gains 5dBi, Higher than 2 meters, 2.4K air rate |
| 9 | Transmission Power | Maximum 30dBm, about 1W, 4 levels adjustable (0-3), increase or deduct about 3dBm each level. |
| 10 | Air Rate | 6 levels adjustable (0.3, 1.2, 2.4, 4.8, 9.6, 19.2Kbps) |
| 11 | Sleep Current | 1.5uA (MD1 =1, MD0 = 1) |
| 12 | Transmitting Current | 520mA@1W, (Voltage 5V) |
| 13 | Receiving Current | 18mA (Mode 0, mode 1) |
| 14 | Communication Interface | UART serial port, 8N1, 8E1, 8O1, from 1200 to 115200 a total of 8 baud rates |
| 15 | Driving Means | UART serial port can be set to push-pull / pull-up, open-drain |
| 16 | Transmitting Length | Internal ring fifo cache 256 bytes, the internal automatic subcontract sending. Some airspeed and baud rate combinations can send infinite length packets. |
| 17 | Receiving Length | Internal ring fifo cache 256 bytes, the internal automatic subcontract sending. Some airspeed and baud rate combinations can send infinite length packets. |
| 18 | Module Address | 65536 configurable addresses (Easy to network, support for broadcast and fixed transmission) |
| 19 | RSSI Support | Built-in intelligent processing |
| 20 | Receiving Sensitivity | -130dbm at 2.4Kbps (Receiving sensitivity has nothing to do with serial port baud rate or delay time) |
| 21 | Antenna Type | SMA antenna/spring loaded antenna |
| 22 | Operation Temperature | -40 ~ +85℃ |
| 23 | Operation Humidity | 10% - 90% relative humidity, no condensation |
| 24 | Storage Temperature | -40 ~ +125℃ |
