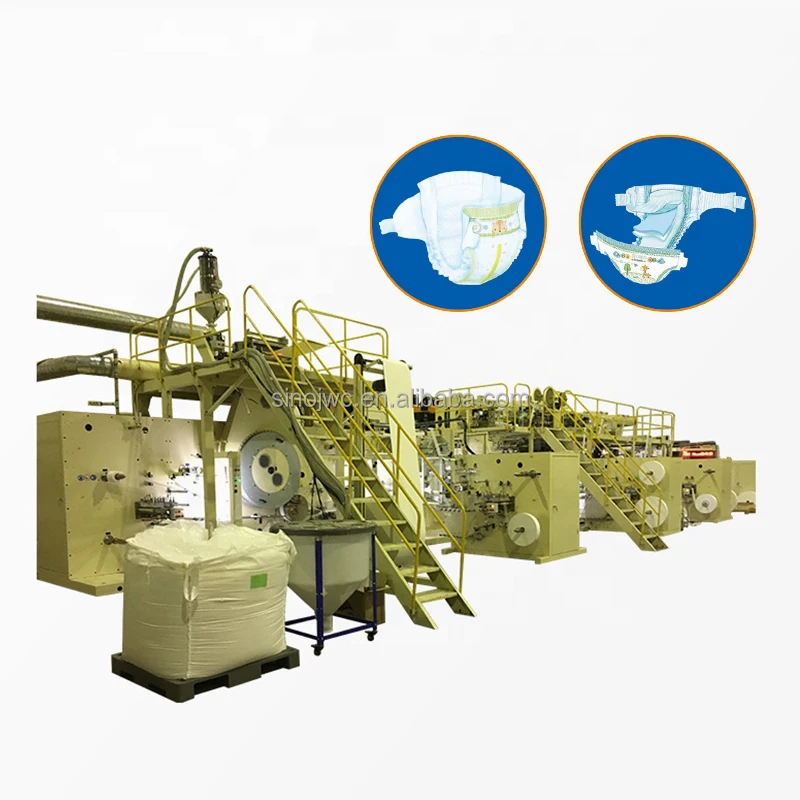

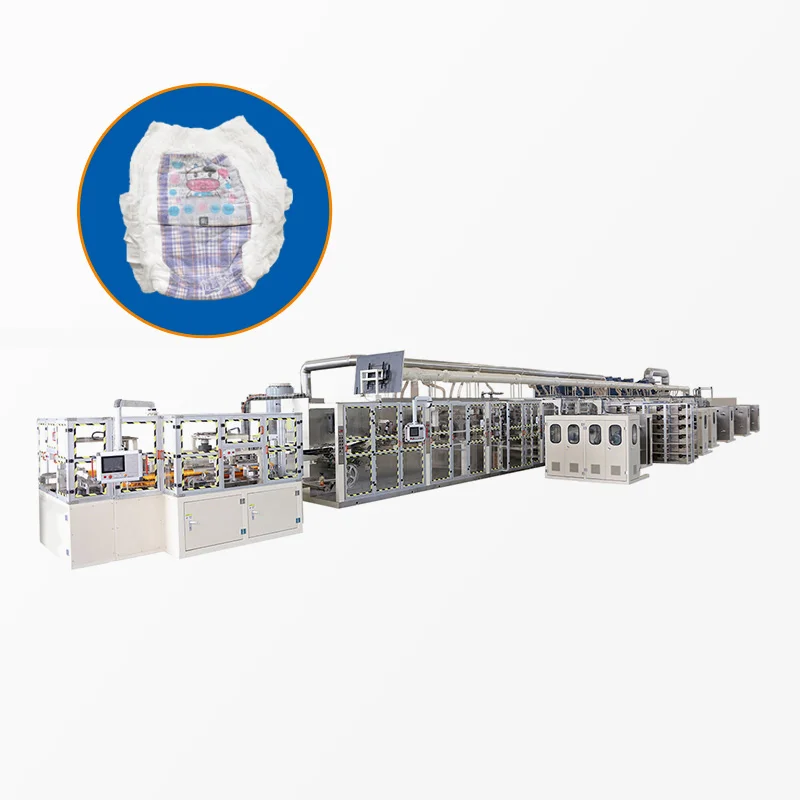

Factory price baby pull diaper production line economic sanitary napkin pads making machine
- Category: Paper Product Making Machinery >>>
- Supplier: Jiangsu JWC Machinery Co. Ltd.
Share on (62137927267):
Product Overview
Description

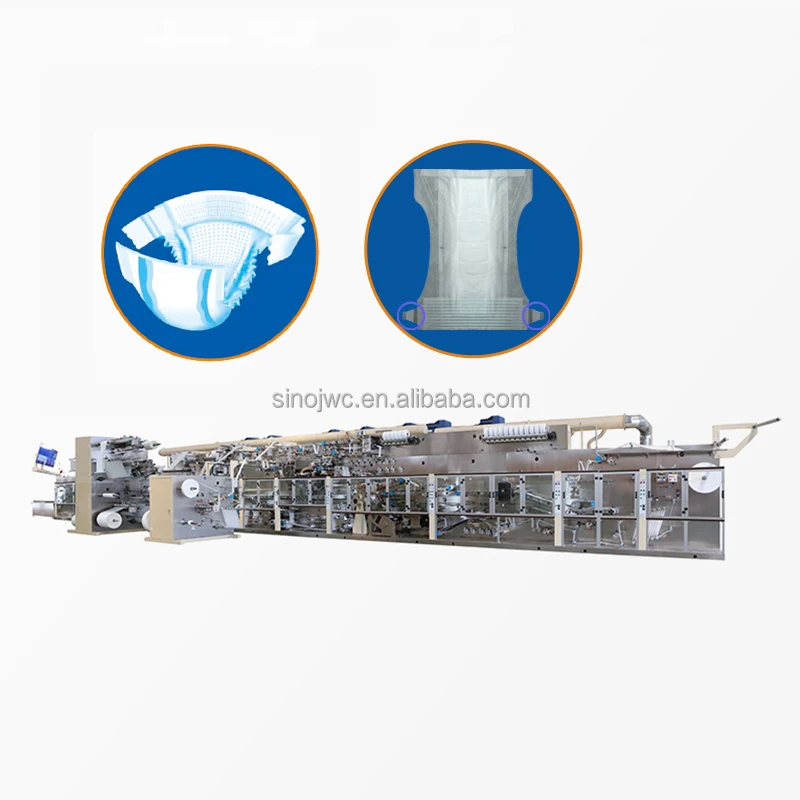

Factory price baby pull diaper production line economic sanitary napkin pads making machine
Product Paramenters
Product Paramenters
1. Baby diapers machines making disposable diaper machine baby has reasonably solid square steel frame
2. Crusher system
3. Fluff forming system
4. SAP feeding system
5. Bottom tissue feeding, roll diameter φ800mm
6. Upper tissue, roll diameter φ800mm
7. Fluff core wrapped by upper and bottom tissue, also can be wrapped by one whole piece tissue
8. ADL feeding, roll diameter φ800mm
9. Fluff core inner cut device 1 set,adopt frame type structure, increase the cutter life
10. Leak cuff unit
11. Hydrophilic nonwoven supply, roll diameterφ800mm
12. Three pieces complex, two sides fixing unit, adhesion pressing
13. Bottom film supply
14. Surface layer, absorption core, bottom film pressing
15. One set products cutting unit
16. Inner waist nonwoven supply
17. outer waist nonwoven unwinding, roll dia 800mm
18. waist fluff part lycra cut unit, in case this part gets wrinkled.
19. waist middle slitting, web guide after slitting
20. core turns into horizontal direction
21. core combines with waist material
22. waist nonwoven side folding
23. product vertical folding, pressing and transmission ,web guide before circular welding
24. Z tape: passive unwinding, pulling, absorption transmission, short cut, combine.
25. device on circular welding two sides(heated). This device is controlled by servo motor. It works by heat pressing based on material features. It adopts the most advanced circular welding device to ensure the production high speed running. This part material needs to be confirmed.
26. final cut unit
27. products turn into 90 degree horizontal direction
28. Duel auto rejection exits,one for wastage ,one for 2nd class products, adopt high speed solenoid. Its controlled by
pneumatic and PLC.
2. Crusher system
3. Fluff forming system
4. SAP feeding system
5. Bottom tissue feeding, roll diameter φ800mm
6. Upper tissue, roll diameter φ800mm
7. Fluff core wrapped by upper and bottom tissue, also can be wrapped by one whole piece tissue
8. ADL feeding, roll diameter φ800mm
9. Fluff core inner cut device 1 set,adopt frame type structure, increase the cutter life
10. Leak cuff unit
11. Hydrophilic nonwoven supply, roll diameterφ800mm
12. Three pieces complex, two sides fixing unit, adhesion pressing
13. Bottom film supply
14. Surface layer, absorption core, bottom film pressing
15. One set products cutting unit
16. Inner waist nonwoven supply
17. outer waist nonwoven unwinding, roll dia 800mm
18. waist fluff part lycra cut unit, in case this part gets wrinkled.
19. waist middle slitting, web guide after slitting
20. core turns into horizontal direction
21. core combines with waist material
22. waist nonwoven side folding
23. product vertical folding, pressing and transmission ,web guide before circular welding
24. Z tape: passive unwinding, pulling, absorption transmission, short cut, combine.
25. device on circular welding two sides(heated). This device is controlled by servo motor. It works by heat pressing based on material features. It adopts the most advanced circular welding device to ensure the production high speed running. This part material needs to be confirmed.
26. final cut unit
27. products turn into 90 degree horizontal direction
28. Duel auto rejection exits,one for wastage ,one for 2nd class products, adopt high speed solenoid. Its controlled by
pneumatic and PLC.
* Splicing connection joint products
* Any other unqualified products
29. Horizontal stacker transmission
* Any other unqualified products
29. Horizontal stacker transmission
Product Information
Packaging & Shipping
Packing details:Machine will be divided into smaller parts, wrapped by PE Film and fixed in the container by iron wire (Wooden case is optional)
Company Information
About JWC
♦Since 1996
♦Specialize in researching &developing hygiene products manufacturing, raw materials importing and exporting, hygienic products manufacturing and real estate development
♦Pass ISO9001 and CE and wins more than 100 national patents as "China Famous Brand"
♦Provide OEM service and different grades of raw materials to overseas customers
♦Export to more than 94 countries in Europe, southeast Asia, south America, Africa and middle east countries.
♦Machine is designed according to customer requirements
Our Services
We can provide full aspects after-sales service :
• You can send technician to our factory to learn to operate the machine before 1 month from the machine delivery. We can offer food and accommodation.
• When machine arrives in your factory, we will send technician to your factory to install, test the machine and train your workers.
• If you need one Chinese technician work long time for you, we can help you for that since we have long term cooperation with them.
• Life-long after sales service for our machines.
• Our warranty extends to 18 months
FAQ
Q1:When can I get the price?
A1:We usually quote within 24 hours after we get your inquiry. If you are in urgent to get the price, please call us by 8613655237667 or tell us by Email so that we will take your inquiry as the first priority.
Q2:How can I get a sample to check your quality?
A2:After price confirmation, we sincerely invite you to our factory to check our operation and production.
Q3:Can you do the machines' appearance design for us?
A3:Yes. We have a professional team with rich experience in machine's appearance design and manufacturing. Machine structure design is according to the products that you want to produce.
Q4:What's your after sales service?
A4:When machine is delivered from our factory, we’ll apply the visa for our engineers to your country. As soon as the machine arrives in your factory, we’ll assign them to go immediately. You can also assign your staff to our factory to learn.
Q5:Could you also supply raw materials?
A5:Yes, surely we can. We have long term cooperation with many raw materials suppliers. They can provide us good quality and good price. This is in our service chain.
Q6: If I need to change certain spare parts, how can I confirm the item No. with you?
A6: Each spare part on our machine has unique code No. We have the spare parts codes regulation system. We only need you to tell us the laser code No. on the spare part. Then we can confirm with you the drawing at the soonest time and supply you the spare part accordingly.
