Qixiang 24ft PMSM Gearless Motor HVLS Ceiling Fan
US $1800-$2380
Промышленный вентилятор 7,3 м, большой двигатель PMSM, потолочные вентиляторы HVLS
- Category: Other Ventilation Fans >>>
- Supplier: Kale Environmental Technology (Shanghai) Corporation.
Share on (62140174057):
Product Overview
Description
Product Description
Kale EURUS III series HVLS Industrial & Commercial Ceiling Fan
The EURUS III series is a new type of fan based on PMSM (permament magnet synchronous motor). Its max. diameter up to 7.3m. The products combine a series of top technology of disciplines, such as, aerodynamics, transmission dynamics, Mechanical mechanics, simulation technology and industrial design. Made from foreign precision machining machine. Circulating a cool breeze high efficiency and creating a healther and comfortable environment to you!
SPECIFICATIONS | ||||||||
Fan size | 16ft (4.9M) | 18ft (5.5M) | 20ft (6.1M) | 24ft (7.3M) | ||||
Model | HVLS-D6AAA49 | HVLS-D6AAA55 | HVLS-D6AAA61 | HVLS-D6AAA73 | ||||
Air volume | 12650 m3/min | 13350 m3/min | 13750 m3/min | 14800 m3/min | ||||
Speed range | 5-75 RPM | 5-70 RPM | 5-62 RPM | 5-57 RPM | ||||
Fan body weight | 106 Kg | 114 Kg | 120 Kg | 135 Kg | ||||
Rated Power | 1.8 KW | 1.8 KW | 1.8 KW | 1.8 KW | ||||
Current | 8A /220V | 8A /220V | 8A /220V | 8A /220V | ||||
Noise | 38 dB | 38 dB | 38 dB | 38 dB | ||||
Main Features
1. Amazing! Max. 260 N.m torque, Air volume improved 30%.
2. Super quiet. The noise level tested to be 38.7 dBA.
3. Primary energy efficiency. Strickly follow the standard of GB.10253 in China.
Certifications
Detailed Images
Latest Motor System---PMSM
1. High speed and torque ratio.
2. Dynamic performance, high efficiency. More than 15% energy saving.
3. Long service time, lower noise and wide speed range.
4. CCC, CE, UL certificates
Control box
1. Schneider electrical sets, with safety protection module inside which will interrupt the output automatically in case of some accidents.
2. Germany Rittal control cabinet, passed EMC by SGS and CCC certificates, meanwhile, passed anti-creeping tests which shields electromagnetic interference effectively.
Protection level is IP55, passing UL, EMC, LVD, ROHS certificates.
3. Japanese Yaskawa VFD.
Driving Hub
Imported aluminum material and formed through 1500T hot forging+CNC lathe processing+CNC precious machincing technology. Processed by CNC, the precision error of chassis is within 100μm, making sure the precise dynamic balance.
Jacketed Connector
Grade 7050 hard aluminum material which is handled with heat to guarantee strength and toughness.It stood millions fatigue tests to avoid the problems of fan blade dropping due to long-time running.
Patented Kale Airfoil Blades™ Fan Blade
High strength aircraft grade magnalium, fluorocarbon paiting on surface, aerodynamic fan blade design. Patented Fan blade design: 3 sets reinforcing rib supports system inside, enhance the strength of fan blades and avoid sagging of fan tail and fatigue loss of connecting components.
Our Service
Install Team
Preinstallation investigation.
More than 200 installation team members.
More than 10 fork lifts.
Packing & Delivery
Packaging | ||
Size | 365x42x40 cm | |
Weight | 300 Kg | |
Packaging Details | The fans and motors are packed sperated. | |
About our factory
FAQ
Q: Are you manufature or trading company?
A: We are a factory in Shanghai, China. Focusing on large ceiling fans.
Q Where does your fan use in?

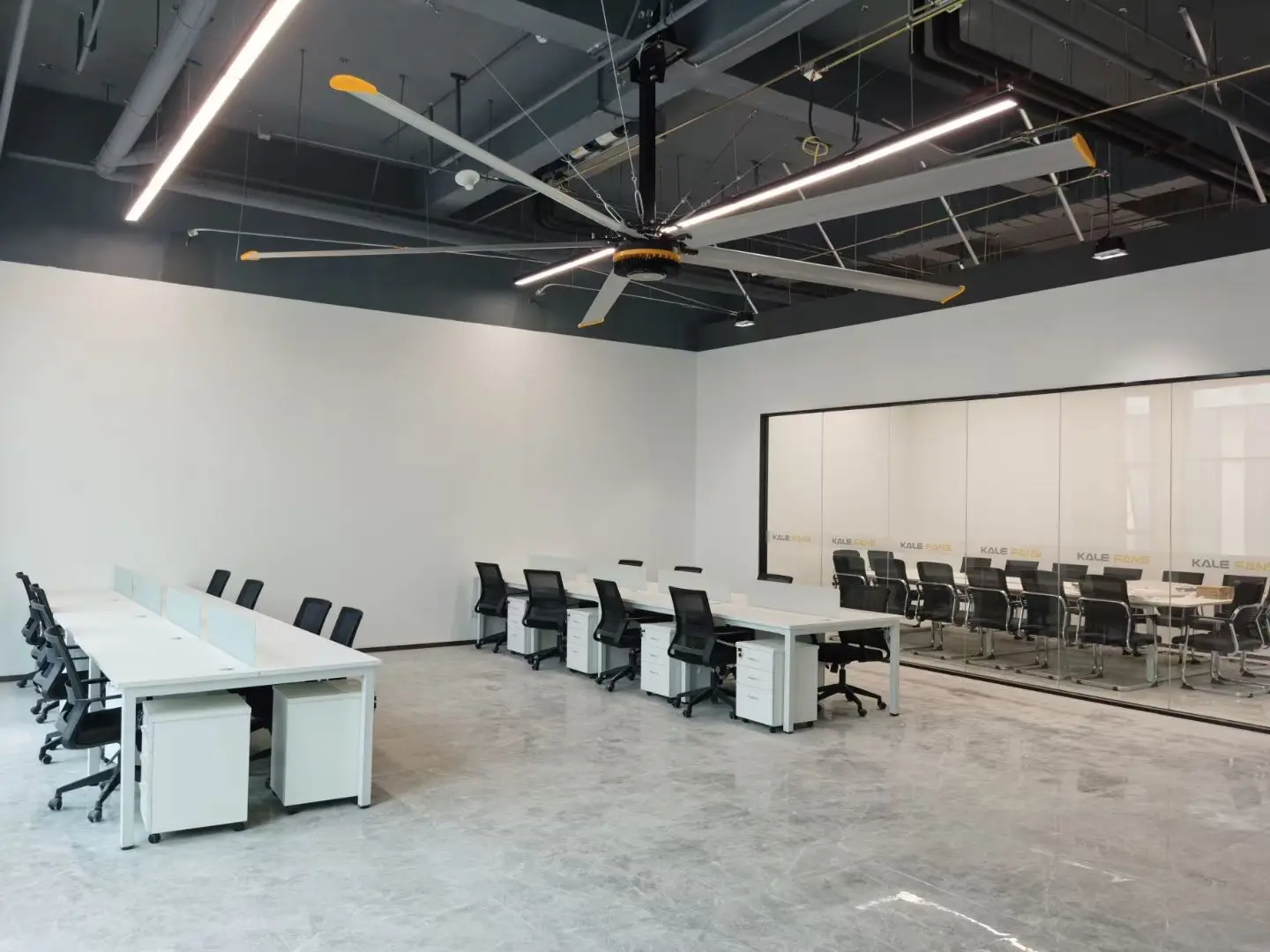

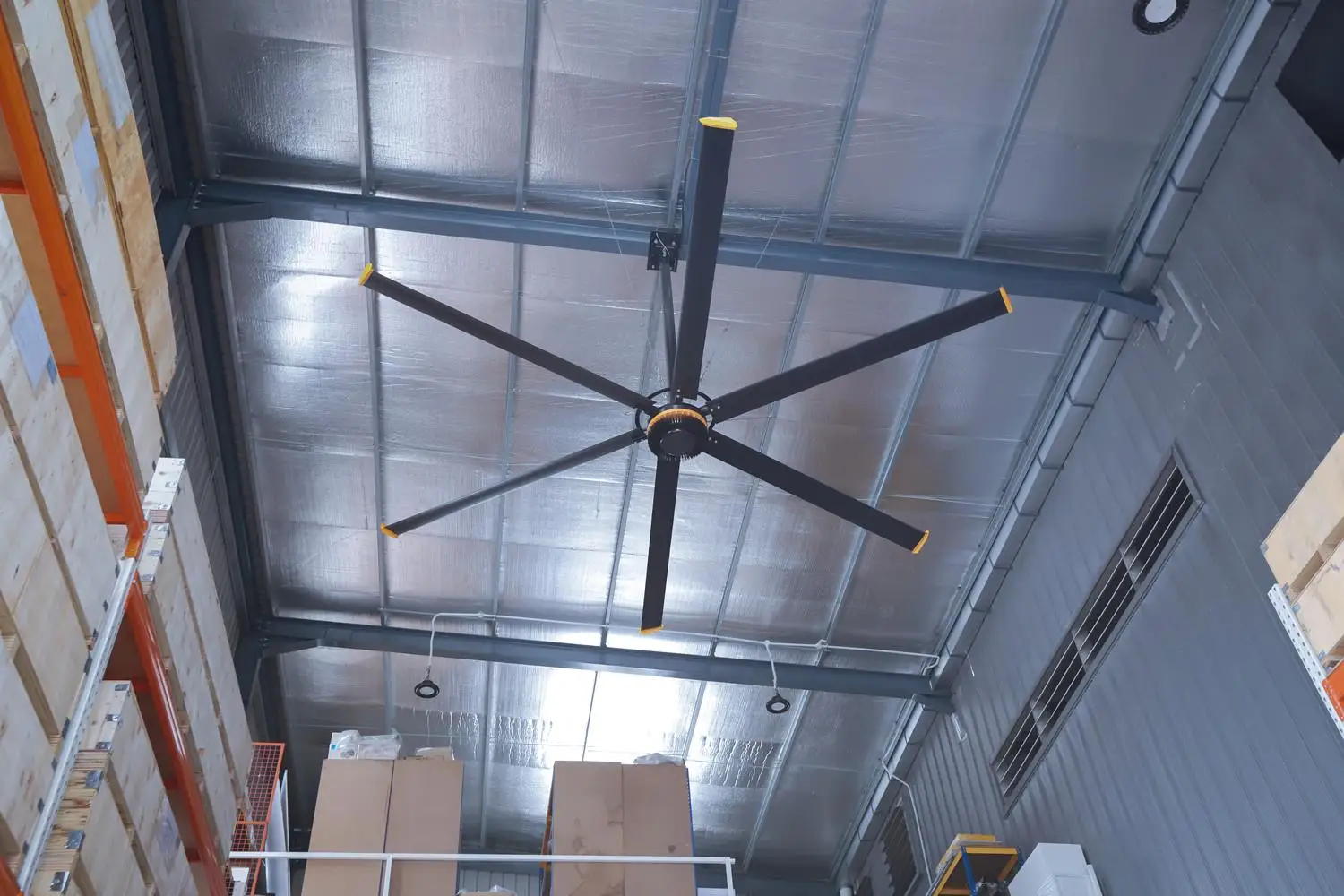

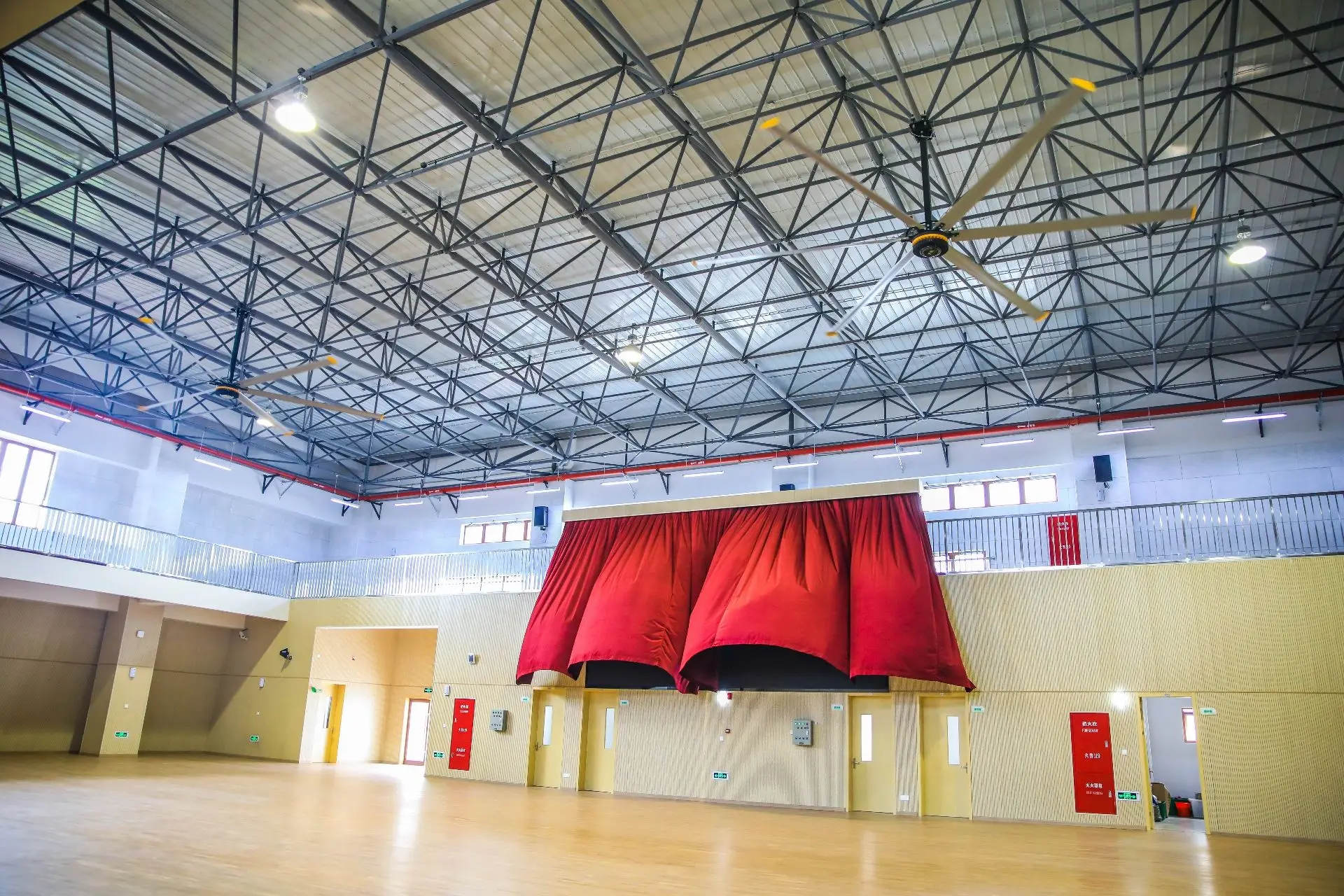

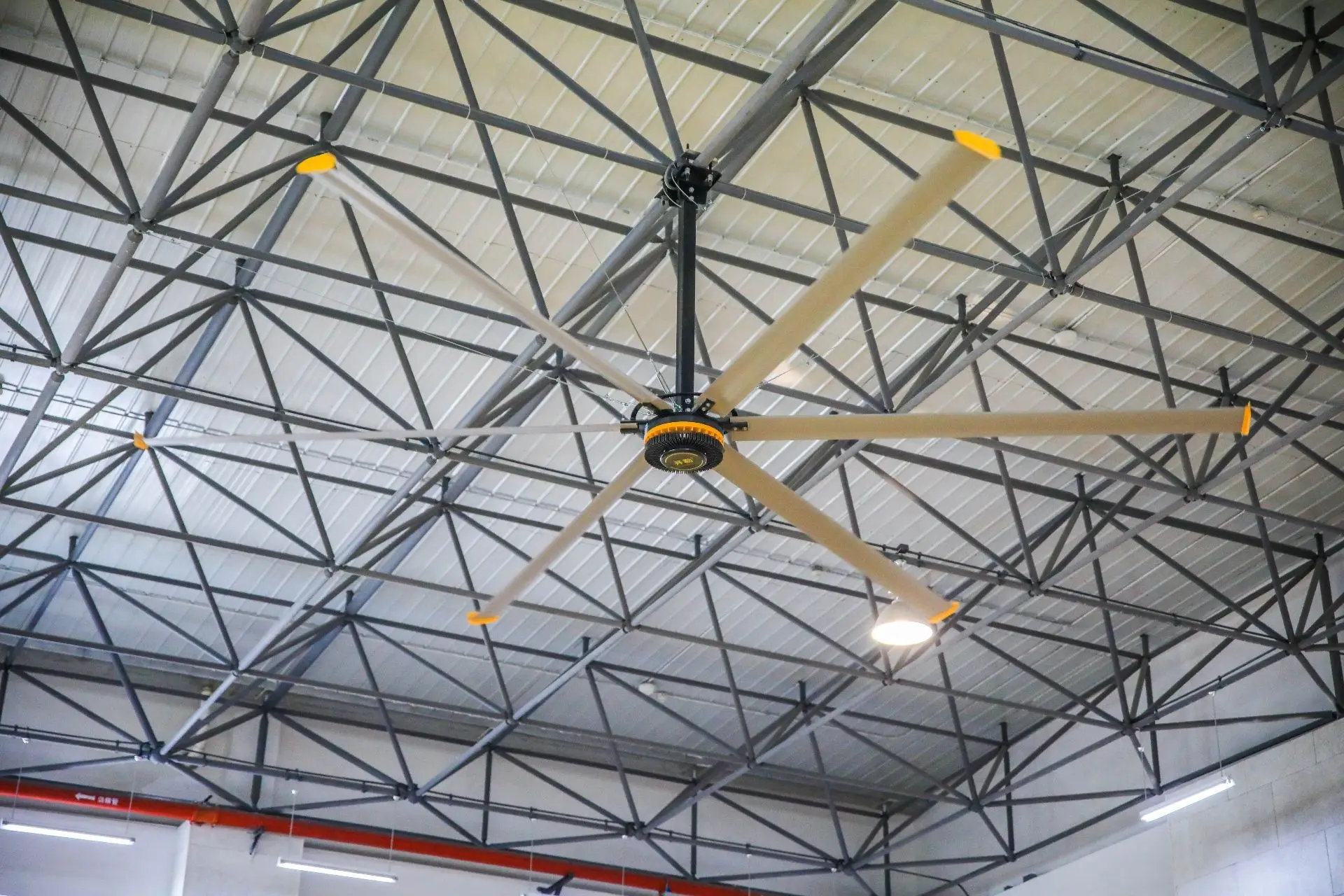

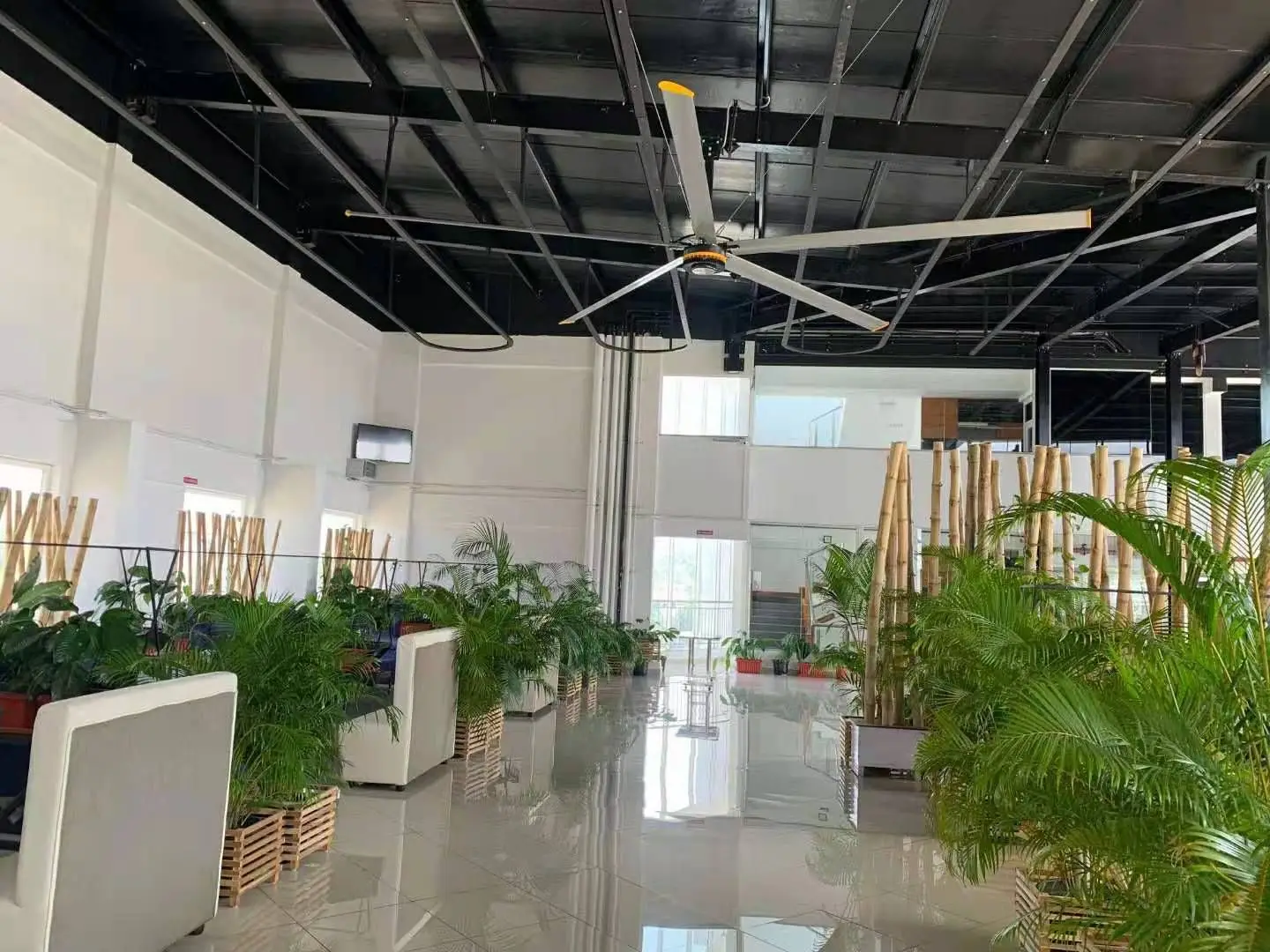

A: Ths fan is widely used in factory, logistics & warehouse, supermarket, halls etc.
Q: Is it powered electrcity?
A: Yes, it's power supply is electricity, but only 1.5KW or less, very energy-saving.
Q: What is the price?
A: That depends. We will offer you the best price according to the qty and the model.
Q: How long is the delivery time?
A: Normally 3-5 working days.
Q: How long is the warranty?
A: We offer 3-year warranty to guarantee the quality. Most importantly, its service life is 12-15 years.
