WEIHUA CRANE MGH Model Double Girder Truss Type Construction Gantry Crane 90 tons Span 18m Lifting Height 15m
- Category: Cranes >>>
- Supplier: Henan Weihua Heavy Machinery Co. Ltd.
Share on (62146507308):
Product Overview
Description

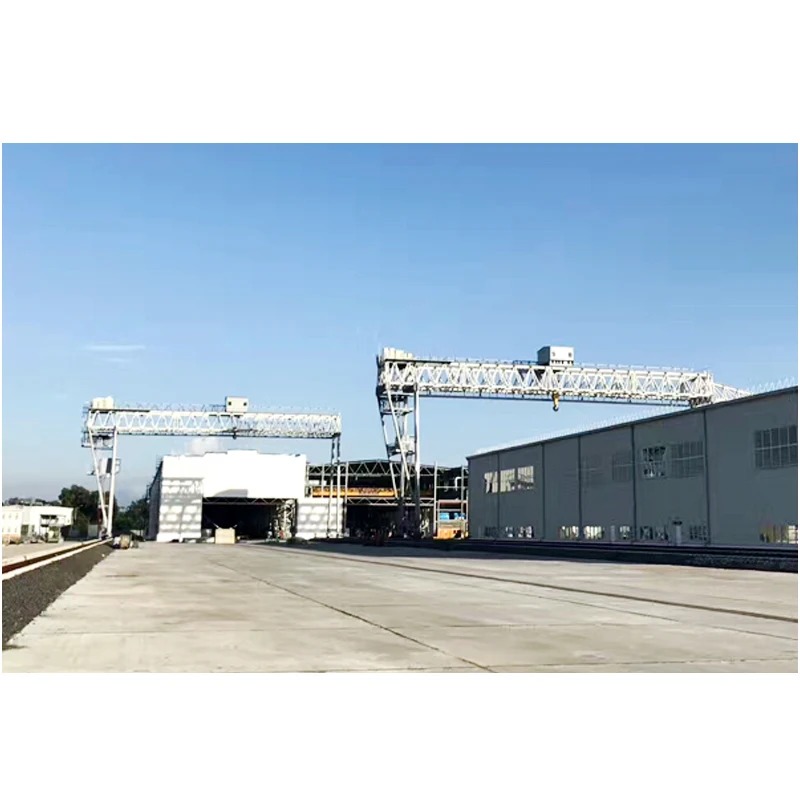

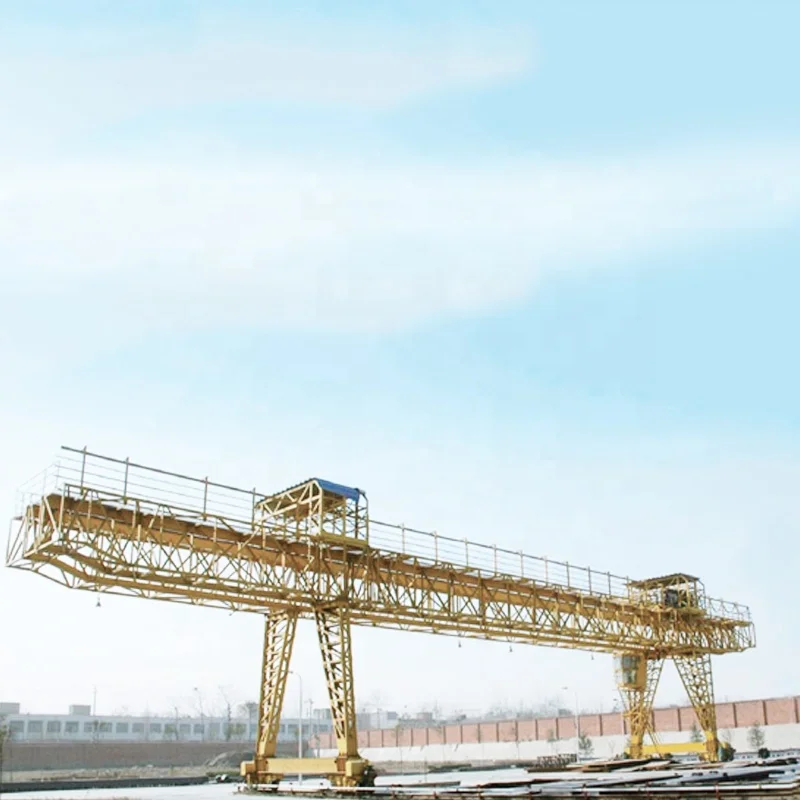

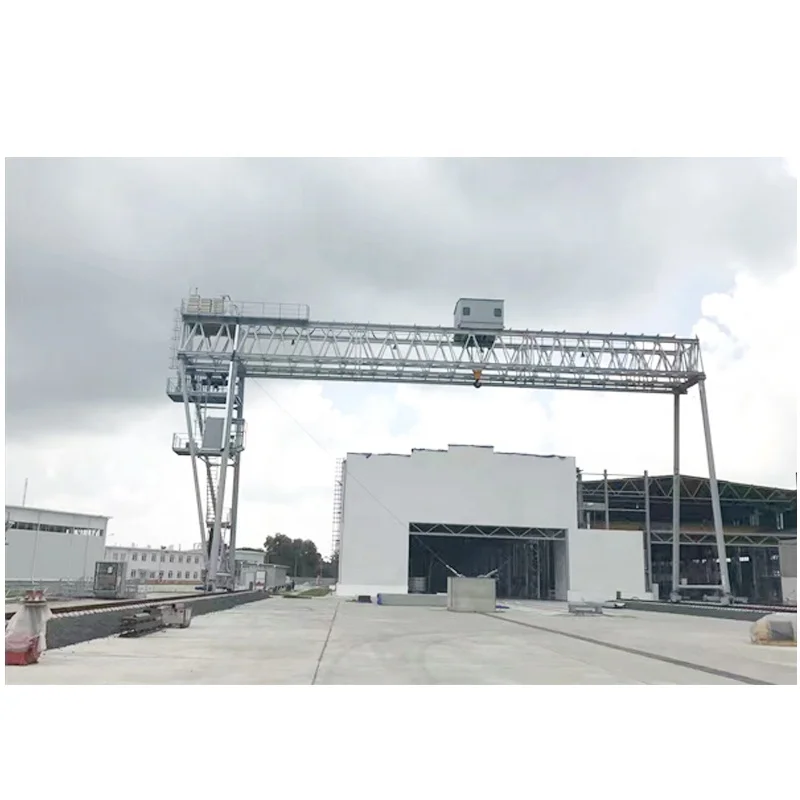

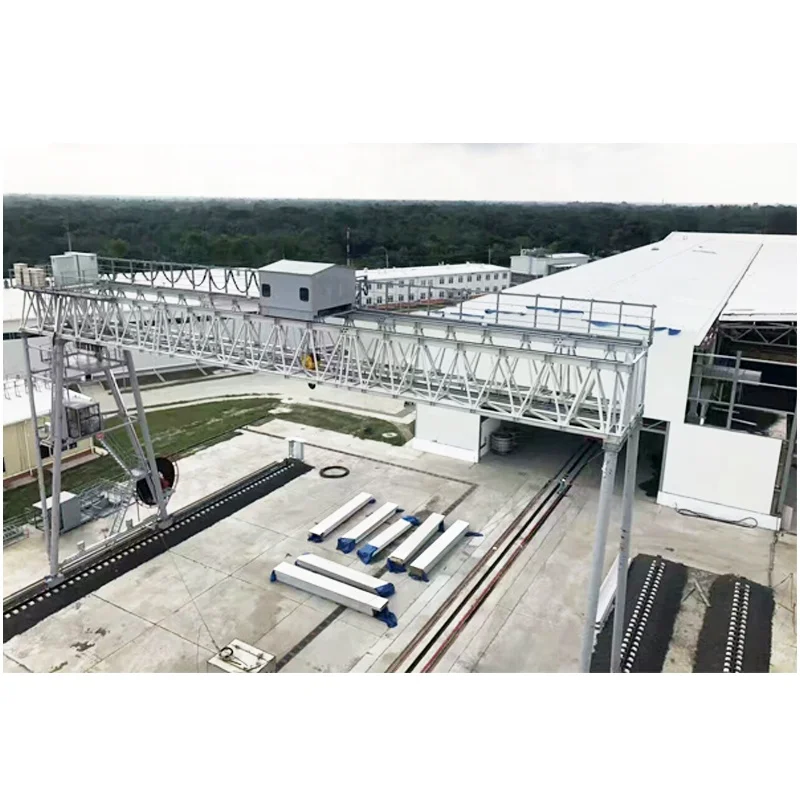

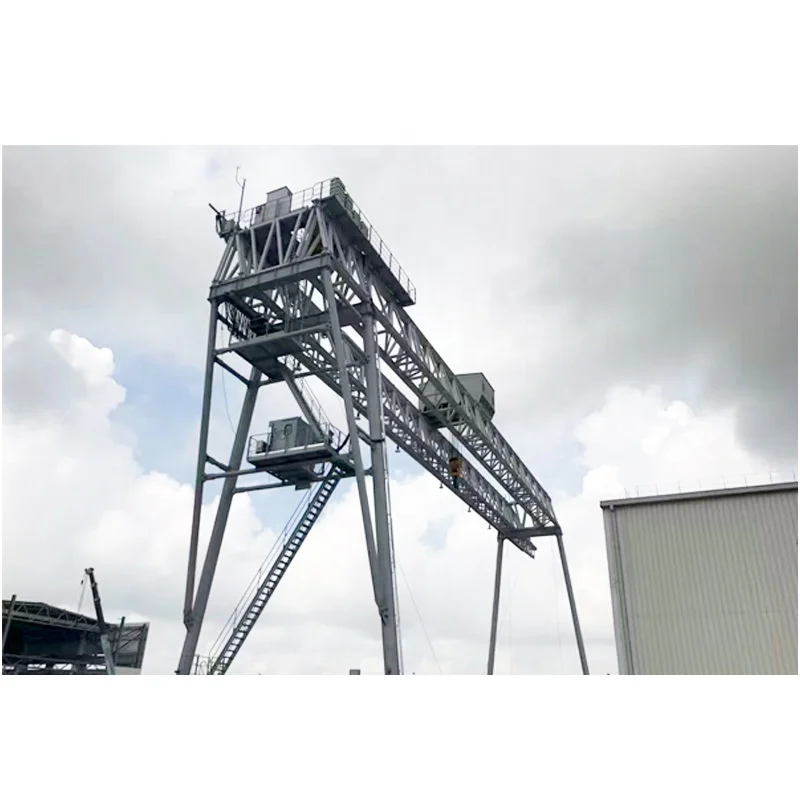

WEIHUA CRANE MGH Model Double Girder Truss Type Construction Gantry Crane 90 tons Span 18m Lifting Height 15m
Product Description
The truss type gantry crane 90 tons is designed and manufactured according to the standard JB / T5663-2008 of the Ministry of Machinery Industry of China. CD1, MD1 electric hoists and trolley can be fitted on this crane. The cantilever parts can be designed according to the factory operating space.
The truss type gantry crane 90 tons has latticed structure with a small windward area, light weight, good lifting ability and so on. This truss type gantry crane 90 tons is an ideal lifting equipment employed in the warehouse, freight yard, terminals and other places.
There are two ways of the crane traveling: separated drive and drive brake. This product can be controlled on ground and operating room. The operating room can be open or closed, which can be installed on the left side or right side and there are 3 ways to enter the room, side, end face and top to meet the needs of users in a variety circumstances.
Technical Parameter of truss type gantry crane 90 tons:
Capacity (t) | Span (m) | Lifting Height (m) | Work Duty | Main Hoist Speed | Aux.Hoist Speed | Cross Travel Speed | Long Travel Speed | Rail | Total Power (Kw) |
10 | 18~35 | 10 | A5 | 0.78-7.8 |
| 3.3-33 | 3-30 | 43kg/m | 21.74 |
20/5 | 18~35 | 10 | A5 | 0.6-6 | 0.78-7.8 | 3.5-35 | 3-30 | 43kg/m | 39.7 |
32/5 | 18~26 | 10 | A5 | 0.5-5.2 | 0.78-7.8 | 3.1-31 | 3-30 | 43kg/m | 59 |
26~35 | 12 | ||||||||
50/10 | 18~26 | 10 | A5 | 0.4-3.9 | 0.78-7.8 | 3.6-36 | 3-30 | 43kg/m | 71.4 |
26~35 | 12 | ||||||||
75~1000 | Customized | ||||||||
Notes: The specification of gantry crane 100 ton rubber tyre could be designed with customers' special needs.
Main products
Company Information
Packaging & Shipping
Customer Visit
FAQ
1, What's information should I provide to get the price?
More parameters, such as lifting capacity, lifting height, span, power supply, etc. And if you can give us your design drawing, that will be very helpful.
2, Which kind crane can you provide?
Weihua is a famous leading manufacturer with experienced designers, engineers and a 600- people R&D team to provide all kinds crane with customized parameters.
3, What services can you provide?
We have a complete pre-sales&after-sales service system, and our engineers are available overseas. And we also provide training for your crane operators.
4, Which brand are the accessories and electronic components in your cranes?
We have a long term cooperations with ABB, Siemens, Schneider, SEW, etc. And we have world-leading processing machines which are imported from Japan and German.
5, Do you provide crane spare parts?
Yes, of course, we can provide motors, reducers, brakes, hooks, remote controllers, wheels, crane rails, end carriages, enclosed busbar and so on.
