Product Overview

Description




Surveying Instruments Automatic Level Auto Level Dumpy Level




step 1




















































































































Models and technical parameters AL4-3 AL4-2 AL4-1
        Telescope                                          Length of tube 215MM
Image Erect
    Objective aperture 32MM 36MM 42MM
 Mangnification 24× 28× 32×
 Field of view 1°25′ 1°25′ 1°20′

Resolution

(JIS standard)

 4.0″ 3.5″ 3.0″
 Minimum focus

0.3m(from the centre

of the instrument)
 Stadia ratio 100
       Horizontal scale Diameter 103mm
Value of division 1°
      Automatic       compensator Type Magneic
Range ±15
Accuracy 0.5/1 0.3/1
Circular bubble sensitively ≤8′/2mm
Sighting device / with sighting device
Standard deviation of 1km round-trip leveling measurement Without Micrometer ±2.0mm ±1.5mm ±1.0mm
With Micrometer / 0.8mm
Waterproof grade IP66
Size 215×130×135mm
Weight 1.75kg 1.75kg 1.75kg
Case weight(include accessories) 1.38kg

3-jpg_04

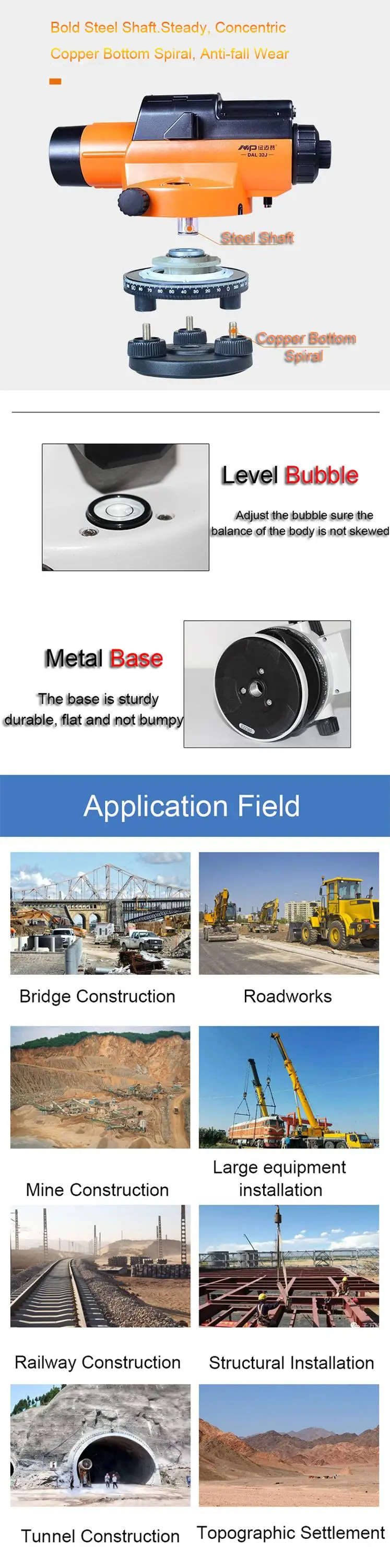

free rotation auto level.jpg


4-jpg_065-jpg_076-jpg_09


8-jpg_11
