Mobile Solder Fume Extractor Smoke Absorber Dust Collector For Welding
- Category: Other Air Cleaning Equipment >>>
- Supplier: Shenzhen New Oxygen Purification Technology Co. Ltd.
Share on (62183748004):
Product Overview
Description

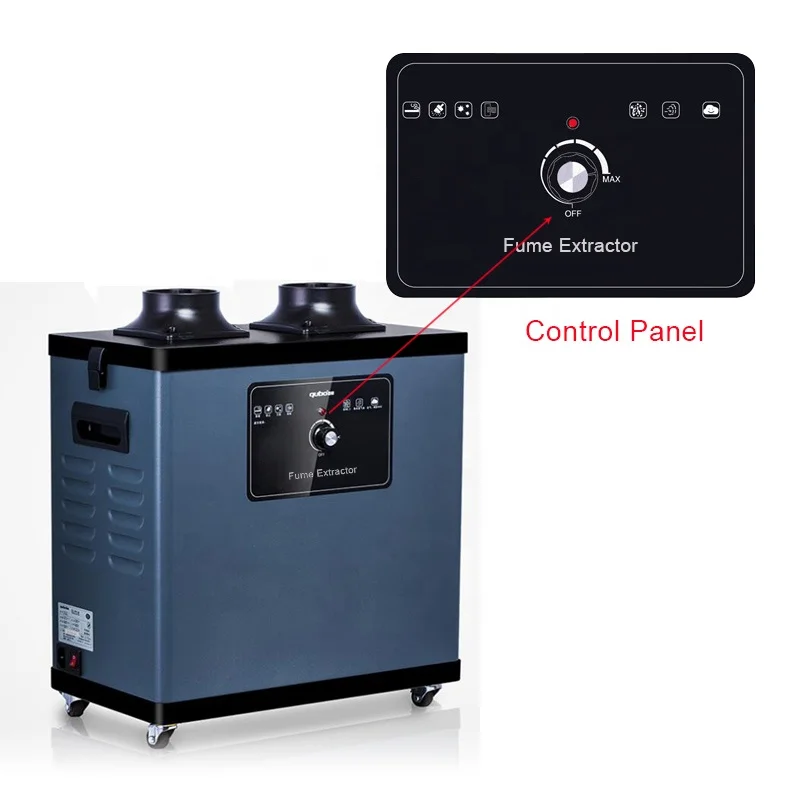

Mobile Solder Fume Extractor Smoke Absorber Dust Collector For Welding
Features:
1, Matal body structure, strong and durable.
2, Noise Reduction design, quiet opearation.
3, Tripe-filter design ensure thorough purification.
4, High-quality alloy fan aceheves great suction power.

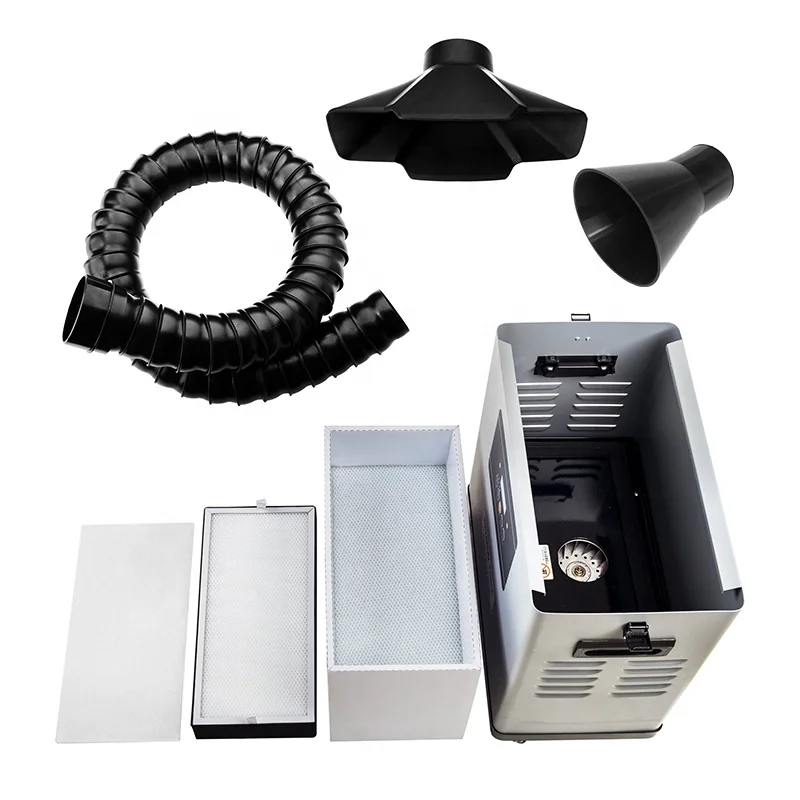

Filters Combination:
1st layer: pre-filter cotton
2nd layer: middle-fitlter
3rd layer: main-filter

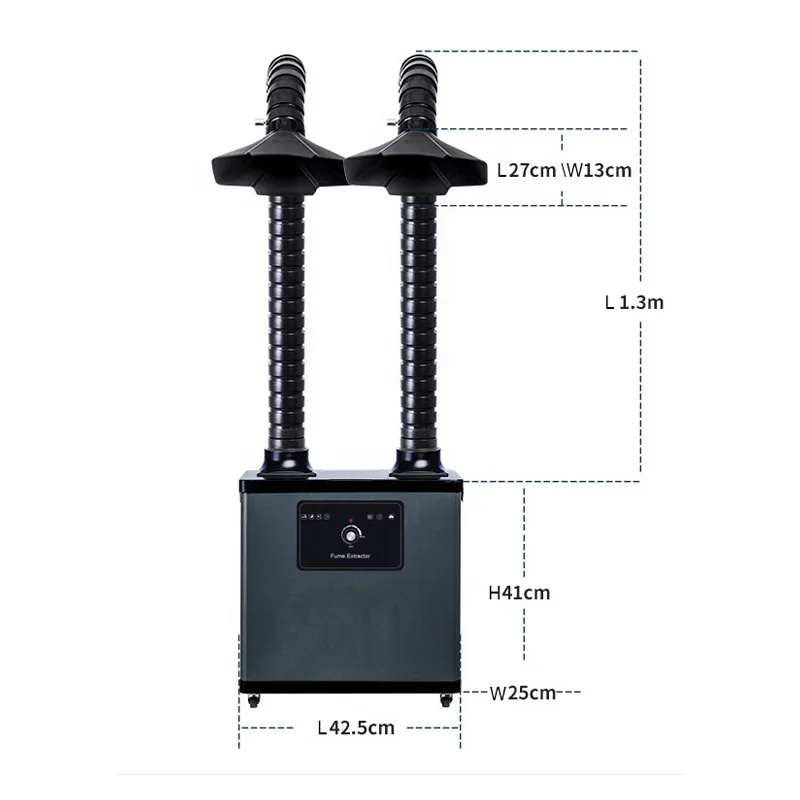

Different ducts and nozzles for option:
75mm duct + Squre nozzle
75mm duct + round nozzle
55mm duct + Squre nozzle
55mm duct + round nozzle
Description:

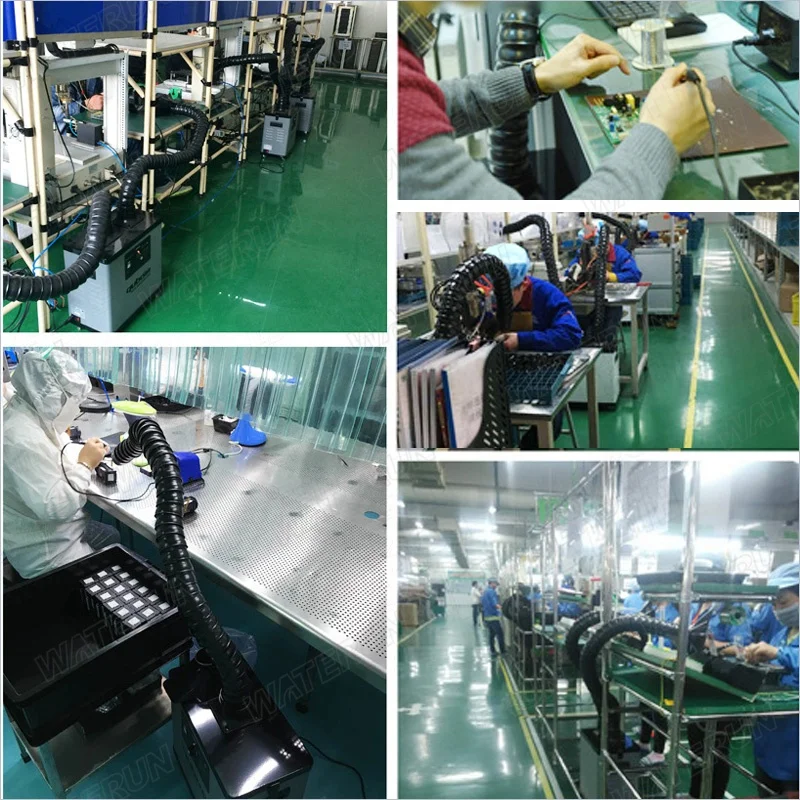

1.The fume extractor is designed to filter the harmfu substances, such as hydrocarbon and cyanide, during the process of soldering, tin dipping in the solder pot, laser marking and carving, printing, etc
2.The fume extractor has a triple-filter system design.
1) Pre-Filter: the large-size pad filter can filter large particles of dust
2) Middle Filter: it filters the bigger powders for prolonging the main filter's life.
3) Main Filter: it includes HEPA (high efficiency) filter and gas filter. The HEPA cleans the gas and powders filtering from the pre-filter and then carry them to the gas filter. which with the carbon and other chemical combination, filters off the deleterious substance and then outputs the clean air.
3. The fume extractors is easy to operate, installed with brushless motor which ensures quite and stable operation.
4. Wheels are available for the fume extractor which is easy to move and station.
5. We have been selling a good quantity of our solder fume extractors to Germany, Israel, UK and a few other European countries. And we got quite good and positive feedback from them on the quality and performance of our products.
6. We sell truly sensitive and effective "Filter Clogging Alarm System" which are widely used in the process of soldering, laser marking & carving, printing, etc.
Related Products
Products Name with link
Products Name with link
Products Name with link
Our Company
Our Company "Shen Zhen Waterun Technology Co; Ltd mainly supply the fume extractor, soldering robot machine, screw fastening robot machine and ESD & cleanroom products.
Packing & Delivery
Packing
With years of export experience along with excellent quality, advanced services and competitive prices, Waterun has the professional packing team.
Delivery
With years of export experience along with excellent quality, advanced services and competitive prices, we can supply different shipping methods
FAQ
1. What's the functions for the filters?
Answers. 1) Pre filter: the large-size pad filter can filter large particles of dust (according the requirement to select pre-filter or F8)
2) Middle Filter: it filters the middle-size, small size particles bigger powders for prolonging the main filter's life. (according the requirement to select PP middle filter or fiber glass filter,can use both, the efficiency better.)
3) Main Filter/Active carbon: it cleans harmful particles and fumes.
4) High efficiency filter(combine middle filter and active carbon filter): it can filter about 0.3micron particles and other harmful fumes.
2. What's the advantage compare with ducted exhaust fan?
Answer: 1. Many advantages like (1) Clean the air quality (2) energy saving (3) easy installation, flexible remove (4) low cost (5) reduce the incidence of diseases and major diseases, and health is priceless (6) to reduce unpleasant smell (7) to reduce dust and other harmful substances, and so on.
3. What's the life span of our fume extractor?
Answer: Motor lifetime is (continuous working 24 hours) 20,000 hours, consider environmental factors. Usually it can use 4-5 years without any problems.
4. The ducts for the fume extractor can be shortened or lengthened?
Answer: It can be shortened or lengthened appropriate; but we suggest not more than 1.5meter. For multi-station, the total pipe length should not exceed 10 meters.
5. What's the best distance between the nozzle and the smokes?
Answer: The distance to be 5-15cm is the best.
6. How long need to to replace the pre-filter, middle filter and the main filter?
Answer: 1. Pre-filter : normally needs to replace by 1 months
2. Middle filter: normally needs to replace by 3 months
3. Main filter: normally needs to replace by 6 months.
7. Bent pipe will affect smoke purify?
Answer: Yes, it affect the suction power, it should reduce the bent rate.
8. Can our fume extractor completely filtered poison gas?
Answer: No, there still no any kind of filter can filter out 100% of poison gas, but you can make a different filter net rate upon request.
9, Contact Details as below:
