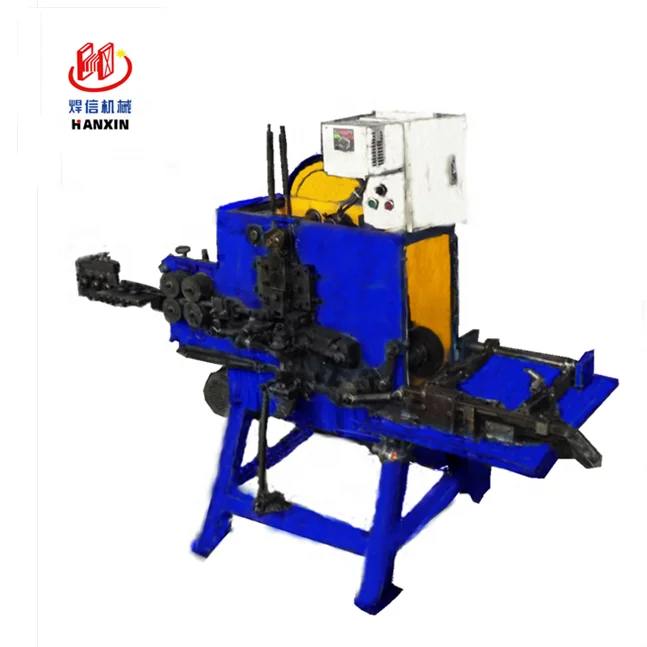

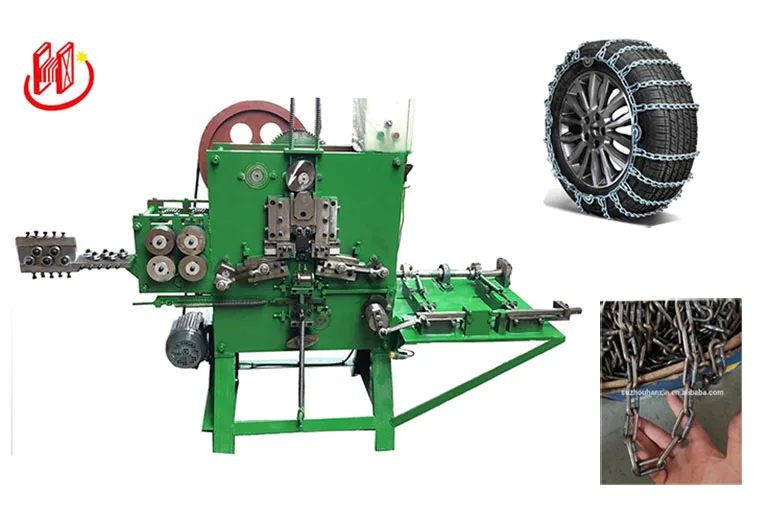

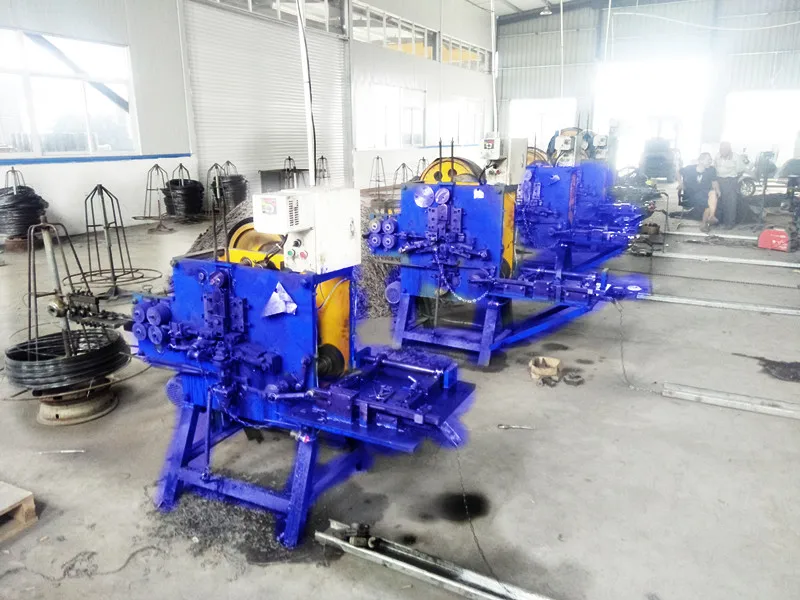

Авто из нержавеющей стальной проволоки железа автоматическая машина для изготовления сетки гибочный станок для изготовления цепей
- Category: Metal & Metallurgy Machinery >>>
- Supplier: Suzhou Hanxin Machinery Equipment Co. Ltd.
Share on (62194929865):
Product Overview
Description
Product Description
| Spec Diameter | φ2-6 | φ6-φ10 | φ11-φ12 | φ13-φ14 |
| Pitch | 9-42(mm) | 18-65(mm) | 33-75(mm) | 35-85(mm) |
| Width | 7-45(mm) | 20-55(mm) | 36-65(mm) | 39-75(mm) |
| Feed Length | 25-127(mm) | 55-210(mm) | 65-220(mm) | 75-250(mm) |
| Efficiency | 35-80 ring/min | 35-50 ring/min | 25-40 ring/min | 20-35 ring/min |
| Total Power | 1.8KW | 8KW | 19KW | 22.5KW |
| Motor Rating | 1.5KW | 7.5KW | 18.5KW | 22 KW |
| Rated speed | 1450 RPM | 960 RPM | 960 RPM | 960 RPM |
| Controller | PLC(Siemens) | PLC(Siemens) | PLC(Siemens) | PLC(Siemens) |
| Air pressure | ≥0.65(Mpa) | ≥0.65(Mpa) | ≥0.65(Mpa) | ≥0.65(Mpa) |
| Air Consumption | 1.5L/ring | 2.25L/ring | 2.25L/ring | 2.25L/ring |
| Size | 2000*1100*1460 | 2700*2100*1800 | 3500*2400*1800 | 4500*2400*1800 |
| Weight | ≈0.96T | ≈4.2T | ≈6.5T | ≈8T |
Packaging & Shipping
Our Services
Standard export wooden case packing or pack with customers' request.
Payment type: T/T(Confirm contract pay 30% deposit, pay the balance before delivery).
We can offer OEM or ODM service, according to customers requirements.
Warranty: One year warranty, the Seller shall supply the free replacement spare parts (but NOT including the mould, wearing parts and the items of wrong using), and the delivery cost will bear on the buyer’s account.
Company Information
FAQ
Q1: Are you a factory or a trading company? A1: We are a machine manufacturer for more than 10 years.Our factory is located in Suzhou,Jiangsu China.
Q2: I want to produce some iron products,could you offer the corresponding machine to me?
Q3: Do you offer the custom machine service? A3: Yes,please offer the samples or the drawing of your products,then we could make a design to custom the machine for you.
Q4: Could you arrange the technicist to repair the machine oversea? A4: Yes.But the cost of travel need pay by customers.
Q5: Could you teach me how to use and debug the machine? A5: Of course.We could send the videos to teach you and we have manual for you.
Q6: What is your warranty period? A6: One year warranty, the Seller shall supply the free replacement spare parts (but NOT including the mould, wearing the mould, wearing parts and the items of wrong using), and the delivery cost will bear on the buyer’s account.
Q7: Could you help to weld(produce) some samles for me? A7: Yes,please sent us the raw material,I would help to weld(produce).
Q8: How many years could your machine use? A8: More than 10 years if you have a right operation and maintain. |
