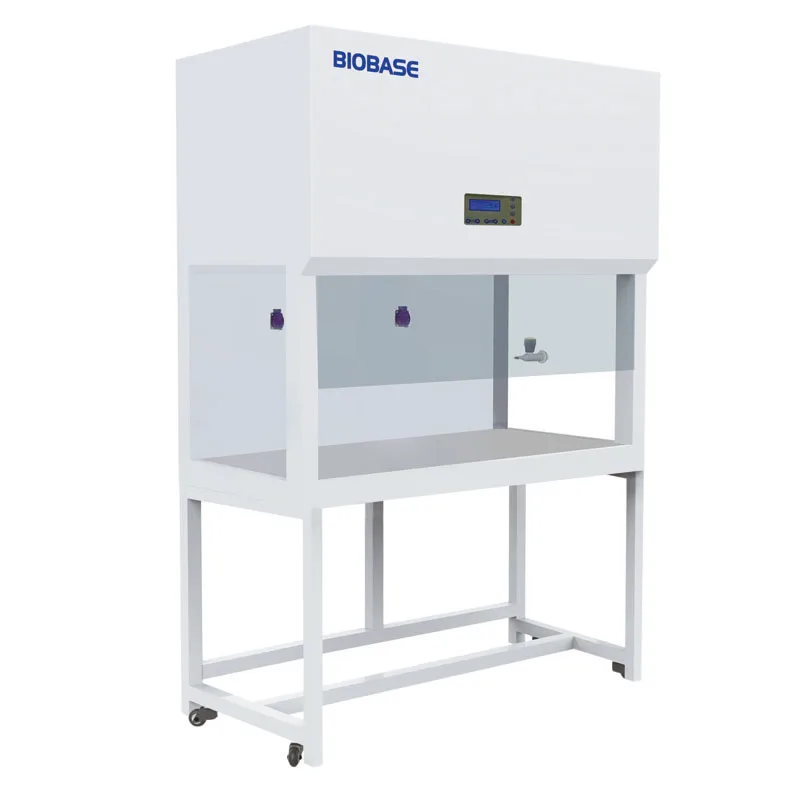

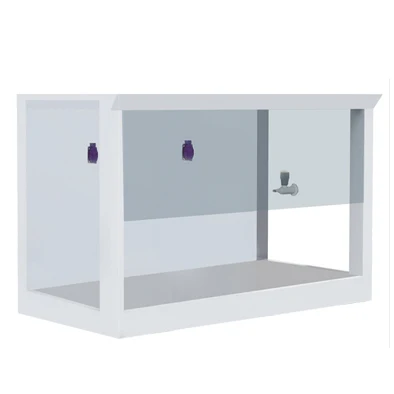

Laboratory Vertical Laminar Flow Cabinet with Pre Filter HEAP Filter

Model

BBS-V1300

BBS-V1800

External Size(W*D*H)

1300*750*2040mm

1800*750*2040mm

Internal Size(W*D*H)

1200*645*610mm

1700*645*610mm

Work Surface Height

750mm

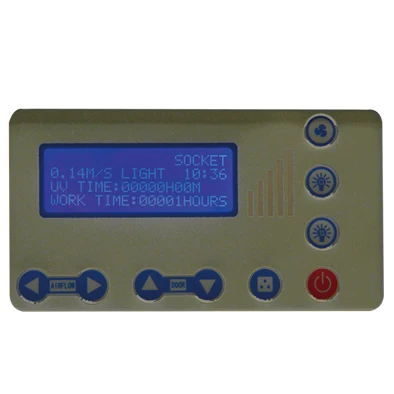

Display

LCD Display

Airflow Velocity

Average of 0.3~0.5m/s

Material

Main Body: Cold-rolled steel with anti-bacteria powder coating

Work Table:304 stainless steel

Side and Front Windows:5mm toughened glass anti-UV

Pre-filter

Polyester fiber, washable

HEPA Filter

99.999% efficiency at 0.3um

Noise

<60dB

Front Window

Motorized

Max Opening

430mm

Fluorescent Lamp

12W*1

16W*1

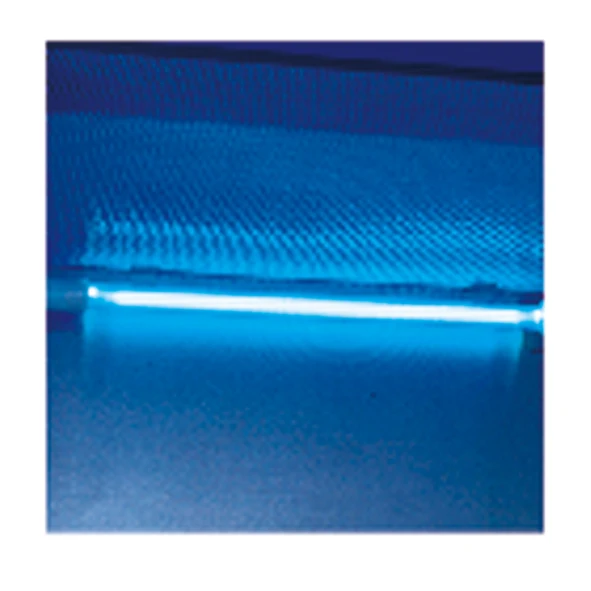

UV Lamp

30W*1

40W*1

Emission of 253.7 nanometers

Consumption

400W

450W

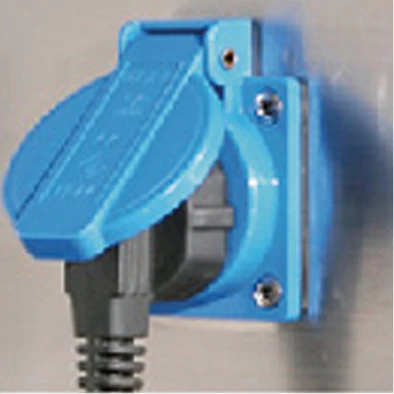

Waterproof socket

Two, total load≤500W

Caster

Universal caster with leveling feet

Power Supply

AC220V±10%, 50/60Hz; 110V±10%, 60Hz

Standard Accessory

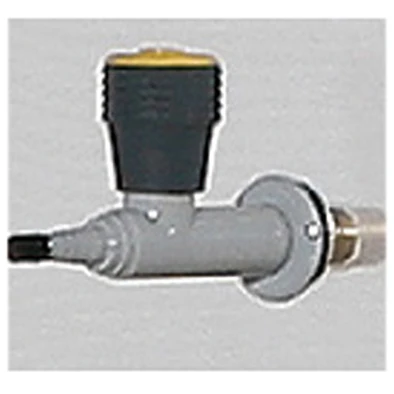

LED lamp, UV lamp*2,Base stand, Gas Tap, Waterproof socket*2

Gross Weight

228kg

306kg

Package Size(W*D*H)

1460*1070*1650mm

1960*970*1600mm
