Product Overview

Description


Product Description

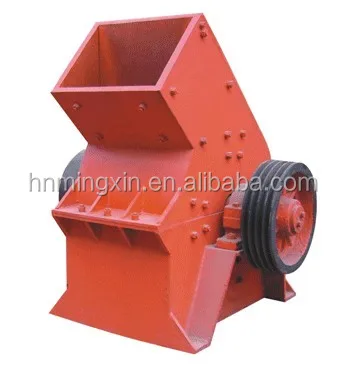

Brief introduction of sand mini rock hammer crusher

sand mini rock hammer crusher has many advantages, such as low running cost, small matching power, low production cost, large feeding granularity, large crushing ratio and small particle size. It is widely used in the mining industry.

This product by high speed and material impact hammer and broken material, it has the advantages of simple structure, high crushing ratio, high production efficiency need to be broken and other characteristics, can be used for dry and wet broken in two forms, suitable for mining, cement, coal, metallurgy, building materials, roads, fuel and other departments of moderate hardness and brittleness material medium crushing. The equipment according to the requirements of users can adjust the hammer and lining Ying gap, change the particle size, to meet the different needs of different users. The main parts of the equipment, hammer head, is made by train wheel steel, and the lining plate is similar to the jaw plate. It is made up of 13 manganese steel. The investment is small and the effect is quick. 50 t/h -- 5000 t/h hammer crusher make this crusher become the preferred device in the crushing industry.

The Features of sand mini rock hammer crusher


1.Large feeding granularity


2. Easy installation and         maintenance

3.Developed structure


4. Stable and reliable performance

5.High crushing ratio


6. Long service life

7. Low consumption of spare parts


8.Low maintenance costs

8.Unblocked material flow


9.large production capacity


10.High strength and Difficult         to deform




Application of sand mini rock hammer crusher

      sand mini rock hammer crusher is widely used in the work of mine, building material, road, railway, irrigation, chemical industry, ect. It is especially used to crush limestone and medium hard materials which compression strength are less than 200 Mpa.

     Compared with other hammer crushers, hammer mill glass clay crusher machine  uses alloy composite hammer head with high abrasion performance of hammer, large rotational inertia and high rotor kinetic energy.

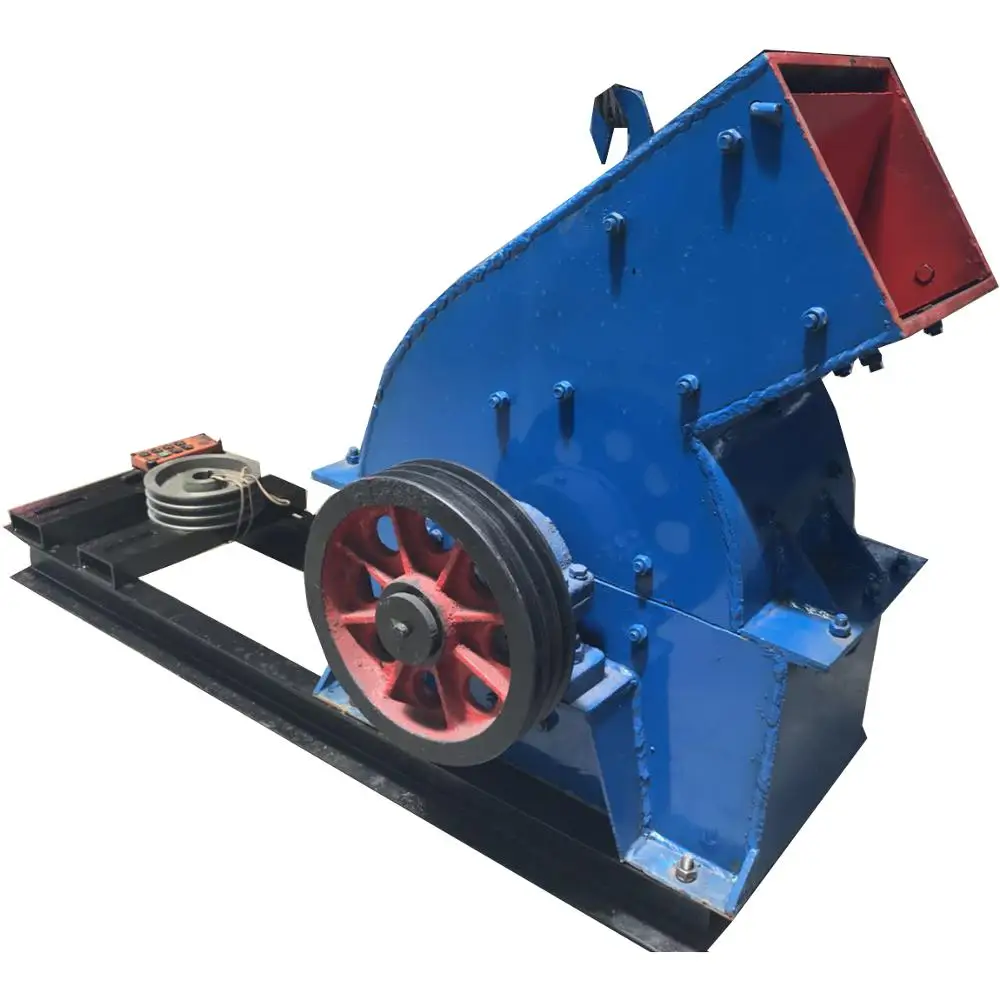

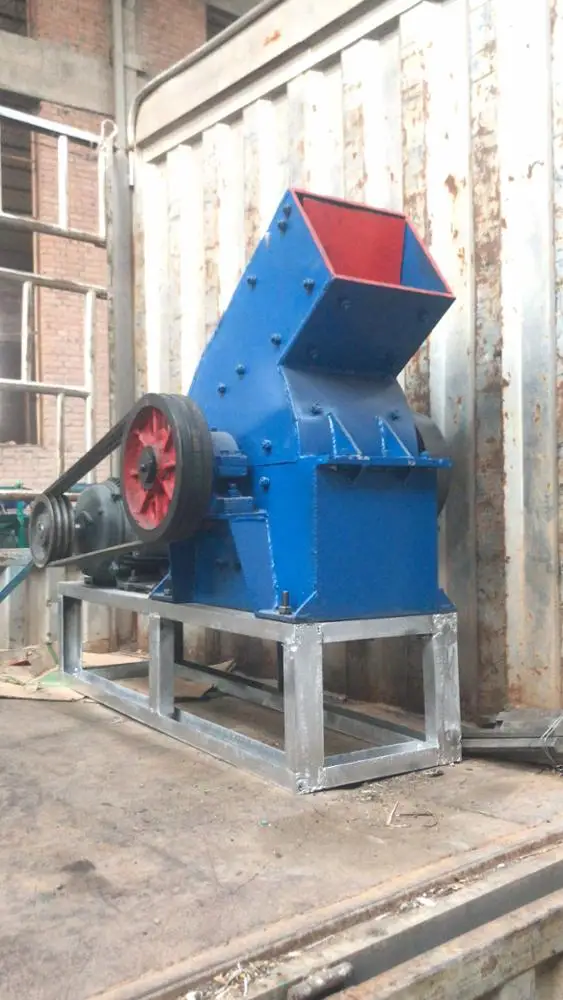

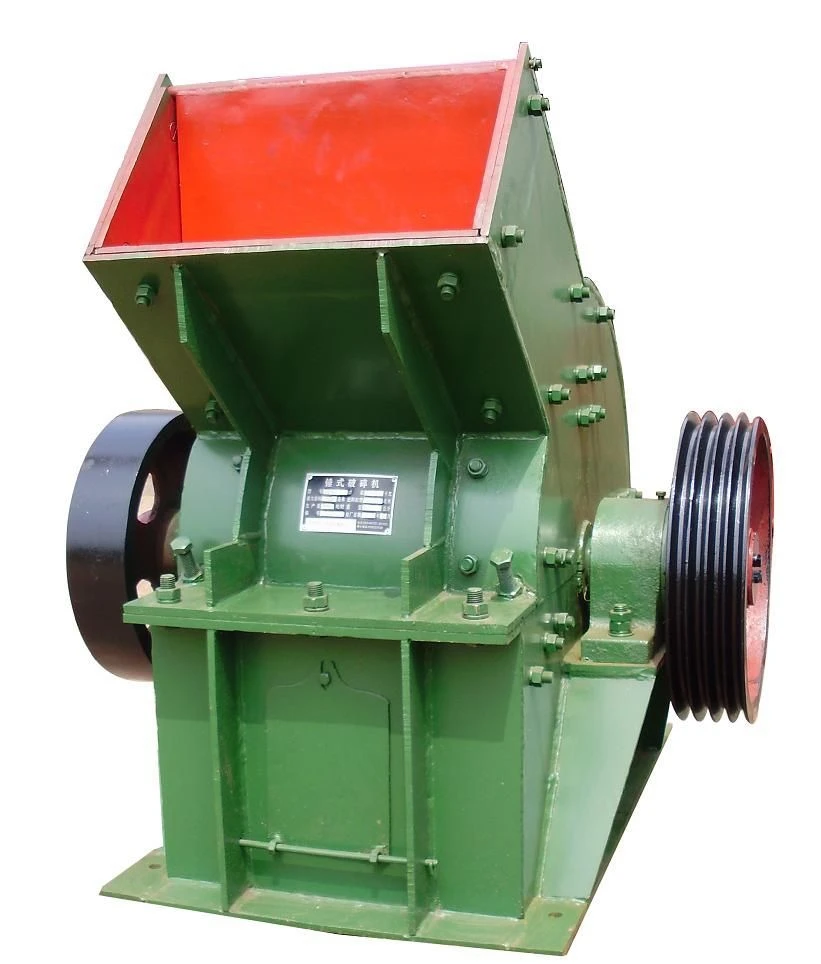

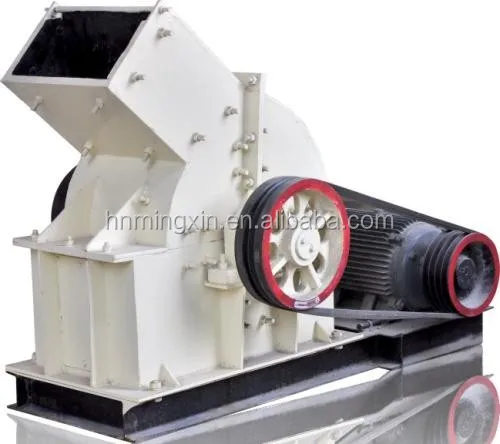

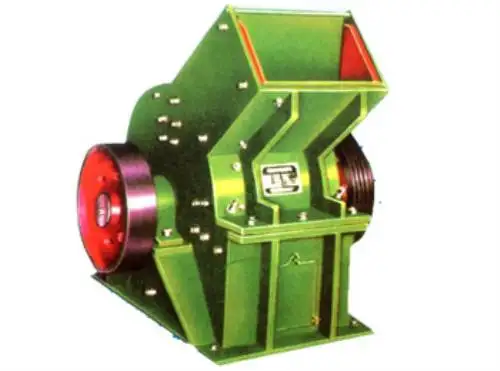

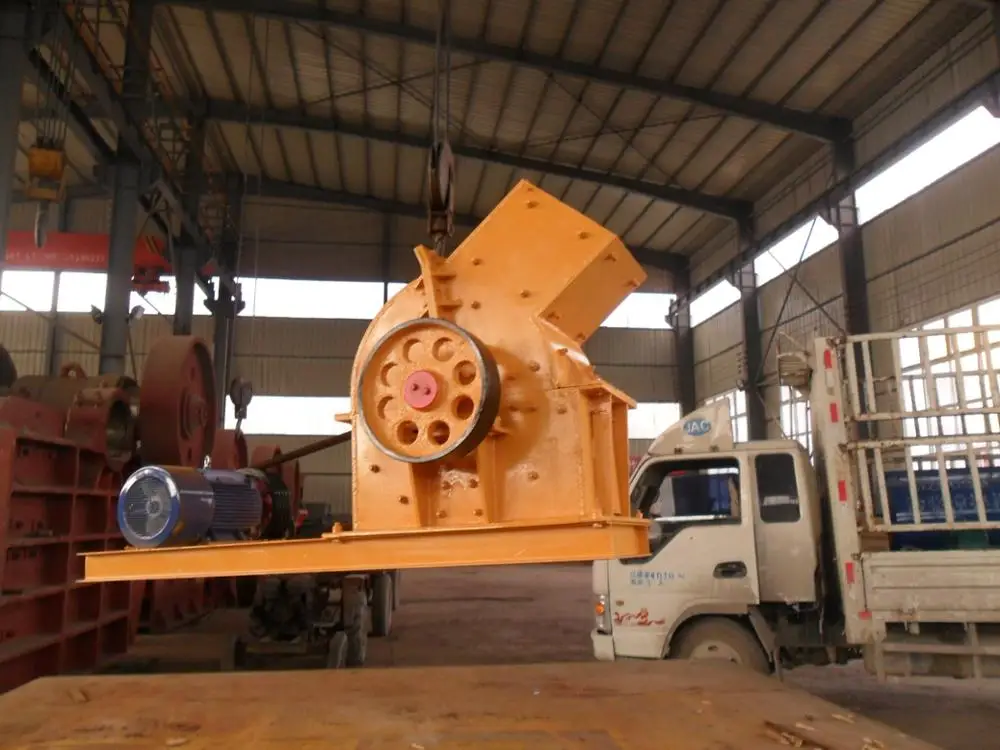

Detailed Images
Technical Parameters
\t
Model
\t
Feeding size (W*L) (mm)
\t
Rotor work (D*L) (mm)
\t
Output size (mm)
\t
Capacity(t/h)
\t
Power(kw)
\t
Weight (t)
\t
Overall size (L*W*H)(mm)
\t
PCZ-1308
\t
850*800
\t
1310*790
\t
<30
\t
100-160
\t
132
\t
15.6
\t
2818*2100*2390
\t
PCZ-1510
\t
1000*850
\t
1500*950
\t
<30
\t
160-210
\t
132*2
\t
17.2
\t
3260*2370*2750
\t
PCZ-1512
\t
1210*900
\t
1500*1160
\t
<30
\t
220-270
\t
160*2
\t
22
\t
3260*2580*2750
\t
PCZ-1615
\t
1500*1200
\t
1650*1452
\t
<30
\t
360-420
\t
200*2
\t
28
\t
3456*2915*3185
\t
PCZ-2015
\t
1500*1400
\t
2000*1500
\t
<30
\t
450-500
\t
250*2
\t
56
\t
3880*2990*3560

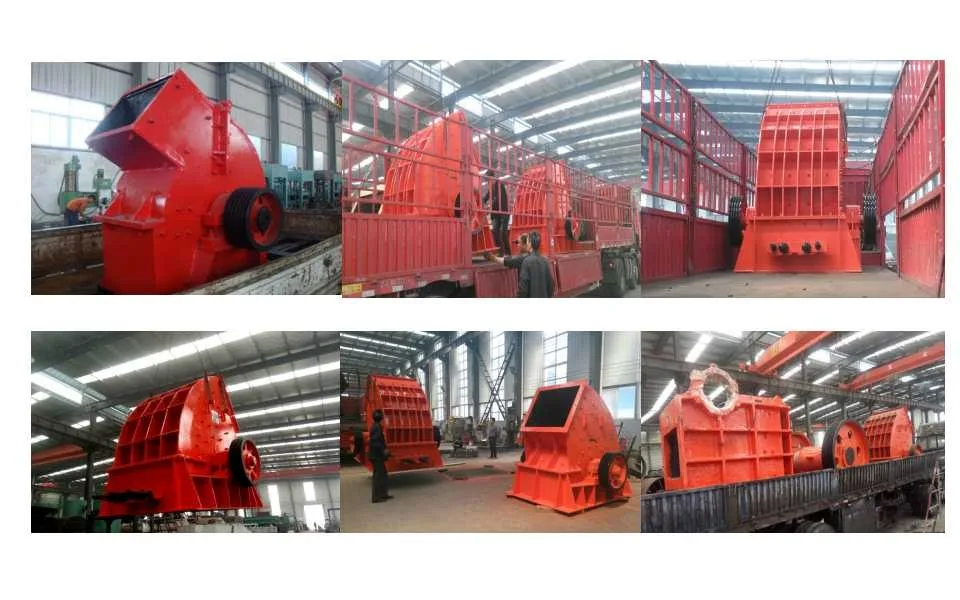

Packing & Delivery


Packing of sand mini rock hammer crusher

Inner packing of sand mini rock hammer crusher: plastic packing

Outer packing of sand mini rock hammer crusher: wooden case packing , standard container or as you need as well

Delivery of sand mini rock hammer crusher

sand mini rock hammer crusher will be shipped usually within 10 working days after receiving the deposit, which depends on the quantity of the order.

Our company

     The main products of our company are crusher, charcoal briquette machine, shisha charcoal machine, wet pan mill, biomass pellet machine, dryer, oil press machine, etc.

     Henan Mingxin Import and Export Trading Limited Company is a company that integrates science, industry and trade. The company mainly sells mechanical equipment and accessories, pipeline equipment, refractory materials, abrasive materials, water purification equipment, wire and cable. Our company follows the human-oriented, honest, pioneering entrepreneurial spirit with scientific and technological innovation. We have always regarded the technology as the motive force, the market as the orientation to make the products first-class.

Our Service

1. 24 hours all day service.

2. Can be customized according to customer needs.

3. Check again before we send the goods.

4. Send the goods on time.

5. One year warranty from the date of receiving.

6. We can test the machine before we send it if the client needs.

7. The more you need, the cheaper the unit price is.

8. Help the client with shipment
