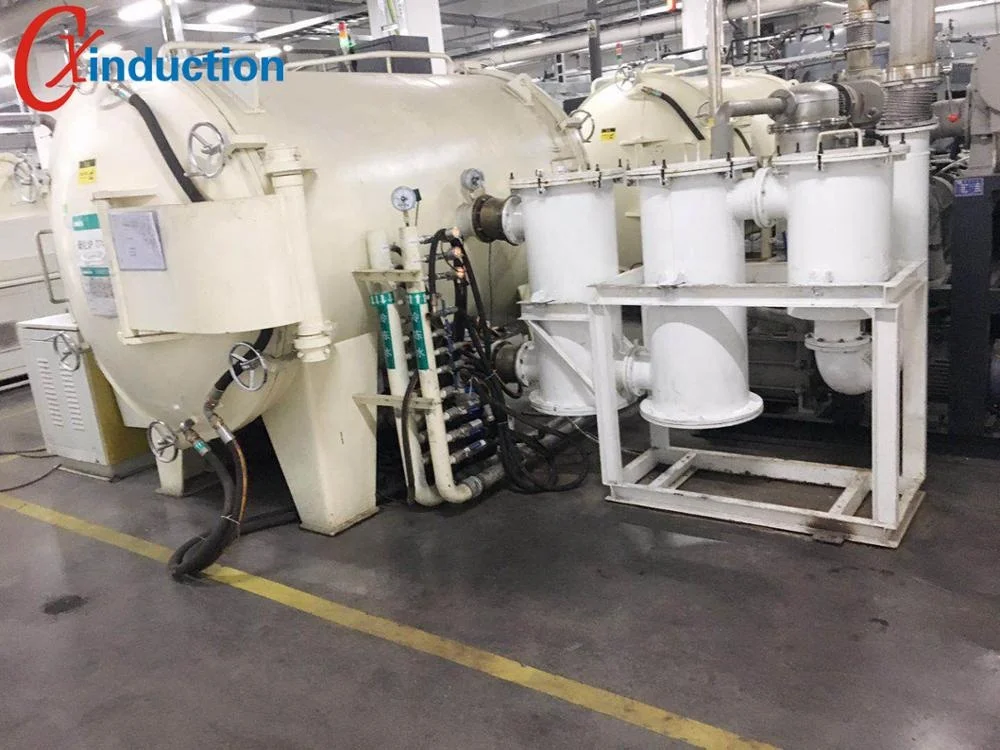

3000 degree high temperature graphitization furnace heat treatment of carbon and graphite material

Application:  It is used for high temperature graphitization for all kinds of graphite and carbon materials.

Characteristics:

1.The operation control system is fully automatic which makes the operation simple and convenient.

-The touch screens visually display all operating parameters and data;

-The alarm and locking down protection device is impeccable;

-The water and electricity control system is automatically and precisely.

2.The fully sealed power cabinet with water cooling and air cooling radiator and which have no heat exchange with outside air.The cabinet adopted Shimaden digital display intelligent temperature control meter which can communicate with PLC and complete the temperature control process automatically and with high precision. The system can heating up by a given     temperature curve and it have capacity of storing 400 sections of twenty heating curves.

3.The furnace is cooled by closed circulating pure water cooling system monitored by a digital flow monitoring system and every waterway is monitored and protected by a flow meter.

Maximum temperature: 3200 celsius

High-temperature zone volume: 0.01m3, 0.02m3, 0.03m3, 0.05m3, 0.1m3, 0.15m3, 0.2m3, 0.3m3

Furnace working atmosphere: Vacuum, hydrogen, nitrogen, inert gases

Temperature uniformity: ≤ ± 10 celsius

Temperature measurement: Infrared optical temperature measurement range of 800 ~ 3500 celsius temperature or 0 ~ 3500 celsius; Accuracy: 0.2 ~ 0.75%.

Temperature control: Process control and manual control; Control accuracy: ± 1 celsius

Limit heating rate: 200 celsius / min (air furnace, depending on the volume and the high temperature furnace configuration).

We have more than ten years of exporting experience;

We have long term cooperation freight forwarding in exporting, customs declaration line.

We can choose the best and economy transport way for you.

Company Information:

Founded in June 2003, Zhuzhou Chenxin Induction Equipment Co.,Ltd is a scientific and technological enterprise relying on semiconductor converting technology. We has always been commitied to the manufacturer of various industrial furnace products, and have won several provincial technological progress awards and patent certificates. Our products have been exported to Vietnam, Thailand, Sayria, South Africa, Japan, Korea, USA and other countries as well as more than 20 domestic provinces and cities.

Our Customers:

Customers Visiting:

Question: Are you a factory?

[Cx-induction reply:] Yes. We are the famous of High Temperature Vacuum Induction Furnace manufacture, and we have been successfully served many customers over more than 16 years.

Question: Do you have customization or OEM service?

[Cx-induction reply:] Yes, we have. Our furnace are specialized designed according to customer's actual needs.

Question: What kind of furnace follow?

[Cx-induction reply:] Firstly, we are ISO 9001:2015 and CE certificated factory. All the process are strictly following the standard of the metallurgy process. In the factory, we have about 6 employees that work in the quality assurance department.

Question: Can you serve customer oversea like installation and debugging?

[Cx-induction reply:] Yes. We can dispatch our engineer to your city for installation and debugging or other service. Meanwhile, we will offer relevant documents: The plan of equipment; Foundation condition graph; The layout of equipment; Electric control system schematic diagram; Main accessories operating instructions and qualification etc.
