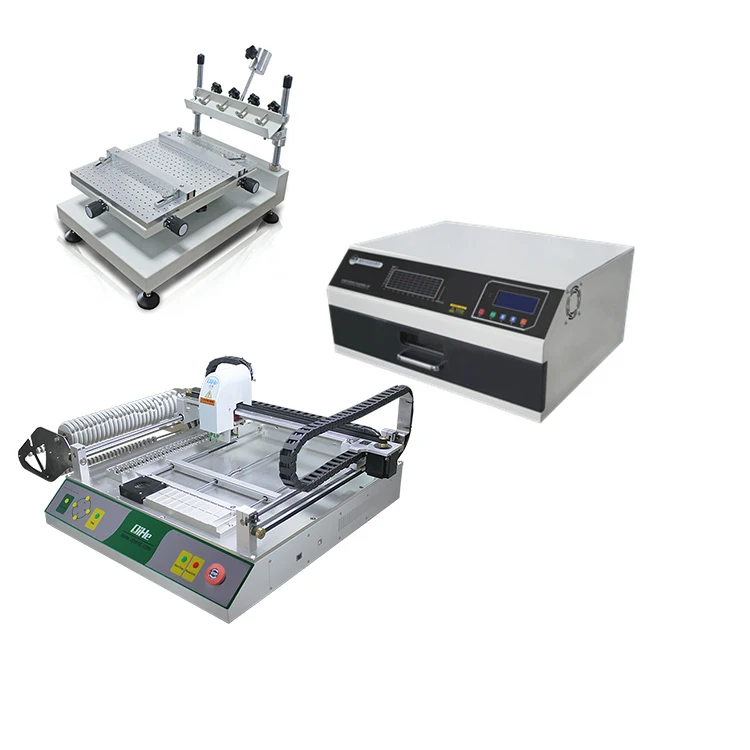

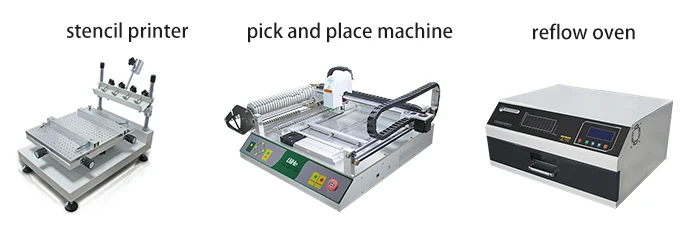

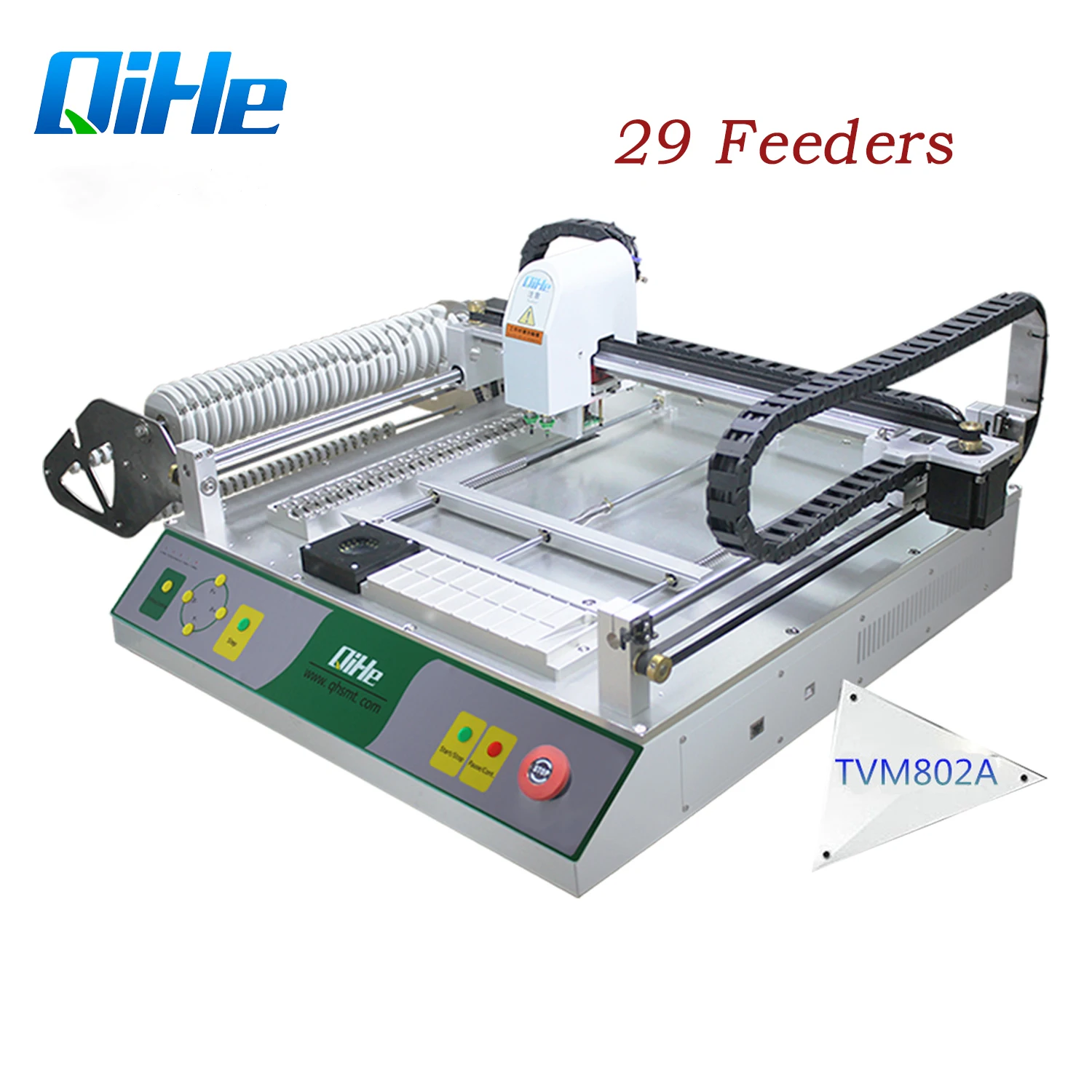

Small Automatic TVM802A With 29 Feeders Production Line For Led Lamps SMT/Desktop Pick and Place Machine Solder Paste Printer
- Category: Electronics Production Machinery >>>
- Supplier: Yueqing Qihe Electrical Technology Co. Ltd.
Share on (62211077443):
Product Overview
Description
Manual mounter chip machine QIHE TVM802A Manual automatically pcb assembly SMD/PCB/SMT/LED mounting p&p machine
P & P machine 802A
| Model | TVM802A |
| Max applicable PCB | 20*20mm~340*340mm |
| Max XY Moving rang | 395*450mm |
| Max Z Moving range | 12.5mm |

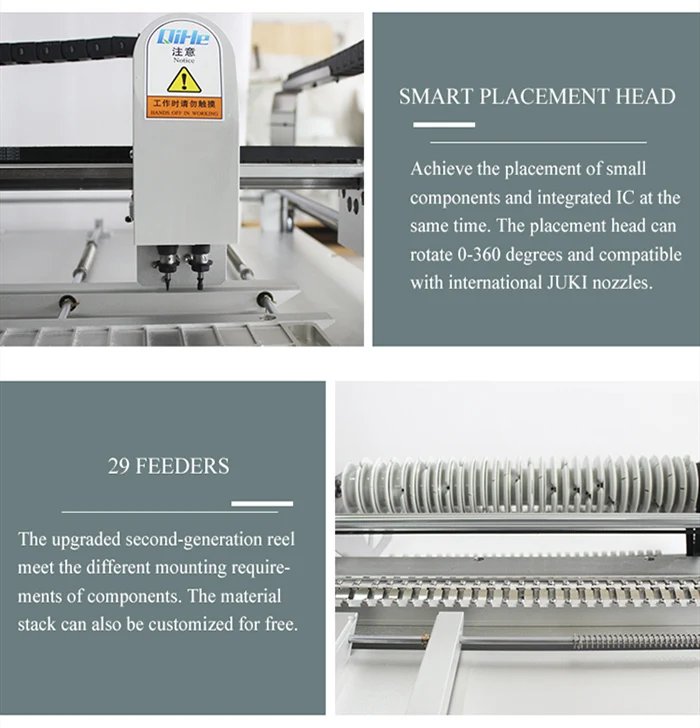

| Placement head quantity | 2 |
| Mounting speed without vision | 6500CPH |
| Mounting speed with vision | 5500CPH |
| Mounting accuracy | 0.025mm |
| Applicable component | 0402-5050. SOP. TQFP. QFN etc. |
| Component supply | Tape reel, Bulk, Tubular, Tray etc. |

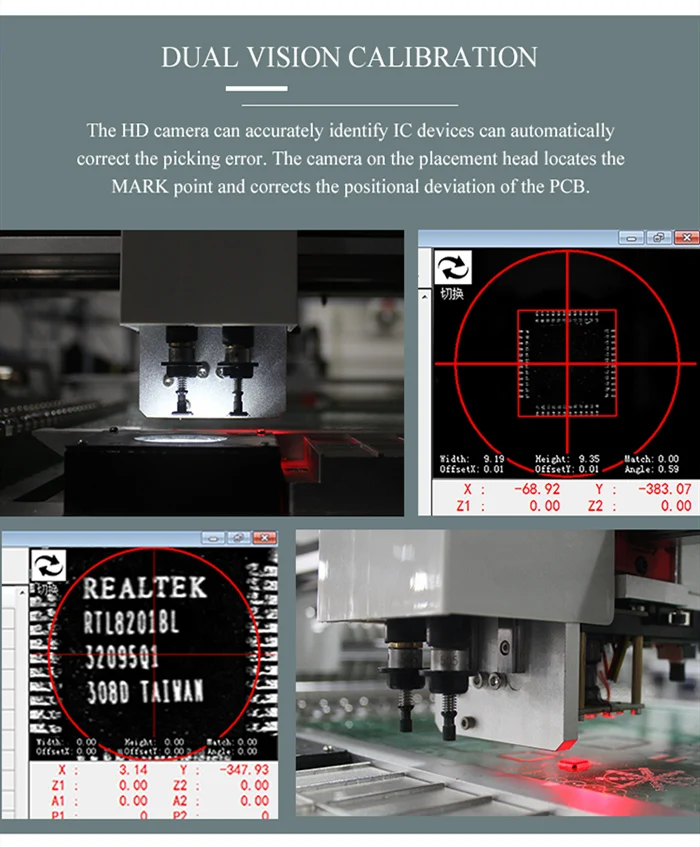

| Vision system | 2 HDCCD Camera |

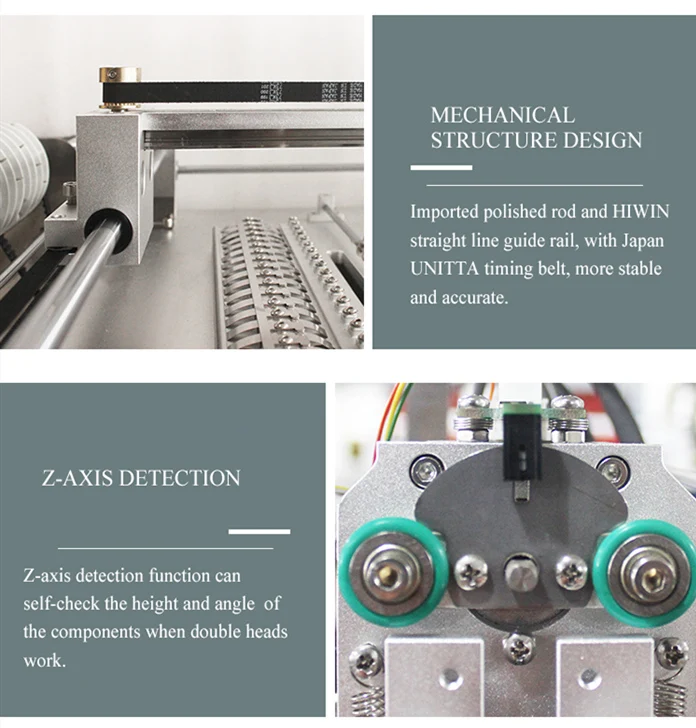

| Control scheme | Stepper high voltage drive, Z-axis reset detection |
| Feeder count & Tape width | 29 , 8mm=25pcs, 12mm=3pcs, 16mm=1pc |
| Pump | 1 silent brushless vacuum pump, Blowing pump |
| Leakage material detection | Vacuum |
| Power | 125W(average power) |
| Power supply | AC220V or AC110V |
| Machine size | L940*W640*H330mm |
| Package size | L1070*W770*H420mm |
| Volume | 0.38CBM |
| Net weight | 39kg |
| Gross weight | 60kg |
| Support PCB design software | Protl99/Altium Designer/Eagle/Pads/Allegre etc. |
 | TVM802A
|
|  |
 |
|
Information show
Company Show
Exhibition Show
Certificate
FAQ
1. Q: How many nozzles do you supply? |

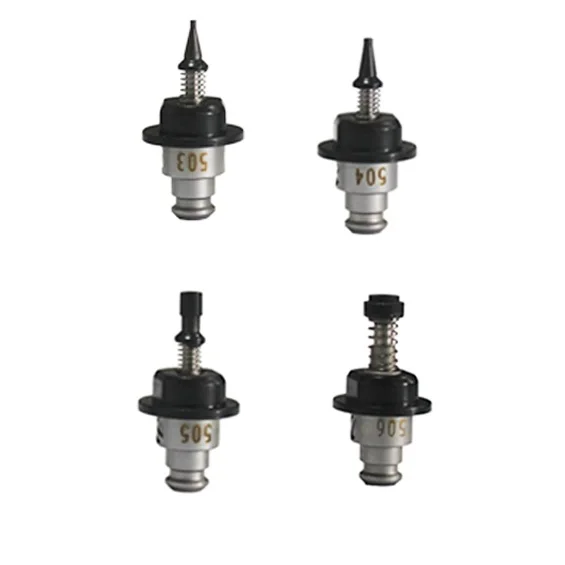

A: The TVM802 has two nozzle-heads, we supply 4 nozzles. The TVM925 has 4 nozzle-heads, we supply 6 nozzles. The QM41 has 4 nozzle-heads, we supply 8 nozzles. |
2. Q: Which language is the software? Do you provide software updates? |
A: English or Chinese. Free to upgrade software for lifetime. |
3. Q: This is the first time I use this kind of machine, is it easy to operate? |
A: Yes. There are English manual and guide video that show you how to use machine. |
4. Q: Can we customize the machine? |
A: Of course. All of our machines can be customized. |
5. Q: How about the warranty? |
A: We support one year warranty. We will help you in time. All the spare parts will be provided free of charge for you within the warranty period. |
