Hot sell High Speed barbed wire mesh making machine
- Category: Metal & Metallurgy Machinery >>>
- Supplier: Hebei Kaiye Machinery Equipment Co. Ltd.
Share on (62212423435):
Product Overview
Description
Product Description

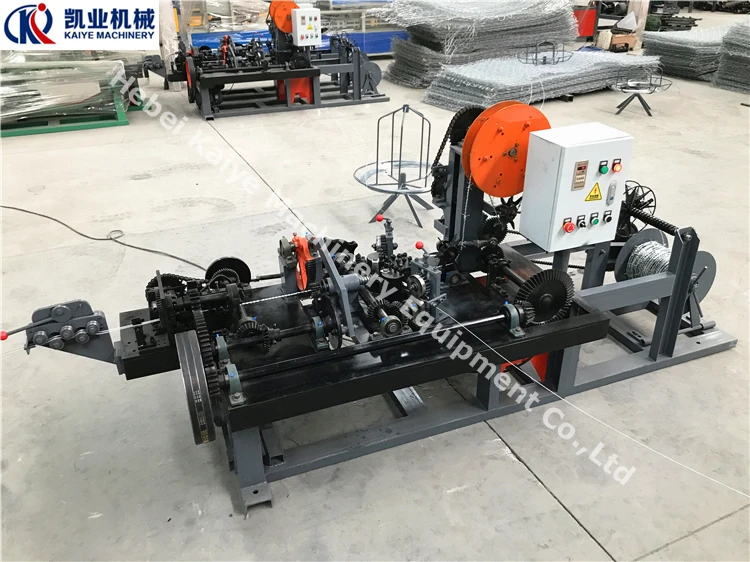

Double wire positive and negative twist barbed wire making machine(CS-C)
Our factory produces three types of barbed wire machines.
They are double strands barbed wire machine, single strand barbed wire machine and double strands reverse and twist barbed wire machine.
Barbed wire machine is used to make barbed wire which can be used on the airport, military, railway, highway, agriculture, animal husbandry, Dwelling house,Plantation,Fencing and so on.
The double wire positive and negative twisting barbed wire machine (CS-C) is composed of positive and negative twisting, barbed winding and friction rope take-up, and is equipped with four take-up discs.

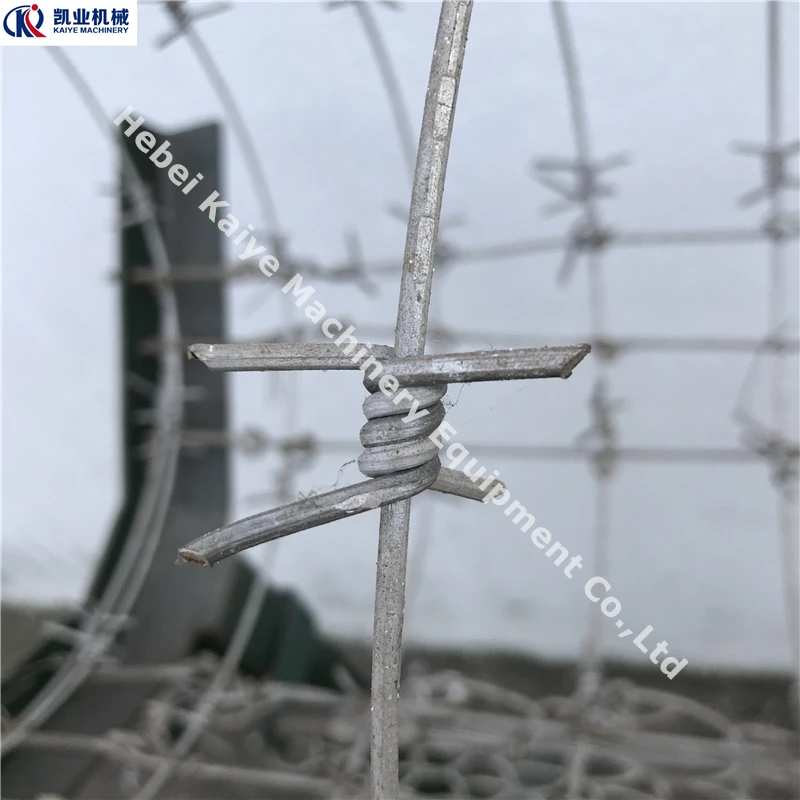

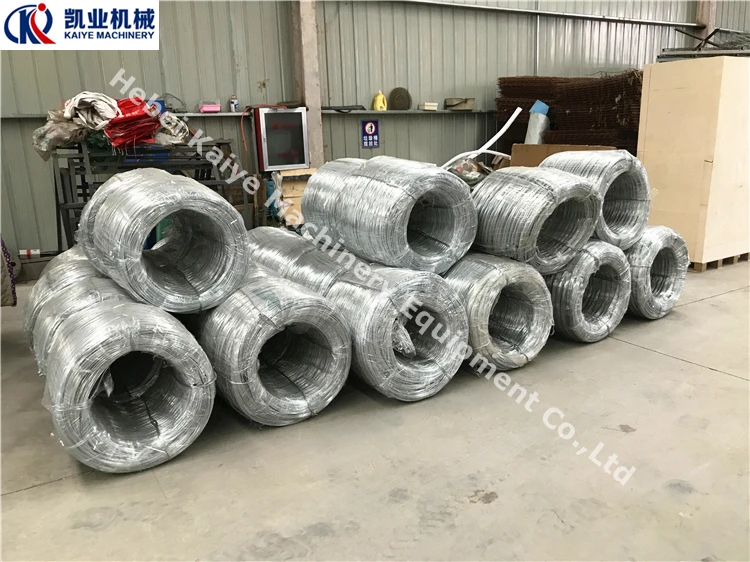

The materials of barbed wire usually hot dipped galvanized wire, electric galvanized wire and PVC coated wire etc.
The reason for surface treatment is to strengthen the anti-corrosion strength and prolong the service life.
The reason for surface treatment is to strengthen the anti-corrosion strength and prolong the service life.
Machine Features
Main Features
1,It could produce both single strand and double strands barbed wire.
2,It is of low-noise, high-safety and high-efficiency.
3, It is easy to operate and use,and enough to needs one worker.
4,Twisted number and barbed space can be customized according to customer's requirement.
5,Button switches and leveler to start and stop machine easily.
Machine Parameters
Barbed wire mesh making machine | ||||||
CS-A Type | CS-B Type | CS-C Type | ||||
Motor power | 2.2/3kw | 2.2/3kw | 2.2/3kw | |||
Main drive shaft speed | 402r/min | 355r/min | 355r/min | |||
Strand wire diamter | 1.6-3.0mm | 2.0-3.0mm | 1.6-2.8mm | |||
Barb wire diameter | 1.6-2.8mm | 1.6-2.8mm | 1.6-2.4mm | |||
Barb pitch | 3/4/5/6inch | 3/4/5/6inch | 3/4/5/6inch | |||
Twisted number | 3~5 | 3 | 7 | |||
Voltage | 380v 50Hz or 220v 60Hz or 415v 60Hz or customized | |||||
Raw material | Galvanized steel wire, PVC coated wire,black wire etc. | |||||
Production | 20meters/minute | 17meters/minute | 17meters/minute | |||
Attention: we can design the machine according to your wire diameter,wire raw materials and wire barbed.
Detailed Images

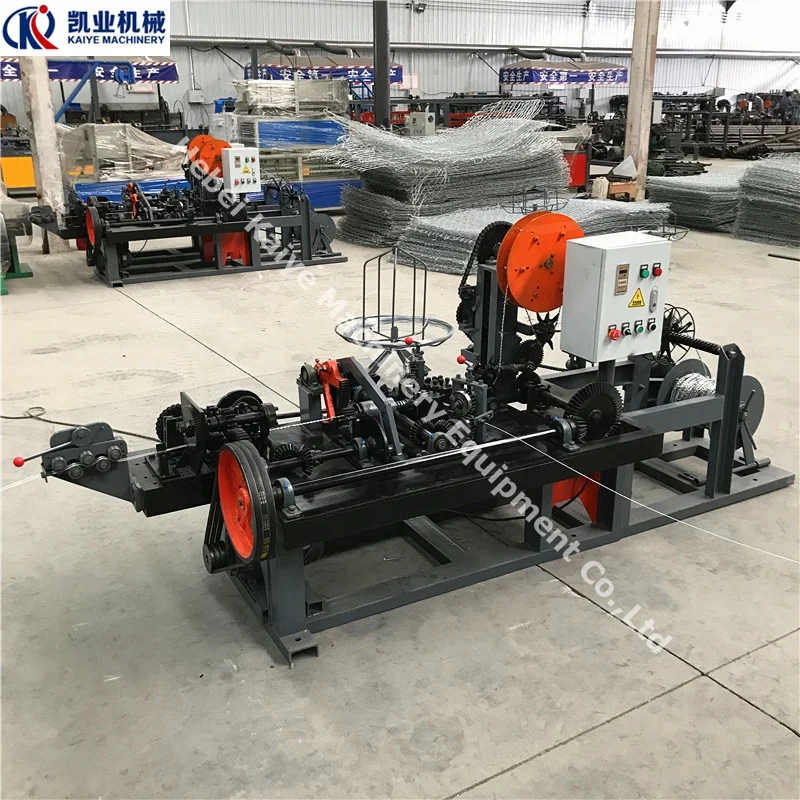

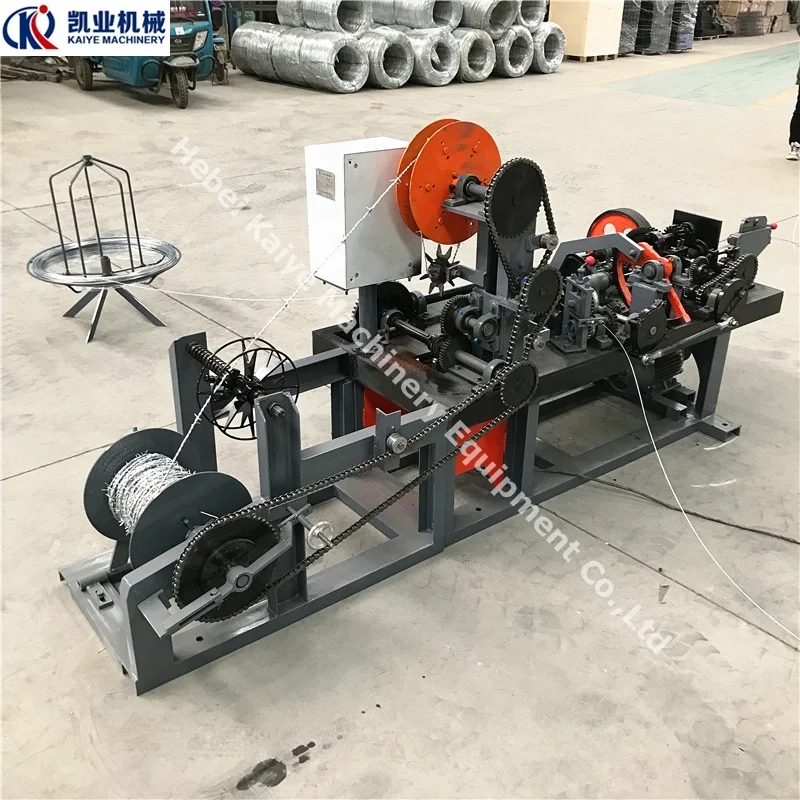

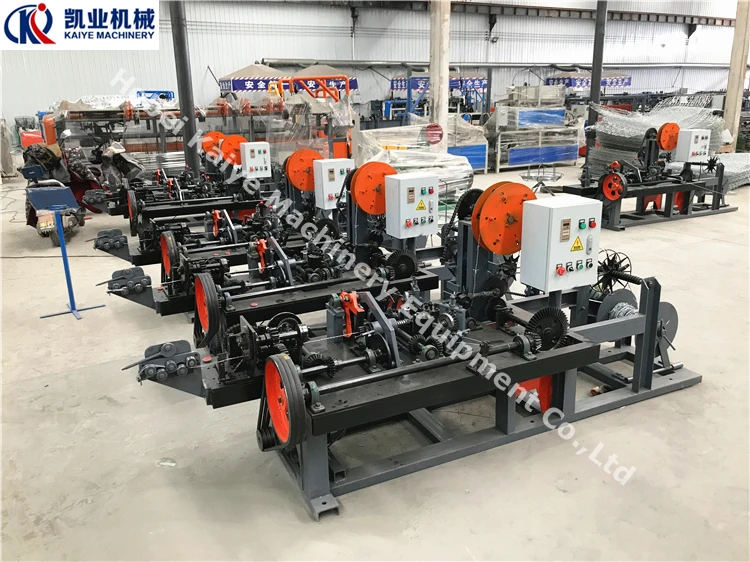

Double wire positive and negative twist barbed wire making machine(CS-C)

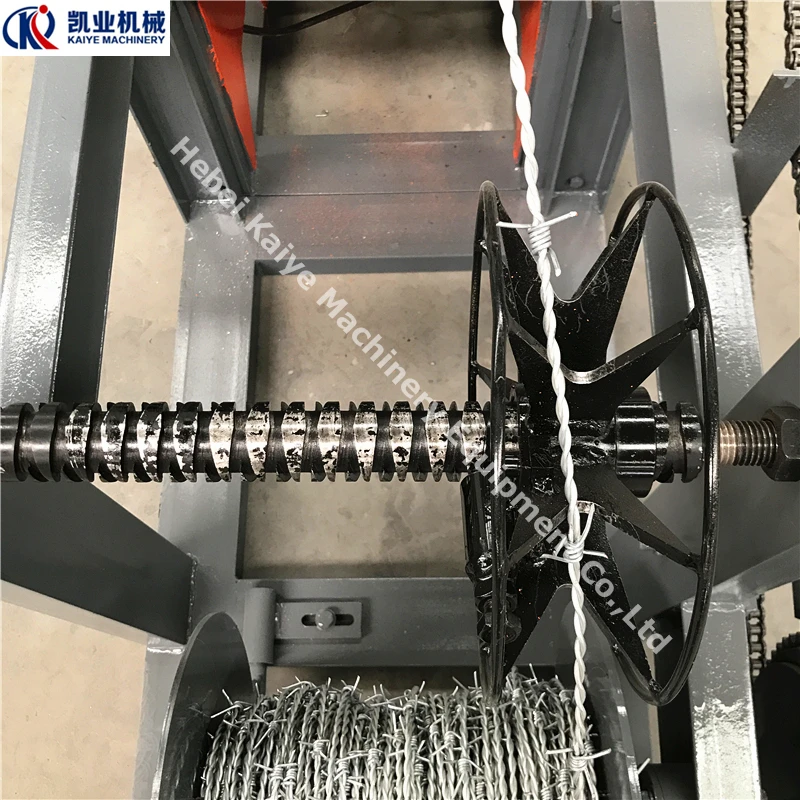

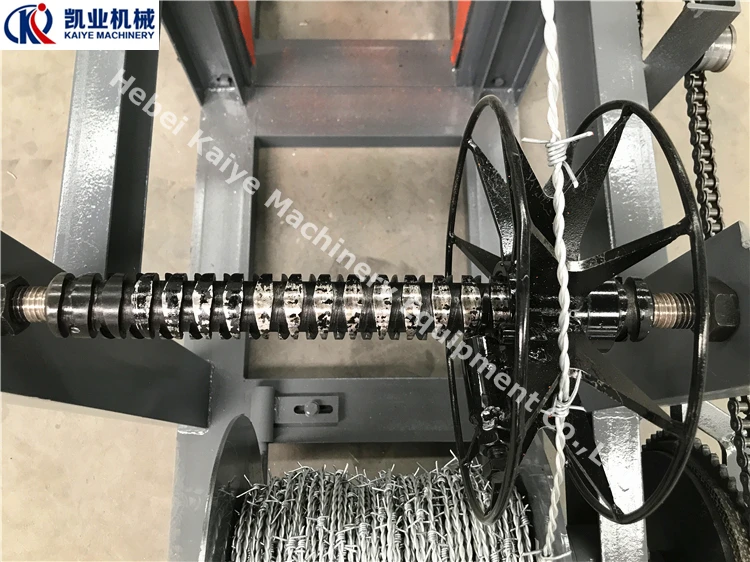

Traverse device can automatically move the position to make the take-up more uniform and beautiful.

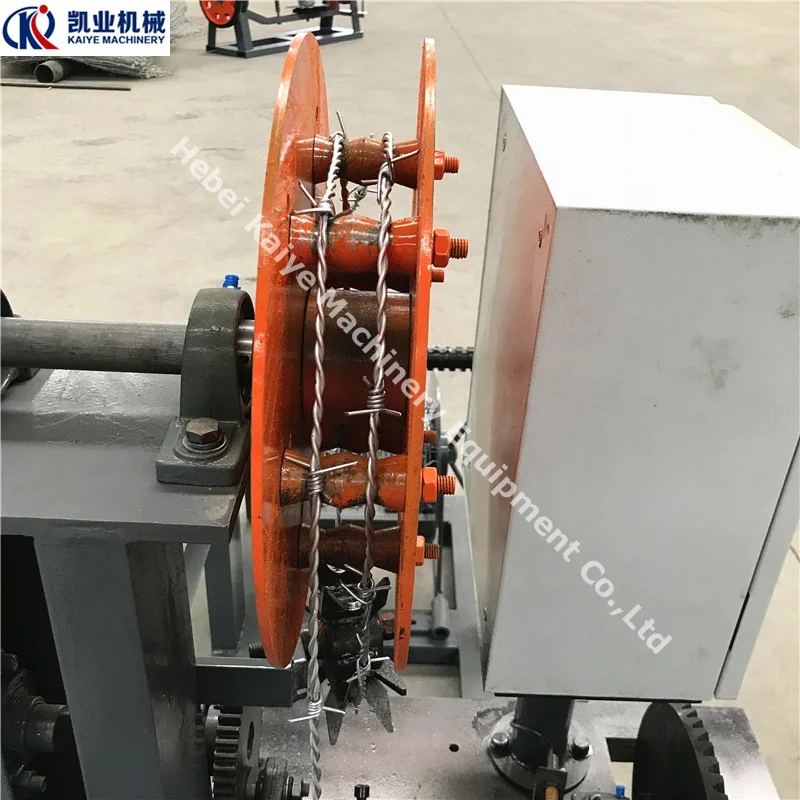

(2)Take up reel
Take up reel can be customized according to customer requirements, including the size and diameter of the reel.
Take up reel can be customized according to customer requirements, including the size and diameter of the reel.

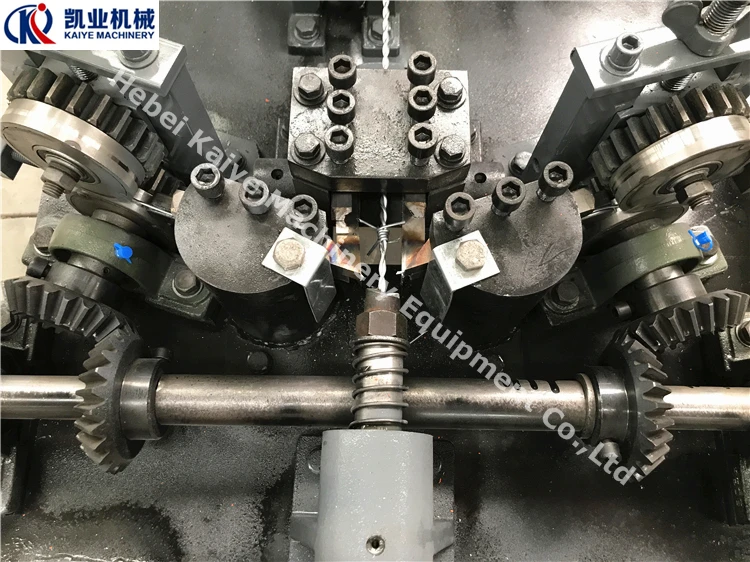

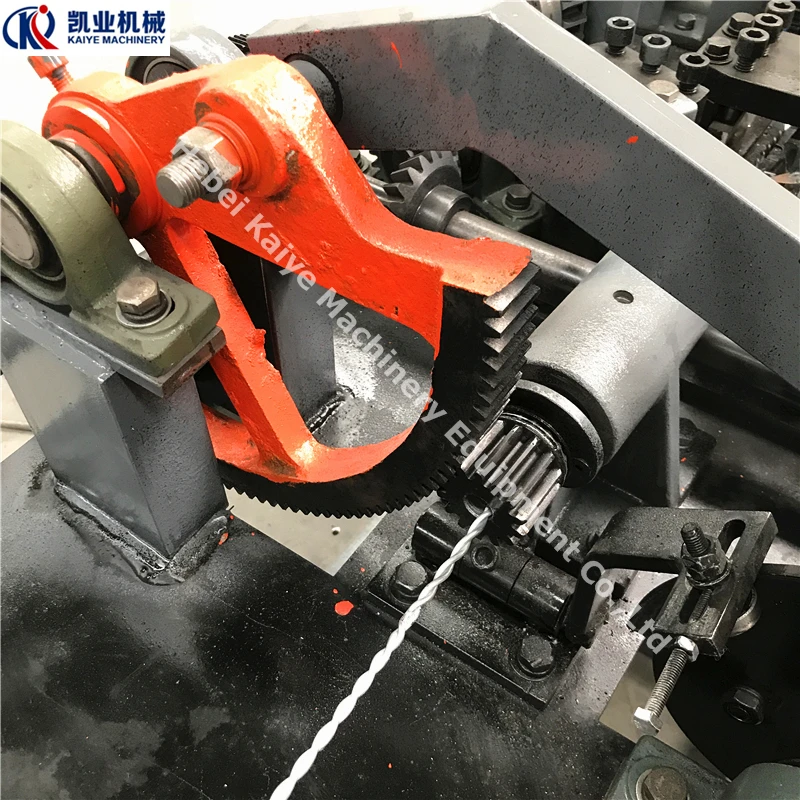

The screw thread system has the advantages of simple structure, convenient operation and easy replacement of twisted head.
(4)Feeding wheel

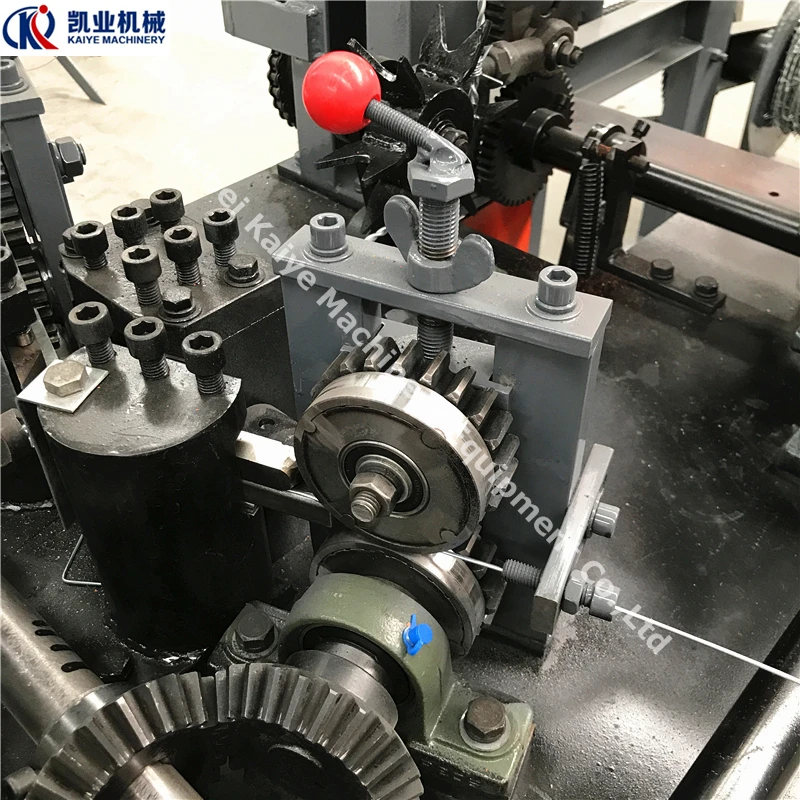

The surface of the feeding wheel has been specially treated, which is durable. It can smooth the wire and reduce faults.
The surface of the feeding wheel has been specially treated, which is durable. It can smooth the wire and reduce faults.

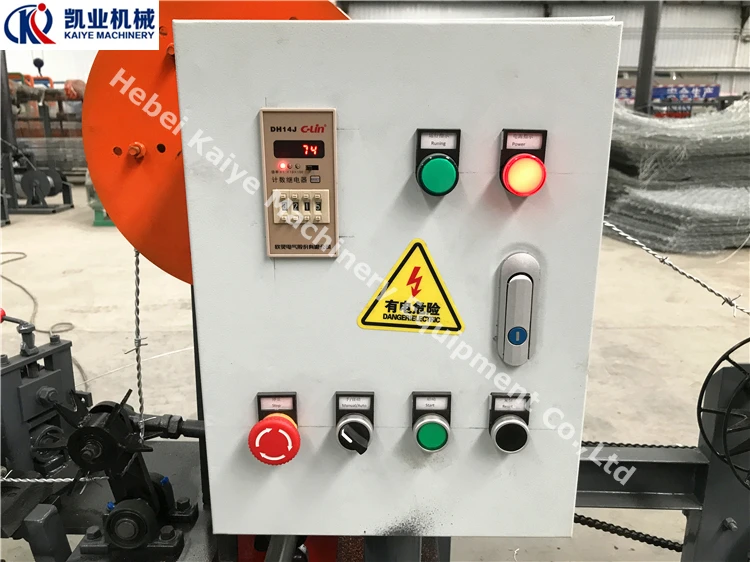

There are start button, stop button and emergency stop button on the electric box. The counter can set the output automatically.

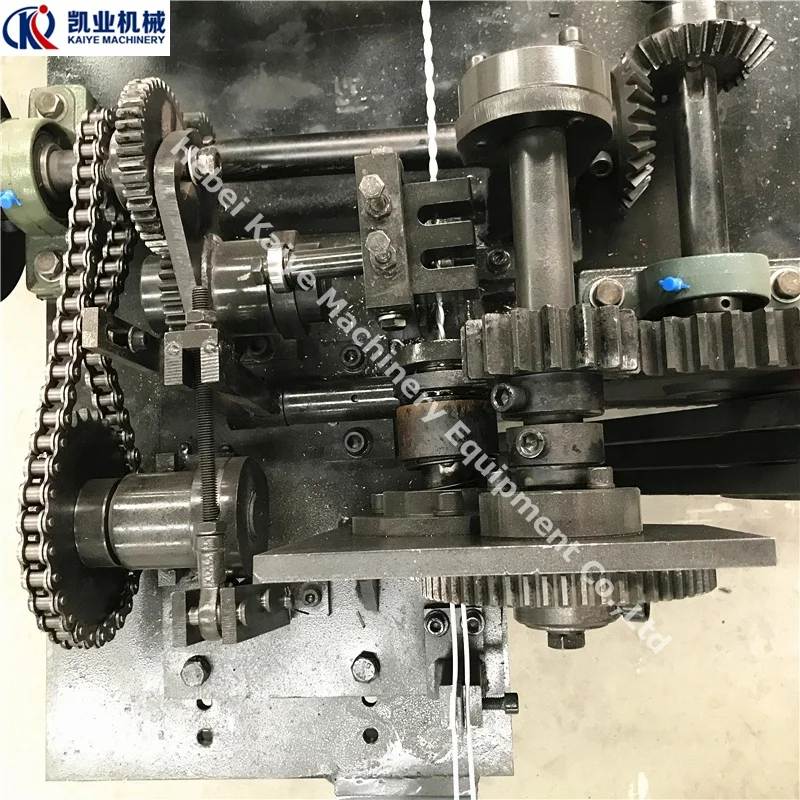

(6)Mechanical parts
The mechanical parts are made of alloy steel to ensure the long-term operation and overall service life of the machine.
The mechanical parts are made of alloy steel to ensure the long-term operation and overall service life of the machine.
Application
Application

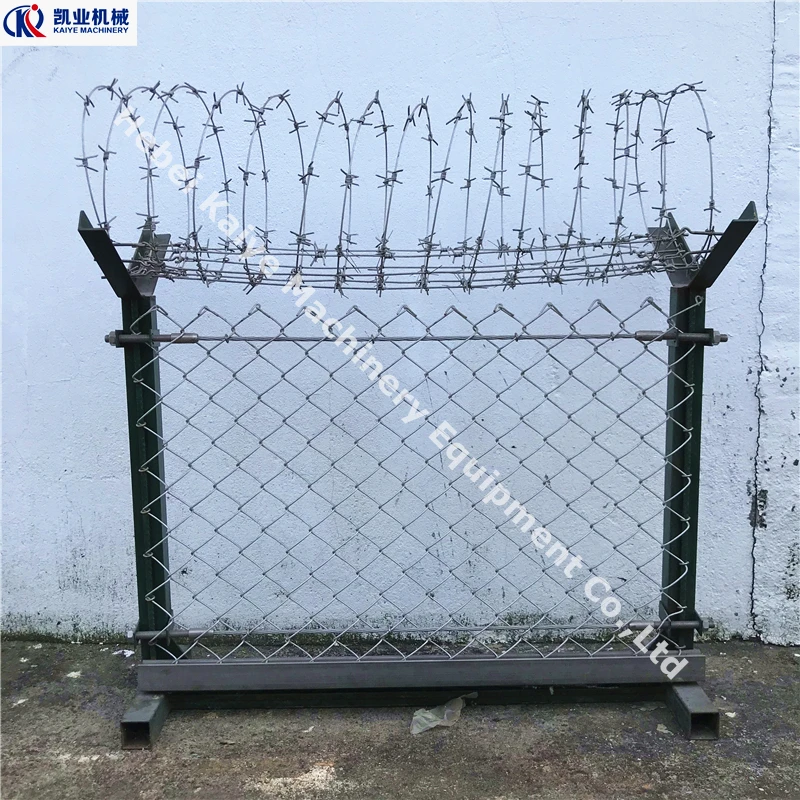

(1)Barbed wire machine is used to produce barbed wire, which is widely used for safety protection function, national defense, animal
husbandry, playground fence, agriculture,railways,highways,expressway, etc.
(2)Our mechanical production of barbed wire pitch standards, beautiful appearance, very popular in the market.
husbandry, playground fence, agriculture,railways,highways,expressway, etc.
(2)Our mechanical production of barbed wire pitch standards, beautiful appearance, very popular in the market.
Our Service
Friends from all over the world
Kaiye's quality has been managed by the standard of ISO9001 International Quality Management System. We have built good reputation among our customers with excellent quality products, reliable services and credit.
We have been supplying the domestic market and also have exported to the Romania, Lithuania, Turkey, Poland, Belarus, Ukraine, Russia, Kazakhstan, Saudi Arabia, Egypt, Algeria, South Africa,Vietnam, Thailand, India, Pakistan, Philippines, Indonesia, Australia, Mexico, Colombia, Argentina, Bolivia, Brazil, etc
We stick to the business principle of "Favorable comments from high quality product and service", and thus we supply a whole-process service from product designing, developing, producing, installing and after-sales service for the clients with first-class techniques top-grade products.
We have been supplying the domestic market and also have exported to the Romania, Lithuania, Turkey, Poland, Belarus, Ukraine, Russia, Kazakhstan, Saudi Arabia, Egypt, Algeria, South Africa,Vietnam, Thailand, India, Pakistan, Philippines, Indonesia, Australia, Mexico, Colombia, Argentina, Bolivia, Brazil, etc
We stick to the business principle of "Favorable comments from high quality product and service", and thus we supply a whole-process service from product designing, developing, producing, installing and after-sales service for the clients with first-class techniques top-grade products.
Our Company
Factory history

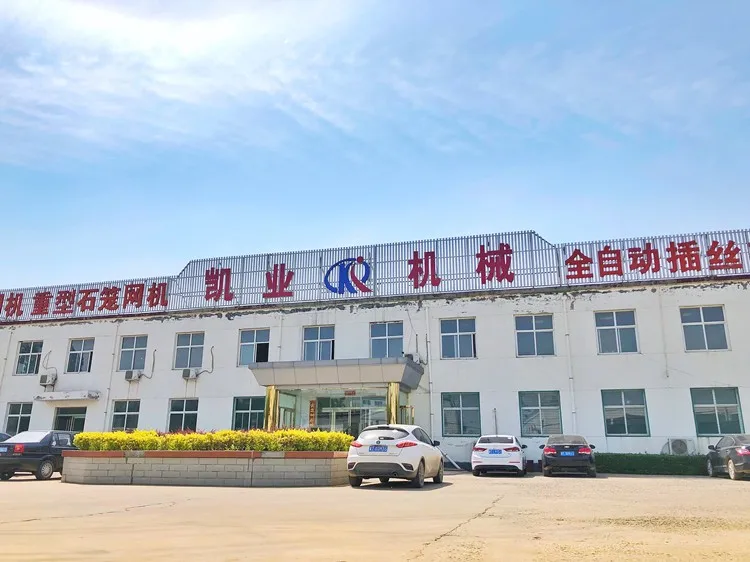

Our company is located in Anping county, Hengshui,Hebei. Anping county is the hometown of the wire mesh.
We have our own factory and professional R&D team to guarantee the quality of products and strict tests pre-shippment. And as for some certain machines, our market share is up to 70%. So we're your sensible choice and stable cooperation partner.

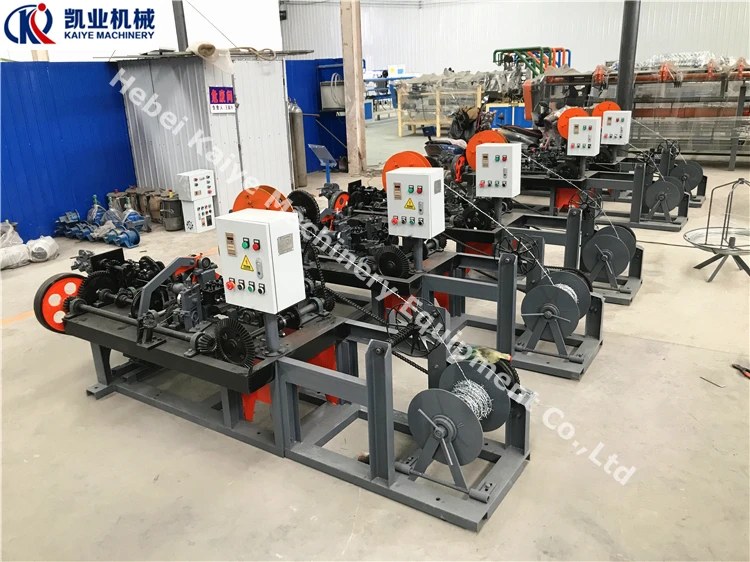

Factory workshop
We have our own wire mesh machinery and several pilot plants with strong technical force and advanced production and checkout equipment.
Our main products: wire mesh welding machine, 3D panel production line, reinforcement mesh welding machine, EPS panel production line, Gabion mesh machine, Chain link fence machine and so on.
Factory R&D Team
The factory has a strong and experienced R&D team. The average working life of team engineers has exceeded 8 years.
Our technology is along the most advanced international route, and we can design reasonable solutions according to the
requirements of customers.
Our technology is along the most advanced international route, and we can design reasonable solutions according to the
requirements of customers.
FAQ
Q:Why choose us?
A: Save Time, Save Cost, and Safety ! Each of our customers proved this!
Q:How do you guarantee your machine's quality when producing?
A:Our services are always by your side, We have our technicians to inspect the parts of the machine every day, the machine will be adjusted well in our factoty before shippment ,all the parts are in good condition.
Q:Can you make the machine according to my design or photo type?
A:Yes. We have an experienced team to work out the most suitable design and production plan for the machine.
Q: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation of the machine.
Q.What policy of your guarantee?
A: Within the One-YEARS period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems after two years,you need to buy by factory cost.
