Барабанная сушилка для корма животных с высокой степенью сушки
- Category: Rotary Drying Equipment >>>
- Supplier: Zhengzhou Dingli New Energy Technology Co. Ltd.
Share on (62216503441):
Product Overview
Description

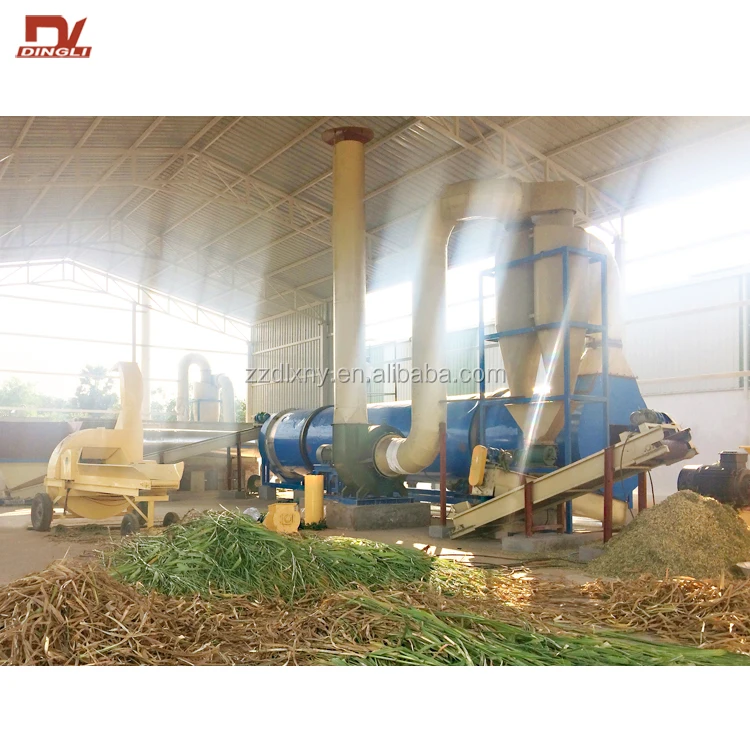

High Drying Ability Grass Drum Dryer for Animal Feeds
Product Description
Product Introduction

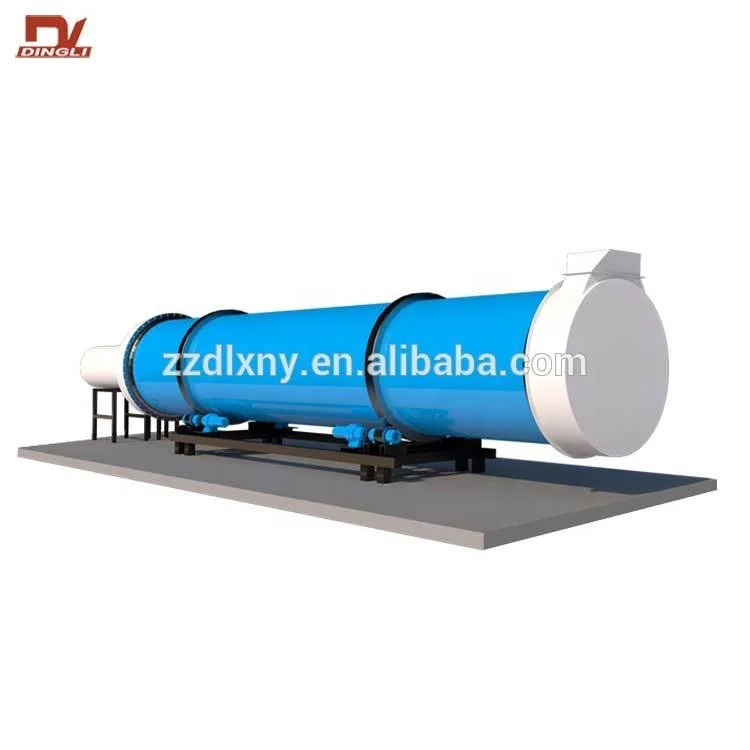

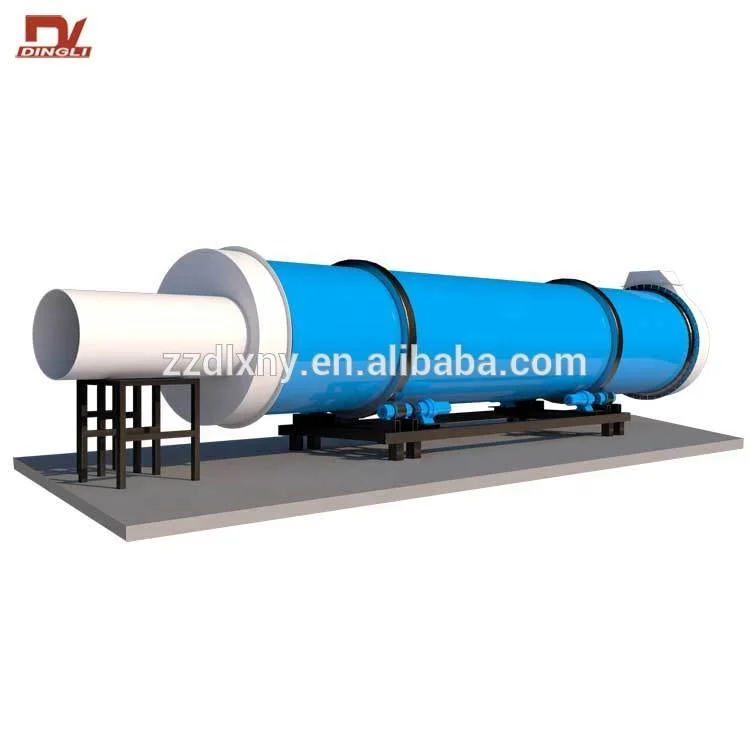

DingLi three-layer single-channel pasture rotary drum dryer (Patent No.: ZL200920089749.2), the equipment with large output, high efficiency and energy saving, small footprint, which is particularly suitable for high-moisture materials such as pasture grass drying with clean type hot blast stove. It can rapid drying moisture from 65-75% to 14-18% in one-time. Dry grass completely retained the nutrients of fresh pasture, bright color, smell fragrance, energy saving 30-50% than the ordinary dryer, can maximize energy conservation and drying costs.
Suitable for drying elephant grass, alfalfa, wheat straw, barley straw, oat straw, rye straw, rice straw, sorghum stalks, corn stalks, potato vines, beanstalks, and 45-75% moisture of pasture straw. According to each material characteristics, production scale, quality requirements, application requirements, cost control, automatic level, on-site conditions, investment quota to optimized drying process technology and equipment configuration services.
Main Features
1. It can realize intelligent control, one-touch operation, automatic operating parameter control. The dryer stays at the best operating status all the time, thus guaranteeing that the dried material is of stable moisture and bright color.
2. It eliminates the sundries and iron automatically, ensuring that the dried sawdust will not enter into next process.
3. The self heat preservation heat efficiency of the cylinder reaches up to 70% (the heat efficiency of traditional single drum dryer is only 35%), which improves the heat efficiency by 30% at least.
4. It adopts four-wheel driving which is more stable and reliable.
5. Compared with single drum dryer, i t reduces floor space by 50%, decreases civil engineering investments by 50%, which is more energy-saving.
6. The inner structure of dryer uses multiple efficient lifting plates combined mode, thus controlling the drying process and heat distribution effectively. High heat use ratio, the discharged off-gas temperature is lower than 50℃.
7. It controls the material flow by frequency control. Users can adjust the required final moisture index easily based on requirement.
8. Modularized dust collecting-purifying heat recycle use allocation, safe and environmental.
9. It can be matched with a few new type hot blast stove. Efficient and energy-saving, controllable heat supply, simple operation. The energy consumption decline reaches up to 30 %, power consumption decreases by 20 %, the operating cost is lower.
2. It eliminates the sundries and iron automatically, ensuring that the dried sawdust will not enter into next process.
3. The self heat preservation heat efficiency of the cylinder reaches up to 70% (the heat efficiency of traditional single drum dryer is only 35%), which improves the heat efficiency by 30% at least.
4. It adopts four-wheel driving which is more stable and reliable.
5. Compared with single drum dryer, i t reduces floor space by 50%, decreases civil engineering investments by 50%, which is more energy-saving.
6. The inner structure of dryer uses multiple efficient lifting plates combined mode, thus controlling the drying process and heat distribution effectively. High heat use ratio, the discharged off-gas temperature is lower than 50℃.
7. It controls the material flow by frequency control. Users can adjust the required final moisture index easily based on requirement.
8. Modularized dust collecting-purifying heat recycle use allocation, safe and environmental.
9. It can be matched with a few new type hot blast stove. Efficient and energy-saving, controllable heat supply, simple operation. The energy consumption decline reaches up to 30 %, power consumption decreases by 20 %, the operating cost is lower.
Principle
Material Flow: the crushed materials of which the moisture is about 35%-55% are sent into the roller by conveyor to realize downstream drying. Under the effect of inner shoveling plate, materials are took and scattered constantly, and move in spiral forward method. Through three layers (inner, middle and outer layer), heat exchange are realized between material and hot air medium. The materials that achieve drying effect move forward fastly and are discharged out of the roller. Wet materials that still don’t achieve drying effect couldn’t move fastly due to self-weight, and are dried completely during the controlling route, thus achieving drying effect. Material moisture is decreased to 12%-15%. After the whole drying process is completed, materials are discharged by screw conveyor. Inside the roller is installed with vibrating cleaning device, which prevents materials from bonding to the cylinder wall.
Air Flow: through hot blast stove and air blower inflating, the air enters into the hot blast stove for combustion heating. Its temperature reaches up to 300-500℃, then it is inhaled by the dryer induced draft fan to dry material and evaporate water. When temperature decreases to 55-60℃, it is discharged out of the dryer. Wet air containing dust are discharged on standard through dust remover purifying.
Air Flow: through hot blast stove and air blower inflating, the air enters into the hot blast stove for combustion heating. Its temperature reaches up to 300-500℃, then it is inhaled by the dryer induced draft fan to dry material and evaporate water. When temperature decreases to 55-60℃, it is discharged out of the dryer. Wet air containing dust are discharged on standard through dust remover purifying.
Specifications
Technical Parameters
We can help optimize the drying process according to the property of different materials, production scale, application requirements, cost control, automation level and site condition.
Model(DLSG) | 1409 | 1615 | 2008/3 | 2010/3 | 2210/3 | 2510/3 | 2512/3 | 2912/3 | ||||||||
Input Capacity(t/h) | 1.53 | 2.89 | 5.20 | 6.63 | 7.24 | 8.91 | 10.50 | 12.14 | ||||||||
Output Capacity(t/h) | 1.08 | 2.03 | 3.67 | 4.68 | 5.11 | 6.29 | 7.41 | 8.57 | ||||||||
Vaporization(t/h) | 0.45 | 0.85 | 1.53 | 1.95 | 2.13 | 2.62 | 3.09 | 3.57 | ||||||||
Early Moisture(%) | 40±5% | |||||||||||||||
Final Moisture(%) | 15%(adjustable) | |||||||||||||||
Drying Temperature(°C) | 280±30℃ | |||||||||||||||
Total Power(KW) | 34 | 45 | 78 | 90 | 105 | 125 | 140 | 155 | ||||||||
Total Weight(T) | 22 | 28 | 40 | 45 | 50 | 60 | 68 | 76 | ||||||||
Plant Area(M) | 5*15 | 6*22 | 8*16 | 8*18 | 8*20 | 10*20 | 10*24 | 10*24 | ||||||||
Except above models, we also can supply special model according to your requirements. | ||||||||||||||||
Our Service
Packaging & Shipping
Your equipment will be well tested before leaving the factory and will be well packaged for long distance ground and sea transport without damage.
Our Services Items
Pre-sale
1. According to your needs, select right model for you.
2. According to your special requirements, design customized solution and manufacture customized products for you.
3. Welcome your visit.
Sale
1. Sign contract, pay deposit, we arrange production.
2. Product acceptance.
3. Help you formulate construction scheme.
After-sale
1. Assign engineer service for you on-site freely.
2. Install and adjust device, train how to operate.
3. After installation, leaving 1-2 technical staff to help you on-site production, until achieve customer satisfaction.
1. According to your needs, select right model for you.
2. According to your special requirements, design customized solution and manufacture customized products for you.
3. Welcome your visit.
Sale
1. Sign contract, pay deposit, we arrange production.
2. Product acceptance.
3. Help you formulate construction scheme.
After-sale
1. Assign engineer service for you on-site freely.
2. Install and adjust device, train how to operate.
3. After installation, leaving 1-2 technical staff to help you on-site production, until achieve customer satisfaction.
Company Information
About Dingli Group
Our DingLi Group company was founded in 2005, is currently compose of Zhengzhou Dingli New Energy Technology Co., Ltd, Zhengzhou Drying Technology Co., Ltd, Zhengzhou Jiutian Machinery Co., Ltd and Zhengzhou Engineering Technology Research Center, which was the only innovative and comprehensive enterprise with research, design, manufacture, sales and service in the domestic drying industry. Group owns 8 series equipment such as the dehydration series, drying series, thermal series, crushing series, granulating series, conveying series, environmental protection series and electric control equipment, besides we own more than 150 kinds of high-tech products.
Dingli Group Honors
The certificates that we have got, such as CE, ISO, SGS and so on.
\t\t\t\t\t\t\t\t\tBuyer & Project Case \t\t\t\t\t\t\t
Customers Visiting
More than 300 customers from Southeast Asia, Central Asia, Eastern Europe, Africa and South America have visited our company.The communication is very smooth, and most of the customers are very satisfied with the solutions and services we provide.

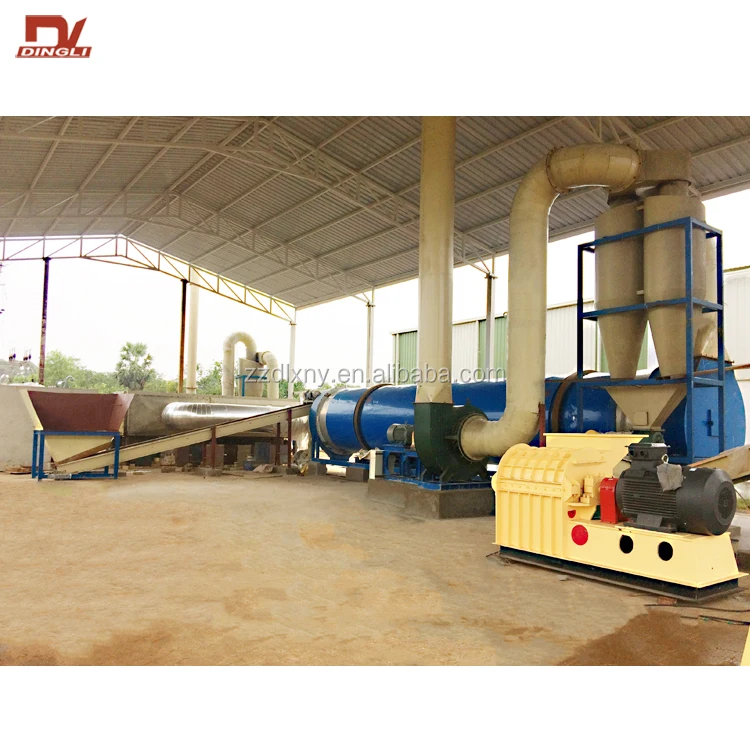

Project Cases
Our equipment has exported to over 80 countries, such as Germany, Britain, United States, Italy, Israel, Chile, Thailand, Russia, Vietnam, India, Cambodia, Indonesia, Malaysia, Thailand etc.
