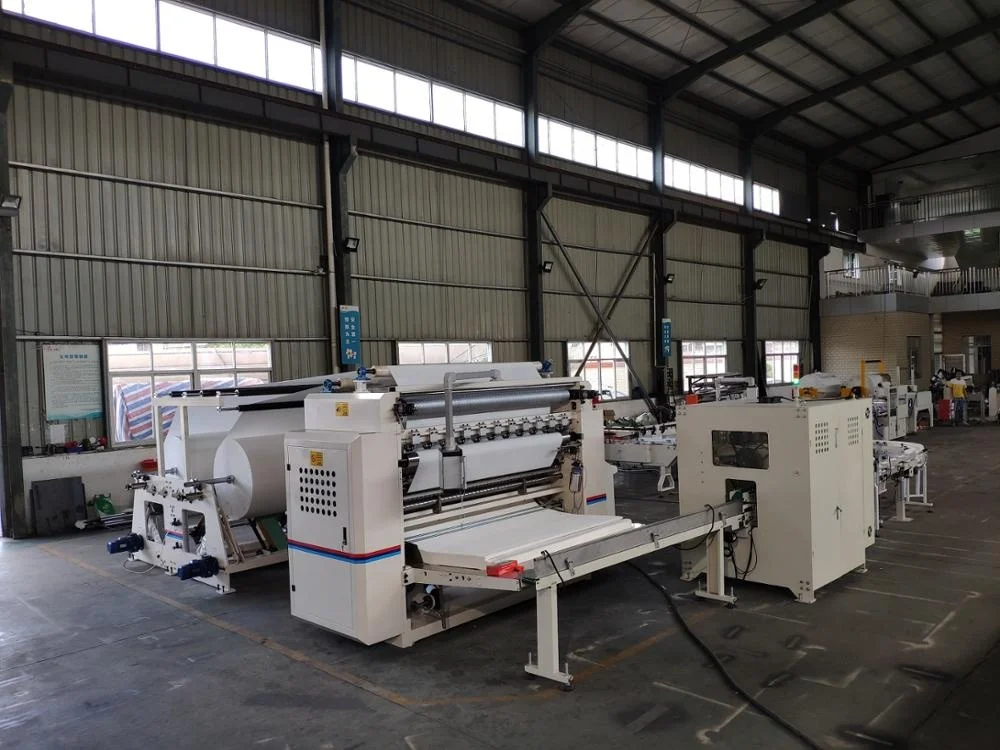

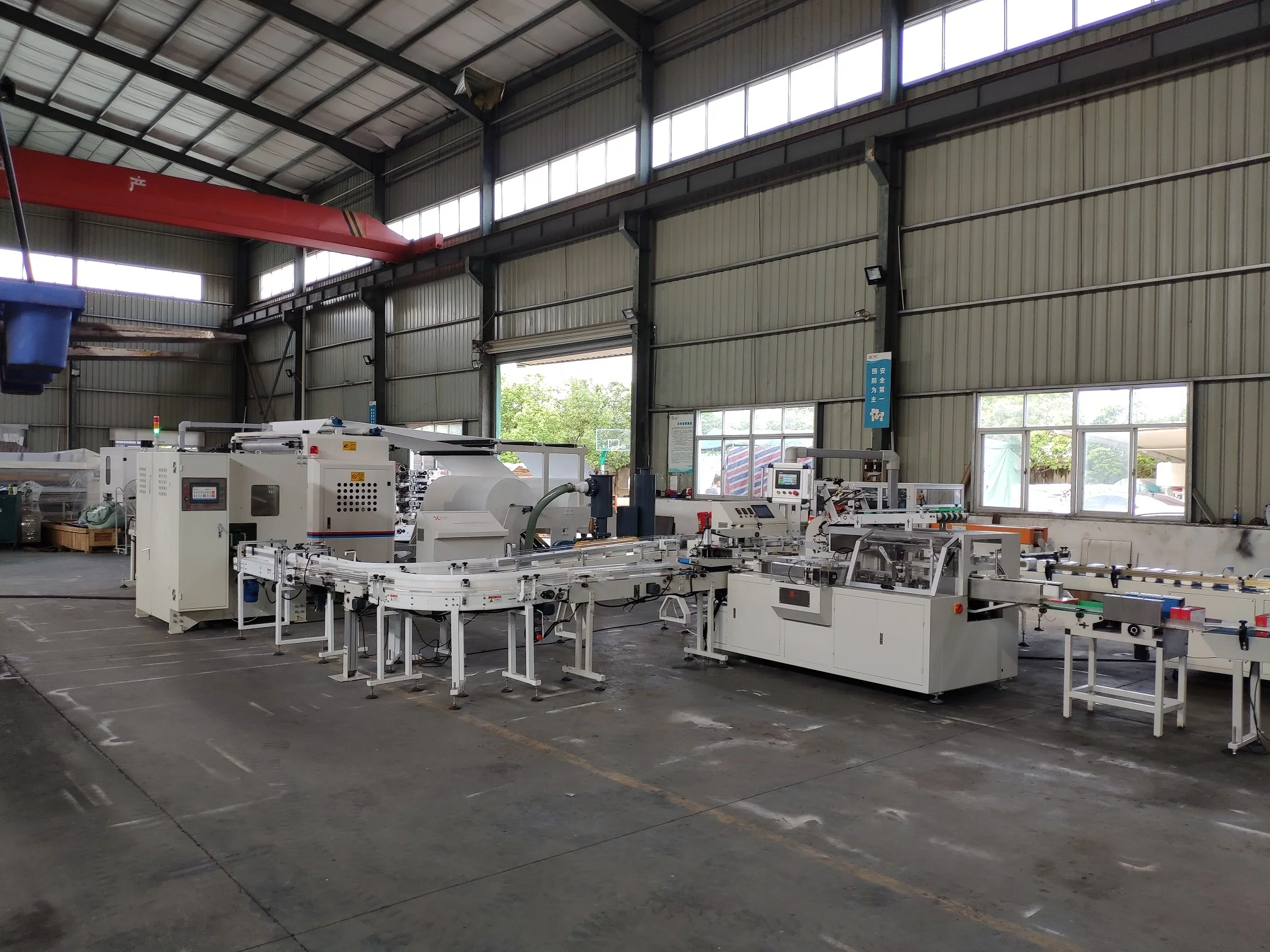

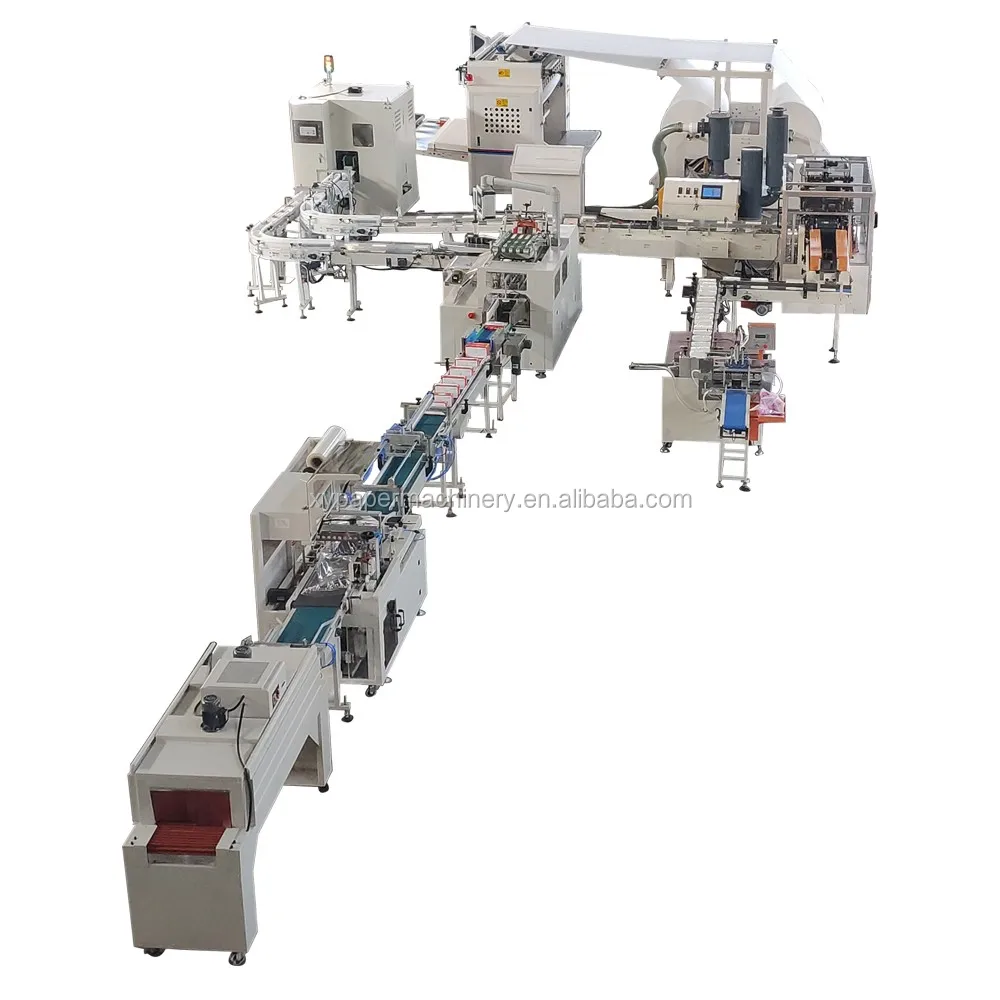

Full automatic facial tissue paper machine production line XY-GU-A-B
Product Application
Automatic facial tissue production line is consist of facial tissue folding machine, single channel log saw cutting machine,single bag packing machine,facial tissue carton box packing machine.Machine working smoothly and stable from the raw material to finished products.This production line have high degree of automation,save labor costs,reduce labor intensity,is the best choice of the production of tissue products
Video Link: https://youtu.be/cU-BoF-2Ie0
https://www.youtube.com/watch?v=duaGxgqcDj8
https://www.youtube.com/watch?v=VPrff2MqjPs
Detailed Images

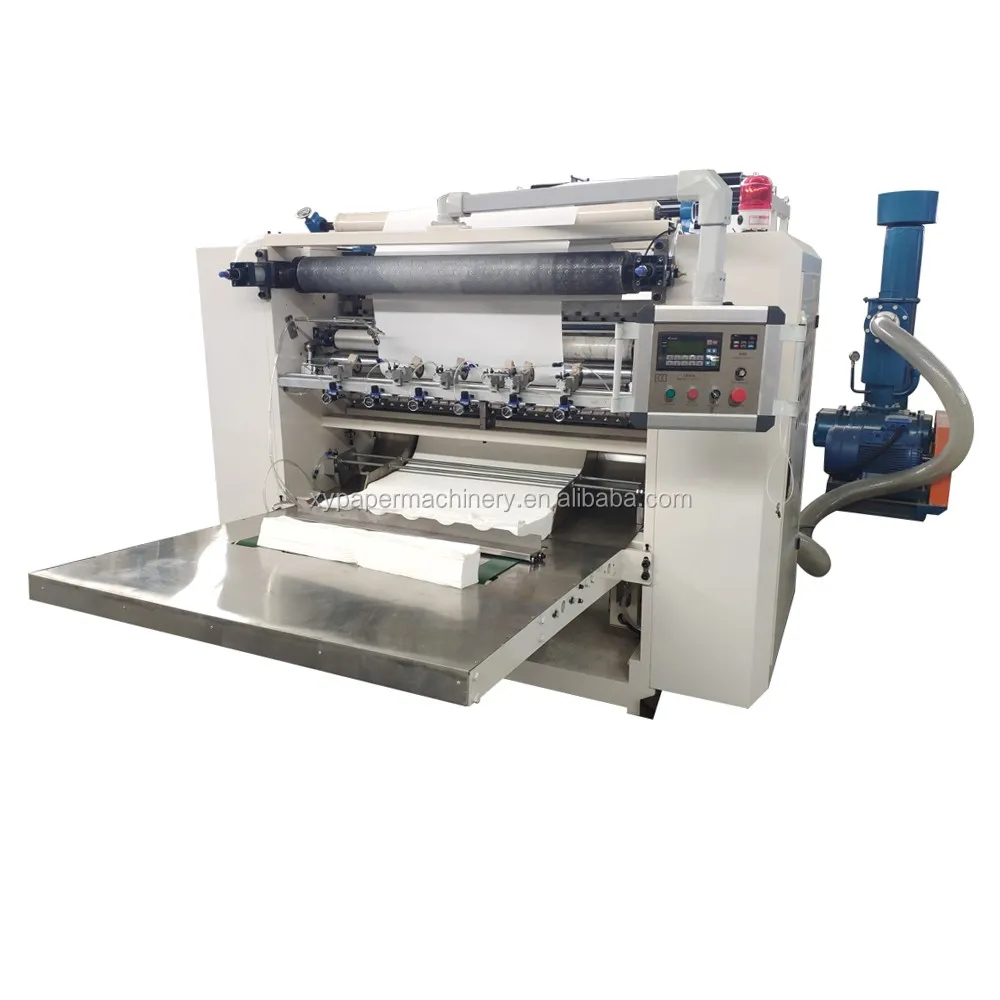

XY-GU-20A Automatic Facial Tissue Folding Machine
XY-GU-20A facial tissue making machine working flow :The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders, and reciprocal folded into a sheet of rectangular or square facial tissue. This machine adopts independent servo motor drive ,and automatic paper tension control. It features of high speed ,nice folding and easy operation . 1. Configuration pneumatic embossing, pneumatic separation. (embossing customer selected) 2. Wallboard rack and fast machine running stability is excellent. 3. Pneumatic jumbo roll loading, pneumatic paper driving , Stepless speed ratio of adjustment ,and web tension control. 4. Equipped with roots type vacuum pump for stable running of the machine 5. Make various products width as requirement . 6. Equipped with edge embossing unit to keep the two plies together. 7. The machine will stop when the paper broken. It avoid waste caused by no paper or paper broken. 8. The web can be threaded on the machine by the two jog buttons, It's more safety and easier to thread the web.
Video Link: https://www.youtube.com/watch?v=vfRmOclVM2A
100*200±2mm(Customized design according to request)
Unfold size of finished products
200*200±2mm(Customized design according to request)
Diameter of jumbo roll paper
1200mm
Embossing unit
Steel to steel full embossing, Steel to steel edge embossing ,independent pneumatic regulation
Pneumatic system
3 HP air compressor ,mini pressure 5kg/cm2PA
Power
7.5Kw 380V 50Hz
Weight
2-6T

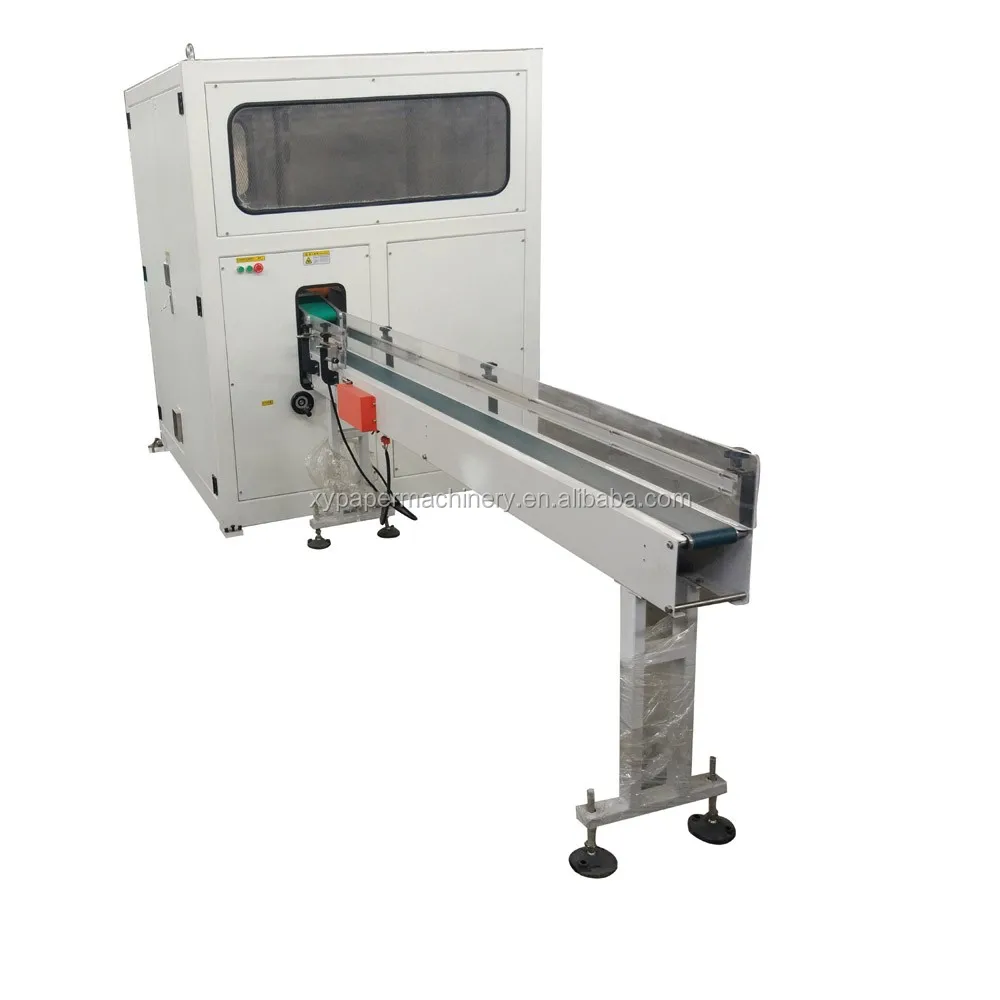

XY-GU-281 Single Channel large roundabout cutting machine Cyclotron paper cutter is used to automatically cut off a row folded and round roll paper towel products, such as the removable tissue or toilet roll paper. The whole machine adopts servo drive technology and frequency control of motor speed and enhance the stability of paper cutting, and improves the cutting precision of tissue and to cut off the end face flat . Cutting length within the scope of the machine allows arbitrary adjustable. Fixed automatic knife grinding wheel Angle, ensure the quality of the sharpening knife. Knife grinding place often blow compressed air for cooling, and can match the special cooling fluid.
Video Link: https://www.youtube.com/watch?v=9I_eDcdlH0s
The length of unfinished products
minimum 500mm(or, mini 5lines)
The Height of finished product
30~130mm
Speed
100-120 cuts/min
Round blade outer diameter
Φ610mm
Paper cutting circular knife top speed
980R/min
Finished products specification
70~300mm
Paper width
70~110mm
Cutting Length
70~300mm
Left-over Length
20~65mm
Air pressure
0.5~0.8MPa
Power
11Kw 380V 50Hz
Overall size of machine
4600*1700*2500mm
Weight
2500 Kg

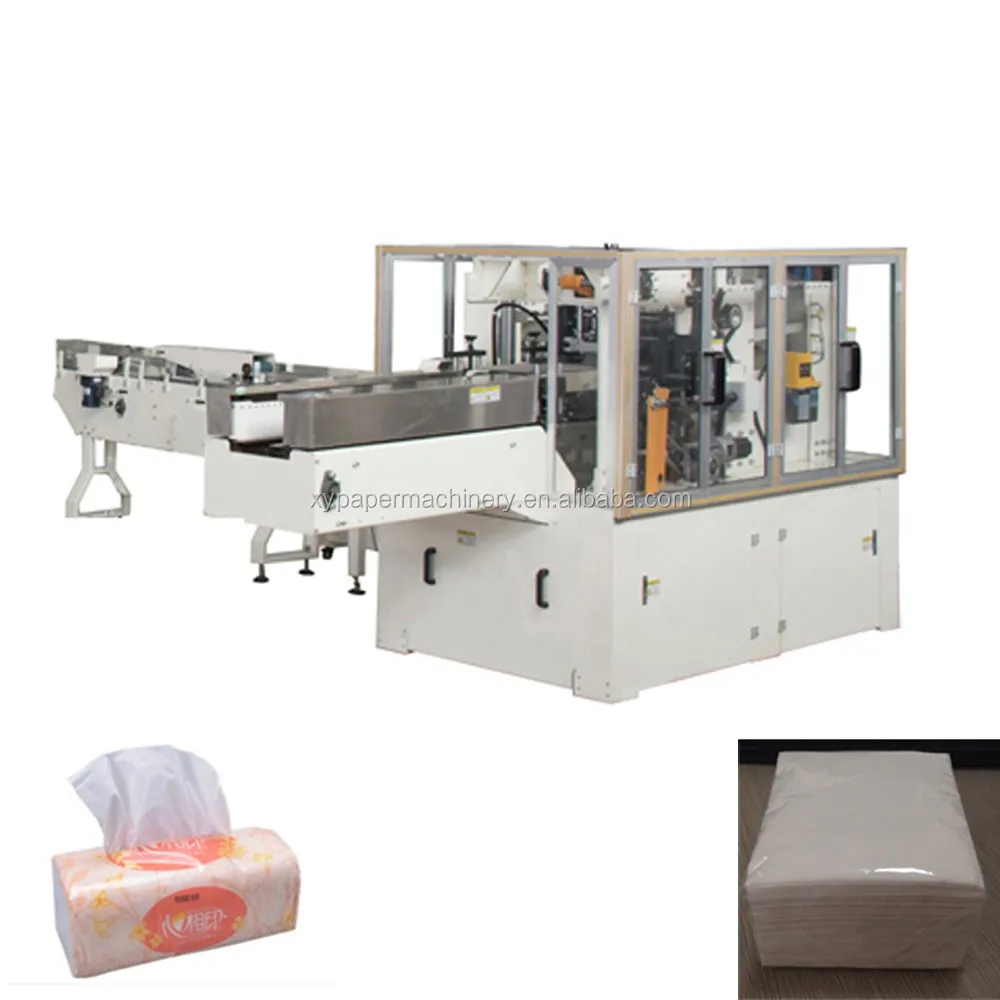

XY-BT-298 Automatic single bag facial tissue packing machine
1. Adopt packing method by wrapping, hemming and sealing with compact structure and high product appeal. 2. Adopt the controlling system of step-less frequency conversion, touching screen and PLC, clear display and easy maintenance. 3. Adopt auto-putting conveyor, easy to be connected with automatic production line, saving laboring cost. 4. Stepless-speed regulation with double transducer, automatically adjusting packing film length. 5. High autoimmunization, high specialization, high efficiency and but less trouble. 6. Different sizes can be handled easily thanks to a fast and simple changeover facility.
Video Link: https://www.youtube.com/watch?v=9I_eDcdlH0s

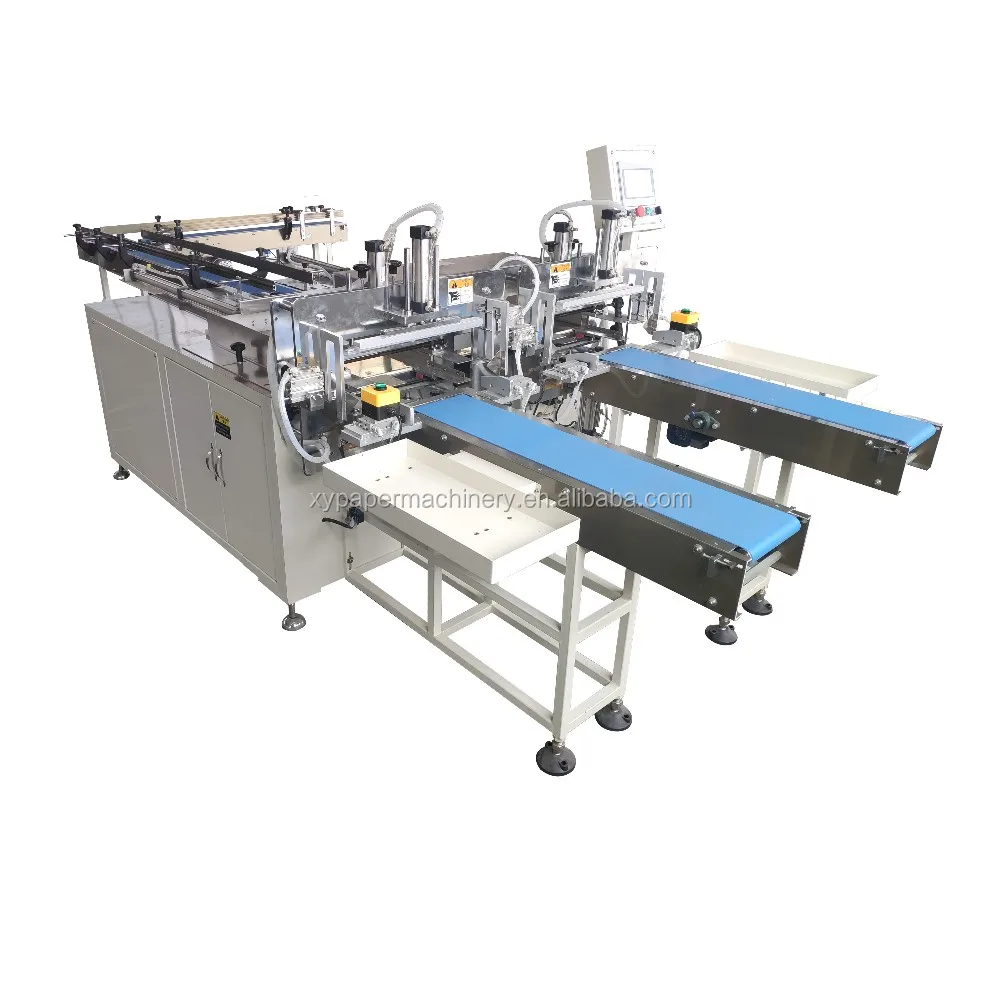

This machine is used for soft-drawing multi-piece middle bag packing, convey automatically by conveyer belt. This machine ssemble paper-feeding, bagging, sealing and cuting in one body. Adopt PLC, liquid crystal text display parameter, easy to set, temperature controll accuracy. Package sealing is good trimming. It is a semi-automatic machine that only need the worker to bagging.
Speed
10-15 bags/min
Packing dimension
135-190*90-100*60-80 mm( the width will be selected by customer)
Power
1.2 Kw 380V 50Hz
Air supply
0.6 Mpa (prepared by buyer)
Overall size
3900*1200*1500 mm
Weight of machine
600 Kg

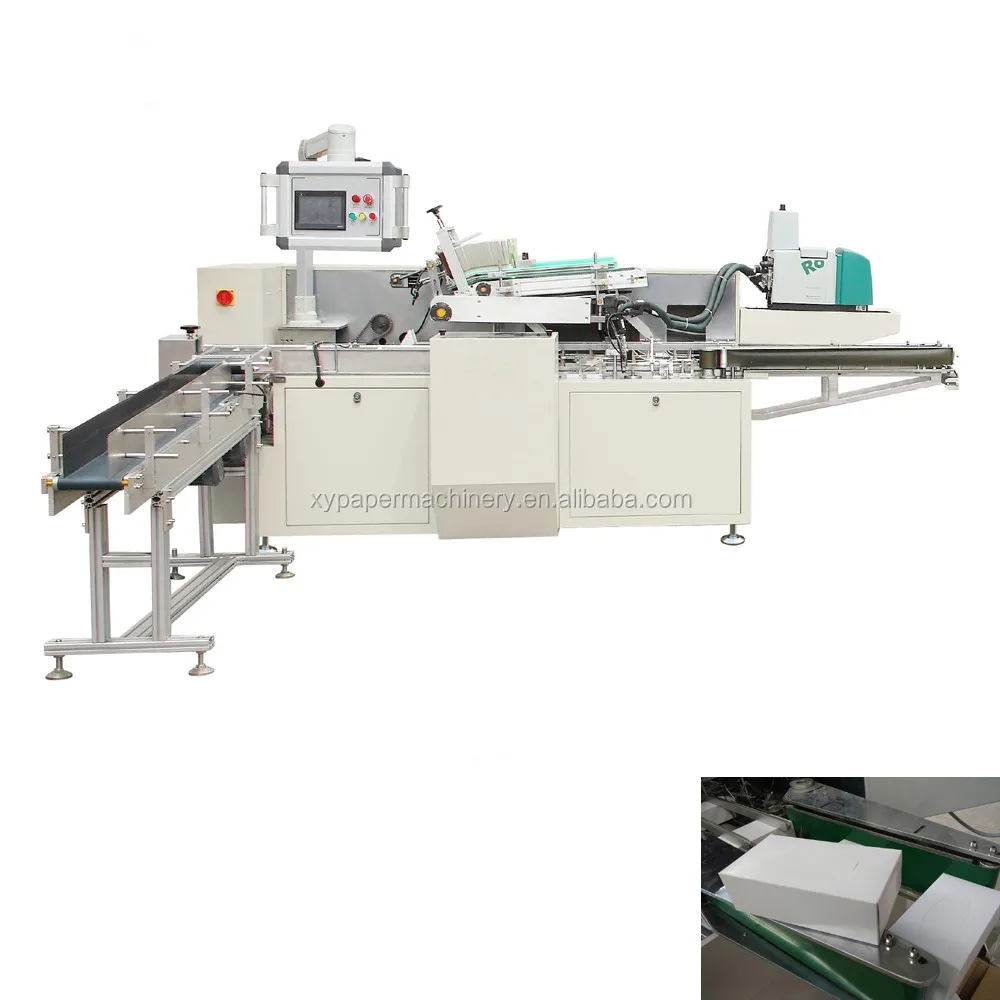

Application: It is suitable for packing facial tissue paper and other related similar content compact with automatic leaflet folding, box opening and loading, then sealing the box. It adopts PLC control, photoelectricity supervision to coordinate with every parts. Automatic stop and trouble display when machine running exceptional in order to solving troubles in time. This machine can be used separately, and also can connect with facial tissue log saw cutting machine on line. Features: 1. Rejection automatically if no products, nonstandard height or lack of leaflet. 2. Stop automatically if incorrect position of products into carton. 3. Stop automatically if no cartons or out of leaflets continuous. 4. Easy to change to different products. 5. Protecting automatically for overloading. 6. Automatically displaying device for speed and finished products counting.
Speed
50-80 boxes/min
Packing size
(100-230)X(30-120)X(20-90)mm
Power
11 Kw 380kV 50Hz
Overall size of machine
3400x1400x1700mm
Weight
2000 Kg
Related Products

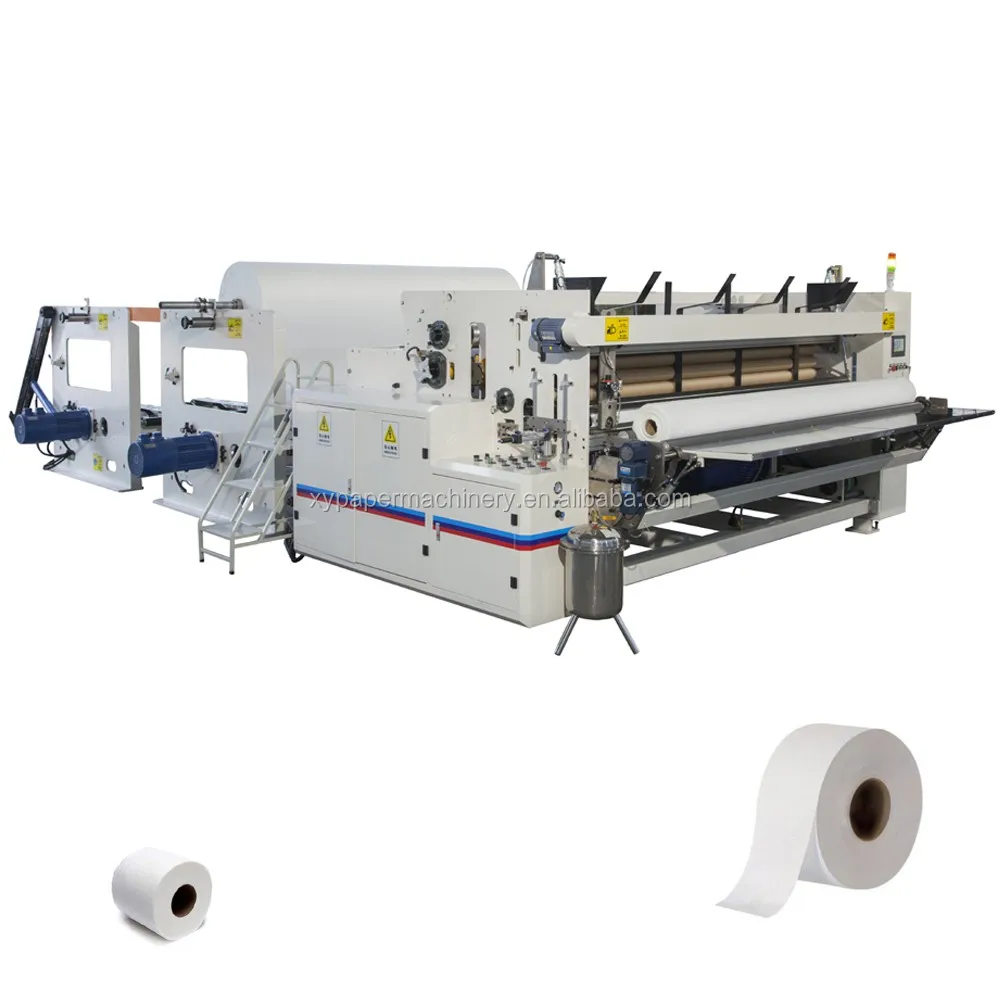

XY-TQ-B Automatic toilet paper making machine
Video Link:
https://www.youtube.com/watch?v=zKwzgT7HZYY

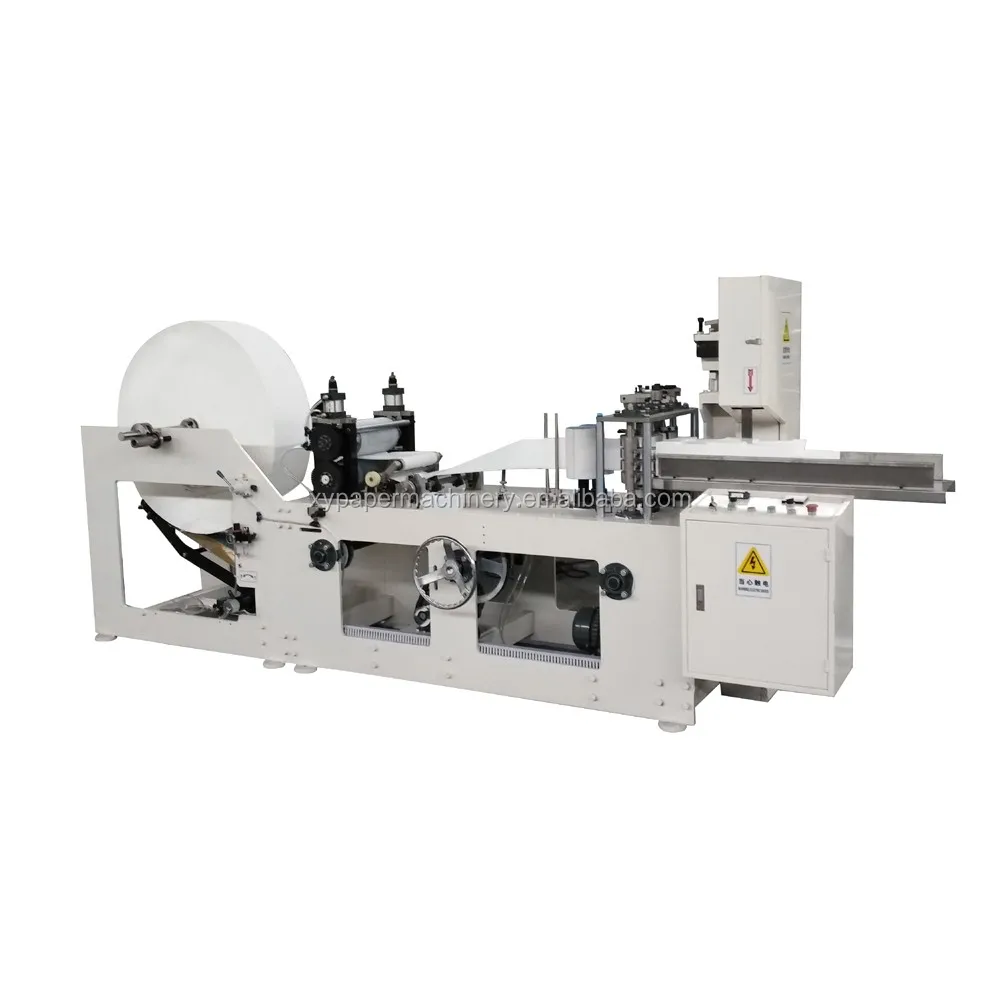

XY-OQ-7000A Automatic napkin tissue making machine
