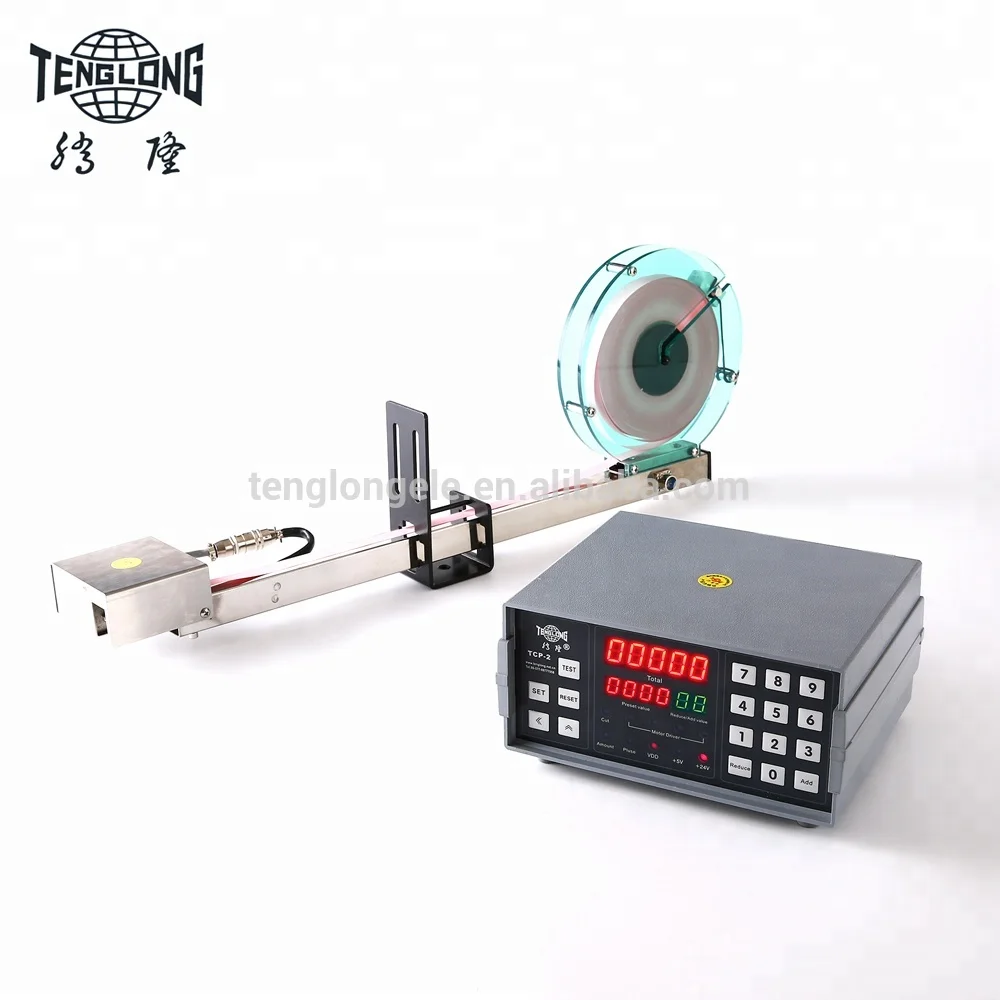

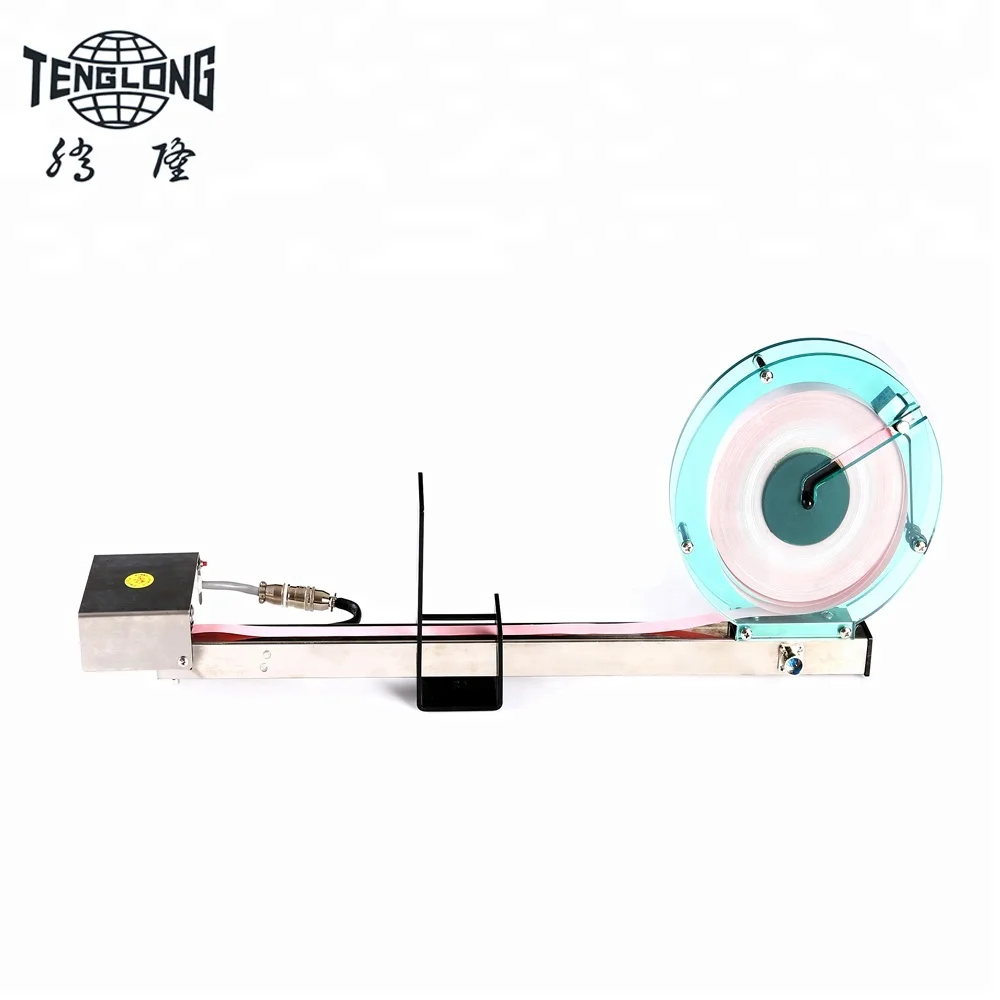

Auto Paper counter tab in Paper tab inserter machine with counting for die cutting machine and offset printing press
Auto Paper counter tab in Paper tab inserter machine with counting for die-cutting machine and offset printing press
Auto Paper counter tab in Paper tab inserter machine with counting for die-cutting machine and offset printing press
Auto Paper counter tab in Paper tab inserter machine with counting for die-cutting machine and offset printing press
Auto Paper counter tab in Paper tab inserter machine with counting for die-cutting machine and offset printing press
Auto Paper counter tab in Paper tab inserter machine with counting for die-cutting machine and offset printing press
Auto Paper counter tab in Paper tab inserter machine with counting for die-cutting machine and offset printing press

Auto Paper counter tab in Paper tab inserter machine with counting for die cutting machine and offset printing press

Share on (62235187676):


Price:$768.00 - $798.00

Quantity:


Product Overview

Description


Features



  • TCP-2 tab inserted marker is base on the TCP-1 , add some new function
  • Panel data operation
  • Pause count
  • Text deduction
  • This machine  apply to printing machine, Die-cutting machine, Transverse cutting machine, Papermaking machines



Parameter
ModelTCP-2
Rated voltageAC 110~240V,AC24V,50/60HZ,DC24V,85-110% rated voltage
CertificationISO9001/14001, CE, ROHS
working range of pressure 85~110% of rated voltage
MAX counting frequency 5 papers/second
power consumptionAC 240V 50HZ  ≤10W
Width of paper12 mm
Apply to Printing press, Die cutting machine , total auto-paste and transverse cutting machine







Function
CODETCP-1TCP-2
Functions and characteristics
Set batch √√
Set sum √√
Set cutting time delay√√
Batch reset √√
Total reset √√
Set tab lenght√√
Manual text √√
Pause count √
Text deduction √
Added value   √
Data operation ManualPanel
Paper move motorDC motor DC motor
The action after reached preset dataLight indicatorLight indicator and alarm
Signal inputPLC or SensorPLC or Sensor
The rated powerAC220V /110V/DC24VAC220V /110V/DC24V
Applicable modelsApply to printing machine, Die-cutting machine, Transverse cutting machine, Papermaking machinesApply to different printing machine(such as KBA,MANROLAN,KOMORI,MITSUBISHI) and the other machine which need insert tab
√=Included
