small chipper large tree stumps wood crusher for sale
- Category: Wood Crusher >>>
- Supplier: Henan Mingxin Machinery Co. Ltd.
Share on (62239797814):
Product Overview
Description
Product Description

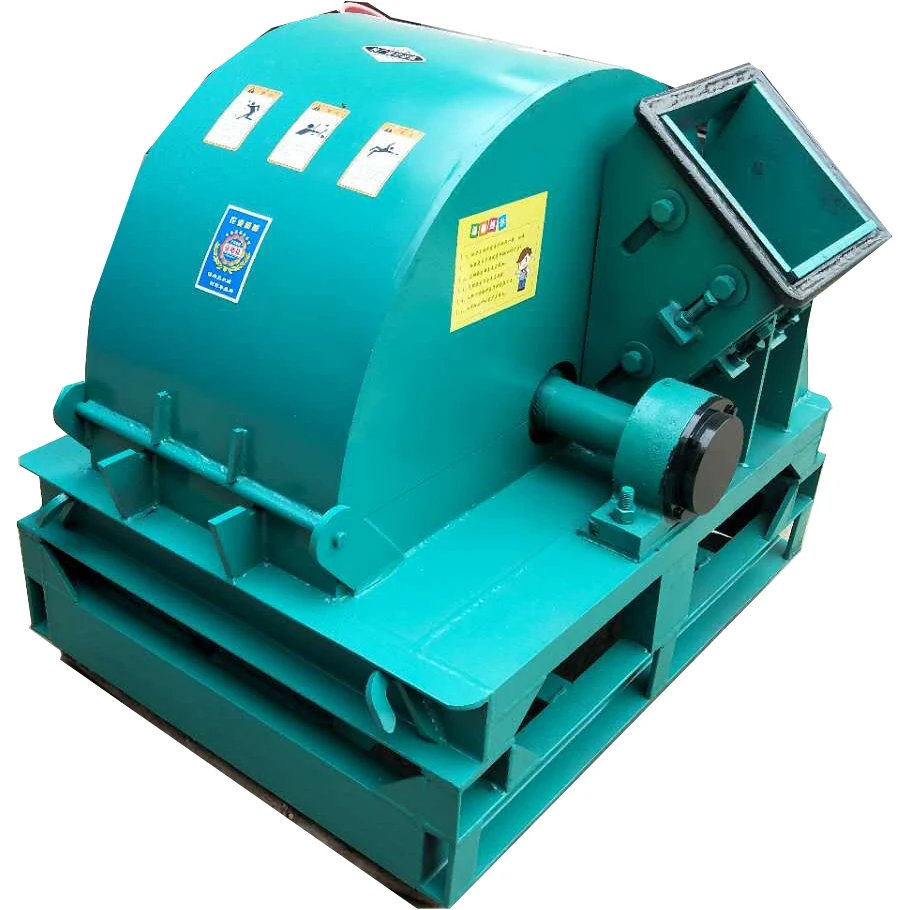

small wood chip hammer mill pallet wood crusher
Wood crusher is a new type of ideal mechanical equipment for the production of wood powder. The wood crusher can process raw materials such as wood and branch into wood powder.
The wood crusher mainly consists of a chip removal device, a crushing device, and a fan.After the wood chips are cut by the chip removal device, the wood chips have a small grain size and can be sent to the crushing device for further smashing without drying. The crushed pieces of wood chips are sent to the gathering place by the fan.
The whole set of equipment is driven by only one motor. Simple structure, compact layout, cheap price, stable work, low energy consumption , high output, good quality of wood chips and low processing cost. The wood crusher can also be used for chips of fibrous stalks, such as bamboo, thatch, corn stalks and sorghum stalks.
Working Principle of small wood chip hammer mill pallet wood crusher
Drived by the motor and pulley, the main spindle rotates rapidly, and then hammerheads on the shaft collide with materials and crush them.
1) Since hammers are cross and non-overlapping arrangement, and their width is greater than hammer frame and contour, they are ensured to participate in crushing by the full length of the rotor. And due to the hammerheads being arranged inactively, the energy consumption will reduce when the hammerheads crush materials, to improve the crushing efficiency.
2) Structure designing principle of this device is "stone to stone" coarse-crushing chamber, fine crushing chamber, impact chamber(composed of wedge adjustable impact plate and circular plate), and three discharging channels.
3) In the coarse crushing chamber, this crusher adopts the designing principle of "stone to stone". That greatly reduces the hammer wearing. Besides, whether newly entering materials or ones in coarse and fine crushing chambers, they both can be discharged in time. That can greatly improve production capacity and reduce energy consumption.
1) Since hammers are cross and non-overlapping arrangement, and their width is greater than hammer frame and contour, they are ensured to participate in crushing by the full length of the rotor. And due to the hammerheads being arranged inactively, the energy consumption will reduce when the hammerheads crush materials, to improve the crushing efficiency.
2) Structure designing principle of this device is "stone to stone" coarse-crushing chamber, fine crushing chamber, impact chamber(composed of wedge adjustable impact plate and circular plate), and three discharging channels.
3) In the coarse crushing chamber, this crusher adopts the designing principle of "stone to stone". That greatly reduces the hammer wearing. Besides, whether newly entering materials or ones in coarse and fine crushing chambers, they both can be discharged in time. That can greatly improve production capacity and reduce energy consumption.

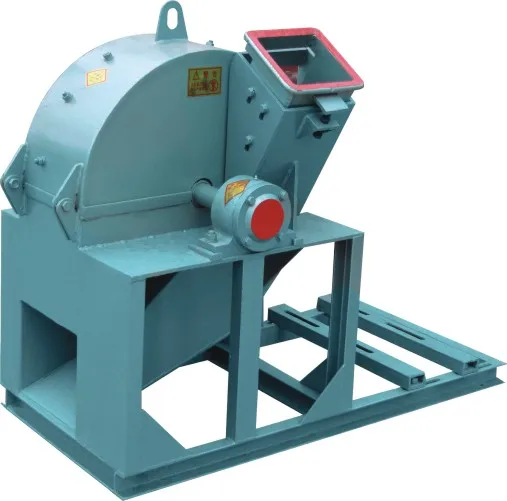

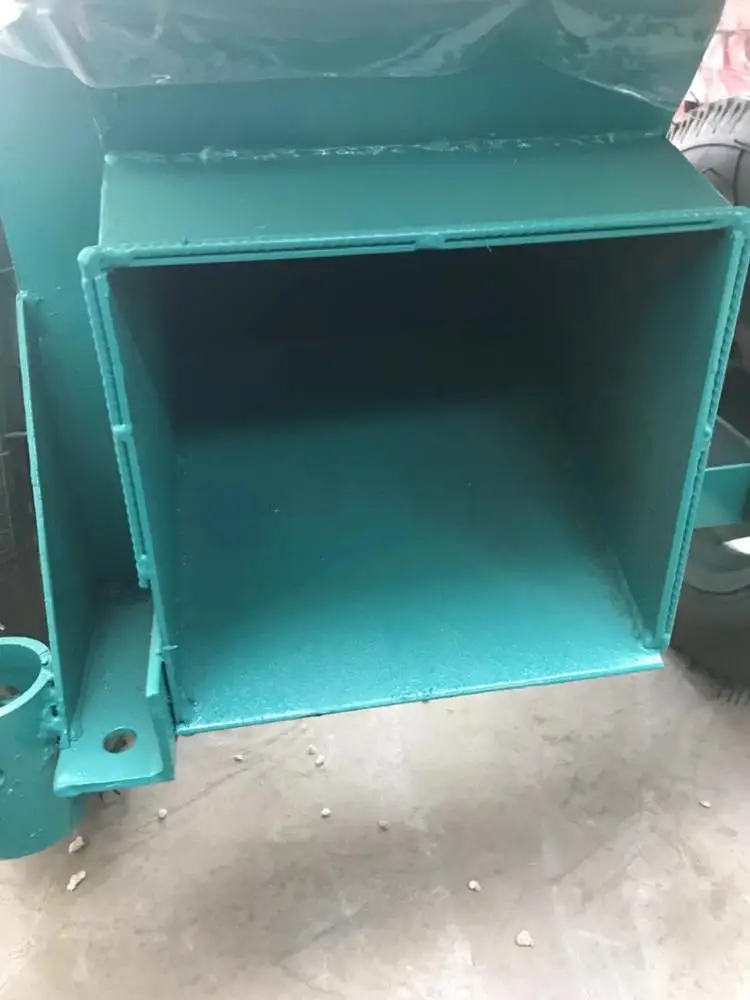

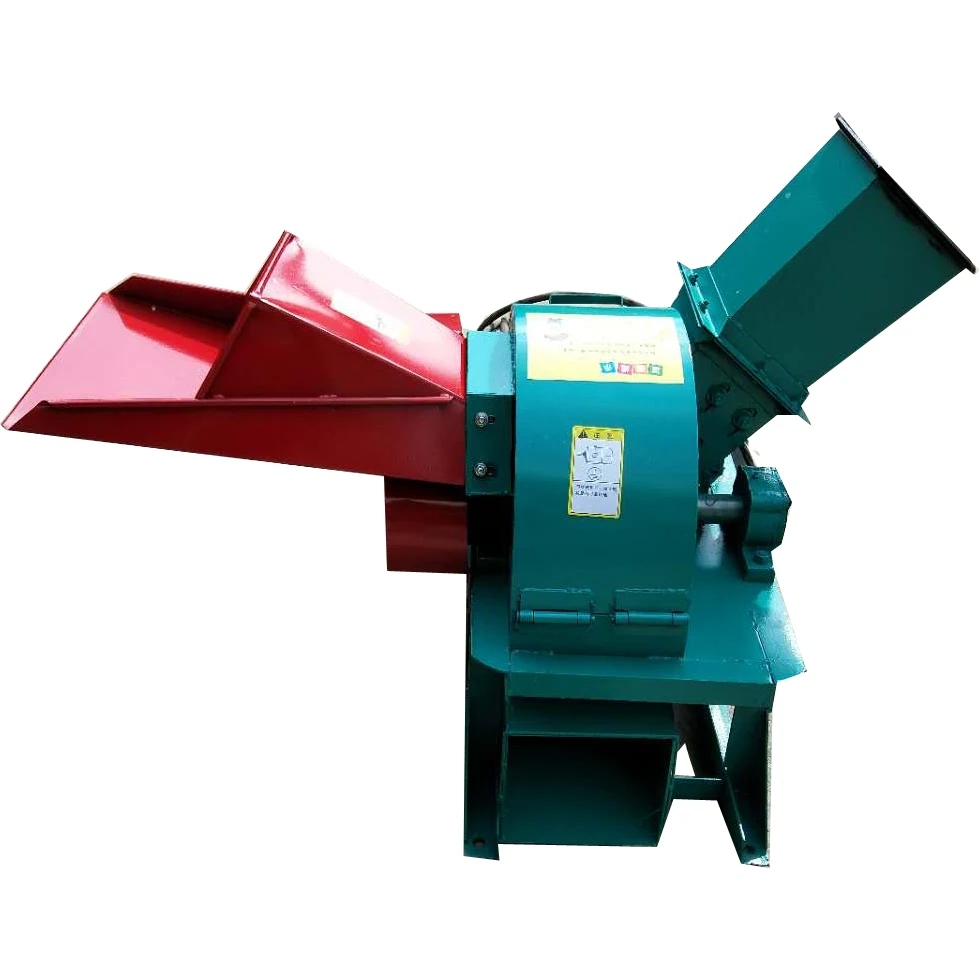

Detail images of small wood chip hammer mill pallet wood crusher
Main Features of small wood chip hammer mill pallet wood crusher
1.To ensure security, the feed inlet of this machine adopts self-suction design to avoid serious damage to operators.
2. Low investment and energy consumption,
3. High output
4. High-quality finished products
5. With reasonable structure,compact and durable .
6. Spare parts all adopt high-quality materials,safe and reliable .
7. Simple operation, with small vibration .
Technical Parameters
Model | Powerr(kw) | Capacity(t) | Dimension of blade(mm) | Blade size(mm) | Feed inlet size(mm) | Dimension(mm) |
420 | 7.5-11 | 1 | 420 | 90*60*8 | 160*170 | 1500*770*900 |
500 | 15-18.5 | 1.5 | 500 | 120*70*8 | 170*210 | 1500*680*850 |
700 | 37 | 2.5 | 610 | 150*70*8 | 190*230 | 1600*800*1050 |
1000 | 55-75 | 3.4 | 750 | 150*100*100 | 300*290 | 1120*1150*1070 |
Application
Small wood chip hammer mill pallet wood crusher
1. The small wood crusher is kind of special equipment in making superior quality wood powder (edible mushrooms), widely used for preparation department of paper-making , mushrooms, mechanism charcoal, chipboard, wood particle board, HDF, MDF. The raw materials are usually be logs,and tree branches. Moreover ,it is also can process a variety of materials, such as fodder, etc.
2. Wood crushers can also be used for fiber stalks such as bamboo, thatch, corn stalks, sorghum stalks, pine, wood, twigs, fir, bamboo, plant roots, stems, rice husks, corn cobs, bark and any other raw material. Material material.
3. The small wood crusher also can be used for the development of producing some raw materials, such as mushroom wood, shaving board, high density board, charcoal, etc.
Before
After
Packing & Delivery
Packaging | ||
Packaging Details | The normal package is wooden box. We will use pe film for packing or pack it according to customers special request. | |
Delivery:Delivery within 15 days after receipt of deposit. | ||
Our Service
Pre-Sales Service
* Supporting Inquiry and consult.
* We will check every product before the packaging.
* Customers could have the factory tour if they want.
* Design and manufacture products according to your special needs
After-Sales Service
* Examine the equipment regularly.
* Take initiative to eliminate the troubles rapidly at site.
* Distribute the guarantee fitting door-to-door.
* Provide technical exchange and support.
Our Company
Henan Mingxin Import and Export Trading Limited Company is a company that integrates science, industry and trade. The company mainly sells mechanical equipment and accessories, pipeline equipment, refractory materials, abrasive materials, water purification equipment, wire and cable. Our company follows the human-oriented, honest, pioneering entrepreneurial spirit with scientific and technological innovation. We have always regarded the technology as the motive force, the market as the orientation to make the products first-class.
Our company insists on the professional development based on the principle of innovation and honesty. We win the market with our advanced skills, high-quality products and considerate services.The products in our company have been exported to the South Africa, Pakistan, Vietnam and other counties with the advanced technology, reliable quality and reasonable price. We have also got the good reputations from customers at home and abroad.
FAQ
Q: How about the quality of your products?
A:We put the quality in the first place based on the honesty. Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before the delivery. You can also use Trade Assurance by Alibaba for product quality protection, punctual shipment protection and payment protection.
Q: How about the price?
A: We pursue small profits but quick turnover, and we can give you lower price than other trading companies. Besides, customers from Alibaba can get a discount. If the product is really suitable and can benefit you, the price is negotiable.
Q: When do you deliver the goods?
A:We usually deliver the goods within 10 days depending on detailed product. We will advise the detailed delivery time according to your specific inquiry.
Q: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to solve your problems promptly and thoroughly.
