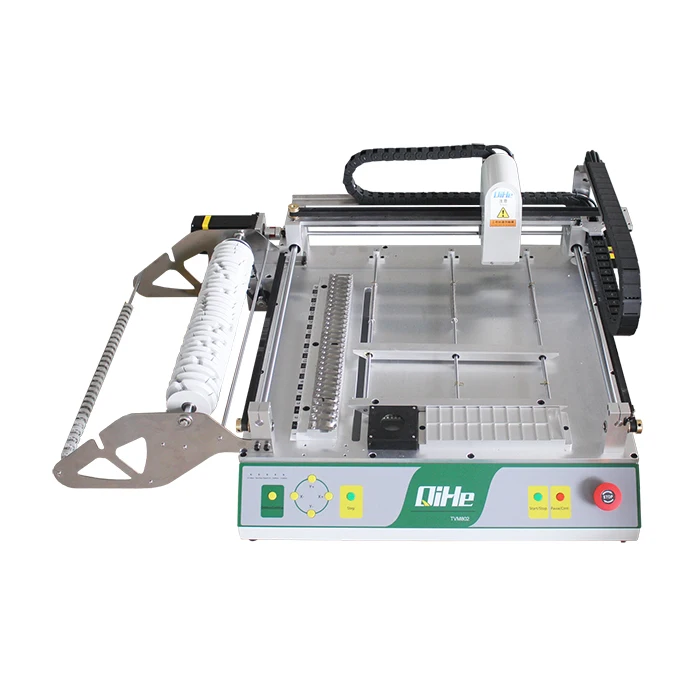

Automatic TVM802AX Vision Multifunction Small Pick and Place Machine With 29 Smt Stick Feeders Manual Small PNP Machine
Automatic TVM802AX Vision Multifunction Small Pick and Place Machine With 29 Smt Stick Feeders Manual Small PNP Machine
Automatic TVM802AX Vision Multifunction Small Pick and Place Machine With 29 Smt Stick Feeders Manual Small PNP Machine
Automatic TVM802AX Vision Multifunction Small Pick and Place Machine With 29 Smt Stick Feeders Manual Small PNP Machine
Automatic TVM802AX Vision Multifunction Small Pick and Place Machine With 29 Smt Stick Feeders Manual Small PNP Machine
Automatic TVM802AX Vision Multifunction Small Pick and Place Machine With 29 Smt Stick Feeders Manual Small PNP Machine
Automatic TVM802AX Vision Multifunction Small Pick and Place Machine With 29 Smt Stick Feeders Manual Small PNP Machine

Automatic TVM802AX Vision Multifunction Small Pick and Place Machine With 29 Smt Stick Feeders Manual Small PNP Machine

Share on (62241701443):


Price:$2,999.00

Quantity:


Product Overview

Description


Manual mounter chip machine QIHE TVM802A Manual automatically pcb assembly SMD/PCB/SMT/

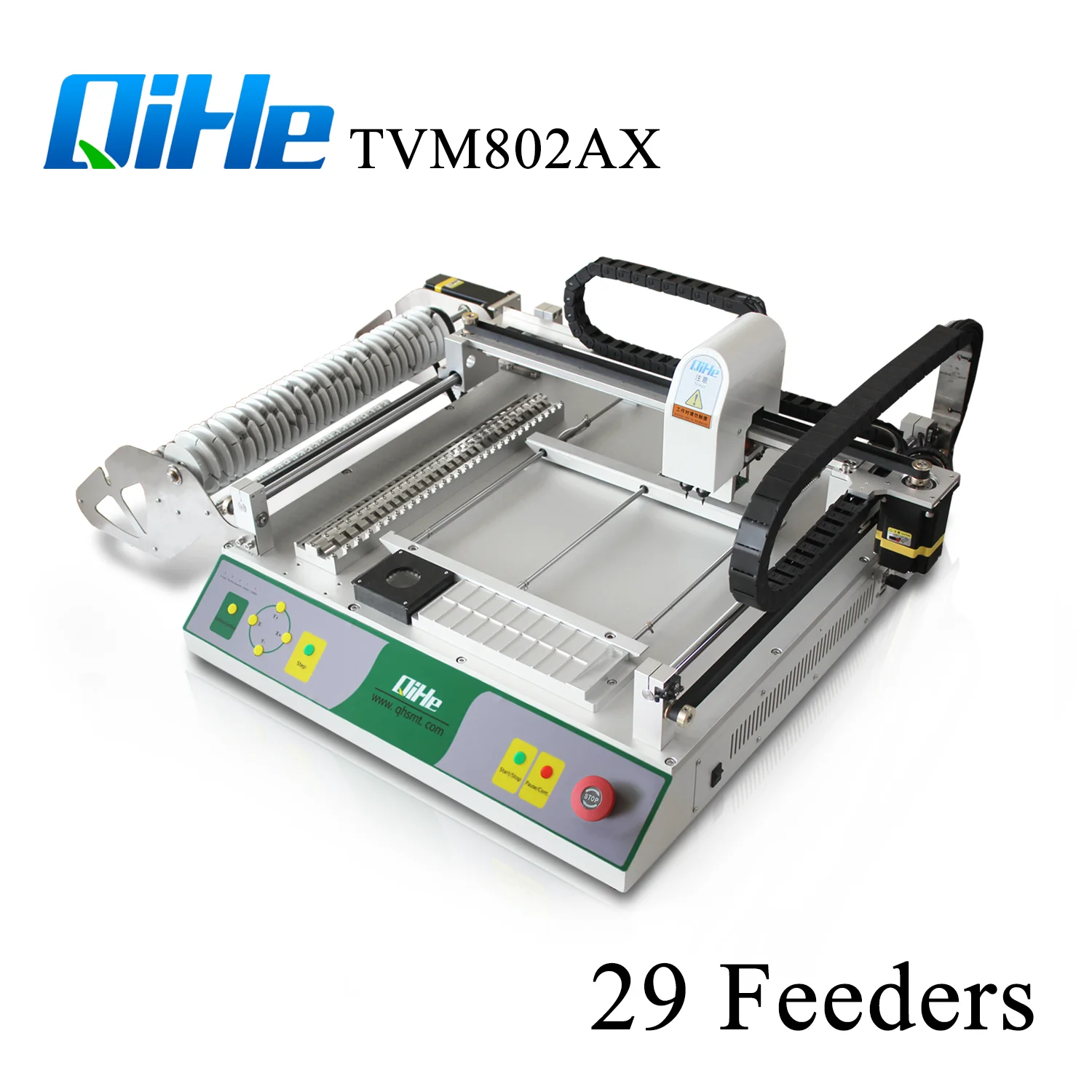

TVM802AX Details

































































































ModelTVM802AX
Max applicable PCB20*20mm~340*340mm
Max XY Moving rang395*450mm
Max Z Moving range12.5mm
Placement head quantity2
Mounting speed without vision6500CPH
Mounting speed with vision5500CPH
Applicable component0402-5050. SOP. TQFP. QFN etc.
Component supplyTape reel, Bulk, Tubular, Tray etc.
Vision system2 HDCCD Camera
Motor control schemeStepper closed-loop motor, Closed-loop Servo drive, Z-axis reset detection

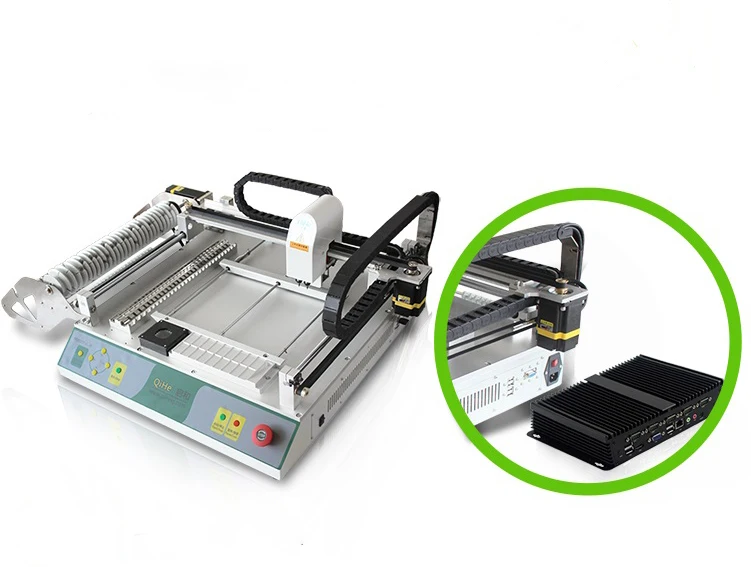

Operating systemOperating system built-in computer, Windows7
Feeder count & Tape width29 , 8mm=25pcs, 12mm=3pcs, 16mm=1pc
Pump1 silent brushless vacuum pump, Blowing pump
Leakage material detectionVision, Press, Vision+Press
Power125W(average power)
Power supplyAC220V or AC110V
Machine sizeL940*W640*H330mm
Package sizeL1070*W770*H420mm
Volume0.38CBM
Net weight39kg
Gross weight60kg
Support PCB design softwareProtl99/Altium Designer/Eagle/Pads/Allegre etc.

1-12-23-34-45-56-6

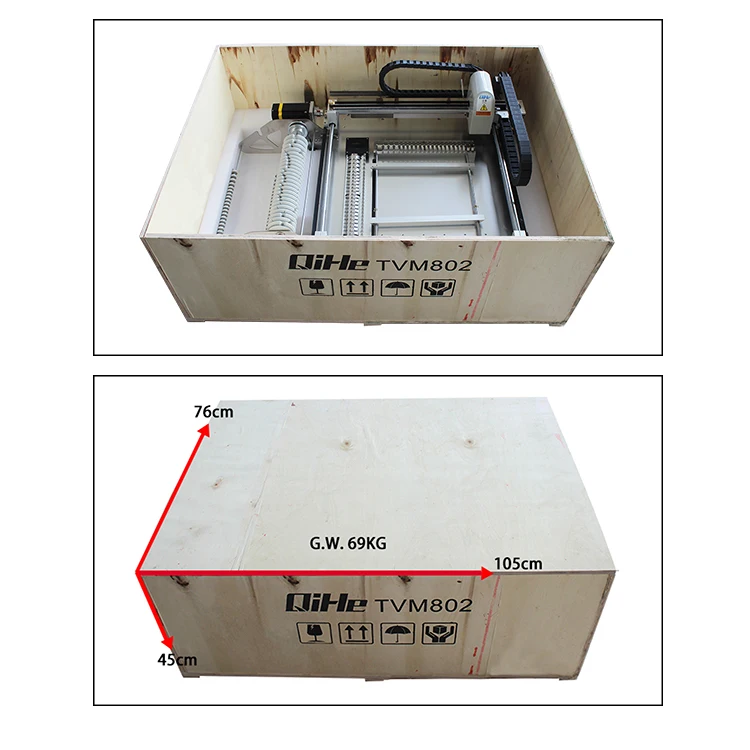

Package


-google

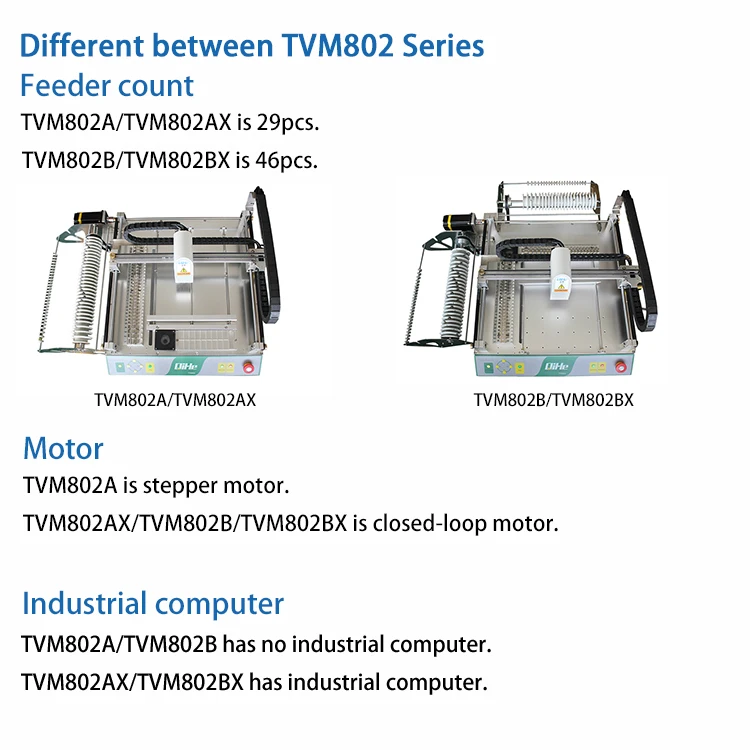

Difference-1




LED mounting p&p machine






Information show


Company Show


122











Exhibition Show


(1)_








Certificate


121





FAQ








































1. Q: How many nozzles do you supply?



A: The TVM802 has two nozzle-heads, we supply 4 nozzles. The TVM925 has 4 nozzle-heads, we supply 6 nozzles. The QM41 has 4 nozzle-heads, we supply 8 nozzles.



2. Q: Which language is the software? Do you provide software updates?



A: English or Chinese. Free to upgrade software for lifetime.



3. Q: This is the first time I use this kind of machine, is it easy to operate?



A: Yes. There are English manual and guide video that show you how to use machine.
If there is any doubt in the process of operating the machine, please feel free contact us.
We also provide overseas on-site service.



4. Q: Can we customize the machine?



A: Of course. All of our machines can be customized.



5. Q: How about the warranty?



A: We support one year warranty. We will help you in time. All the spare parts will be provided free of charge for you within the warranty period.
