CE qualified Double sides Semi automatic outer inner layer dry wet film PCB UV LED Exposure Unit

Share on:

Price in USD:Details


Product Overview


Product Description

Product Application

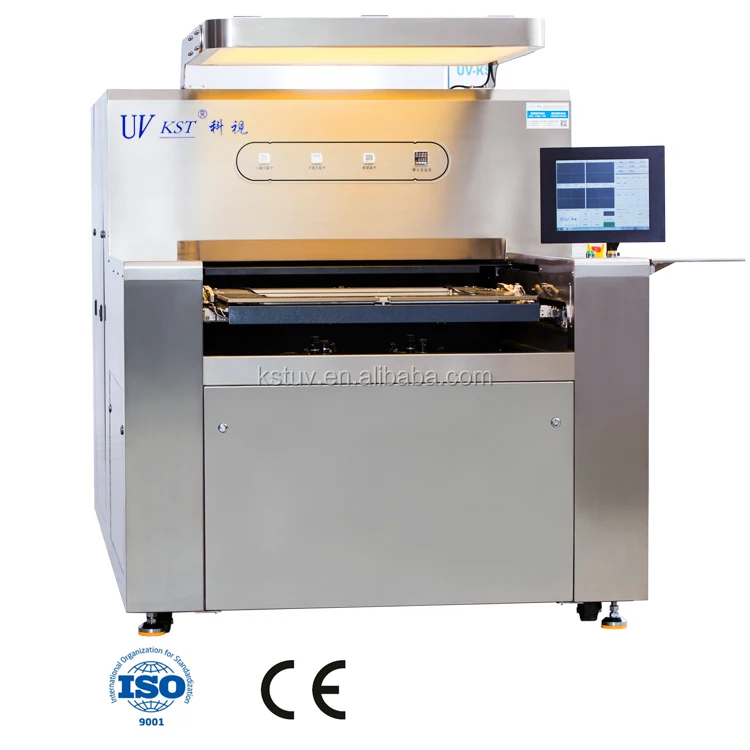

KST-SA6254-WX UV LED Exposure machine is designed and developed by our own R&D Department. It is an ideal equipment for both inner layer and outer layer. The machine with 4 CCD camera to align the film and the panel, the resolution can reach 50um, line space and width are all 50um. This machine is specialized in the mass production of various kinds of dry film, wet film.

This machine is equipped LED light sources, greatly saving energy, cover different wavelengths, greatly meet the customer requirments one machine expose both inner layer, outer layer. machine applied by the PC control system,Touch screen . With LED lamp imported from Korea, super power saving, and long service life, with 3 years warranty. High energy, greatly short down the exposure time, main white ink only takes3-5s,  Its reasonable design and stable performance improve the work efficiency and the quality of the products greatly.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Automatic energy calibration and compensation, uniformity>90%

3) LED Technology, power savings, high efficiency, cost effective.

4) Built in temperature monitor module, alarming when LED over temperature.

5) High precision constant current driving power supply design, reducing the current impact of LED, greatly prolongs the LED service life.

Detailed Images

Machine Parts

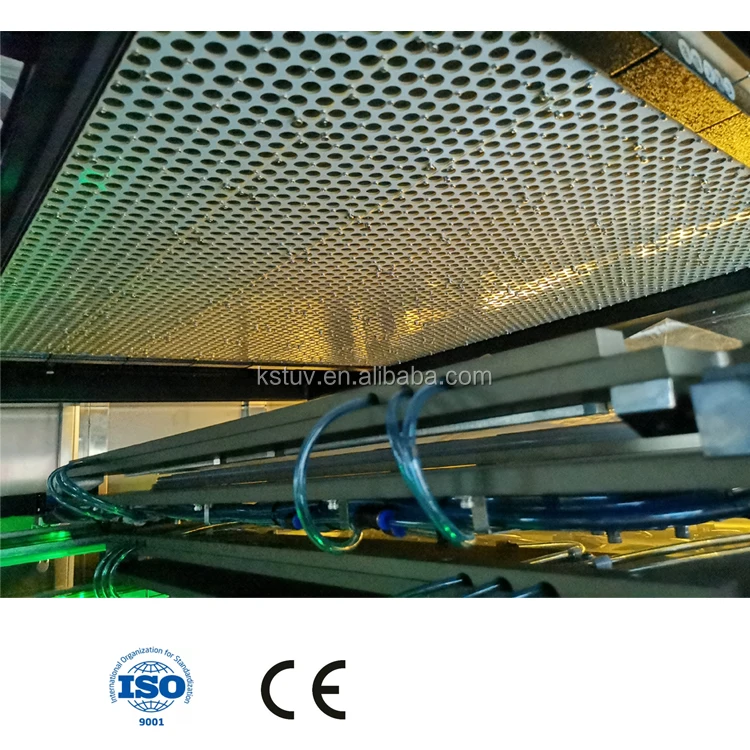

Name: UV LED light source

Brand: SVC

Original: Korea

LED Technology, power savings, high efficiency, 3 years no need lamp replacement, cost effective.

Automatic energy calibration and compensation, uniformity above>90%

Line resolution

The line space and width reach 50um,2mil.
