High Precision Mirror Surface 1.6L 20 Head Combination Scale Weigher Packing Machine With Multihead Weigher Cherry Tomato

Product Overview

Description

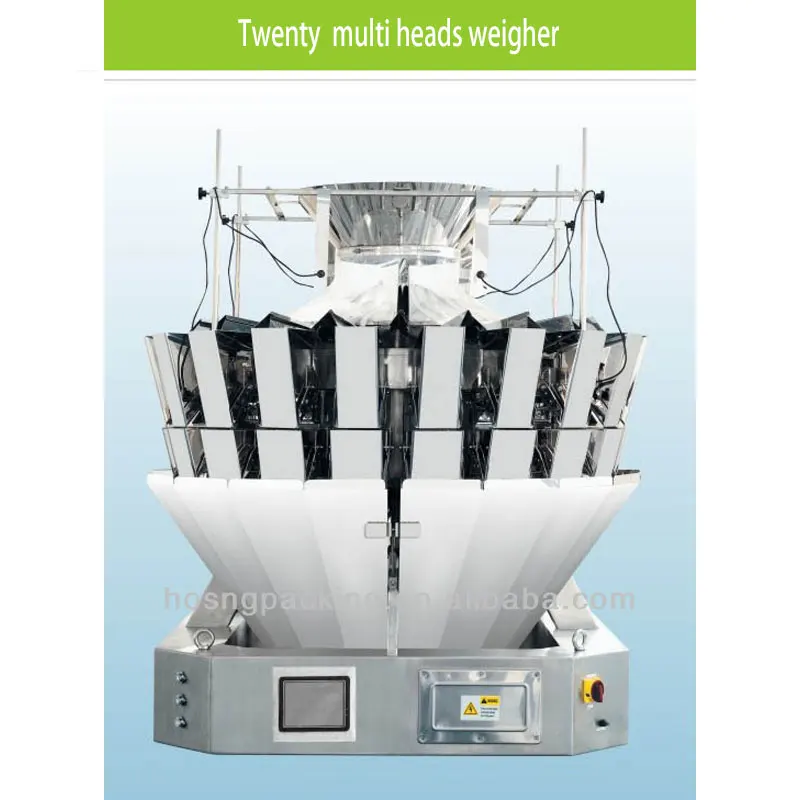

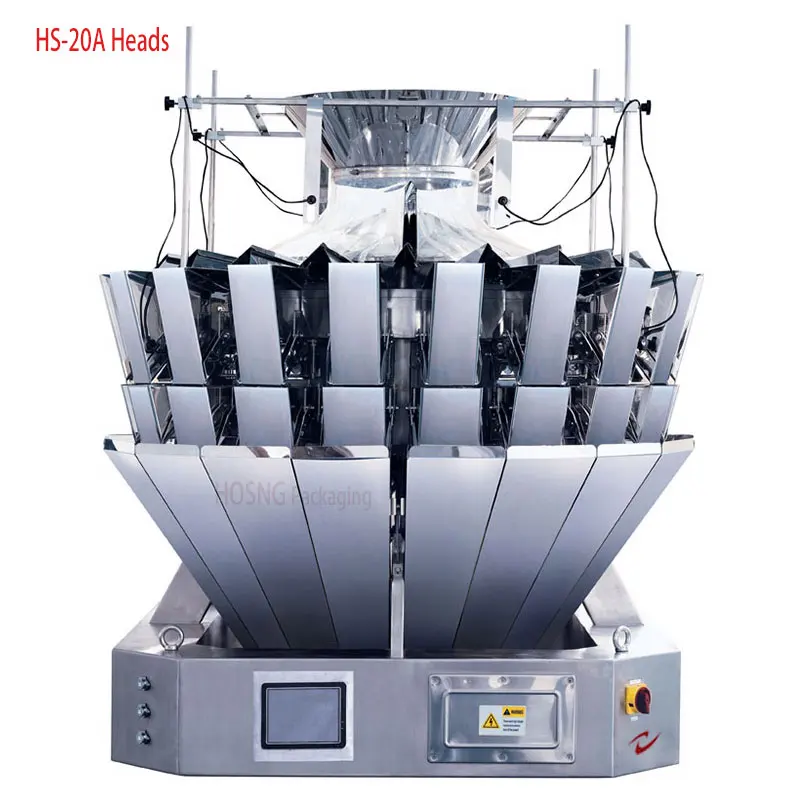

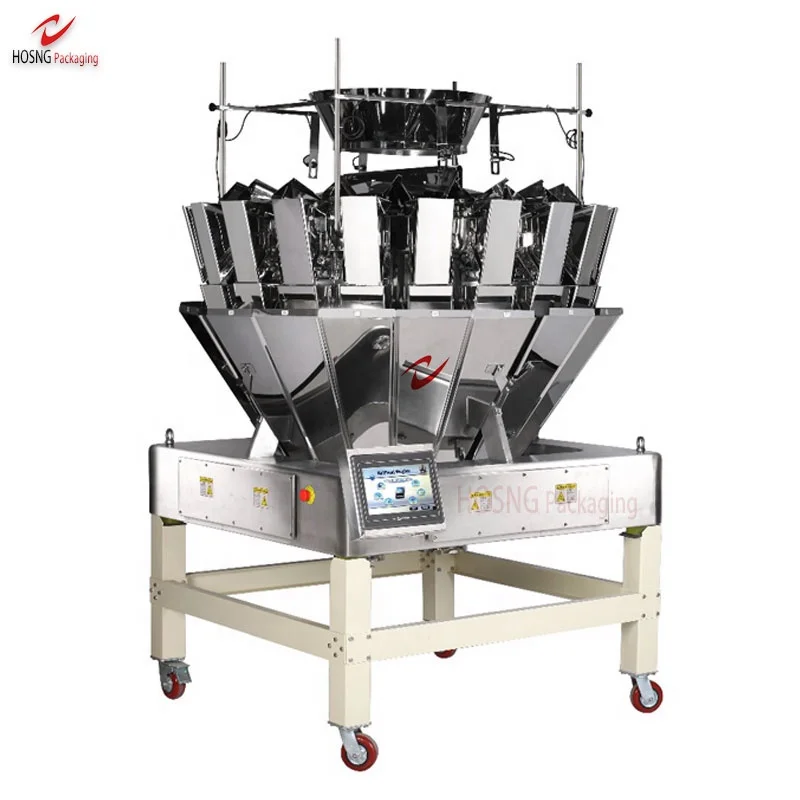

HS-20 Heads Combination Multi Head Weighers

Product Description





MODEL	14 Heads	20 Heads
Weighing Range	8-10000g	8-6500g
Weighing accuracy	±0.3-5g (Up to the prodcuts size)	±0.3-3g (Up to the prodcuts size)
Max.weighing speed	120wpm	120wpm
Hopper volume	1.6L/2.5L/5L	1.6L
Control panel	10.4'' color touch screen
Options	Dimple plate/timing hopper
Driving system	Step motor driven
Preset parameter	99 Kinds
Power requirements	AC 200/220/230/240V(+10% to -15%)1.5 KVA/50-60Hz 1 phase
Net weight	700KG	750KG
Gross weight	1000KG	1050KG



Features



- With stable 20-hopper structure,high precision sensor,the speed of the material hopper cover can beadjusted.



- Adopt high precision and high accurate loadcell of famous brand,resolution is improved up to 2 decimal.

- Program recovery function can reduce operation failures and support multi-segment weight calibration.

- No products auto pause function can improve weighing stability and accuracy.

- 99 programs capacity can meet various weighting requirements and user-friendly help menu contributes to easy operation.

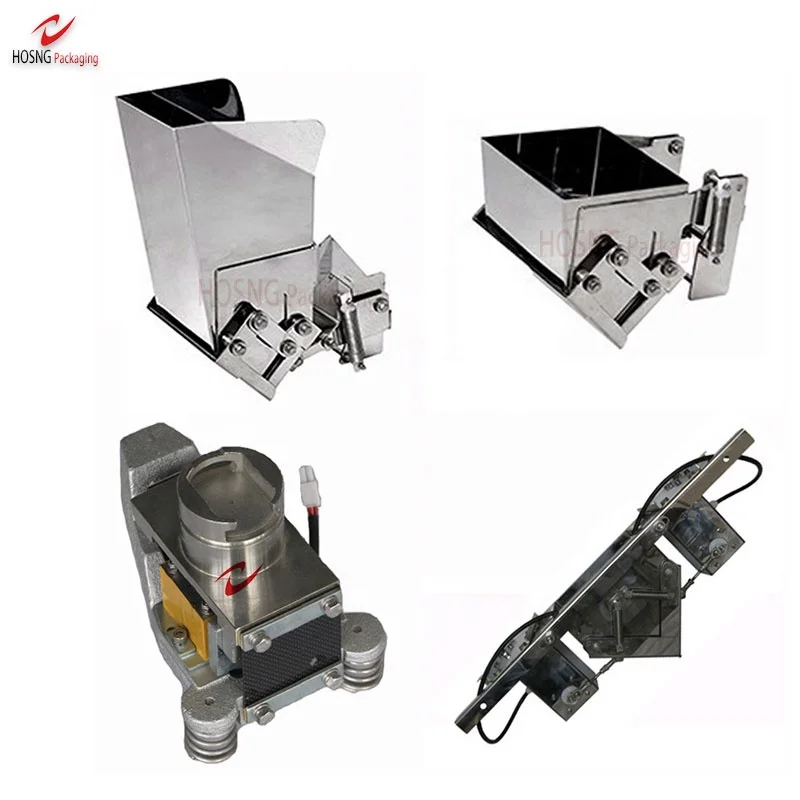

Mechanical Character

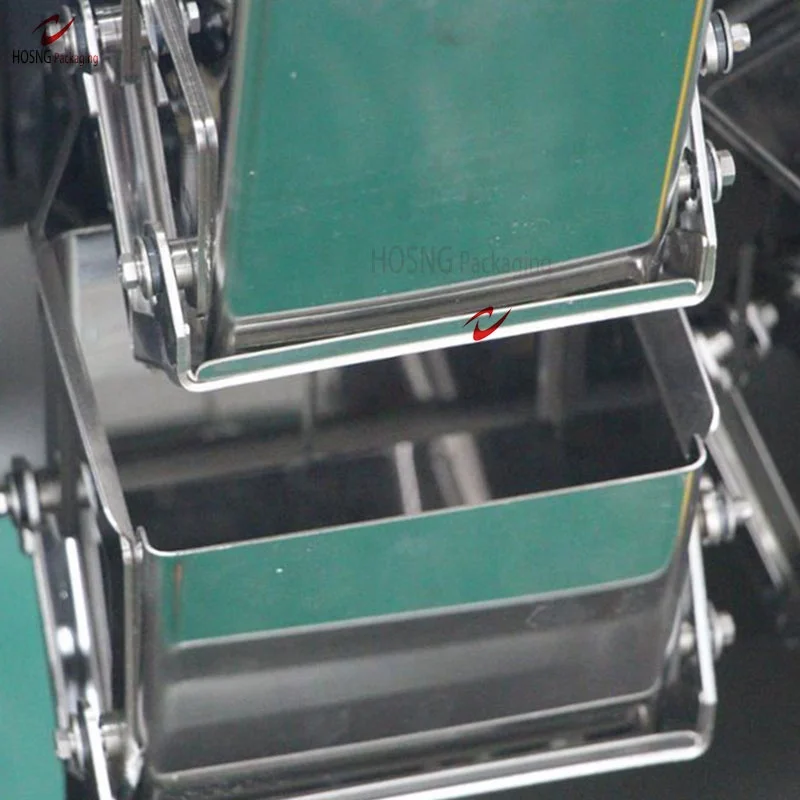

* 1.6L/2.5L hopper,suitable for all kinds of common standrad material,can be used widely .

* Mold making process and uniform design standards contribute to better interchangeability for spare parts.

* Weighing type for material detection is available,which can make accurate control of feeding time & material thickness and ensure weighing accuracy.

* Aluminum thickened middle standing enhances the strength of the machine,making the time for stabilizing hoppers much shorter.

Application

It is suitable to use in packing the pellets,bar,brain shape material.Such as puffed food,candy,small biscuit,vegetable slice,nut,fried material,pet food,small hardware etc.
