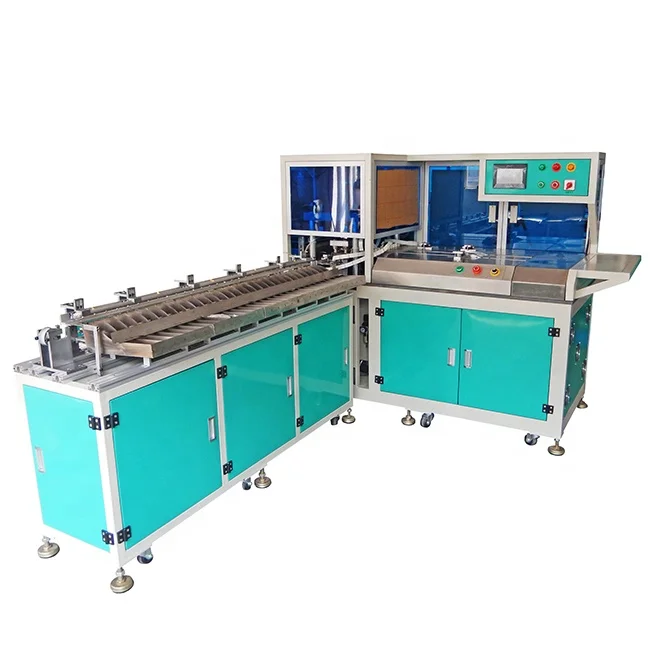

This machine adopts PLC program control operation, and operates on the humanized touch screen and uses the hydraulic system as the punching power. The high-sensitivity photoelectric sensor cooperates with the stepping system for longitudinal search and positioning, and the servo motor cooperates with the imported high-precision ball screw module for lateral positioning and feeding.
Total Power
6.5KW
Power Supply
AC380V/50HZ
Air Supply
6kg/cm²（anhydrous）
Dimension(L*W*H)
2100x2800x1550(mm)
Production ability
About 18000PCS/H
Cutting Precision
±0.1mm
Product thickness
0.25-1.20mm
Materials
PVC，Paper， Mixed material
Control Mode
PLC program ＆ Servo system
Weight
1500kg
Layout
According to customer's needs
Number of operators
One person
Power Source
Hydraulic/Servo system
HYDRAULIC SYSTEM
1.Adding oil: Add 46# anti-abrasion hydraulic oil. There is no hydraulic oil in the oil tank upon delivery of hydraulic station, users shall add oil into oil tank with oil filtering cart (oil filter<20um), cleanliness of oil fluid in the oil tank shall not be lower than grade NAS11 (Note: new oil is generally grade NAS11, the higher value, the lower cleanliness, and oil fluid will be dirtier). Oil level shall be within the range of oil temperature scale.
2.If hydraulic station is used for the first time, the motor shall be ignited, depending on whether rotation direction of motor is correct (clockwise seeing from direction of motor fan).
3.Start the motor and adjust and test actions after it rotates for 3 minutes at empty load.

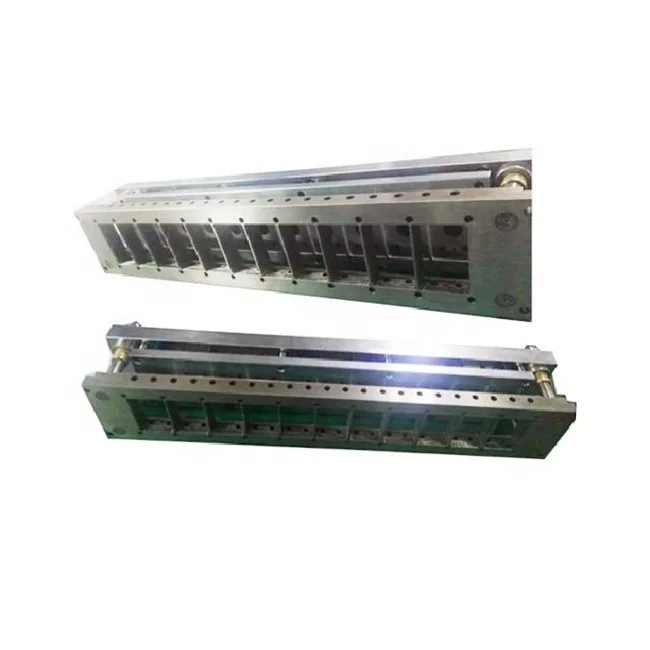

MOLD FOR CARD PUNCHING MACHINE
1 Before installation, check the upper and lower mold mounting surfaces on the press to clean it, and check whether there are any residues left after repairing the mold to prevent proper installation and accidents;
2 When installing, adjust the height of the press slider according to the mold closing height, so that the slider has a specified position between the bottom surface and the work surface at the bottom dead center;
3 After installation, adjust the press slider to 3-5mm, start the press, and stop the slider at the bottom dead center 1-2 times to fix the lower mold base.
Product features
A: High-sensitivity sensor is matched with the servo motor to perform feeding, with adjustable position parameters of punching point and high precision.
B: The hydraulic is used as power source with low noise and stable pressure, and punching speed can be adjusted.
C: The advanced card collecting system can realize arrangement and collection in a certain order automatically.
D: The punched cards are automatically discharged, and are stacked and collected .
Certifications
Packing&Shipping
Packaging and shipping methods
1. First wrap the machine with a plastic protective film;
2. Then vacuum packaging in the logistics park;
3. Finally, use the standard export wooden box for peripheral protection.
Service
Pre-sale Service
A:Technical support
B: Consultant services
C: Invoice and Contract confirmation
After-sale Service
A: User manual and the installation
B: Trained by experienced technicians
C: Engineers available for overseas
