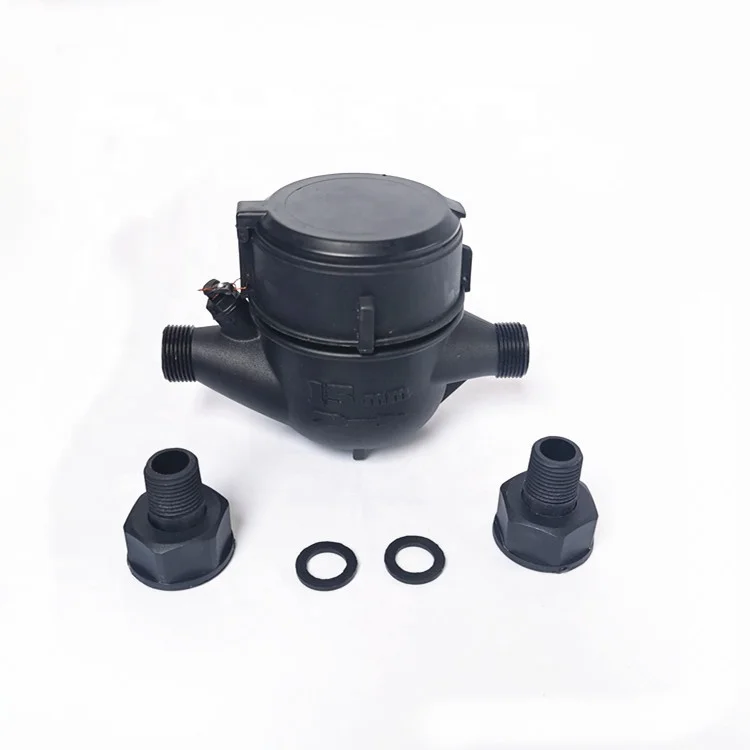

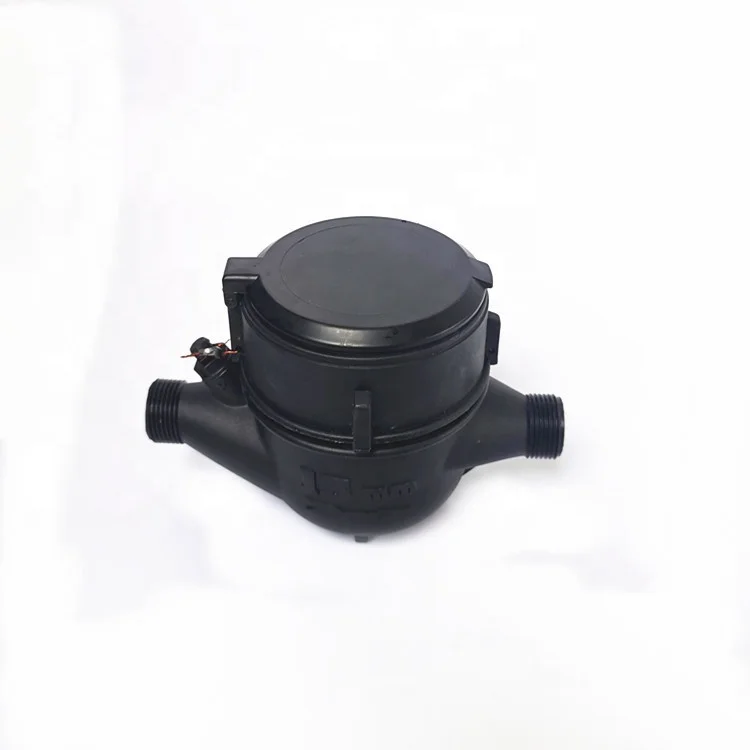

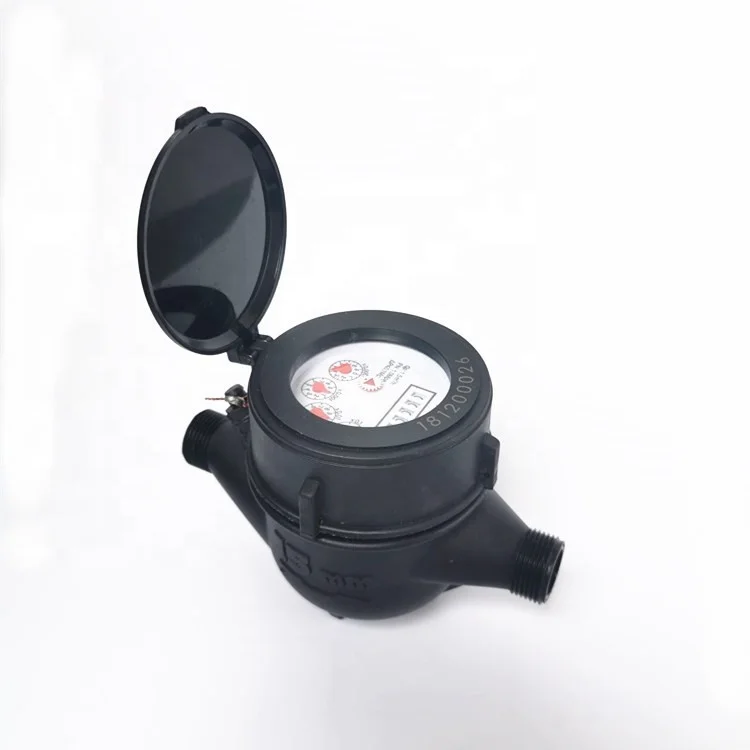

High quality Plastic Water Meter nylon well water meter hour water meter

Product Overview

Description

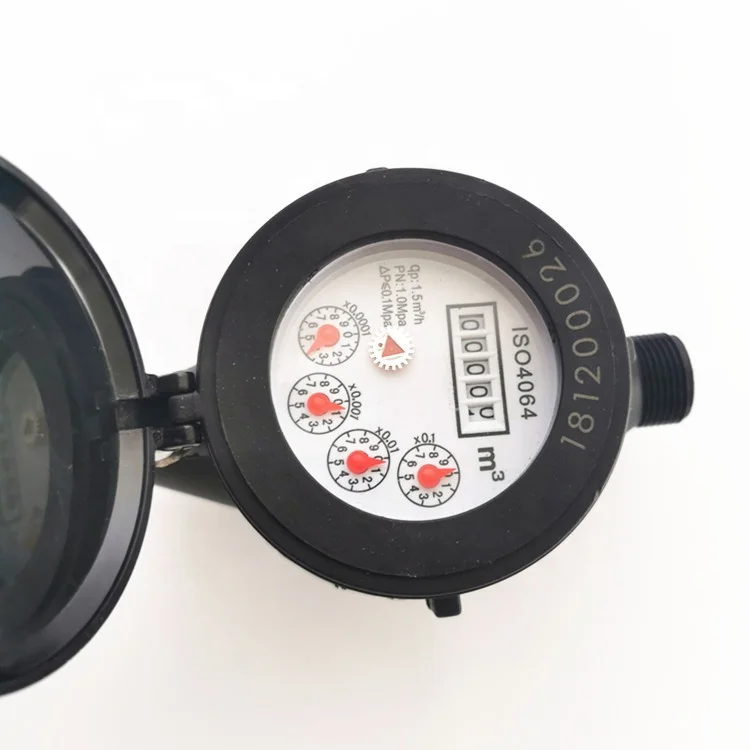

1. Dry-dial

2. Multi-jet

3. Antimagnetic construction

4. Measuring accuracy is up to class B of ISO4064 Standard.

5. Selected high quality materials. Steady & reliable characteristics

6. Series universal use. Easy interchange & maintenance. Size: 1/2" Material: Nylon Packing: carton



Sizes	L	L1	B	H	Connecting Thread		KG
mm
15	260	165	101	106	R1/2		0.78
20	260	195	101	106	R3/4		0.85
25	350	225	103	115	R1		1.2
Meter Size   ( mm)	Qn	Qt		Qmin		Max reading	Min reading
	m³/h	m³/h				m³
		A	B	A	B
15	1.5	0.15	0.12	0.06	0.03	9999	0.0001
20	2.5	0.25	0.20	0.10	0.05	9999	0.0001
25	3.5	0.35	0.28	0.14	0.07	9999	0.0001
