2023 New High Speed Automatic Paper Cup Making Machine
US $5500-$7800

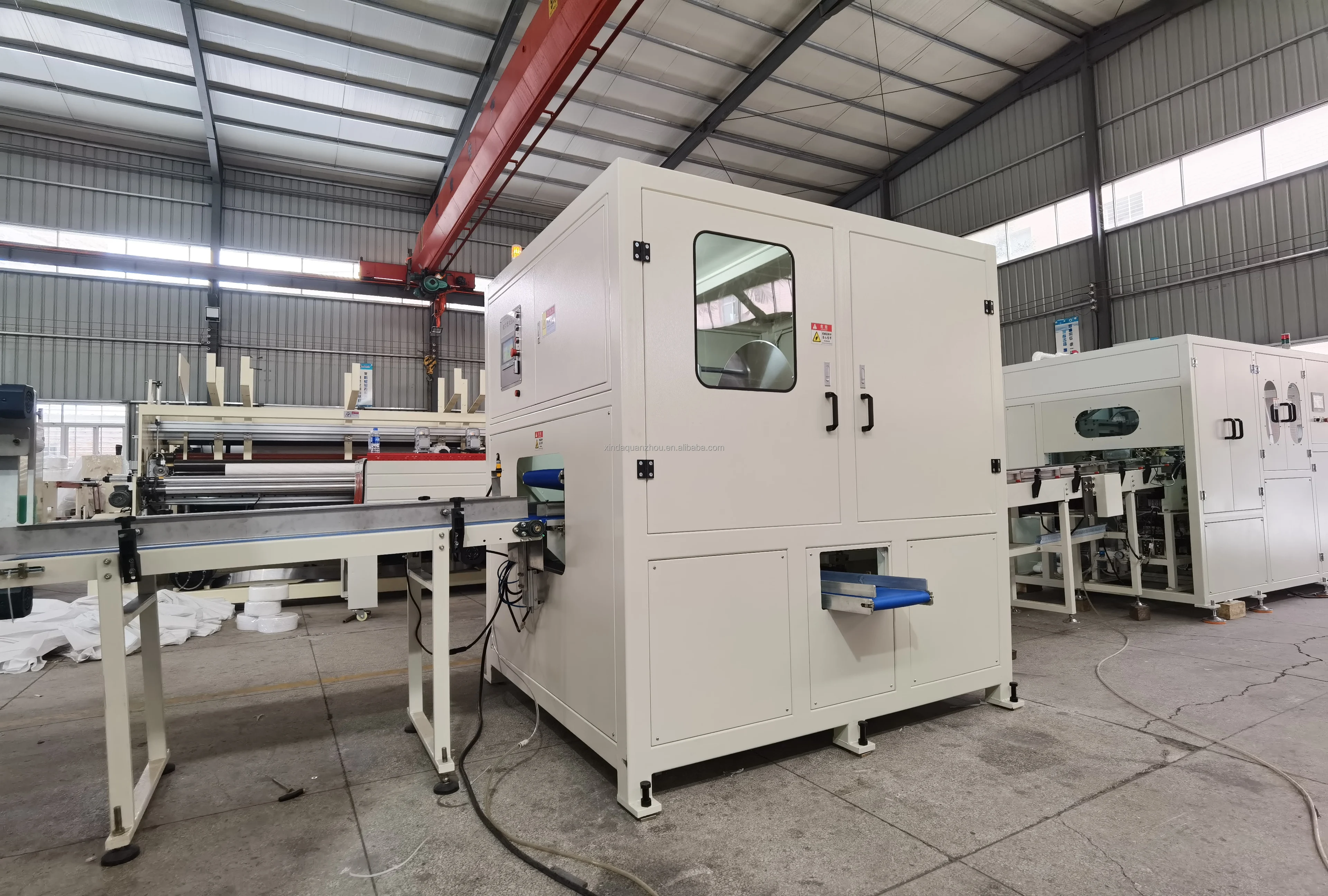

Automatic stacking transfering Z Folding Hand Towel Tissue Machine line
- Category: >>>
- Supplier: Quanzhou Xinda Machinery Co. Ltd.
Share on (62325616926):
Product Overview
Description
Products Show
Automatic N Folded Towel Paper Machine Line
CIL-AS-A-A
Product Description
Product Name | Automatic Z Folding Hand Towel Tissue Machine |
Model | CIL-AS-288 |
Speed | 600-1000sheets per min per line |
2LType | 6L-8L |
Product Size | 200x200mmw(adjustable) |
Power | 35kw ,380V 50/60HZ |
Weight | 15T |

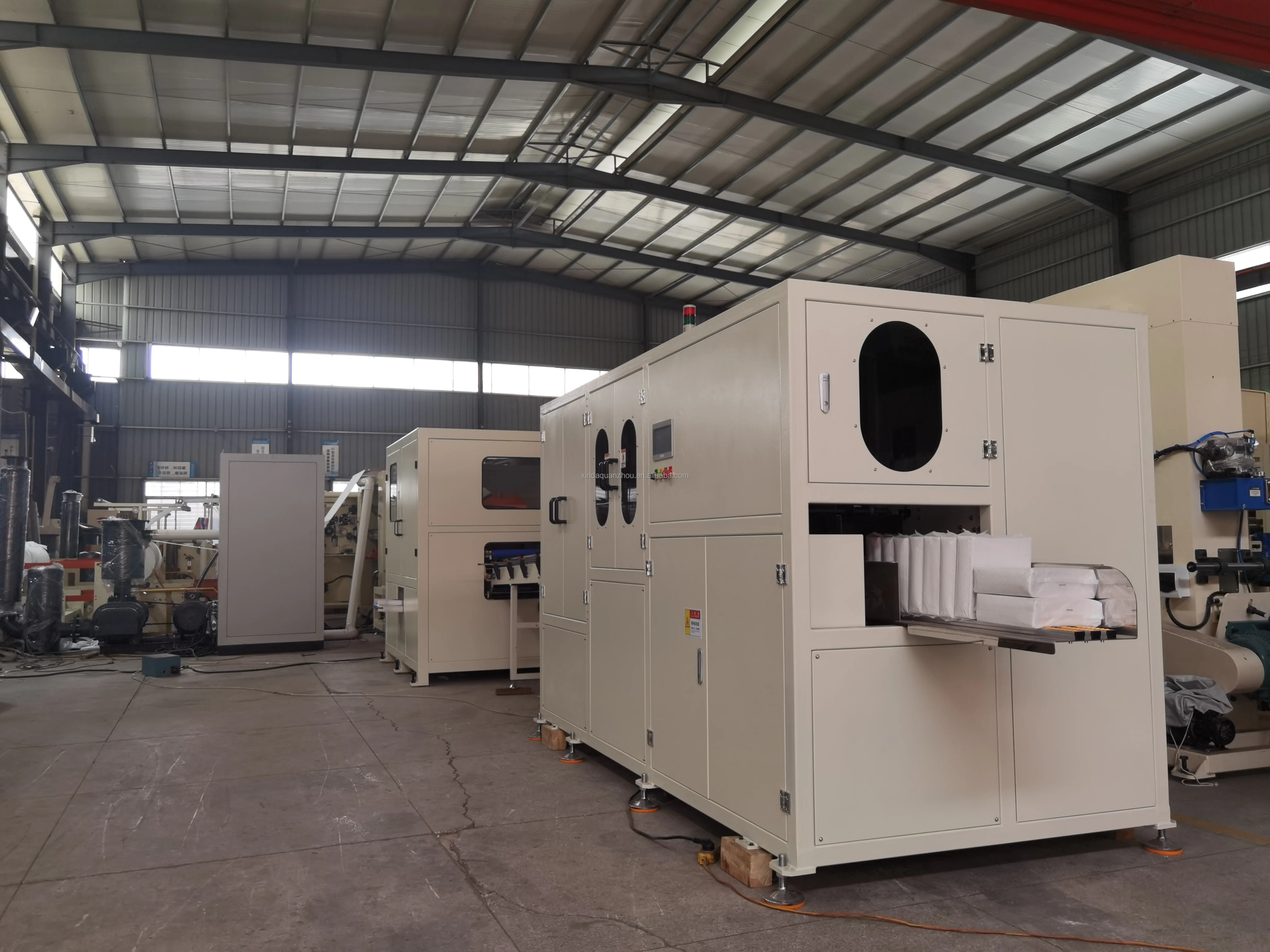

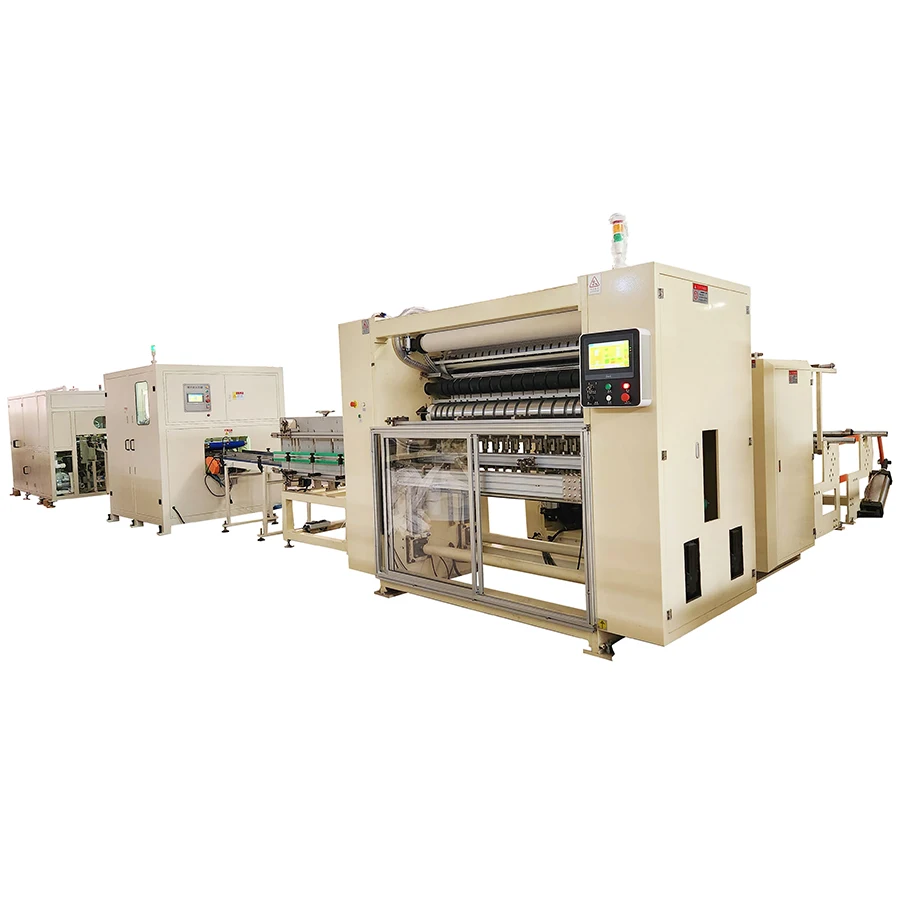

CIL-AS-A-A Fully Automatic N Folding Towel Paper Machine Line
Automatic hand towel production line is consist of hand towel folding machine
with automatic transfer and ,log saw, single bag packing machine.
Machine working smoothly and stable from the raw material to finished products.
This production line is of high
degree of automation, save labor costs, reduce labor intensity, is the best choice
of the production of tissue products.
CIL-AS-288B-N Automatic 7L N-folded Glue Lamination Towel paper Machine
Automatic hand towel production line is consist of hand towel folding machine
with automatic transfer and ,log saw, single bag packing machine.
Machine working smoothly and stable from the raw material to finished products.
This production line is of high
degree of automation, save labor costs, reduce labor intensity, is the best choice
of the production of tissue products.
CIL-AS-288B-N Automatic 7L N-folded Glue Lamination Towel paper Machine
The machine embossing and cutting off the towel paper .

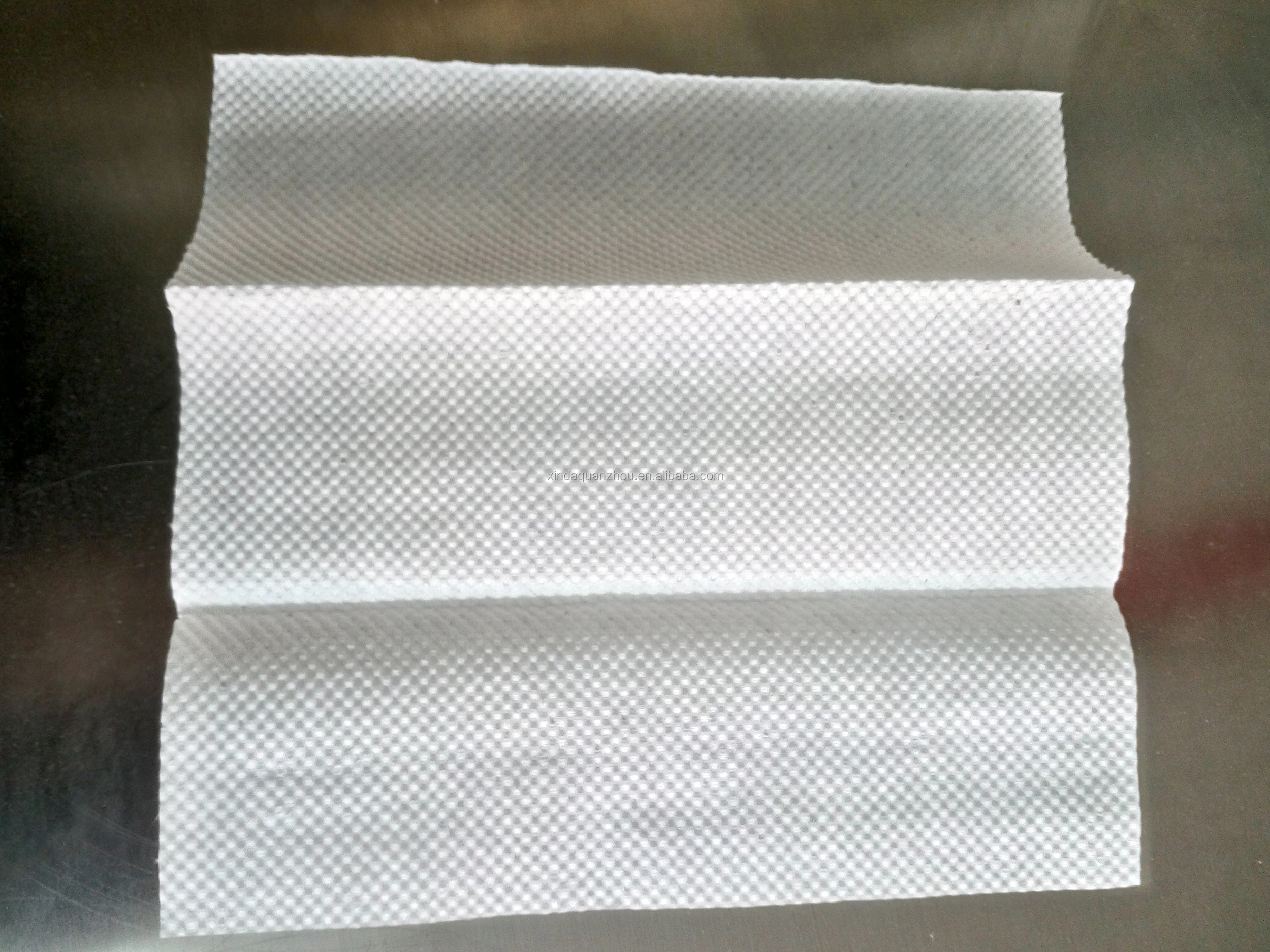

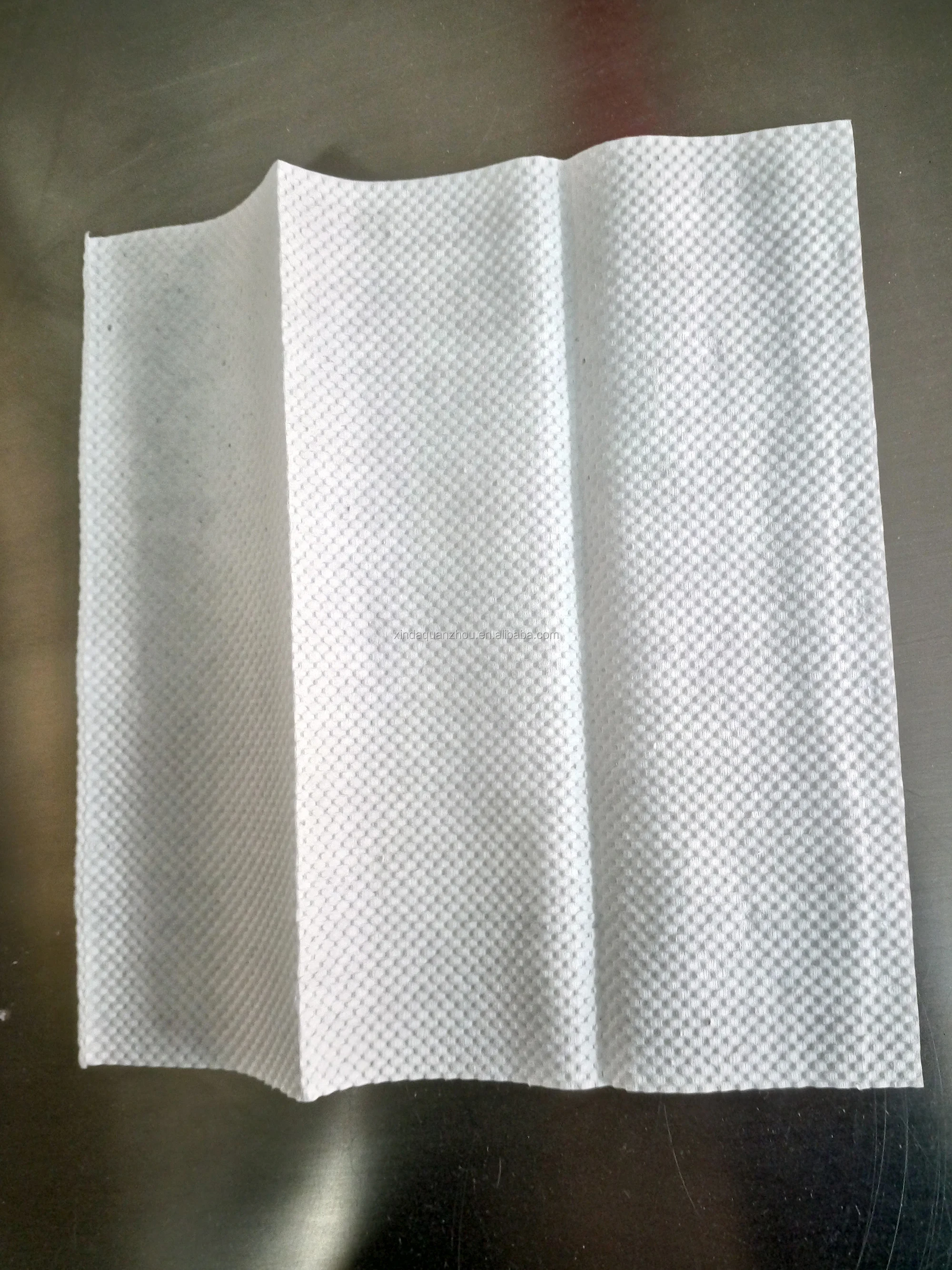

The folding of product is “N” type folding and you can draw it one by one .
This kind of towel paper is used widely in hotel, office and kitchen etc,
that is convenient and sanitation.
We adopt original creation full vacuum absorption technology,
the adaptability of raw material is so strong .The folding,
cutting ,counting etc several processes are going together.
Function and character：
1.Count automatically and output in order.
2.Adopt screw turning knife to cut and vacuum absorption to fold.
3.Adopt step-less adjusting speed to unrell which may fix different tension of raw paper.
4.Control pneumatic with electric convenient to operate.
5.Equip with steel to rubber embossing unit on the machine for hand towel paper.
6. Have a wide range of production width for user to sale conveniently.
7.The machine can equip with Inverter according to requirement.
8.Equip with Roots Vacuum Pump.
9.Equip with gluing lamination unit and embossing unit
10.Equip with 2 paper stands
11.Equip with automatic stack separation unit to get the production line without worker,
Which doesn’t need any workers to transfer the paper from the paper folding machine to the log saw cutting machine.
Main technical parameter:
1.Production Speed: 60~100 m/min
Production open size(mm):230(L)x230W
Production fold size(mm):230(L)x76.6W
2.Range of raw material:17-20g/m2(single layer)
Width of the raw jumbo roll:1400mm
Diameter of the raw jumbo roll:1200mm
Inner core diameter :76.2mm
3.Power:25Kw (380V 50Hz)
4..Overall size (m): 6.6×2.5×2.1(L×W×H )
5. Compressed air pressure(MPA)：0.5
6.Weight: about 7.5T
CIL-FT-281 Automatic Convolute towel tissue cutting machine
High speed Convolute towel tissue cutting machine
is an important component equipment of tissue paper production line ,
which can greatly improve the level of automation
and production efficiency of the production line.
The machine is strong, beautifully designed, cut tissue
paper precise movements, flat section, and smooth.
Configuration as following:
1.With automatic sharpening function
2.Automatic kick waste function
3.Lateral cutting structure, blade higher utilization
4.Sharpening wheels can be automatically adjusted according to
the degree of wear of the blade sharpening;
5.Equip with the automatic overturning unit for the lying towel paper to cut.
Main technical parameter:
1.Speed :100-130mm 140 cuts/min,
200-230mm 80 cuts/min
Cutting length:90-250 adjustable
Cutting width:90-200mm
2.Power of main motor:2.2KW
3.Power of cutter motor:2.2 KW
4.Power of convey servo motor :1.5 KW
5.Overall size:3000*1700*1700mm
6.Weight:2.0T

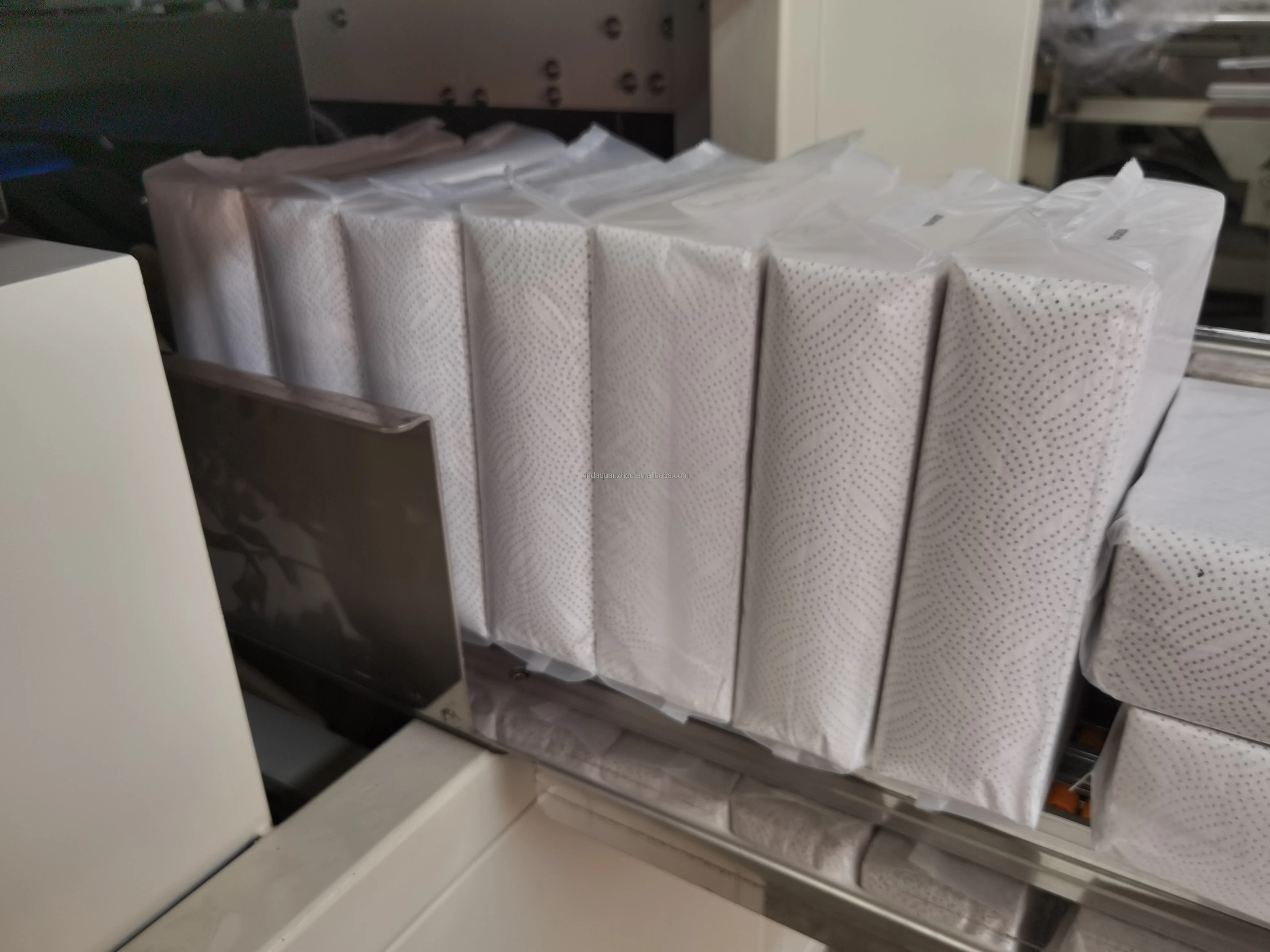

This machine use plastic bag film to pack N ,V or M folding hand towel paper.
Function and characteristic:
1.Touch screen man-machine interface, convenient and quick parameter setting,
2. Automatic fault diagnosis function, fault display at a glance.
3. From bagging to seal forming, the whole process are protected by side guard,
effectively avoid the phenomenon of broken bags
4. The constant temperature of the hot plate control by imported temperature controller
ensure that the seal is more reliable and no false seal
5. Four directions for dynamic supporting mechanism,
and effectively improve the stability and open the bag bag
Technical parameter:
1)Packaging Specifications(MAX): 20-30 bags per min
2)Packing size:
L150~220mm*W120-200mm*H80-100mm
3)Packing film: CPP/PE/PT pre-made plastic bags
4)Roll film width:≦180mm
Roll film diameter:≦600mm
Roll film core diameter:75mm
5)Machine size(L*W*H):4.7x1.1x1.9m
6)Total Power Supply: 3.0kw AC
The folding of product is “N” type folding and you can draw it one by one .
This kind of towel paper is used widely in hotel, office and kitchen etc,
that is convenient and sanitation.
We adopt original creation full vacuum absorption technology,
the adaptability of raw material is so strong .The folding,
cutting ,counting etc several processes are going together.
Function and character：
1.Count automatically and output in order.
2.Adopt screw turning knife to cut and vacuum absorption to fold.
3.Adopt step-less adjusting speed to unrell which may fix different tension of raw paper.
4.Control pneumatic with electric convenient to operate.
5.Equip with steel to rubber embossing unit on the machine for hand towel paper.
6. Have a wide range of production width for user to sale conveniently.
7.The machine can equip with Inverter according to requirement.
8.Equip with Roots Vacuum Pump.
9.Equip with gluing lamination unit and embossing unit
10.Equip with 2 paper stands
11.Equip with automatic stack separation unit to get the production line without worker,
Which doesn’t need any workers to transfer the paper from the paper folding machine to the log saw cutting machine.
Main technical parameter:
1.Production Speed: 60~100 m/min
Production open size(mm):230(L)x230W
Production fold size(mm):230(L)x76.6W
2.Range of raw material:17-20g/m2(single layer)
Width of the raw jumbo roll:1400mm
Diameter of the raw jumbo roll:1200mm
Inner core diameter :76.2mm
3.Power:25Kw (380V 50Hz)
4..Overall size (m): 6.6×2.5×2.1(L×W×H )
5. Compressed air pressure(MPA)：0.5
6.Weight: about 7.5T
CIL-FT-281 Automatic Convolute towel tissue cutting machine
High speed Convolute towel tissue cutting machine
is an important component equipment of tissue paper production line ,
which can greatly improve the level of automation
and production efficiency of the production line.
The machine is strong, beautifully designed, cut tissue
paper precise movements, flat section, and smooth.
Configuration as following:
1.With automatic sharpening function
2.Automatic kick waste function
3.Lateral cutting structure, blade higher utilization
4.Sharpening wheels can be automatically adjusted according to
the degree of wear of the blade sharpening;
5.Equip with the automatic overturning unit for the lying towel paper to cut.
Main technical parameter:
1.Speed :100-130mm 140 cuts/min,
200-230mm 80 cuts/min
Cutting length:90-250 adjustable
Cutting width:90-200mm
2.Power of main motor:2.2KW
3.Power of cutter motor:2.2 KW
4.Power of convey servo motor :1.5 KW
5.Overall size:3000*1700*1700mm
6.Weight:2.0T

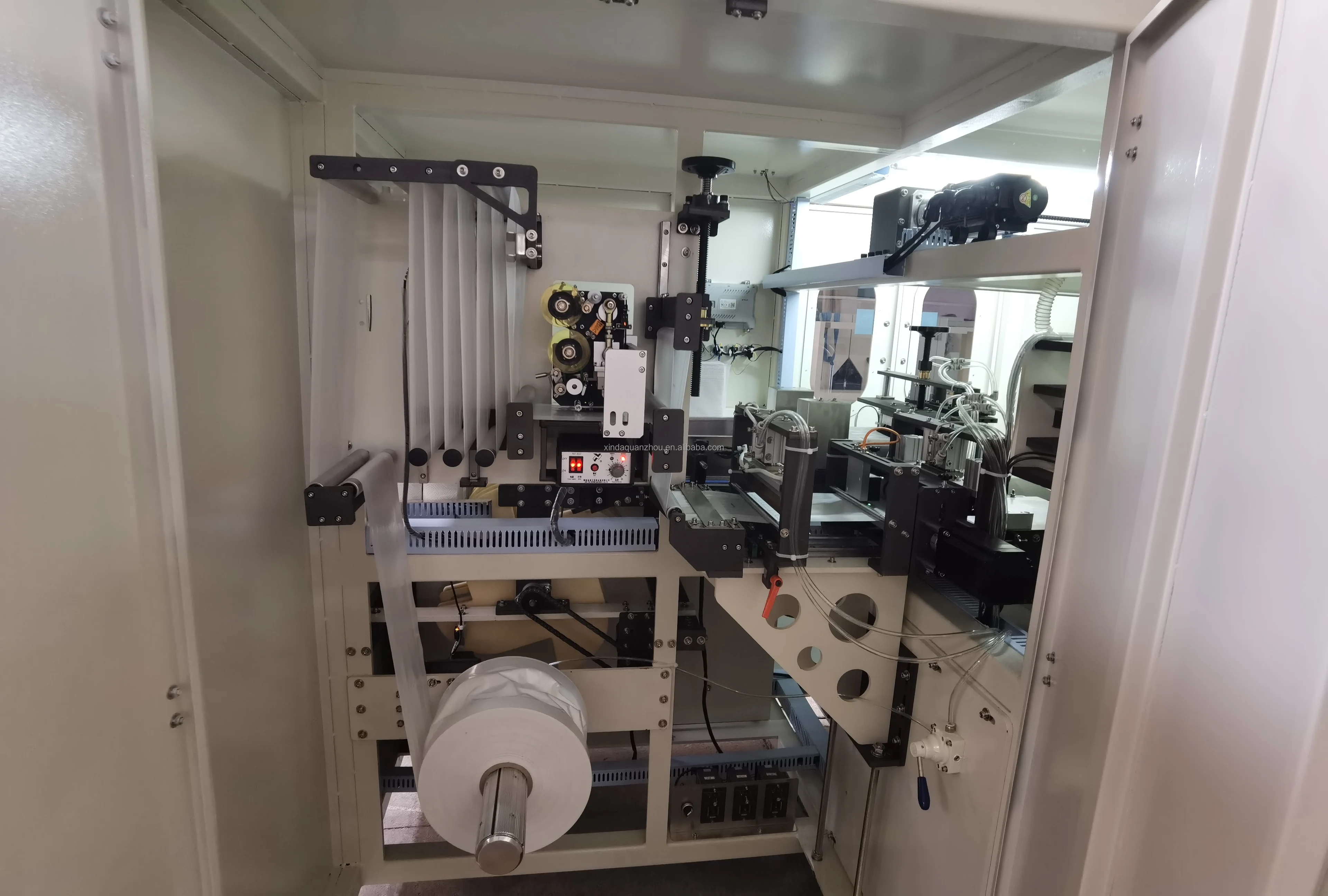

CIL-FT-603 Automatic Folding Hand Towel Paper Packing Machine

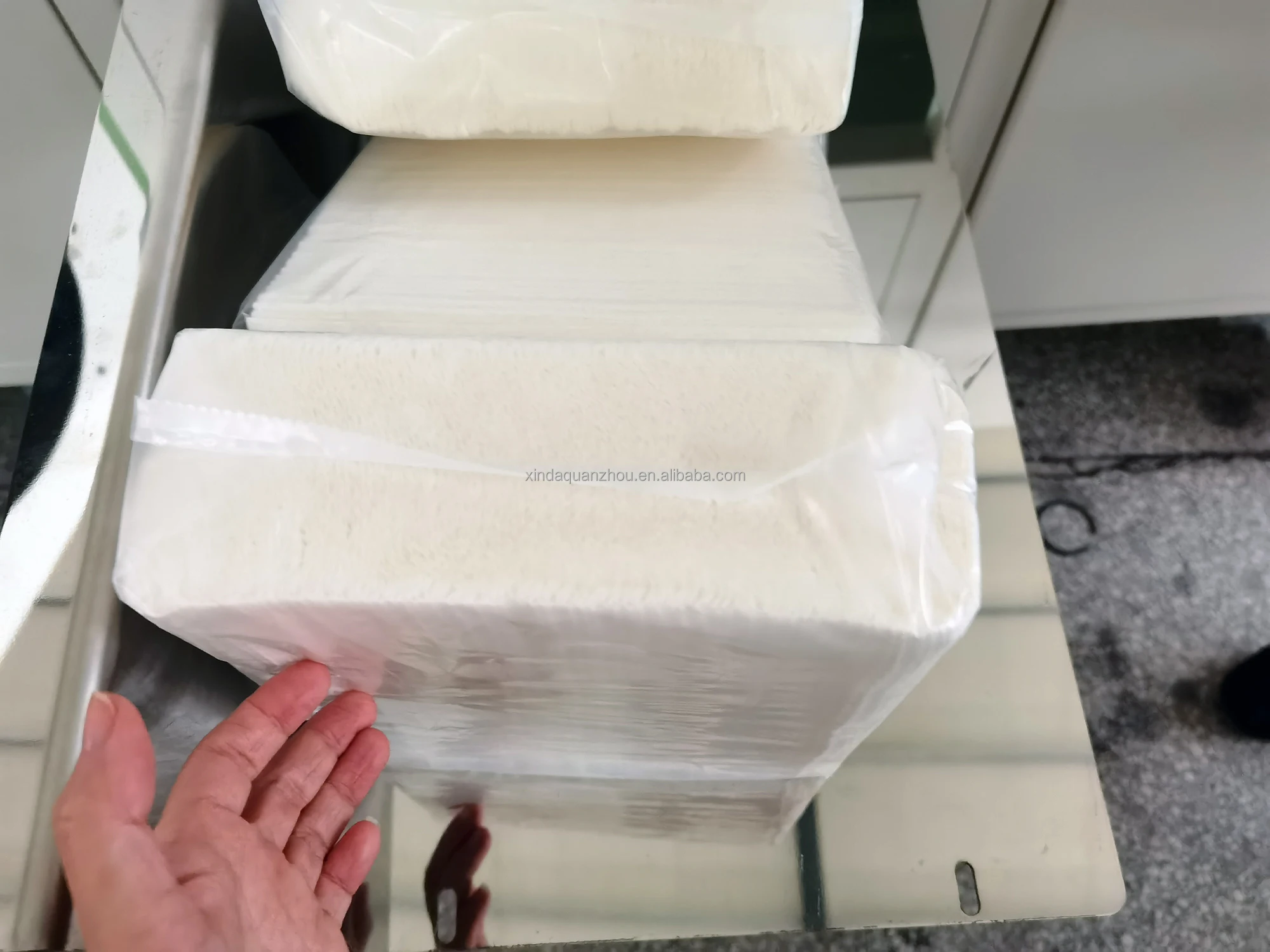

This machine use plastic bag film to pack N ,V or M folding hand towel paper.
Function and characteristic:
1.Touch screen man-machine interface, convenient and quick parameter setting,
2. Automatic fault diagnosis function, fault display at a glance.
3. From bagging to seal forming, the whole process are protected by side guard,
effectively avoid the phenomenon of broken bags
4. The constant temperature of the hot plate control by imported temperature controller
ensure that the seal is more reliable and no false seal
5. Four directions for dynamic supporting mechanism,
and effectively improve the stability and open the bag bag
Technical parameter:
1)Packaging Specifications(MAX): 20-30 bags per min
2)Packing size:
L150~220mm*W120-200mm*H80-100mm
3)Packing film: CPP/PE/PT pre-made plastic bags
4)Roll film width:≦180mm
Roll film diameter:≦600mm
Roll film core diameter:75mm
5)Machine size(L*W*H):4.7x1.1x1.9m
6)Total Power Supply: 3.0kw AC
Our Company
Factory
Our Factory
Workshop
Our Workshop
Packing & Delivery
Packing Details :In Standard Exporting Wooden Case
Delivery Details : 45-60 days after order
1. Special logistics packaging
2. Suitable carton size
3. European packing cases

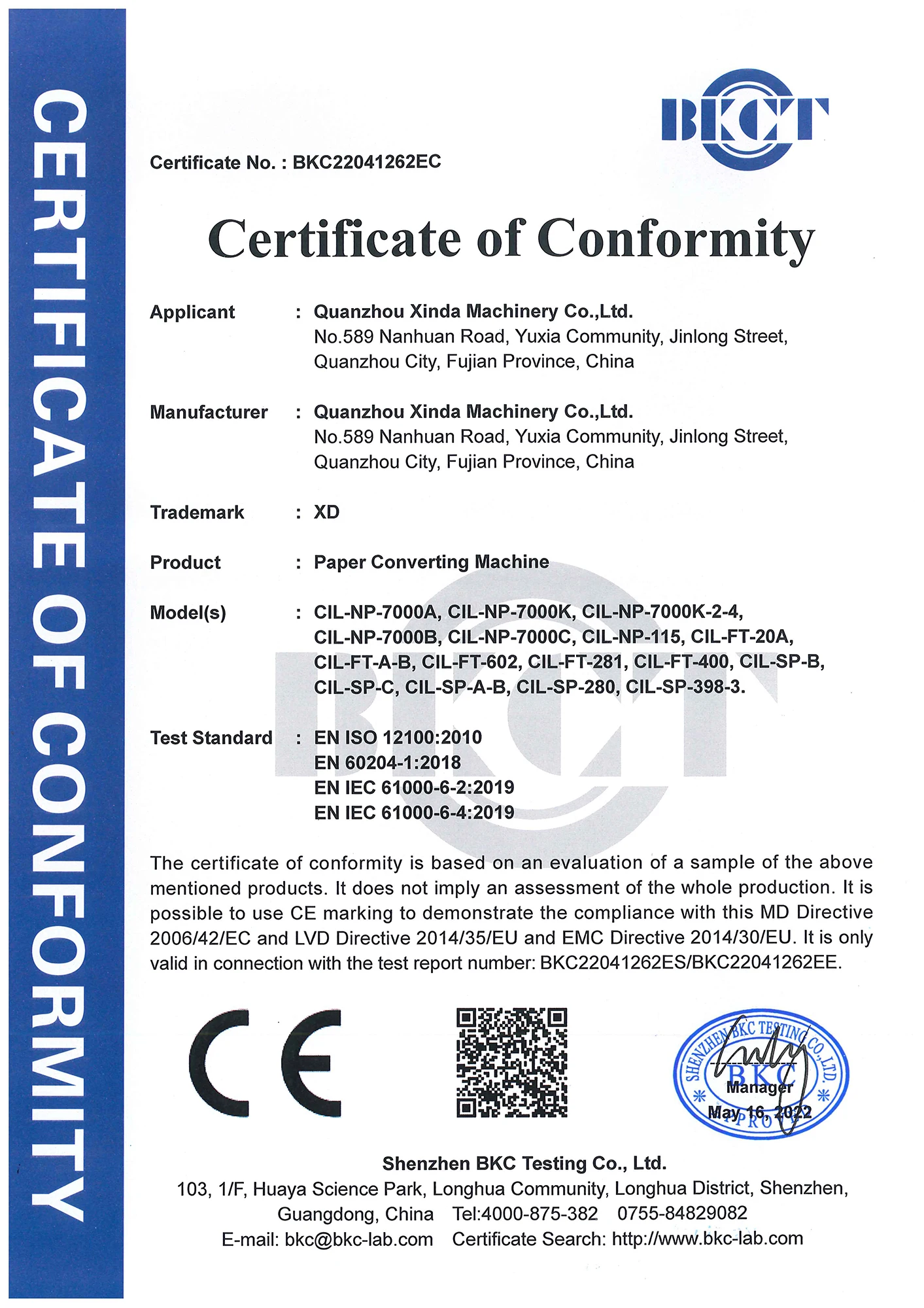

Our Certifications
We Care：
1. Machine Quality
Machine Quality Is Good Or Not, Which Is Not Only Affect The Finished Product Directly, But Also Affect Your Output And Sale.
We, Xinda Machinery, Always Focus On Quality And Are Specialized In This Field For 20 More Years. All Our Machines Are Passed CE Certificates. Choose Xinda Machines, They Can Reduce Your Production Problems.
2. Your Cost
Facial Tissue Paper Is A Product Of Large Consumption And Low Value, But Investing Machines For Making Tissue Paper Is High.
To Take Care Of Your Budget And Cost, Xinda Machinery Recommends Different Series Machine With Different Price Range For Different Markets. Here Will Have What You Want.
Your Customized Order Is Warmly Welcomed. We Will Do Best To Meet Your Needs And Price, Of Course, Is Reasonable.
3. Our Service
1). After The Machine Arrived At Customer’s Plant, If Customer Requests, We Send Our Engineer To Customer’s Factory To Install And Test Machine, And Offer Trainings To Customer’s Technician About 5~15 Days.
2). Lifelong Consult On Quality And Operation Problems.
3). 12 Months Under Normal Use After Machine Arrived At Customer’s Plant.
4). Delivery On Time And Loading Machine Well Before Shipping.
Customer Photo
Favorable Comment
Take Trustworthiness As The Origin
And Take Customer As The First!
Favorable Comment
Very expect your enquiries!!!
We will do best to reply you in the first time, to provide you more detailed information, prices, videos, and apply for a discount to support your project !!!
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 30 days if the goods are in stock. or it is 60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Send your Inquiry Details in the Below for More information & Video & Specifics of Machine, Click “ Send ” Now Please
