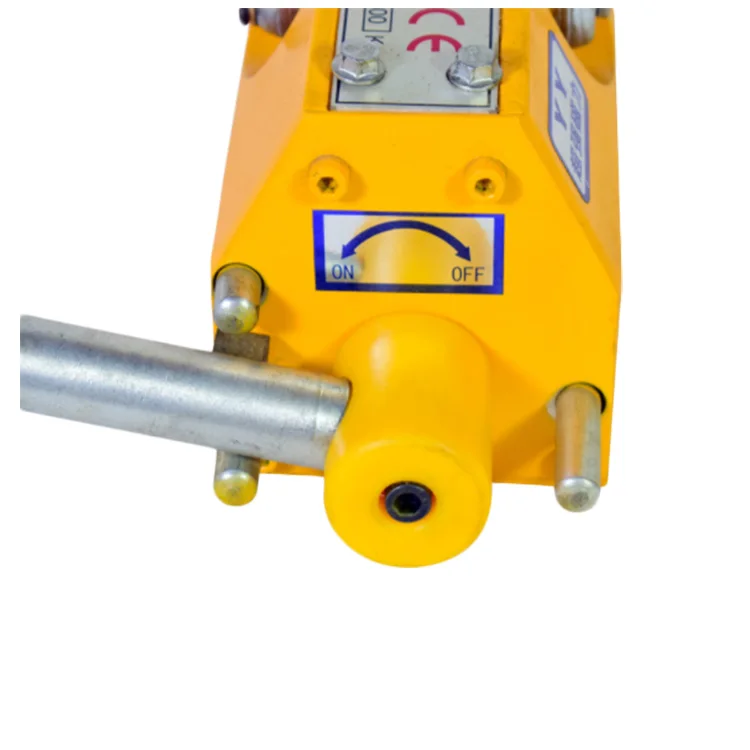

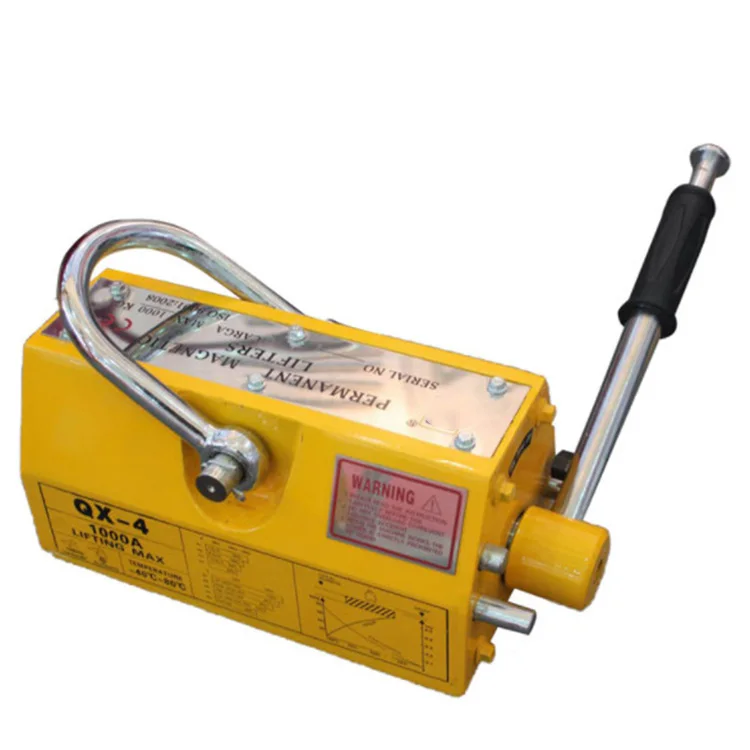

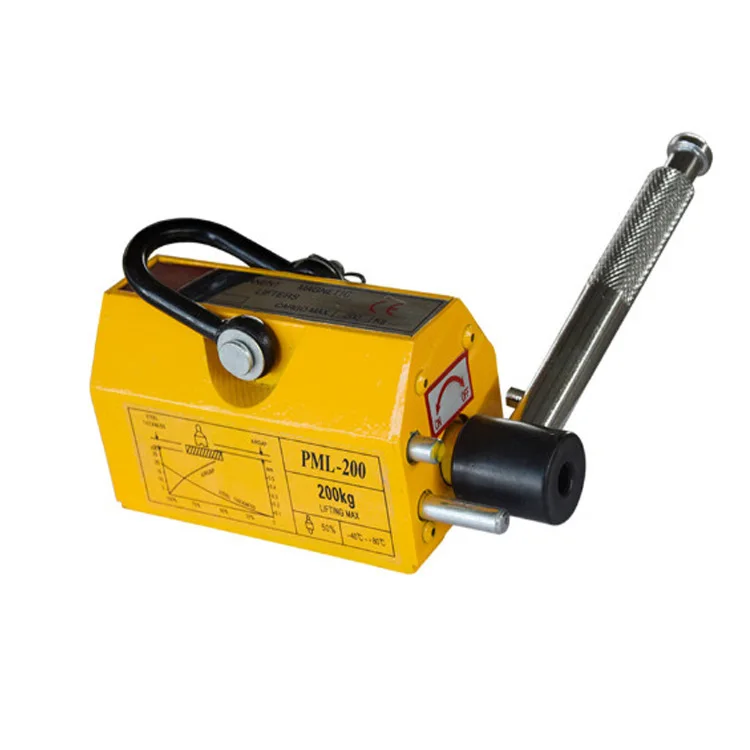

Permanent Magnetic Plate Lifter 200KG Permanent Magnet Jack Chunk Magnet Lifting Device
- Category: Magnetic Lifter >>>
- Supplier: Hebei Jupai Import And Export Trade Co. Ltd.
Share on (62337734988):
Product Overview
Description
Product Description
Permanent magnet chuck, also known as magnetic chuck, is a machine factory, mold factory, and other machining fields widely used magnetic fixture, can greatly improve the magnetic steel material clamping efficiency.Permanent magnet chuck is a high-performance rare earth material ndfeb (N>40) as the core, through the hand to turn the handle of the chuck, so as to change the internal ndfeb magnetic system of the chuck, to achieve the workpiece being processed holding or release.
Name | Lifting permanent magnet |
Safety Factor | 3.5 times |
Capacity | 500kg |
Size | customized |
Packing Size | customized |
N.W | 20kg |
MOQ | 10pcs |
Delivery Time | 7 days for 10pcs |
Payment | L/C,T/T |
FOB Tianjin Port Price | Different quantity different price, please consult our service |
Model | Capacity | Break | size(mm) | Dimension | |||||||
(kg) | load (kg) | N.W(kg) | L*W*H(cm) | ||||||||
L | B | H | R | ||||||||
PML-100 | 100 | 300 | 90 | 63 | 68 | 145 | 3 | 25*16*16 | |||

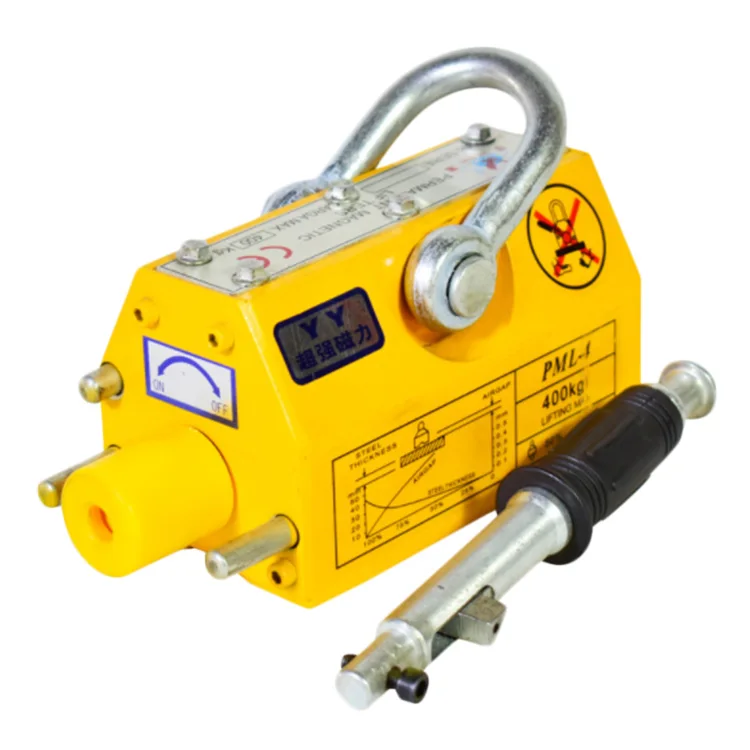

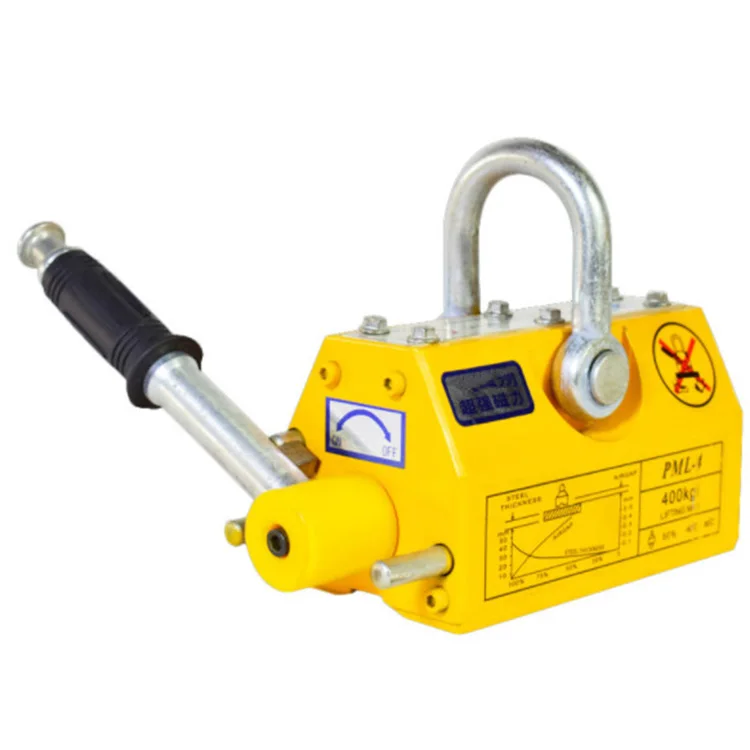

PML-400 | 400 | 1200 | 160 | 95 | 180 | 160 | 11 | 32*20*17 | |||
PML-600 | 600 | 1800 | 220 | 115 | 125 | 230 | 20 | 37*23*21 | |||
PML-1000 | 1000 | 3000 | 260 | 145 | 145 | 280 | 40 | 43*28*24 | |||
PML-1500 | 1500 | 3750 | 310 | 145 | 145 | 280 | 48 | 44*23*26 | |||
PML-2000 | 2000 | 5000 | 340 | 160 | 165 | 410 | 60 | 52*30*31 | |||
PML-3000 | 3000 | 7500 | 420 | 185 | 185 | 510 | 90 | 60*30*31 | |||
PML-5000 | 5000 | 15000 | 580 | 300 | 300 | 650 | 400 | 73*40*48 | |||
Feature
1) the permanent magnet chuck adopts the high-performance permanent magnet material ndfeb (nd-fe-b) as the core of the product, so that the product volume is smaller, the lifting force is stronger, and the magnetic force is permanent.
2) permanent magnet chuck can be used without electricity, saving power supply trouble.
3) optimized magnetic circuit design of permanent magnet chuck, making remanence almost zero.
4) professional design of permanent magnet chuck appearance modeling to make the product more beautiful.
2) permanent magnet chuck can be used without electricity, saving power supply trouble.
3) optimized magnetic circuit design of permanent magnet chuck, making remanence almost zero.
4) professional design of permanent magnet chuck appearance modeling to make the product more beautiful.
Other Models
Types | Rated Lifting Capacity | Length | Width | High | Weight | ||
kg | mm | kg | |||||
PL-300 | 300 | 205 | 90 | 90 | 11 | ||
PL-600 | 600 | 276 | 115 | 106 | 19 | ||
PL-1000 | 1000 | 310 | 150 | 135 | 43 | ||
PL-1500 | 1500 | 380 | 172 | 152 | 68 | ||
PL-2000 | 2000 | 425 | 180 | 160 | 95 | ||
PL-5000 | 5000 | 530 | 260 | 255 | 145 | ||
CUSTOM | 50~8600 | custom | - | - | - | ||
The above is only part of the product model, if you want to know more, please contact customer service.
