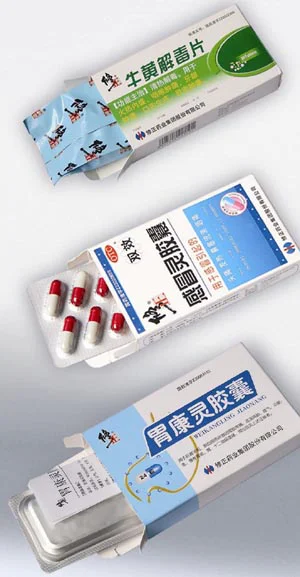

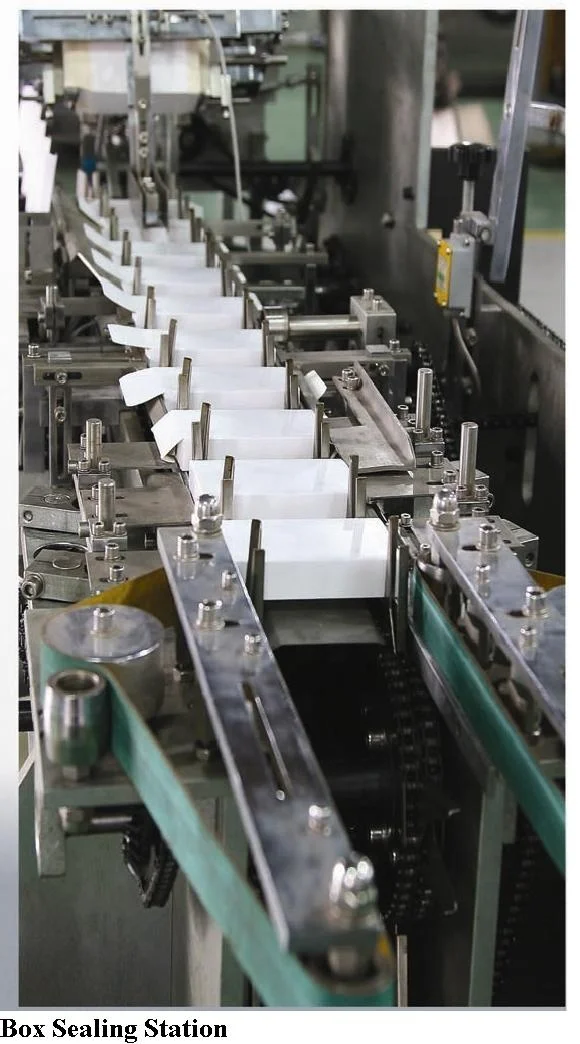

This machine is suitable for cardboard case packaging of blister package for blister package and similar package. It consists of direction folding (1-4 folds) and feeding equipment, cardboard case forming and feeding, batch number printing, sealing of case tongues at both ends etc. The whole encasing process is finished automatically. Widely using in the fields such as pharmaceutical, food, Chemical, hardware, electrical parts, car parts ,plastic ,paper fields etc fields
Features
1. Automatic box taking, opening ,feeding box , data printing ,sealing and reject function can be done in one machine , simple operate
2. Servo/step motor drive , plc +touch screen control to assure the operate simple and easily
3. Photo sensor detect tracking system, no product no box taking ,save packing material max limit
4. Suitable for big range packaging size, different size can easy change fast without mould
5. Security system like automatically stop when produce not in the right position, Main drive motor have overload protect device to assure the machine running more safe and reliable
6. Up-open protect cover as option to make as the users requirements to make machine more nice looking
7. Can work together with different packing machine like blister packing machine, pillow packing machine, shrink machine ,bottle packing line , labeling machine , printing machine , check weigher etc equipments for a whole automatic line
8. Auto product feeding system can be designed according the actual product character
9. Glue sealing device can be optional according the actual packing requirement
Main Technical Data:
Item
Parameters
Encasing speed
30-100box/min
box
Quality requirement
250-350g/m2
Dimension range (L x W x H)
(65-180)mm x (30-85)mm x (15-50)mm
Leaflet
Quality requirement
60-70g/m2
Unfolded leaflet specification
(80-250)mm x ( 90-170)mm
Folded leaflet specification(1-4)
(90-170)mm x (25-40)mm
Compressed air
Working pressure
≥0.6mpa
Air consumption
120-160L/min
Power supply
220v 50hz
motor power
1.75kw
Machine dimension
3100 x 1100 x 1900(mm)
Machine weight
1500kg

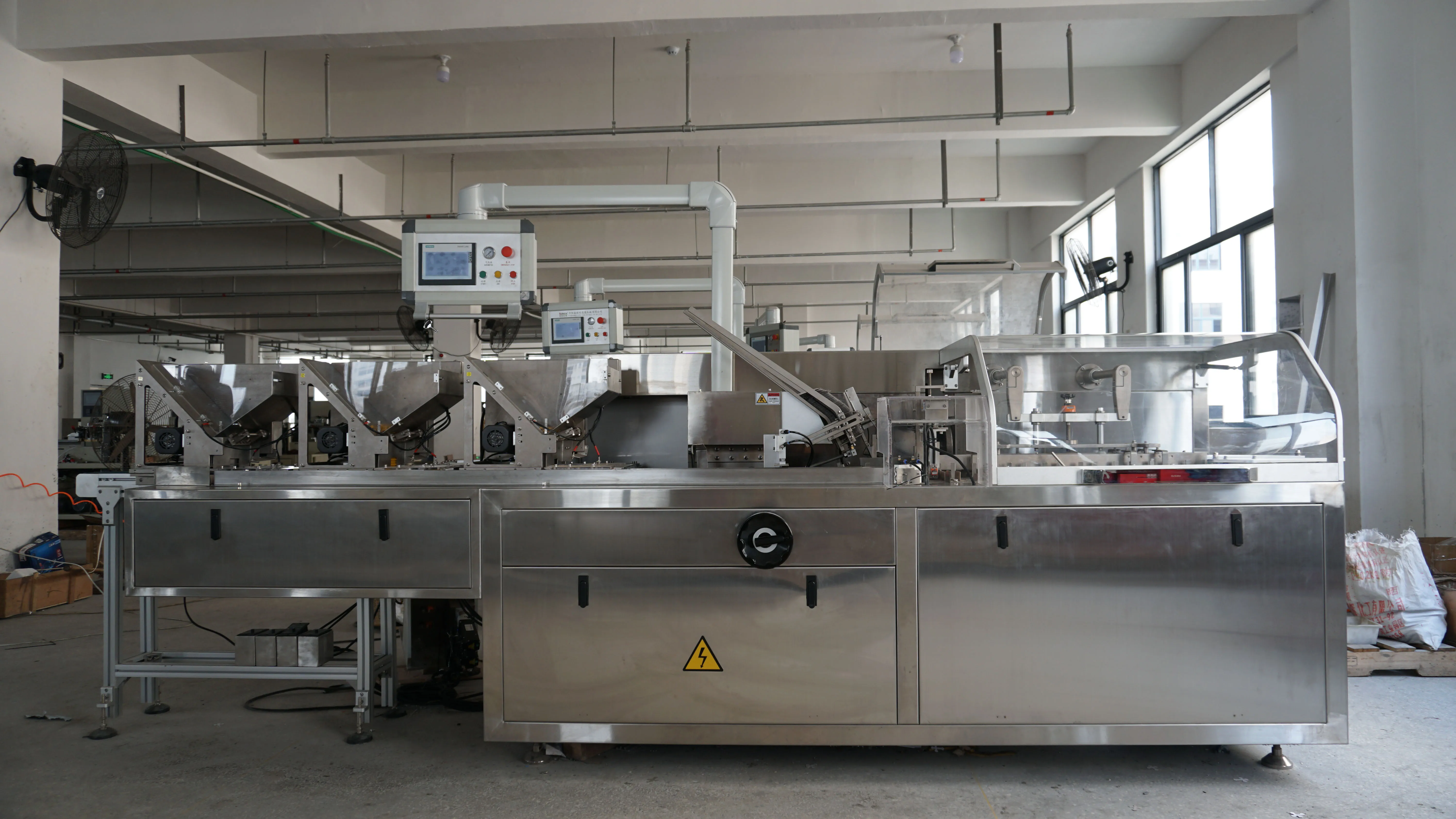

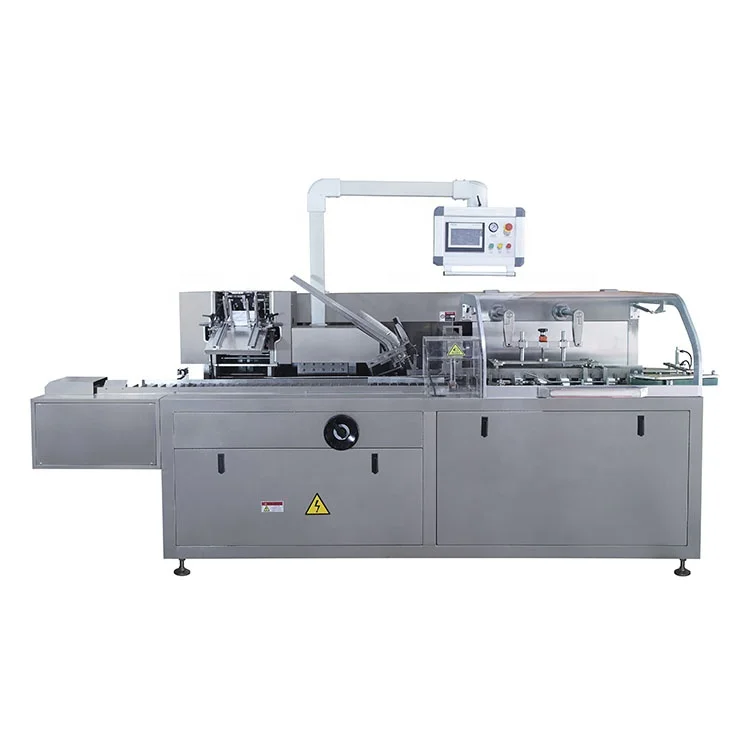

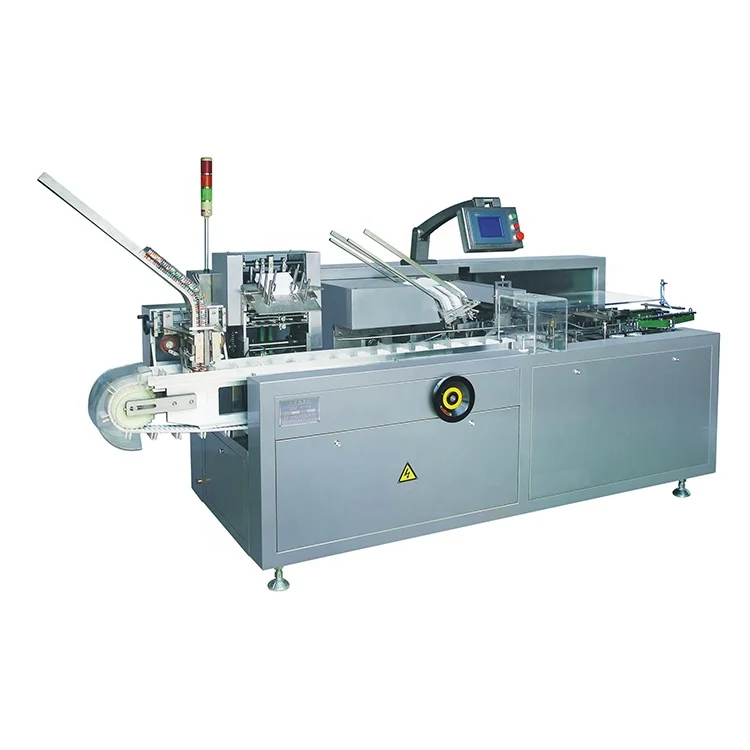

Product Picture:

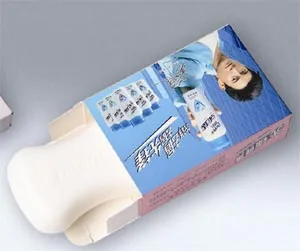

Different product, Different dispose, the machine appearance and size will be different.
Ruian Antai Pharmaceutical Machinery Co., Ltd. (Antai) is located in the Chinese Packing Machinery City. Equipped with strong technical capabilities and advanced production equipment, we integrated scientific research, manufacture, and sales service. We develop our different series of packing machines by modern techniques. In September 2000, our company became a member of China Association for Pharmaceutical Equipment. Moreover, we manage our company in accordance with ISO9001:2000 and 5S systems. We also provide pharmacy equipment and foodstuff equipment according to GMP requirements and CE authentication. In 2007, we obtained independent foreign trade rights by The People's Republic of China.With the characteristics of multiple functions, steady performance, and good appearances, our products have reached the leading level of the similar domestic products. They are sold well in more than twenty provinces and cities in China and also have been distributed to such countries and areas as America, Russia, Africa, Pakistan, Philippines, Lebanon, East Europe, Asia, the Middle East and Hong Kong. Antai has been working hard for 10 years. Antai, a professional packaging machine manufacturer, has always insisting on taking the way of developing enterprise by taking honesty and credit as foundation and creating new high-tech products continuously. Let's cooperate sincerely, keep pace with the times and create brilliance together.
Factory Information
Factory Size: 1,000-3,000 square meters
Factory Country/Region: No. 501, 2nd Development Road, Economic Development Zone, Dongshan Street, Rui'an City, Wenzhou City, Zhejiang Province,China
No. of Production Lines: 1 Annual Output Value: US$2.5 Million - US$5 Million
Company Strength
Telephone: 0086-577-58907556 Mobile Phone: 0086-13738752788 Fax: 0086-577-65673189
Packaging & Shipping
FAQ
Q:Are you factory or a trading company.
A: We are Manufacturer of pharmaceutical machinery for more than 18 years. We provide perfect after-sale services.
Q: Can you send me the video to show how the machine works.
A: Certainly, we have many videos for reference.
Q: How can I know your machine is design for my products.
A: You can send us samples of your products and we will test it on machine.
Q: How can you ensure the machine’s quality after we put the order?
A: Before the delivery, we will send you machine’s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
