This type egg tray machine uses waste paper as raw material to produce the egg trays for chicken farm factory or other customer who needs the trays. It can make many simple shape and large quantity demand egg trays, apple trays, egg cartons, egg boxes, wine trays, shoe trays, etc..using waste paper as raw material.

• Condition:New


• Product Type:Egg Tray Machine


• Processing Type:Pulp Molding Machine


• Place of Origin:Shandong, China (Mainland)


• Brand Name:Wanyou

Process flow

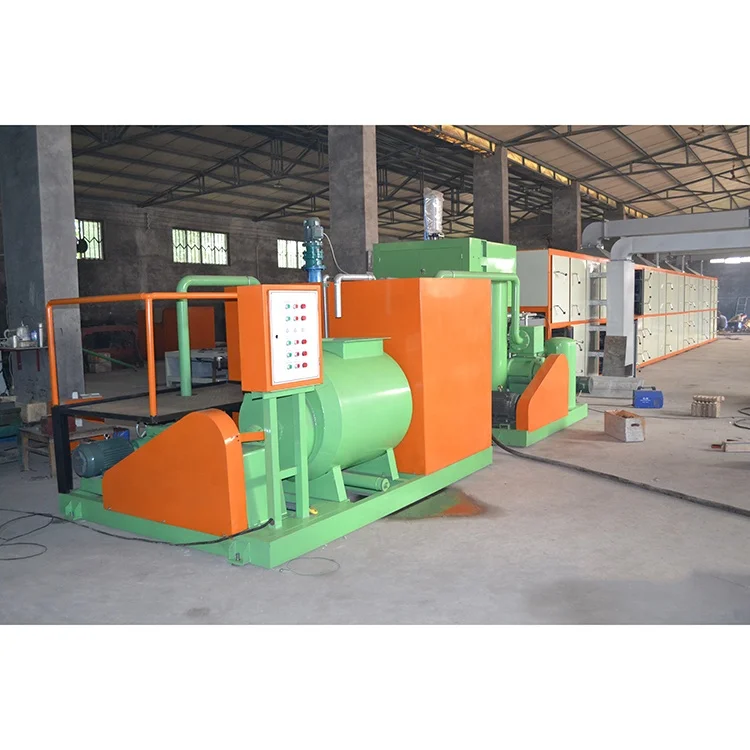

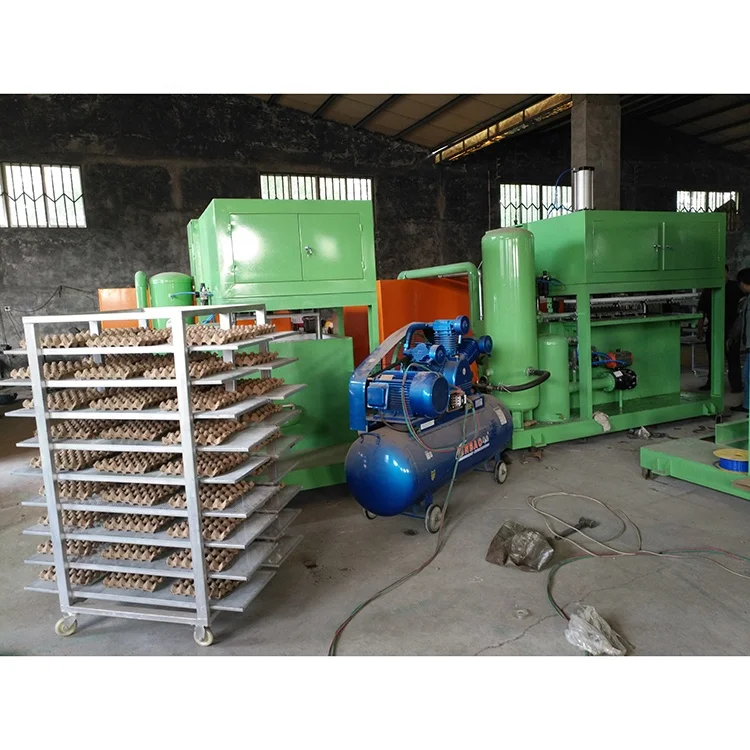

The Egg Tray production line is mainly combined by THREE PARTS:

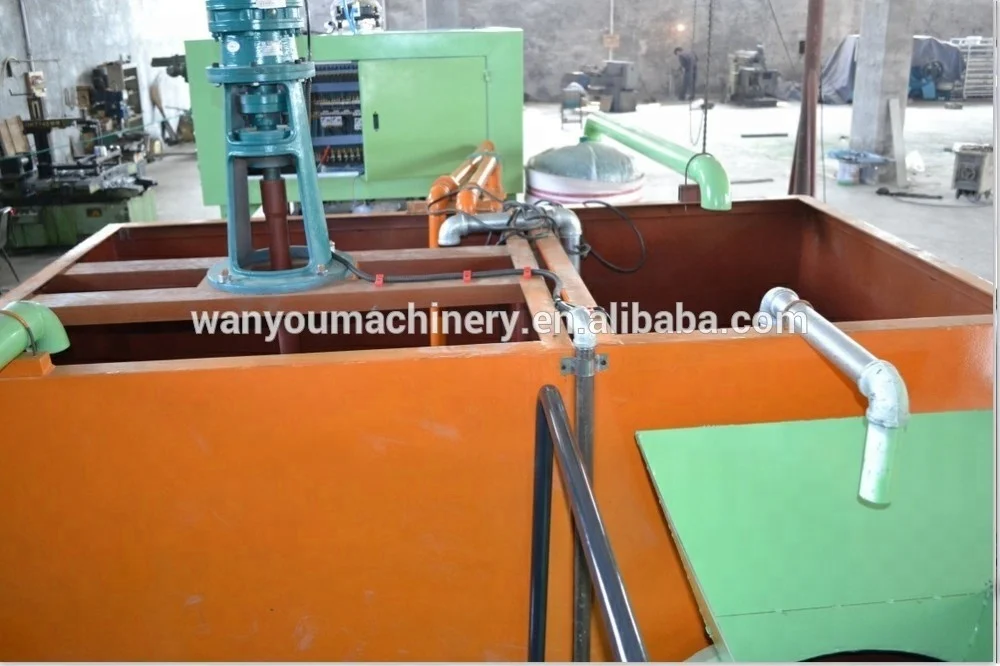

 1. Pulping system: Use waste paper and water as raw material and pulp up;

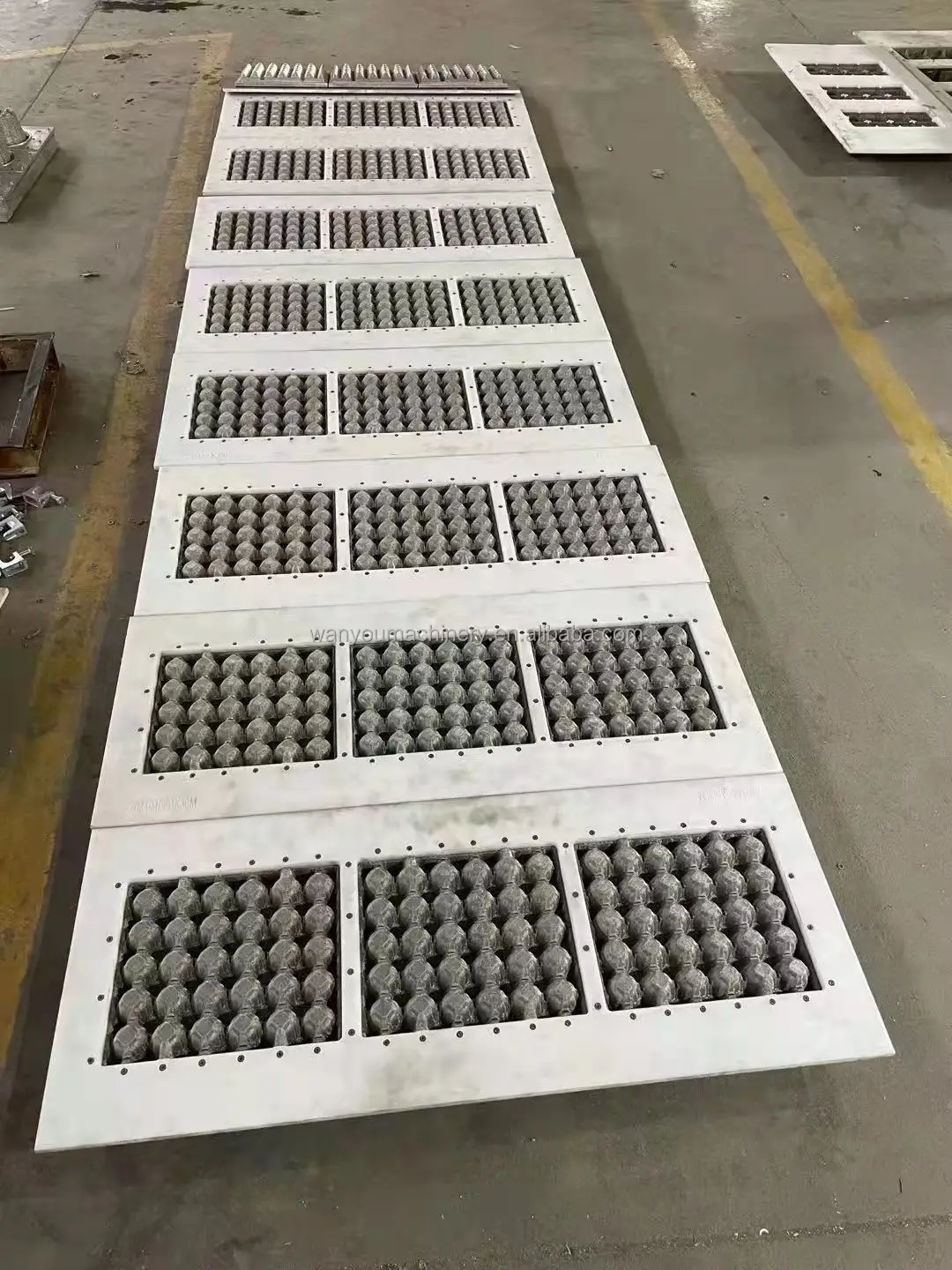

 2. Forming system: The pulped material being delivered to Product Tray molds, and forming to the Product Tray plate shape;

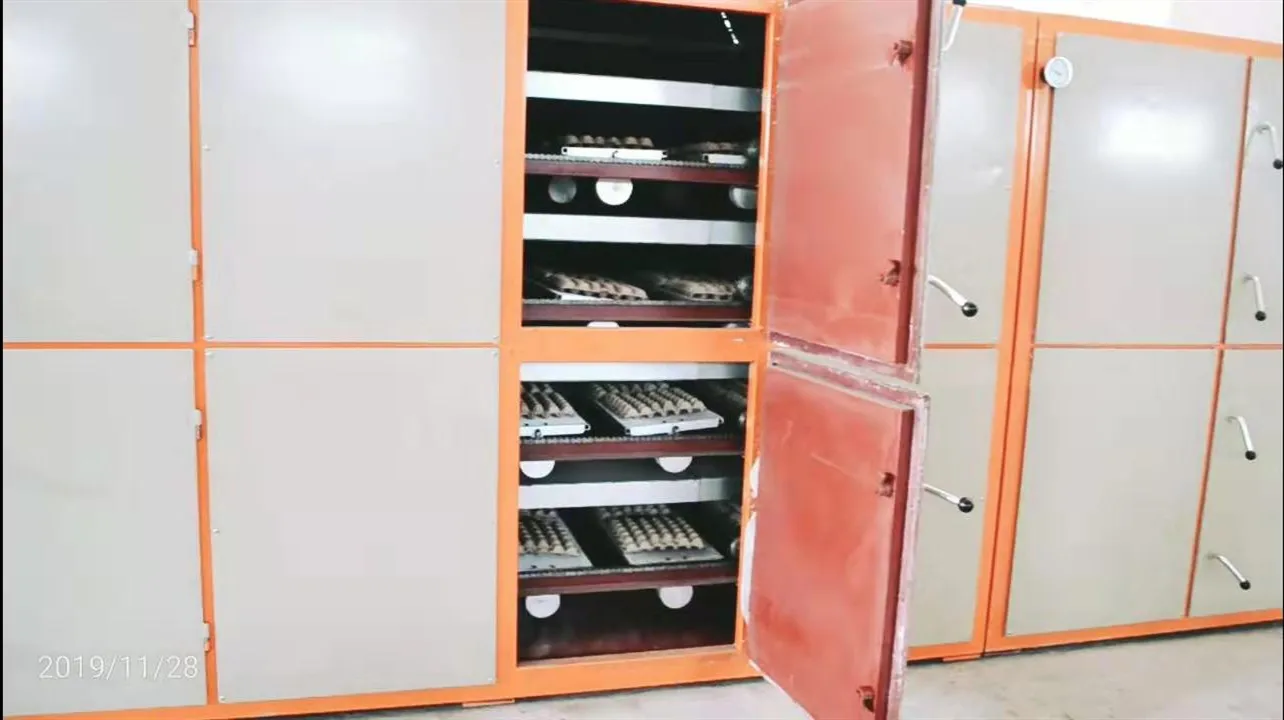

 3. Drying system: The formed Product Tray plate being delivered to Dryer, and come up to Completed Strong Product Tray plate

The drying system is with one boiler. The drying system can use electricity, diesel, coal, natural gas as energy. Customers must first confirm which kind of energy they will use before our production.

Our production line has Fully Automatic and Semi Automatic two types , both have computer control system.

If you don’t want this drying system, it is also OK.  Then you will have to do the work of drying up the product trays manually.

Our machine can be designed to make different products at same time by one Working Table (with 2 Molds or even 3 molds)

Some world famous brands of our egg tray machine:

1. the cylinder’s brand—FESTO

2. the electromagnetic valve’s brand—SHAKO

3. the pneumatic ball valve’s brand—SUPU

4. all the pump and motor are using famous brand of China.

5. the electric appliance’s brand—CHINT

6. the computer controller(PLC)–DELTA

7. the burner– BALTUR/RIELL
