Маленькая дробилка для дерева и бамбука

Product Overview

Description

Widely used wood shaving machine, wood pallet crusher ,wood chip crusher for sale

Sawdust Machine, Wood Crusher, Wood machine is used to crush the wood, branches and bamboo etc into Sawdust or shavings.It is suitable for branch and many kinds of waste wood whose diameter is between 3cm-20cm.



1. Application of wood sawdust machine:

Sawdust mchine also named wood crushing machine and wood crusher, it can crush wood logs,wood block and wood waste into sawdust and granular with different fineness.



2. Characteristics of wood sawdust machine:

This type of sawdust machine made by us is energy-saving type and easy to operate. It is designed and developed according to industrial requirements. It belongs to wood crushing and pulverizing machine. It is finely processed, high efficiency and environmental protection type. It is optional for electricity and diesel so it can meet buyers’ different requirements.



3. Working principle of wood sawdust machine:

It uses blades to cutting and high speed airflow to reduce the wood into sawdust and granular with different fineness. While the blades inside are cutting with a high rotating speed, the rotor generates strong airflow which rotates st the same direction as rotor. As the blades rotate and cut, the airflow crushes the material at the same time. In this way, the speed of sawdust ouput can be increased.



4. Technical data:

Model	Capacity(t/h)	Motor power(KW)	Weight(KG)	Main shaft rotating speed	Cutter diameter	Cutter number
420	1.2	11	130	2800	420	4
500	1.5	18.5-22	210	2800	500	4
600	2	22-30	320	2700	600	4
700	2.5	30-37	450	2100	700	4
800	3	55	650	2000	800	8
1000	4	75+7.5	800	2000	950	8
1200	6	90+11	1100	2000	1200	8

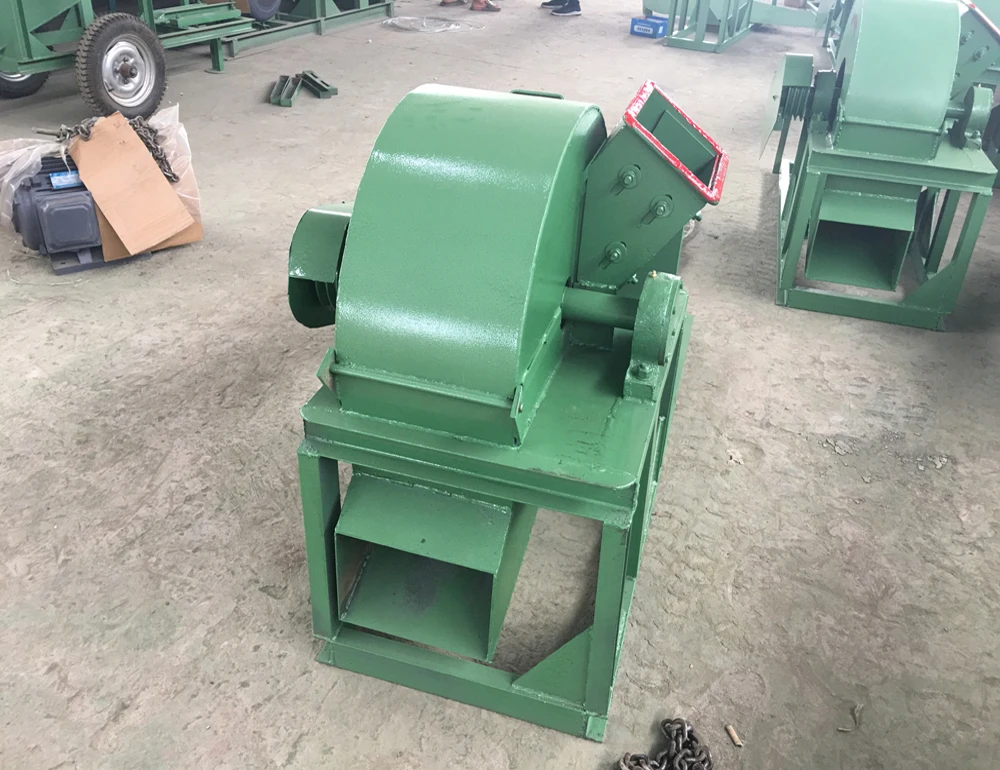

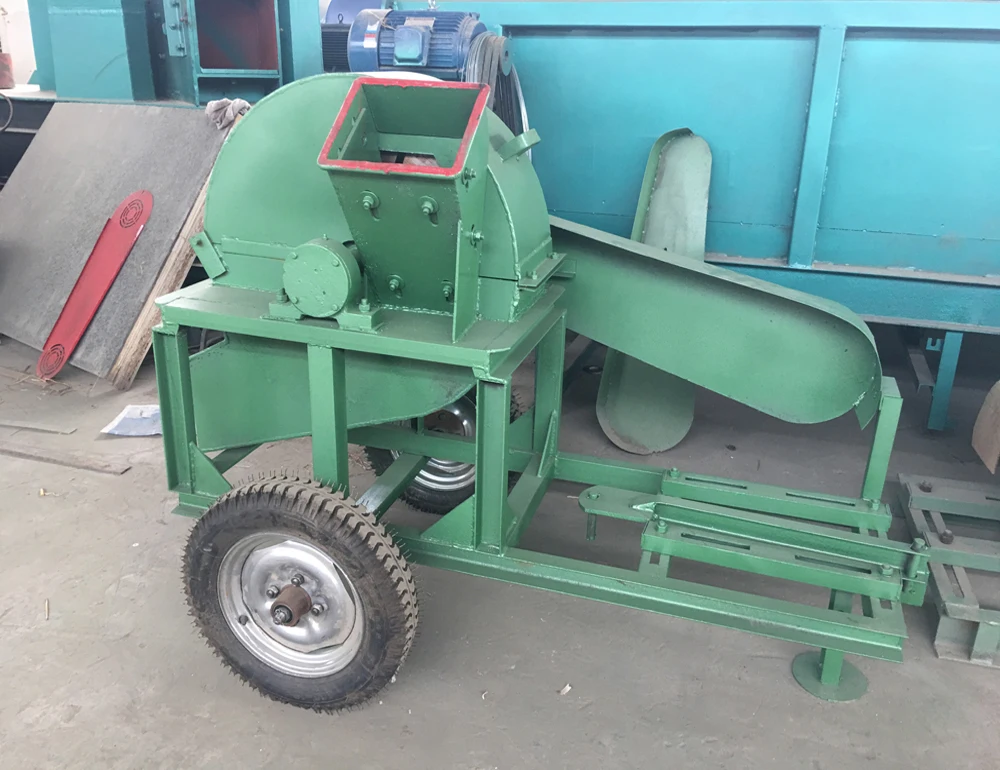

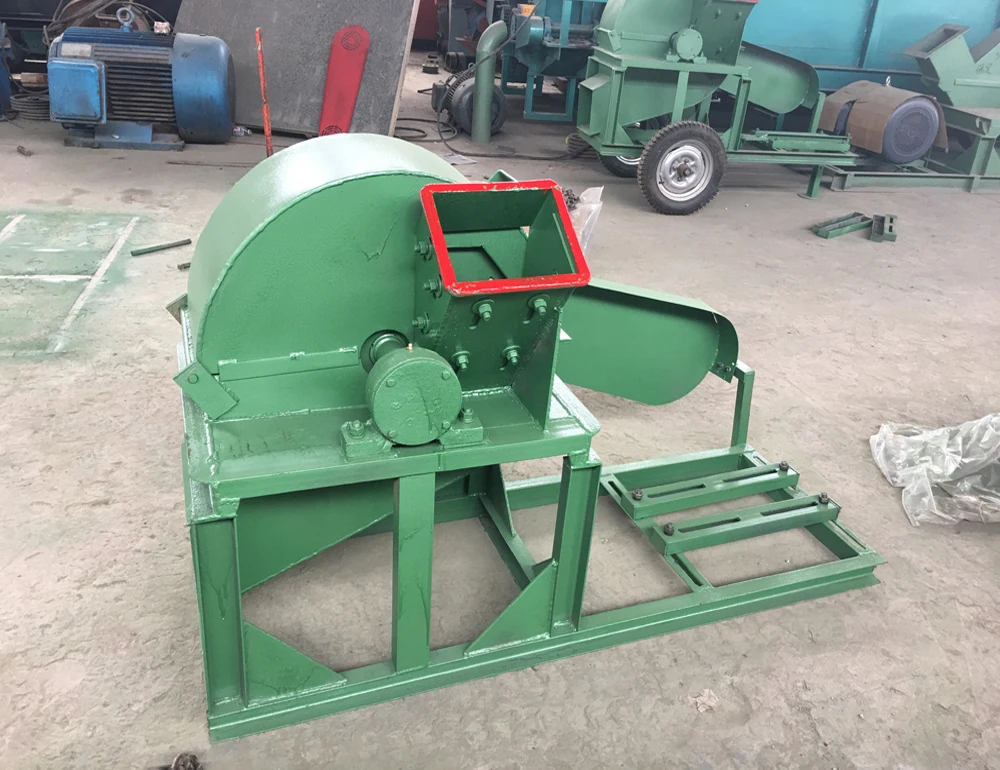

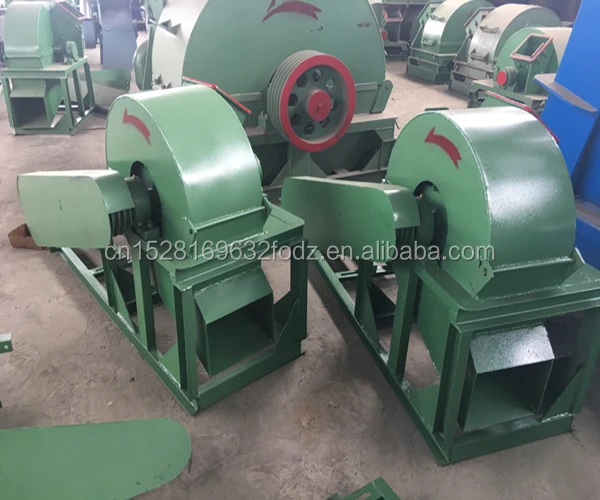

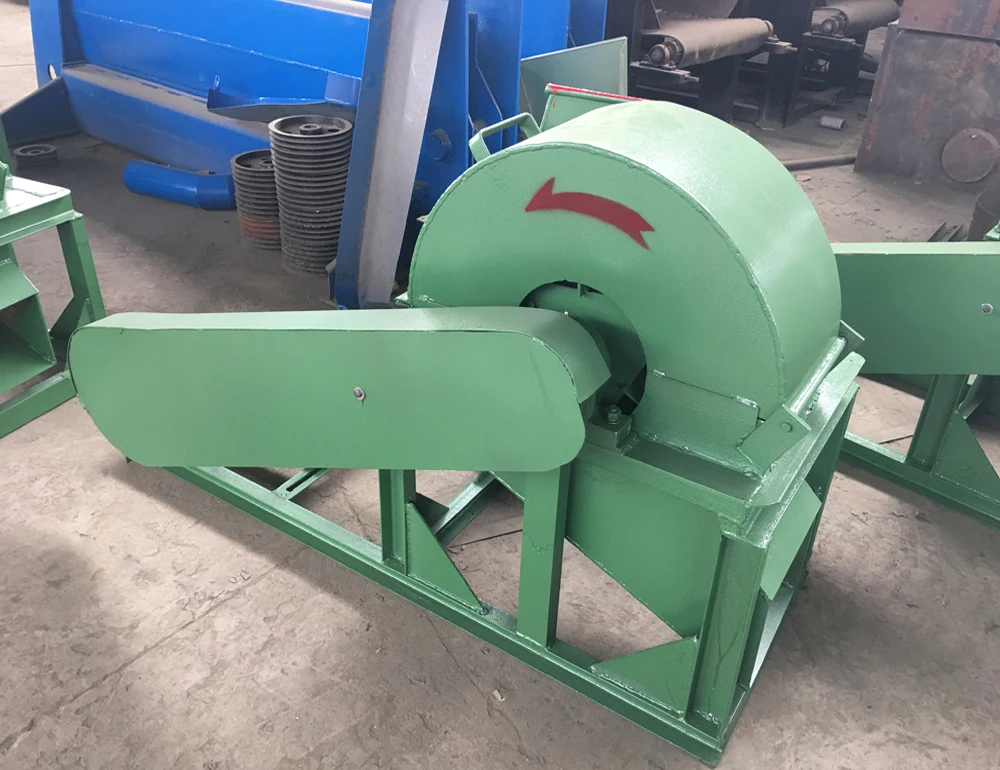

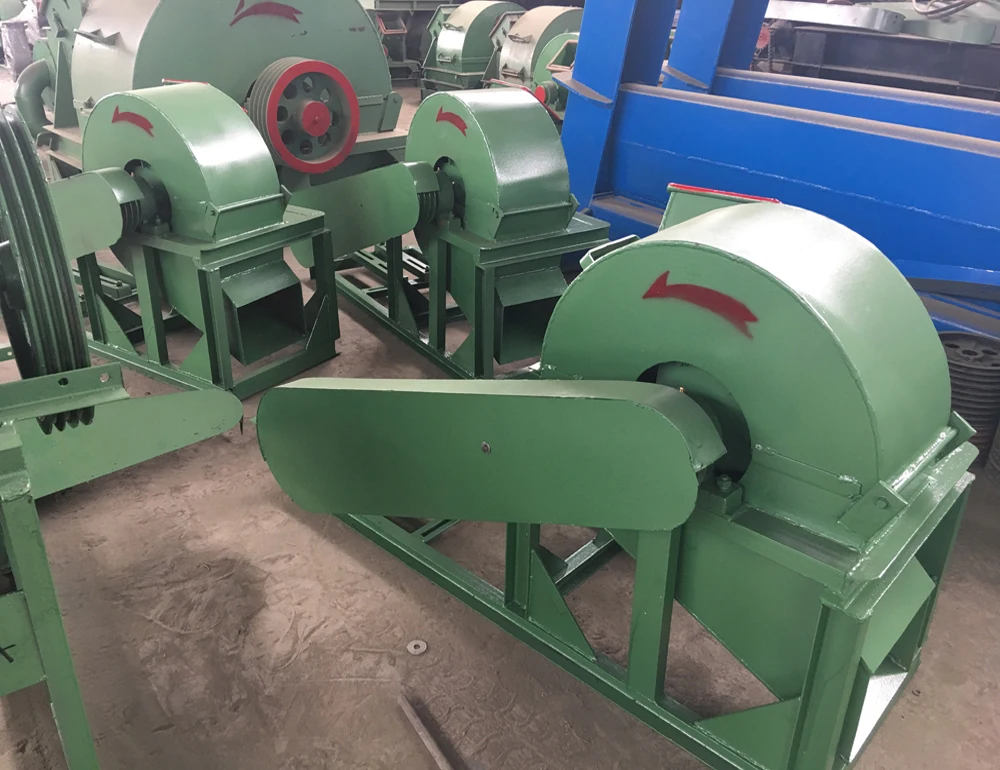

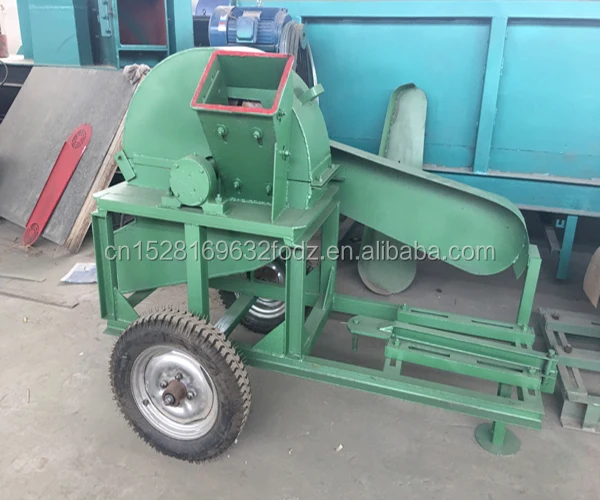

Our machines' pictures:











The effects:
